SKU:WSAL19376

Kurzbeschreibung: 1.3inch OLED Display Module For Raspberry Pi Pico, 64×128 Pixels, SPI/I2C Interface

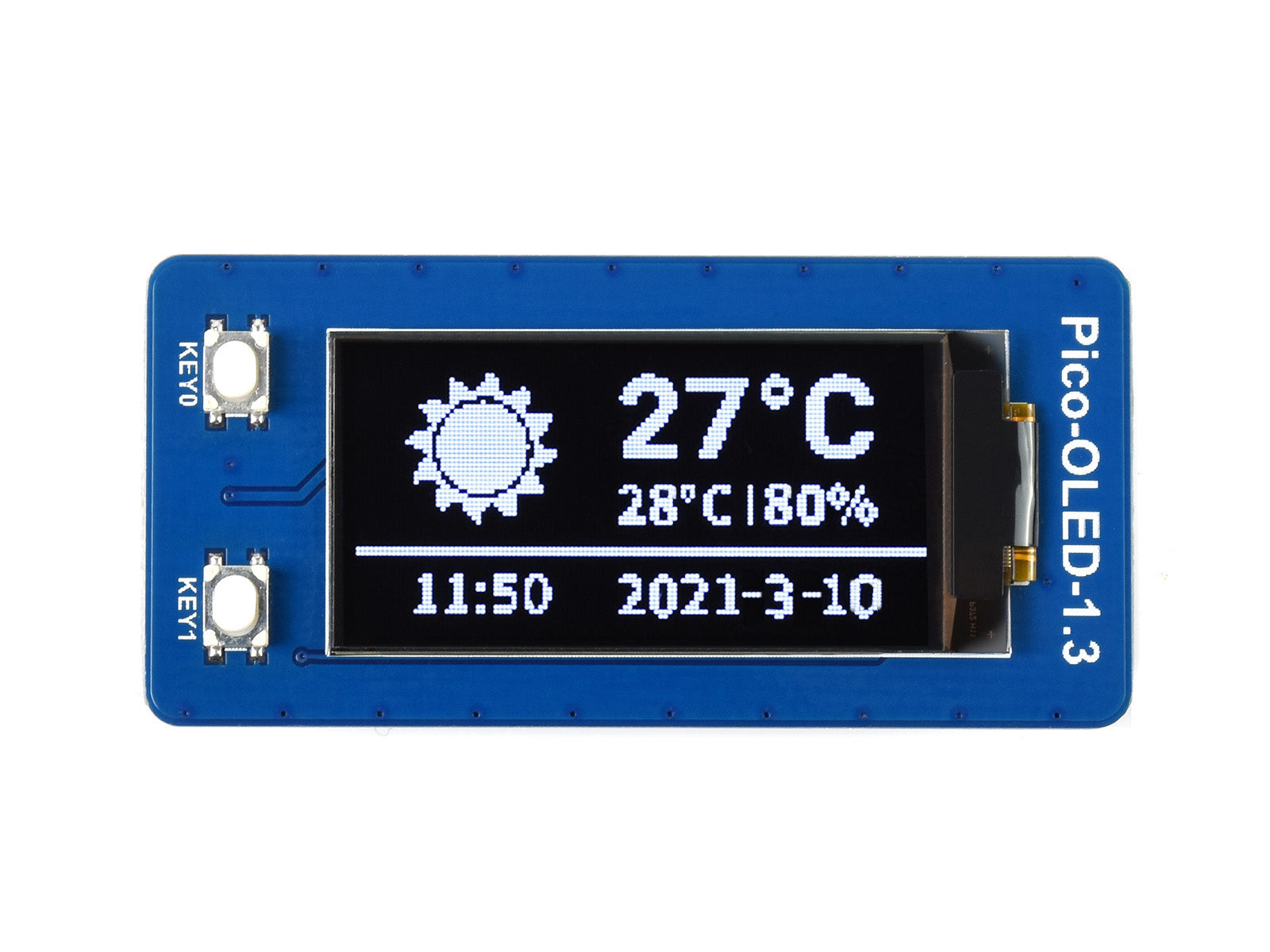

1.3inch OLED Display Module for Raspberry Pi Pico, 64×128 pixels, SPI/I2C Interface

1.3" OLED Display Module for Pico

embedded SH1107 driver, using SPI/I2C bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

• Size1.3"
• Resolution64×128
• Display ColorBlack / White
• InterfaceSPI/I2C
• Display PanelOLED
• DriverSH1107

Features at a glance

• Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate

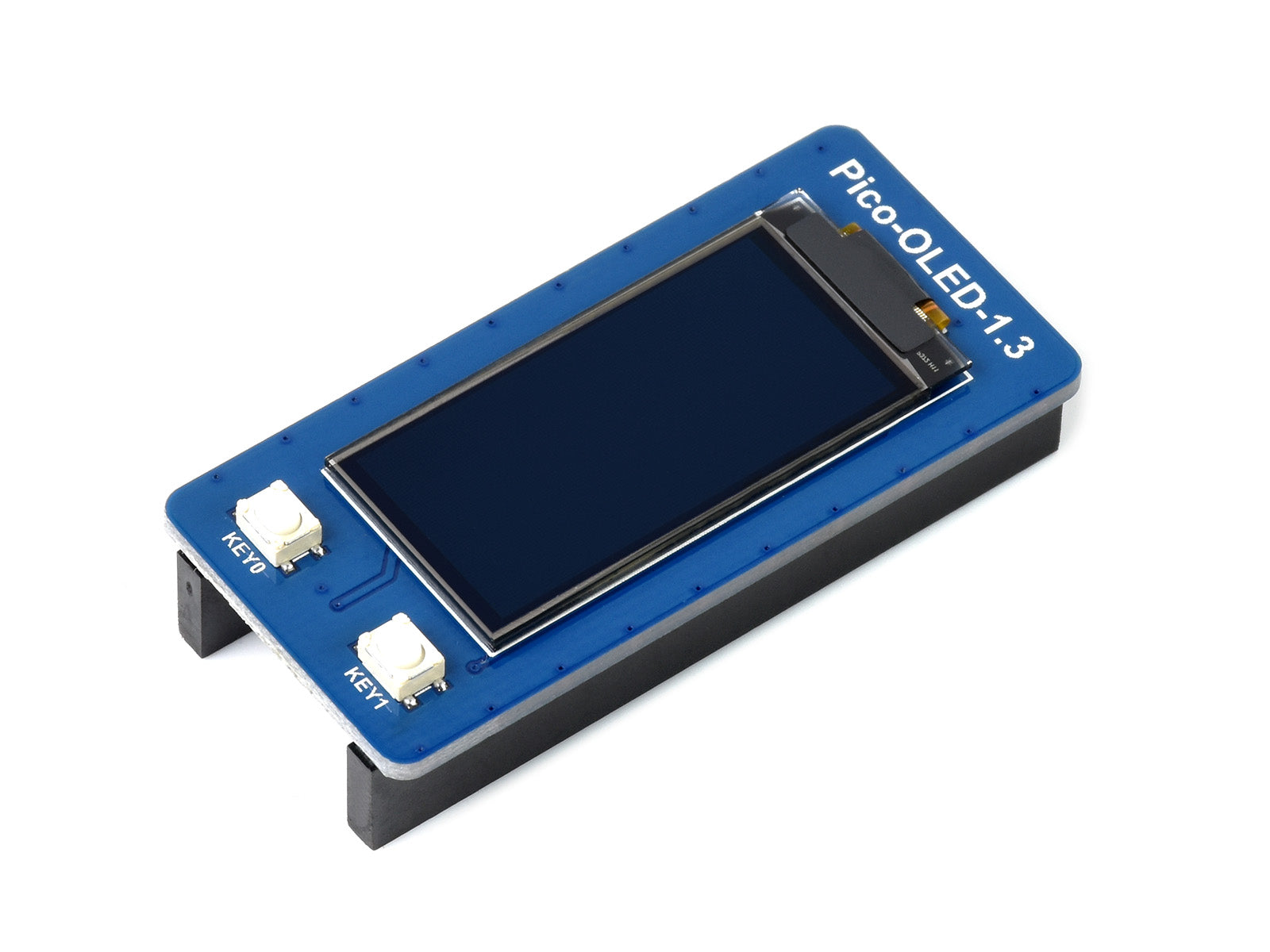

• 2x user buttons for easy interacting
• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage	3.3V	Resolution	64×128 pixels
Communication Interface	4-wire SPI, I2C	Display size	14.70 × 29.42mm
Display Panel	OLED	Pixel size	0.15 × 0.15mm
Driver	SH1107	Dimensions	52.00 × 25.00mm

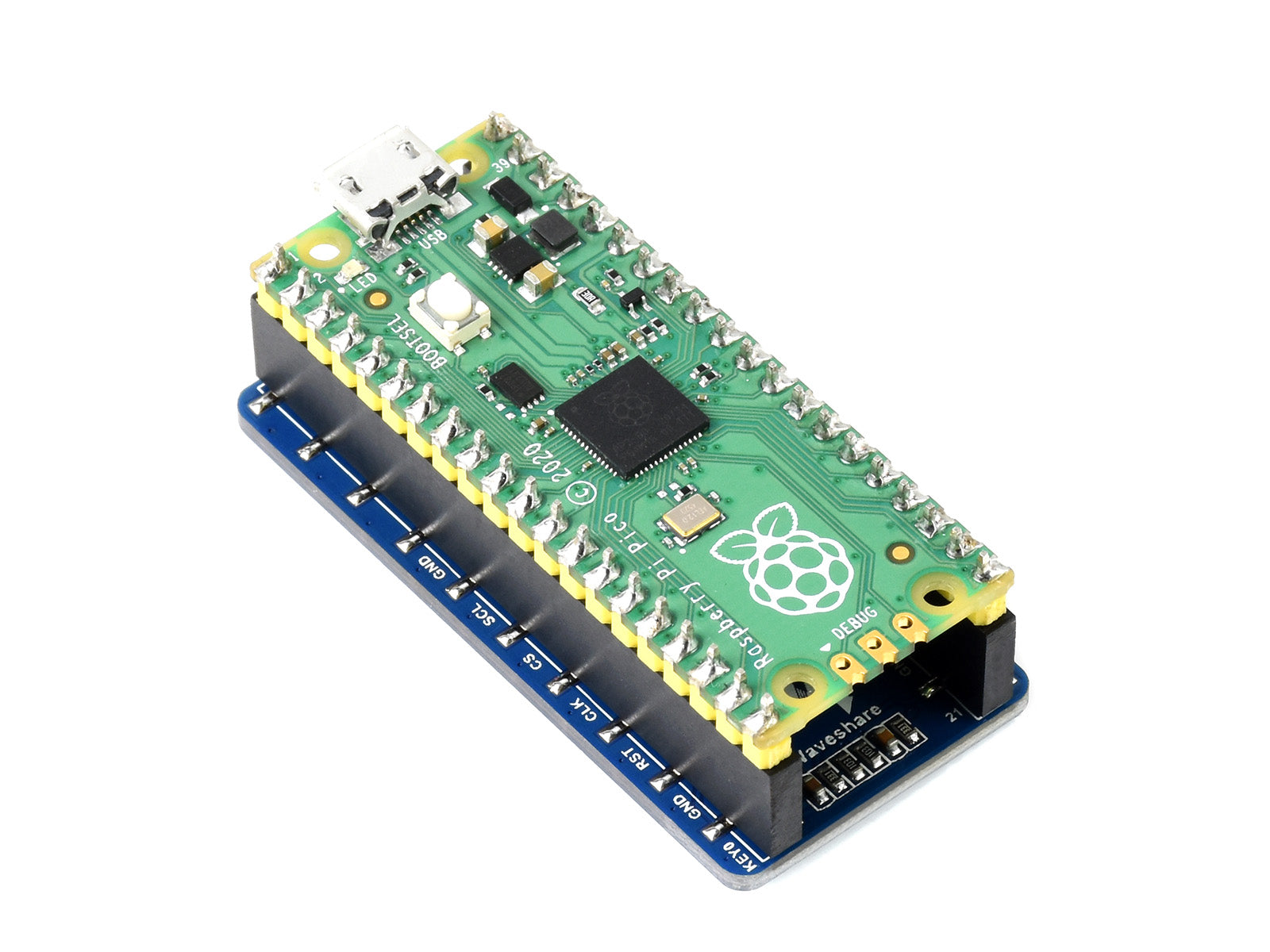

Raspberry Pi Pico header compatibility

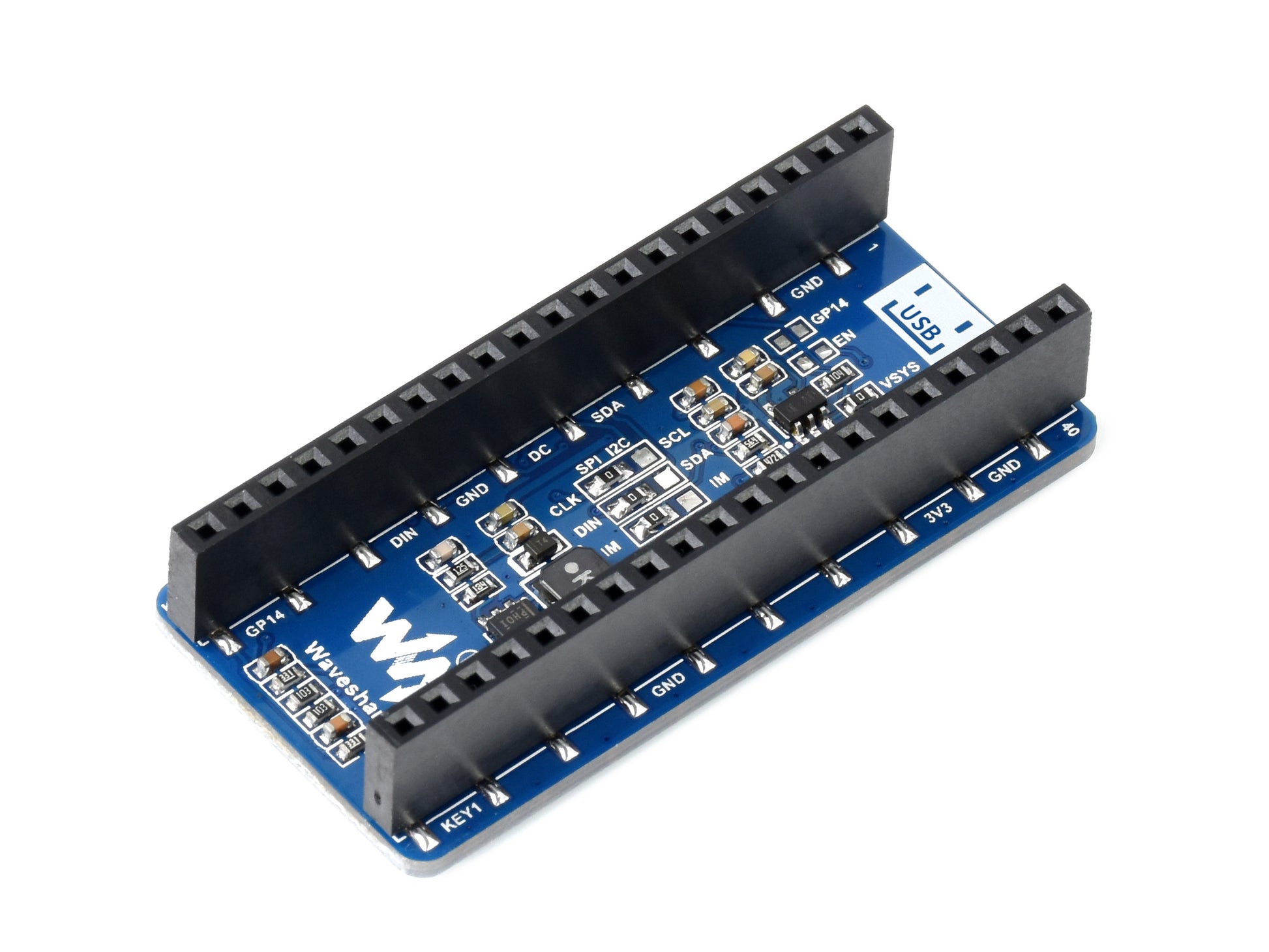

onboard female pin header for direct attaching to Raspberry Pi Pico 2x user buttons for easy interacting

Raspberry Pi Pico is NOT included.

Pinout definition

Outline dimensions

Resources & Services

---

WIKI:Pico-OLED-1.3

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

1. Pico-OLED-1.3 x1
