SKU:WSAL19576
1.44inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 128×128, SPI
Regular price
3.833 Ft
Sale price
3.833 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

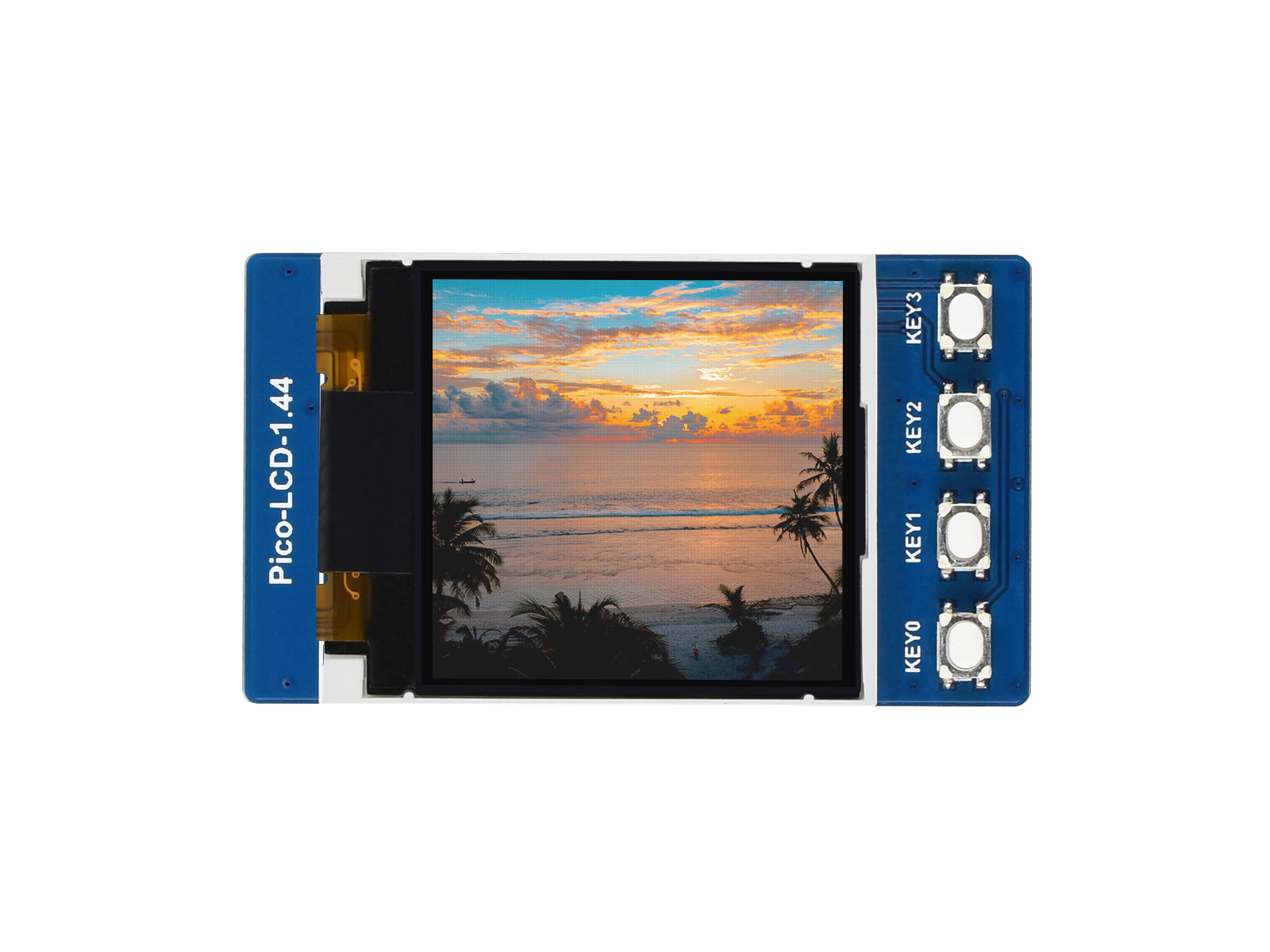

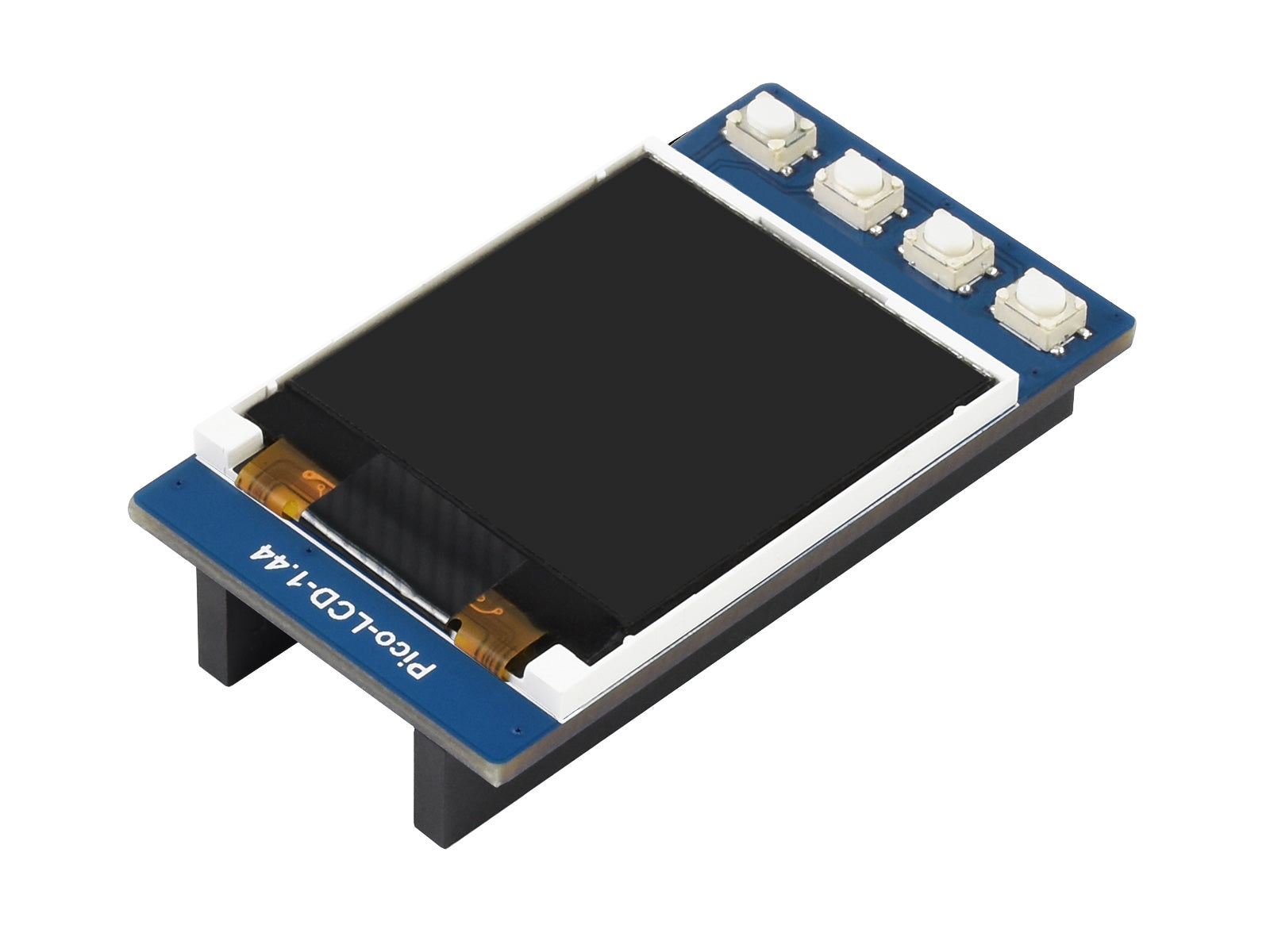

1.44inch LCD Display Module for Raspberry Pi Pico, 65K RGB Colors, 128×128 pixels, SPI Interface
1.44" LCD Display Module for Pico
embedded ST7735S driver, using SPI bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
-
Size
1.44"
-
Resolution
128×128
-
Display Color
65K RGB
-
Interface
SPI
-
Driver
ST7735S
Features at a glance
- 128×128 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 3.15V ~ 5V | Resolution | 128×128 pixels |
|---|---|---|---|
| Communication Interface | 4-wire SPI | Display size | 25.50 × 26.50 mm |
| Display Panel | TFT | Pixel size | 0.20 × 0.20 mm |
| Driver | ST7735S | Dimensions | 52.0 × 30.0 mm |

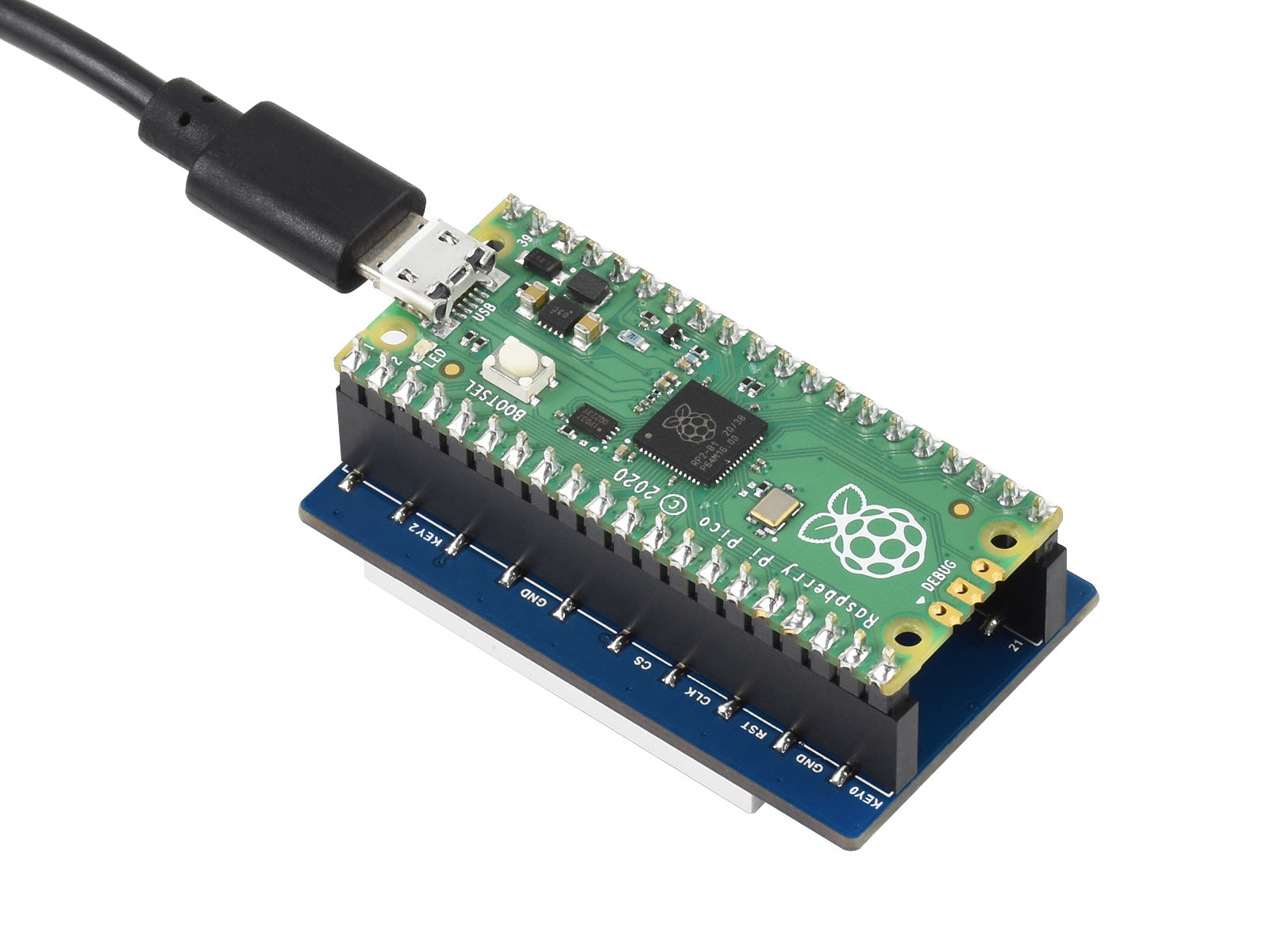

Raspberry Pi Pico header compatibility

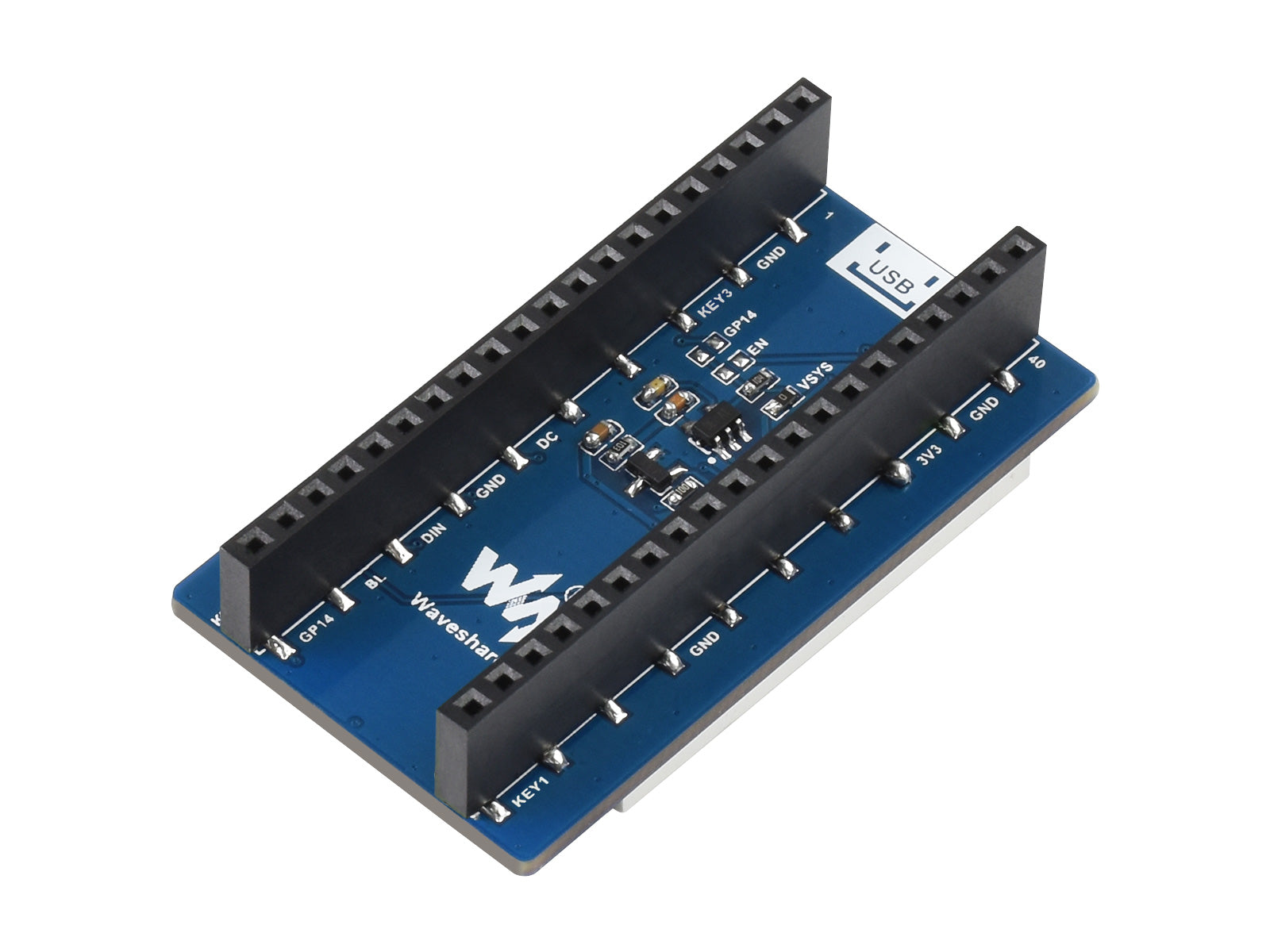

onboard female pin header for direct attaching to Raspberry Pi Pico4x user buttons for easy interacting
Raspberry Pi Pico is NOT included.
Pinout definition
Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection guide
| Part Number | Type | Display color | Pixels | Display size (mm) | Bus | Driver | Dimensions (mm) | Touch |
|---|---|---|---|---|---|---|---|---|
| Pico-LCD-0.96 | IPS | 65K | 160×80 | 21.70×10.80 | SPI | ST7735S | 52.00×25.00 | |
| Pico-LCD-1.14 | IPS | 65K | 240×135 | 24.91×14.86 | SPI | ST7789 | 52.00×25.00 | |
| Pico-LCD-1.3 | IPS | 65K | 240×240 | 23.40×23.40 | SPI | ST7789 | 52.00×26.50 | |
| Pico-LCD-1.44 | TFT | 65K | 128×128 | 25.50×26.50 | SPI | ST7735S | 52.00×26.50 | |
| Pico-LCD-1.8 | TFT | 65K | 160×128 | 35.04×28.03 | SPI | ST7735S | 52.00×34.50 | |
| Pico-LCD-2 | IPS | 65K | 320×240 | 40.80×30.60 | SPI | ST7789VW | 52.00×35.00 | |
| Pico-ResTouch-LCD-2.8 | IPS | 262K | 320×240 | 57.60×43.20 | SPI | ST7789 | 70.20×50.20 | √ |
| Pico-ResTouch-LCD-3.5 | IPS | 65K | 480×320 | 73.44×48.96 | SPI | ILI9488 | 86.00×57.20 | √ |
| PICO-DVI-7inch | IPS | 262K | 1024×600 | 154.21×85.92 | DVI | - | 164.70×100.00 | |
| PICO-DVI-10.1inch | IPS | 262K | 1024×600 | 222.72×125.28 | DVI | - | 232.72×136.28 |
Lieferumfang
- Pico-LCD-1.44 x1
