WSAL16711

1872×1404, 7.8inch E-Ink raw display

45.599 Ft
45.599 Ft 0 Ft
Sale Sold out
Tax included. Shipping calculated at checkout.

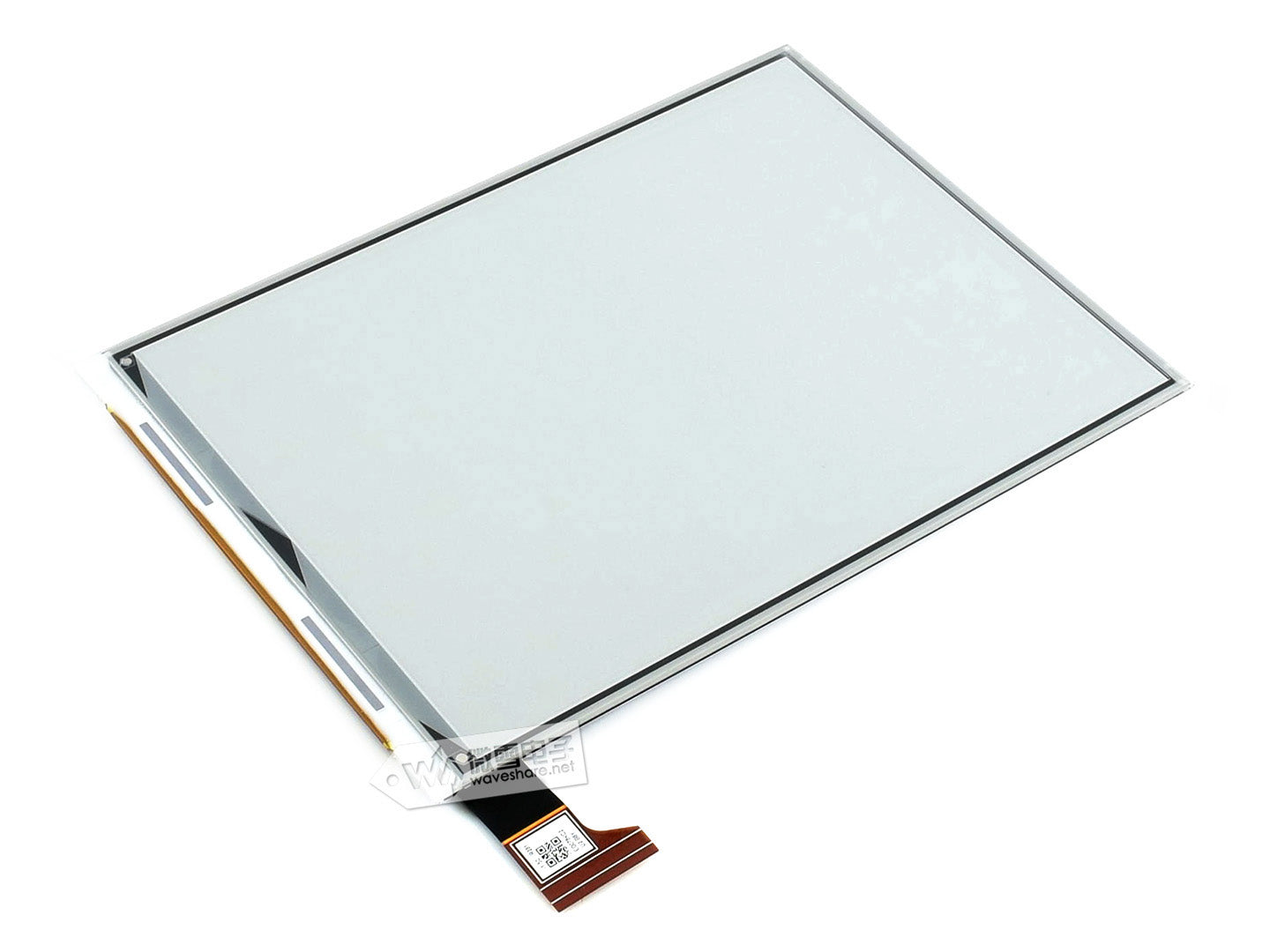

1872×1404, 7.8inch E-Ink raw display, parallel port, without PCB

Overview

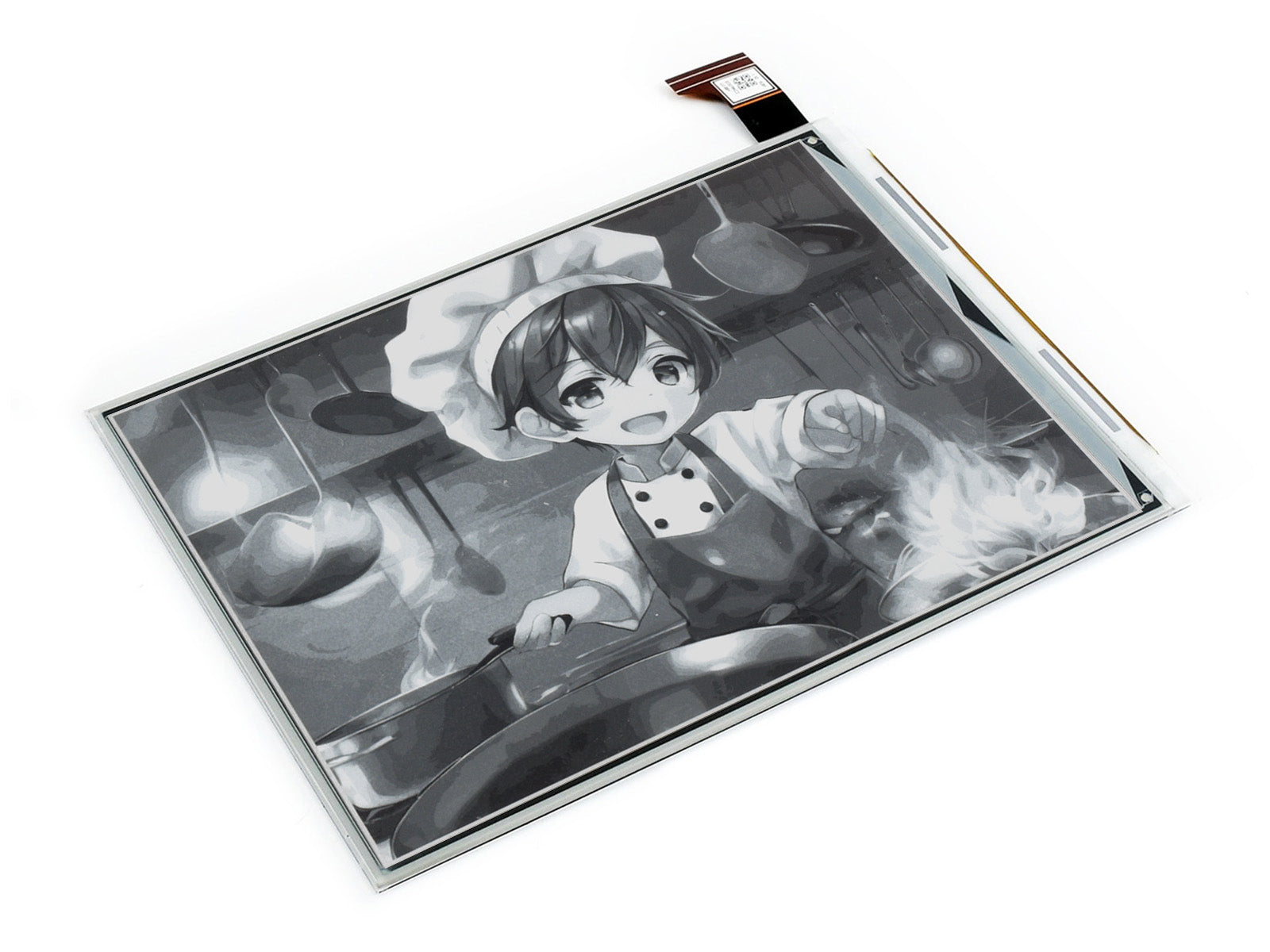

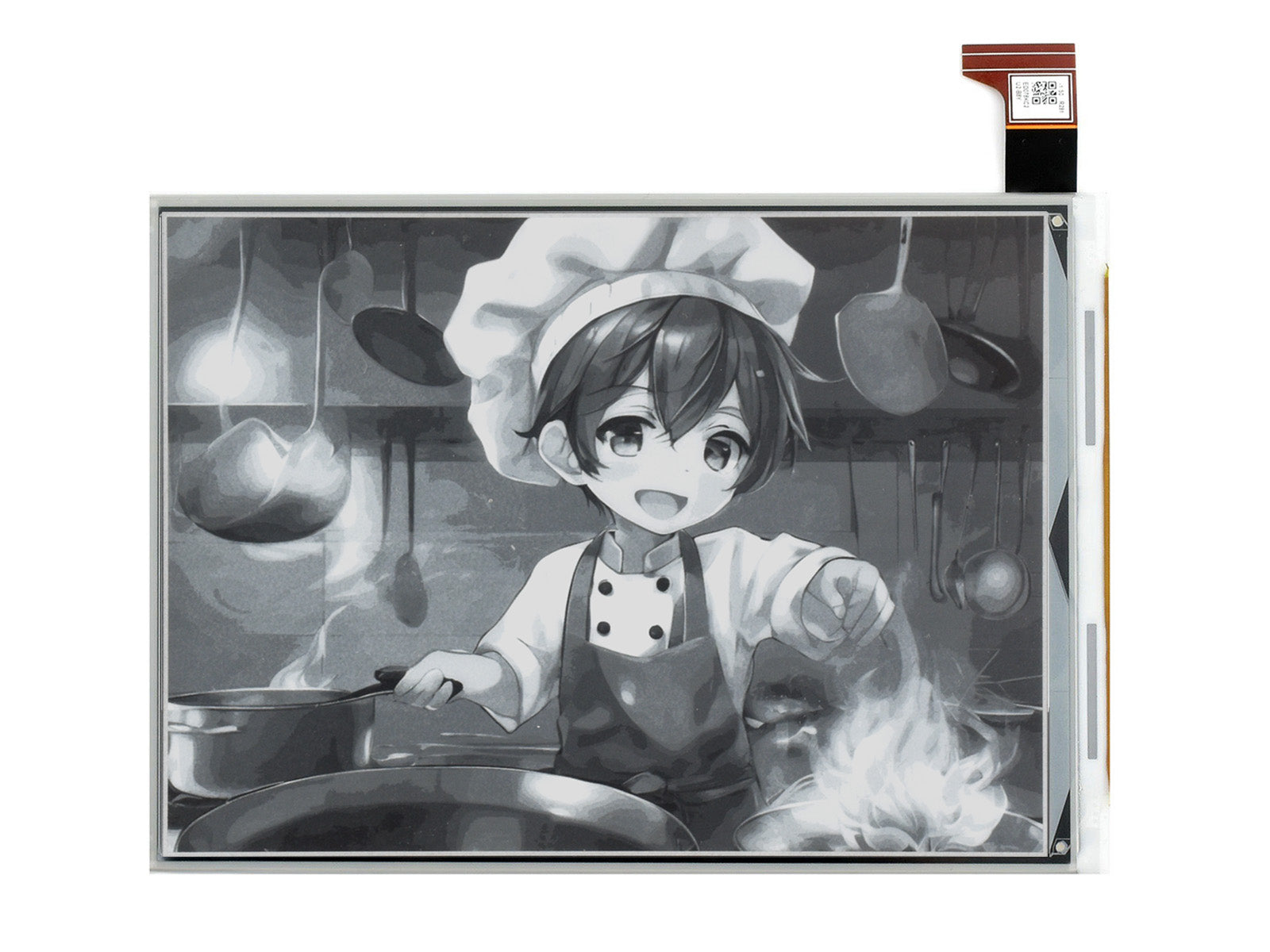

This is an E-Ink raw display, 7.8inch, 1872×1404 resolution, communicating via parallel port, supports partial refresh.

Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/STM32)

Specifications

  • Operating voltage: 5V
  • Interface: parallel port
  • Outline dimension: 173.8mm × 127.6mm × 0.78mm
  • Display size: 158.184mm × 118.638mm
  • Dot pitch: 0.0845mm × 0.0845mm
  • Resolution: 1872 × 1404
  • Display color: black, white
  • Gray scale: 2-16 (1-4 bit)
  • Full refresh time: 450ms
  • Viewing angle: >170°

Development Resources

Wiki : www.waveshare.com/wiki/7.8inch_e-Paper_HAT

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh Flexible Interface
1.02inch e-Paper black, white 2 128×80 21.76 × 14.00 32.57 × 18.60 × 0.98 2 √ SPI
1.54inch e-Paper black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 2 √ SPI
1.54inch e-Paper (B) red, black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 14 SPI
1.54inch e-Paper (G) red, yellow, black, white 2 200×200 27.00 × 27.00 37.32 × 31.8 × 1.00 20 SPI
1.64inch e-Paper (G) red, yellow, black, white 2 168×168 29.568 × 29.568 45.5 × 36.4 × 0.91 12 SPI
2.13inch e-Paper black, white 2 250×122 48.55 × 23.71 59.20 × 29.20 × 1.05 2 √ SPI
2.13inch e-Paper (B) red, black, white 2 250×122 48.55 × 23.70 59.20 × 29.20 × 0.98 15 SPI
2.13inch e-Paper (G) red, yellow, black, white 2 250×122 48.55 × 23.70 59.20 × 29.20 × 1.00 16 SPI
2.15inch e-Paper (B) red, black, white 2 296×160 48.10 × 26.00 60.8 × 31.8 × 1.00 23 SPI
2.15inch e-Paper (G) red, yellow, black, white 2 296×160 48.10 × 26.00 60.8 × 31.8 × 1.00 20 SPI
2.36inch e-Paper (G) red, yellow, black, white 2 296×168 52.096 × 29.568 68.1 × 37.9 × 0.85 12 SPI
2.66inch e-Paper black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 6 √ SPI
2.66inch e-Paper (B) red, black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 15 SPI
2.66inch e-Paper (G) red, yellow, black, white 2 360×184 60.05 × 30.69 72.59 × 37.11 × 1.00 26 SPI
2.7inch e-Paper black, white 4 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 6 √ SPI
2.7inch e-Paper (B) red, black, white 2 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 15 SPI
2.9inch e-Paper black, white 4 296×128 66.89 × 29.05 79.00 × 36.70 × 1.05 3 √ SPI
2.9inch e-Paper (B) red, black, white 2 296×128 66.90 × 29.06 79.00 × 36.70 × 1.20 14 √ SPI
2.9inch e-Paper (G) red, yellow, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.20 16 SPI
3inch e-Paper (G) red, yellow, black, white 2 400×168 70.4 × 29.568 86.4 × 39.2 × 0.85 12 SPI
3.5inch e-Paper (G) red, yellow, black, white 2 384×184 79.68 × 38.18 91.75 × 45.03 × 1.00 20 SPI
3.52inch e-Paper black, white 2 360×240 74.51 × 49.67 84.70 × 54.41 × 1.18 1.5 SPI
3.52inch e-Paper (B) red, black, white 2 360×240 74.51 × 49.67 84.70 × 54.41 × 0.85 16 SPI
3.6inch e-Paper (E) E6 full color 2 600×400 76.20 × 50.80 86.60 × 56.00 × 0.78 15 SPI
3.7inch e-Paper black, white 4 480×280 47.32 × 81.12 54.90 × 93.30 × 0.78 3 √ SPI
3.7inch e-Paper (G) red, yellow, black, white 2 416×240 81.54 × 47.07 92.99 × 53.00 × 1.00 20 SPI
3.97inch e-Paper black, white 4 800×480 99.50 × 60.00 96.62 × 56.24 × 0.92 3.5 √ SPI
3.97inch e-Paper (G) red, yellow, black, white 2 800×480 99.50 × 60.00 96.62 × 56.24 × 0.92 21 SPI
4inch e-Paper (E) E6 full color 2 600×400 84.6 × 56.4 99.00 × 66.00 × 0.85 19 SPI
4.2inch e-Paper black, white 4 400×300 84.80 × 63.60 91.00 × 77.00 × 1.18 5 √ SPI
4.2inch e-Paper (B) red, black, white 2 400×300 84.80 × 63.60 91.00 × 77.00 × 1.05 15 SPI
4.2inch e-Paper (G) red, yellow, black, white 2 400×300 84.80 × 63.60 91.00 × 77.00 × 1.00 21 SPI
4.26inch e-Paper black, white 4 800×480 92.8 × 55.68 129.33 × 62.37 × 0.93 4 √ SPI
4.37inch e-Paper (G) red, yellow, black, white 2 512×368 90.11 × 64.77 99.5 × 79.5 × 0.85 14 SPI
5inch e-Paper black, white 2 960×552 110.59 × 62.65 126.38 × 71.19 × 0.79 1.8 √ SPI
5.65inch e-Paper (F) 7-Color 2 600×448 114.9 × 85.8 125.4 × 99.5 × 0.91 <35 SPI
5.79inch e-Paper black, white 4 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 3.5 √ SPI
5.79inch e-Paper (B) red, black, white 2 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 24 SPI
5.79inch e-Paper (G) red, yellow, black, white 2 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 21 SPI
5.83inch e-Paper black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 5 SPI
5.83inch e-Paper (G) red, yellow, black, white 2 648×480 118.78 × 88.22 125.40 × 99.50 × 1.20 20 SPI
6inch HD e-Paper black, white 16 1448×1072 122.356 × 90.60 138.40 × 101.80 × 0.67 <1 √ Parallel port
7.3inch e-Paper (E) E6 full color 2 800×480 160 × 96 170.2 × 111.2 × 0.91 12 SPI
7.3inch e-Paper (F) 7-Color 2 800×480 160 × 96 170.2 × 111.2 × 0.91 35 SPI
7.5inch e-Paper black, white 4 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 4 √ SPI
7.5inch e-Paper (B) red, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 26 √ SPI
7.5inch e-Paper (G) black, white 2 800×480 163.20 × 97.92 177.20 × 118.20 × 2.00 5 √ SPI
7.5inch e-Paper (H) red, yellow, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.20 22 SPI
7.8inch e-Paper black, white 16 1872×1404 158.18 × 118.64 173.80 × 127.60 × 0.78 <1 √ Parallel port
9.7inch e-Paper black, white 16 1200×825 202.8 × 139.43 218.80 × 156.425 × 1.15 <1 √ Parallel port
10.2inch e-Paper (G) red, yellow, black, white 2 960×640 215.52 × 143.68 224.00 × 157.00 × 1.00 27 SPI
10.3inch e-Paper black, white 16 1872×1404 209.66 × 157.25 216.70 × 174.40 × 0.78 <1 √ Parallel port
10.3inch e-Paper (D) black, white 16 1872×1404 209.66 × 157.25 227.70 × 165.80 × 0.647 <1 √ √ Parallel port
10.85inch e-Paper black, white 2 1360×480 259.76 × 91.68 270.56 × 105.92 × 1.20 3.5 SPI
10.85inch e-Paper (G) red, yellow, black, white 2 1360×480 259.76 × 91.68 270.56 × 105.92 × 1.20 21 SPI
12.48inch e-Paper black, white 2 1304×984 252.98 × 190.90 261.50 × 211.00 × 0.30 <8 SPI
12.48inch e-Paper (B) red, black, white 2 1304×984 252.98 × 190.90 261.40 × 211.00 × 1.20 37 SPI
13.3inch e-Paper black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 × 0.78 <1 √ Parallel port
13.3inch e-Paper (B) red, black, white 2 960×680 275.52 × 195.16 286.32 × 212.26 × 1.20 22 √ SPI
13.3inch e-Paper (E) E6 full color 2 1600×1200 270.40 × 202.80 284.70 × 208.80 × 0.850 19 SPI
13.3inch e-Paper (K) black, white 4 960×680 275.52 × 195.16 286.32 × 212.26 × 1.20 5 √ SPI
