SKU:WSAL19750

Kurzbeschreibung: 2.23inch OLED Display Module For Raspberry Pi Pico, 128×32 Pixels, SPI/I2C Interface

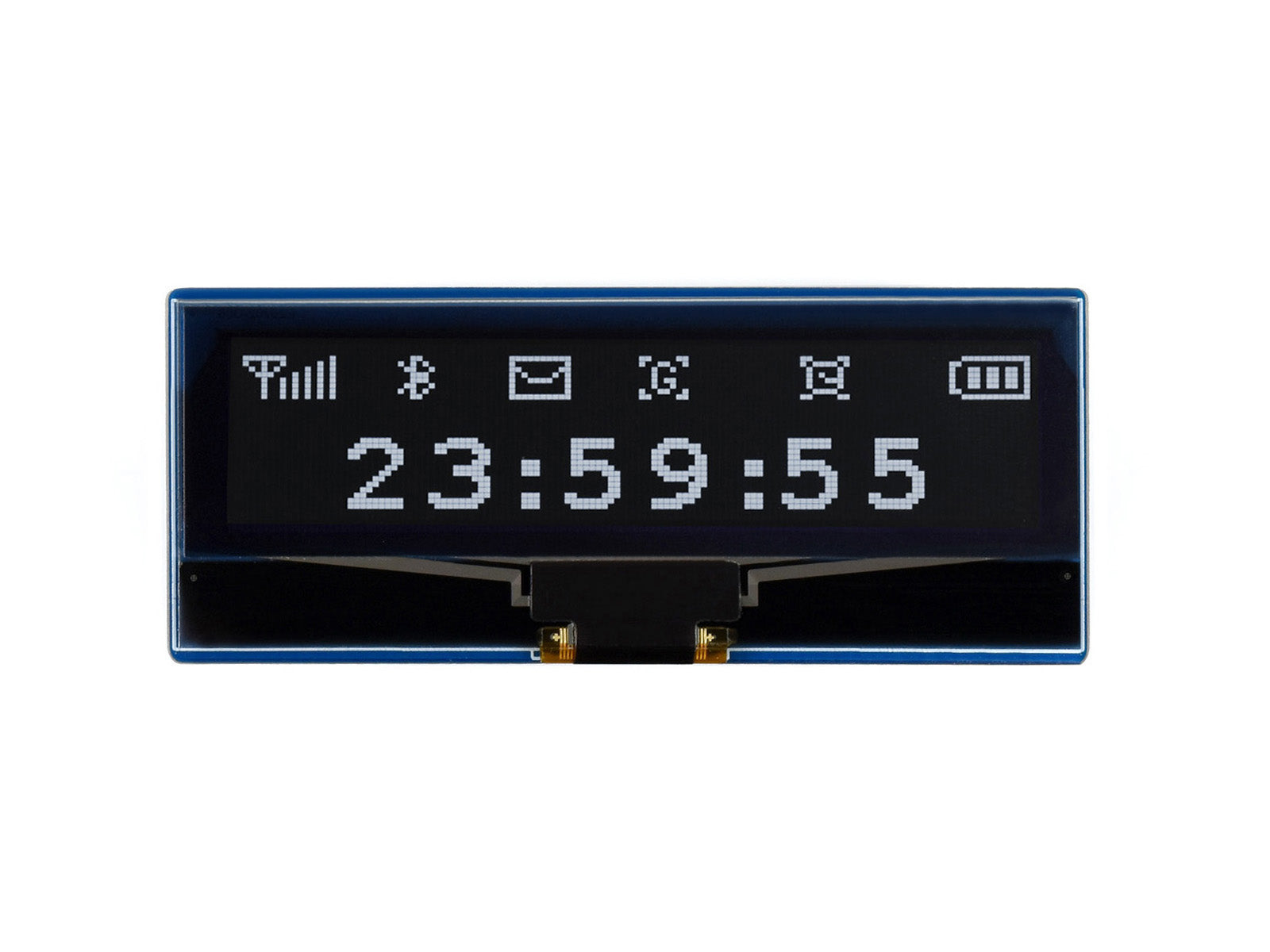

2.23inch OLED Display Module for Raspberry Pi Pico, 128×32 pixels, SPI/I2C Interface

2.23" OLED Display Module for Pico

embedded SSD1305 driver, using SPI/I2C bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

• Size2.23"
• Resolution128×32
• Display ColorBlack / White
• InterfaceSPI/I2C
• Display PanelOLED
• DriverSSD1305

Features at a glance

• Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Logical voltage	3.3V	Viewing angle	>160°
Operating voltage	3.3V/5V	Resolution	128×32 pixels
Communication Interface	4-wire SPI, I2C	Display size	55.02 × 13.10mm
Display Panel	OLED	Pixel size	0.41 × 0.39mm
Driver	SSD1305	Dimensions	63.00 × 26.00mm

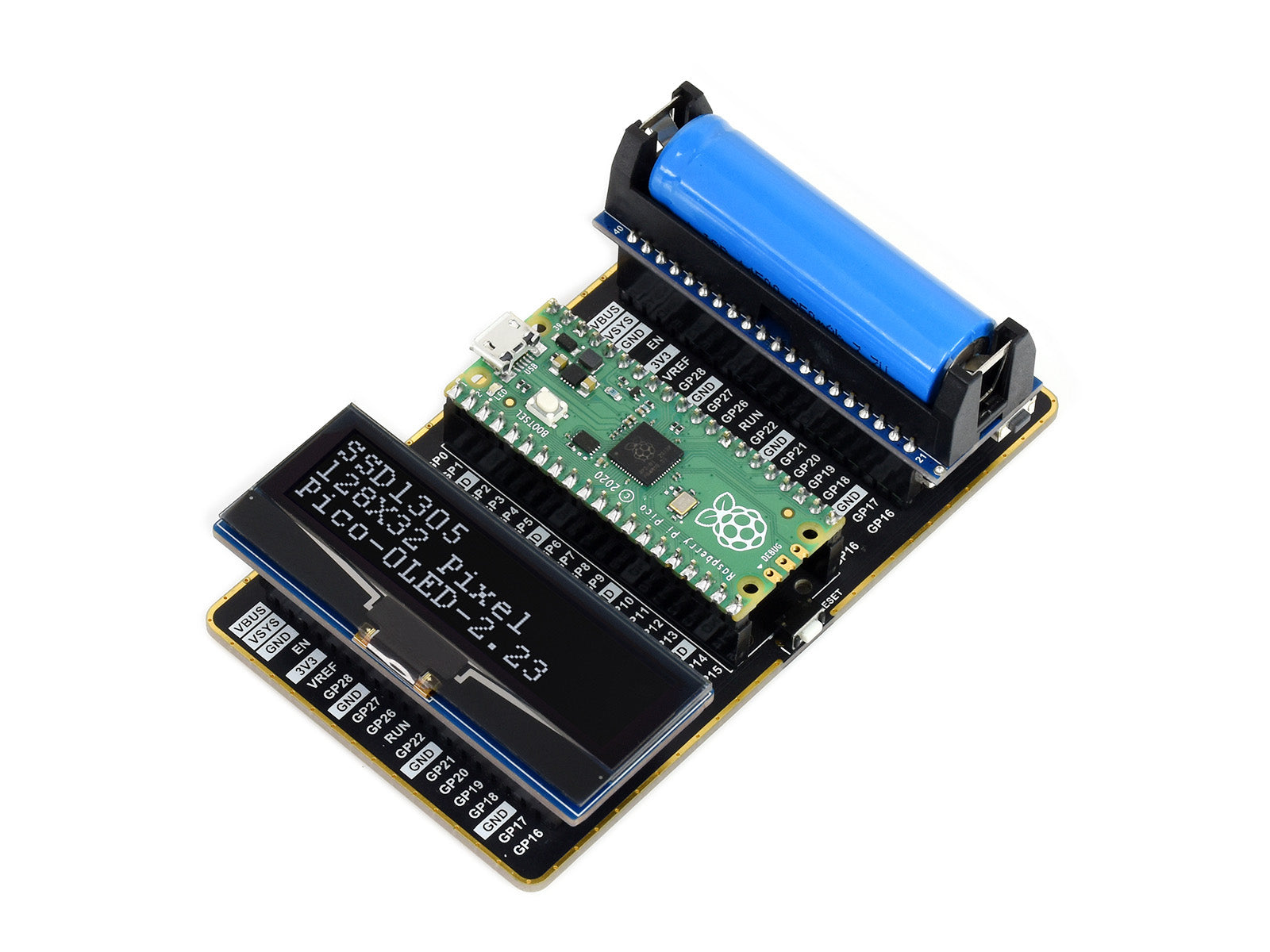

Raspberry Pi Pico header compatibility

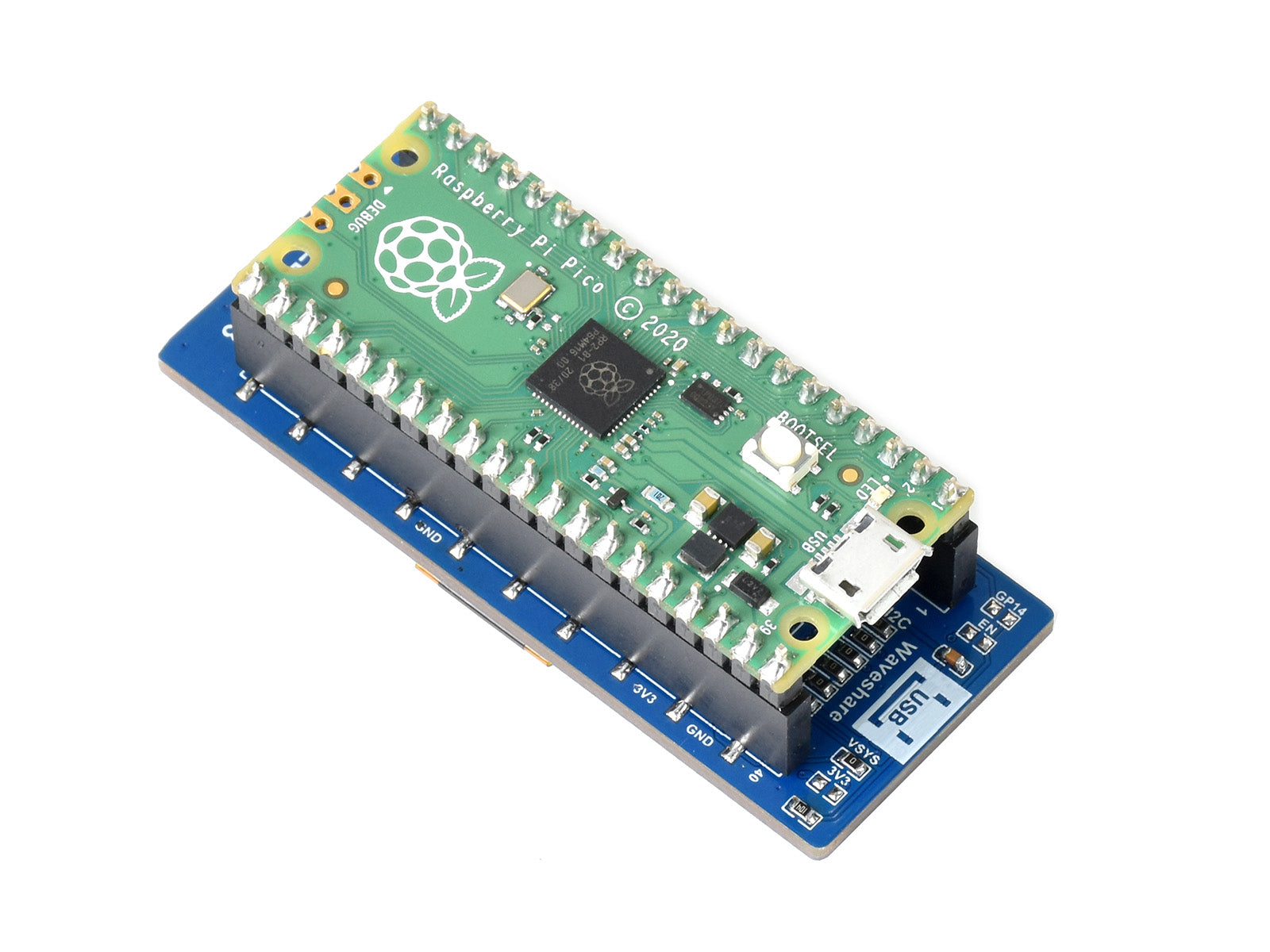

onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

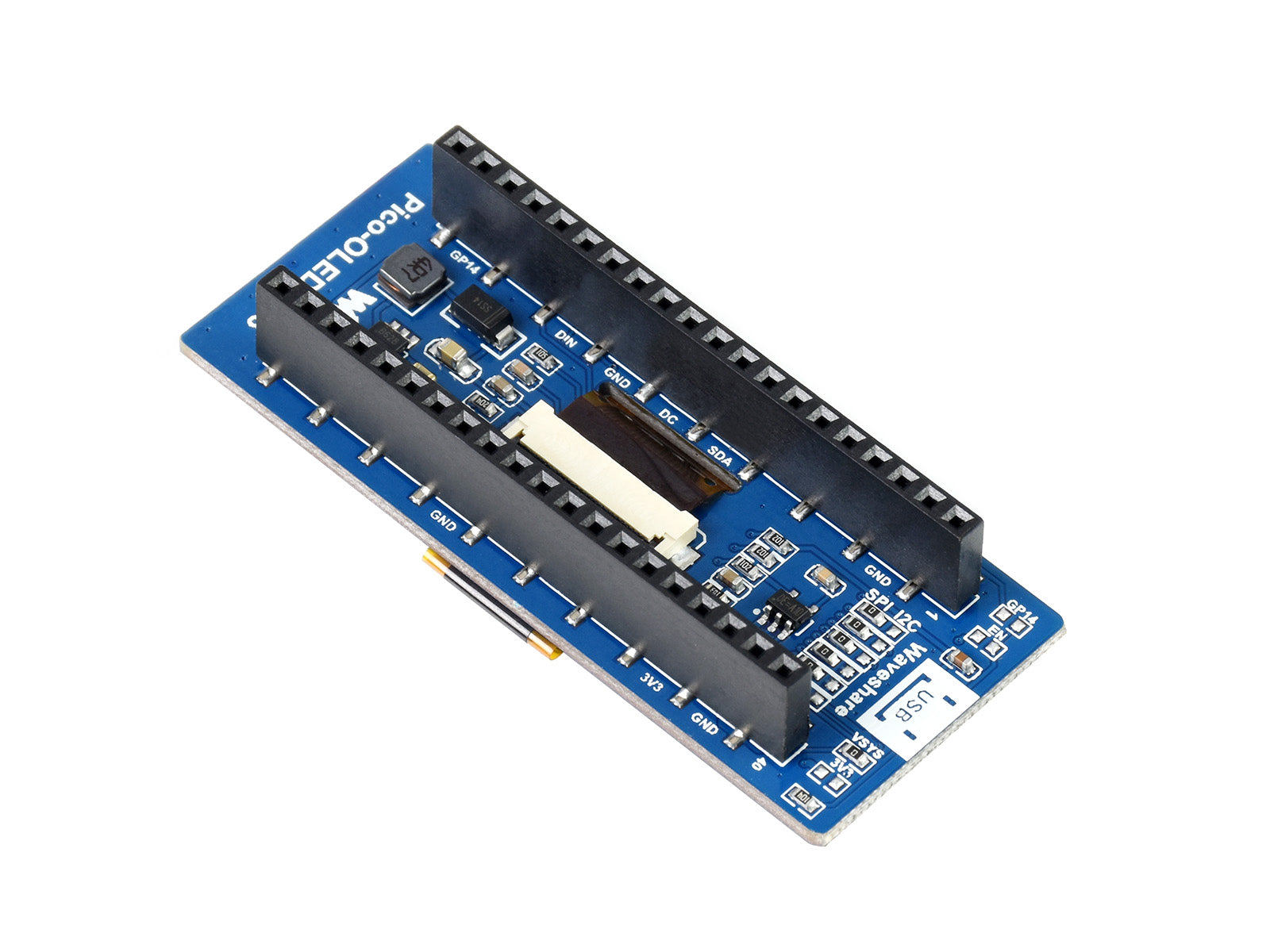

Pinout definition

Outline dimensions

Resources & Services

---

WIKI:Pico-OLED-2.23

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

1. Pico-OLED-2.23 x1
