Kurzbeschreibung: 2-Channel RS232 Module For Raspberry Pi Pico, SP3232EEN Transceiver, UART To RS232

2-Channel RS232 Module for Raspberry Pi Pico, SP3232EEN transceiver, UART to RS232

2-Channel RS232 Module for Pico

incorporates RS232 transceiver SP3232EEN, using UART bus

Features at a glance

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• Using UART bus, easily converting UART to RS232, or vice versa
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage	3.3V-5V	RS232 transceiver	SP3232EEN
Communication bus	UART	Baudrate	300~912600bps

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

What's On Board

1. SP3232 RS232 transceiver
2. Raspberry Pi Pico header

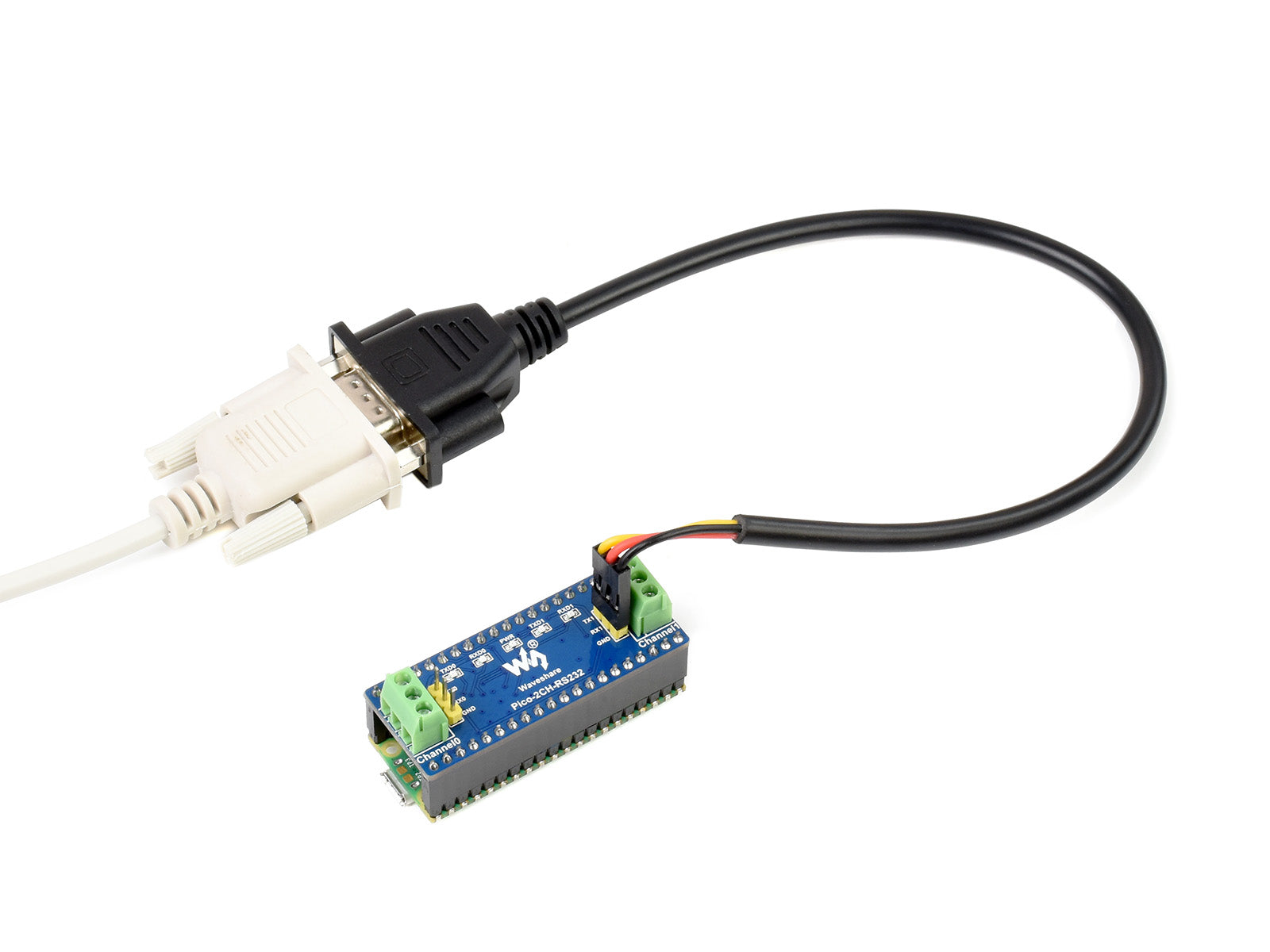

3. RS232 bus interface2-channel RS232 (DB9 male connector is also available through adapter cable)

4. TVS diode
5. ESD diode

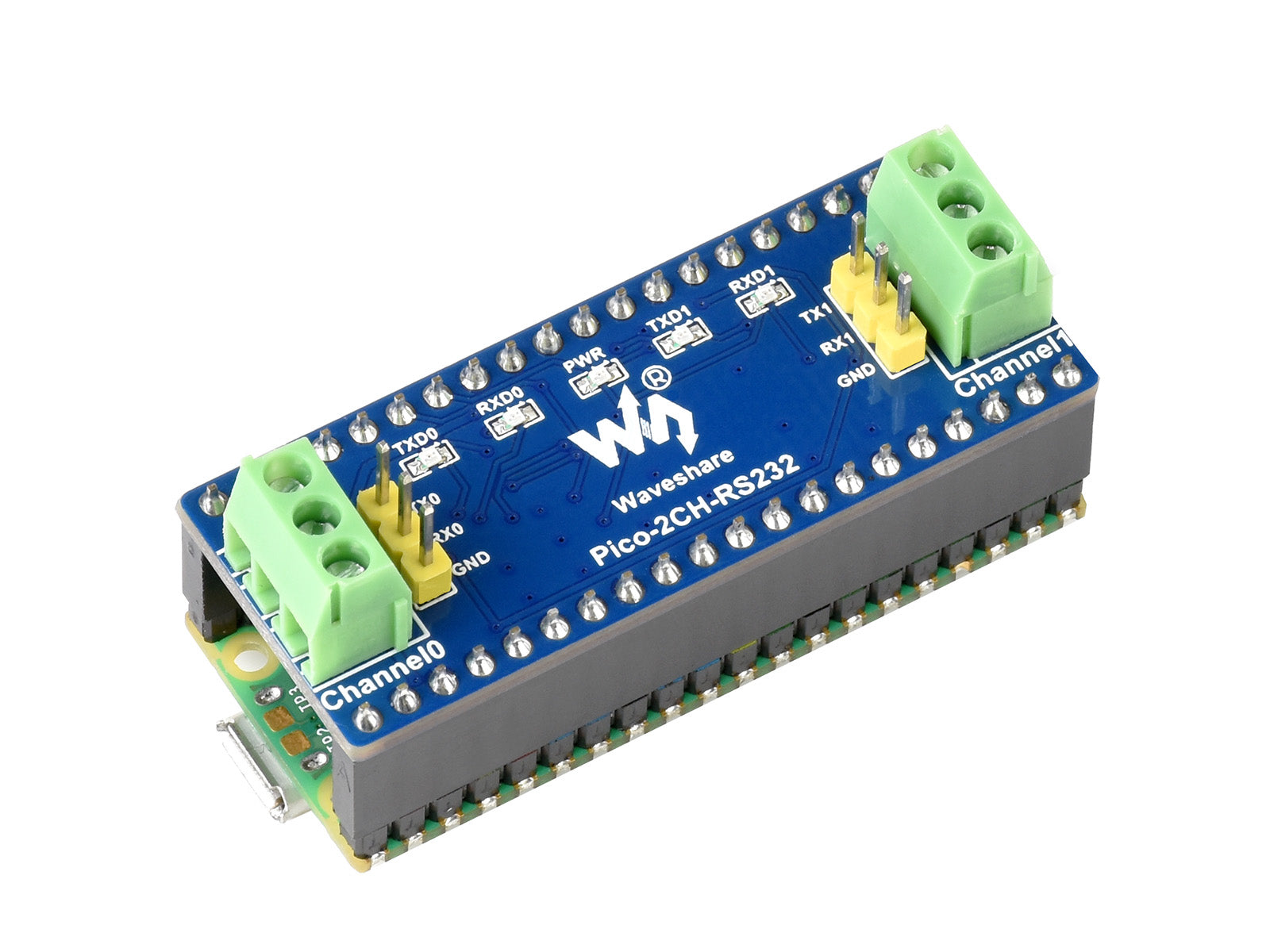

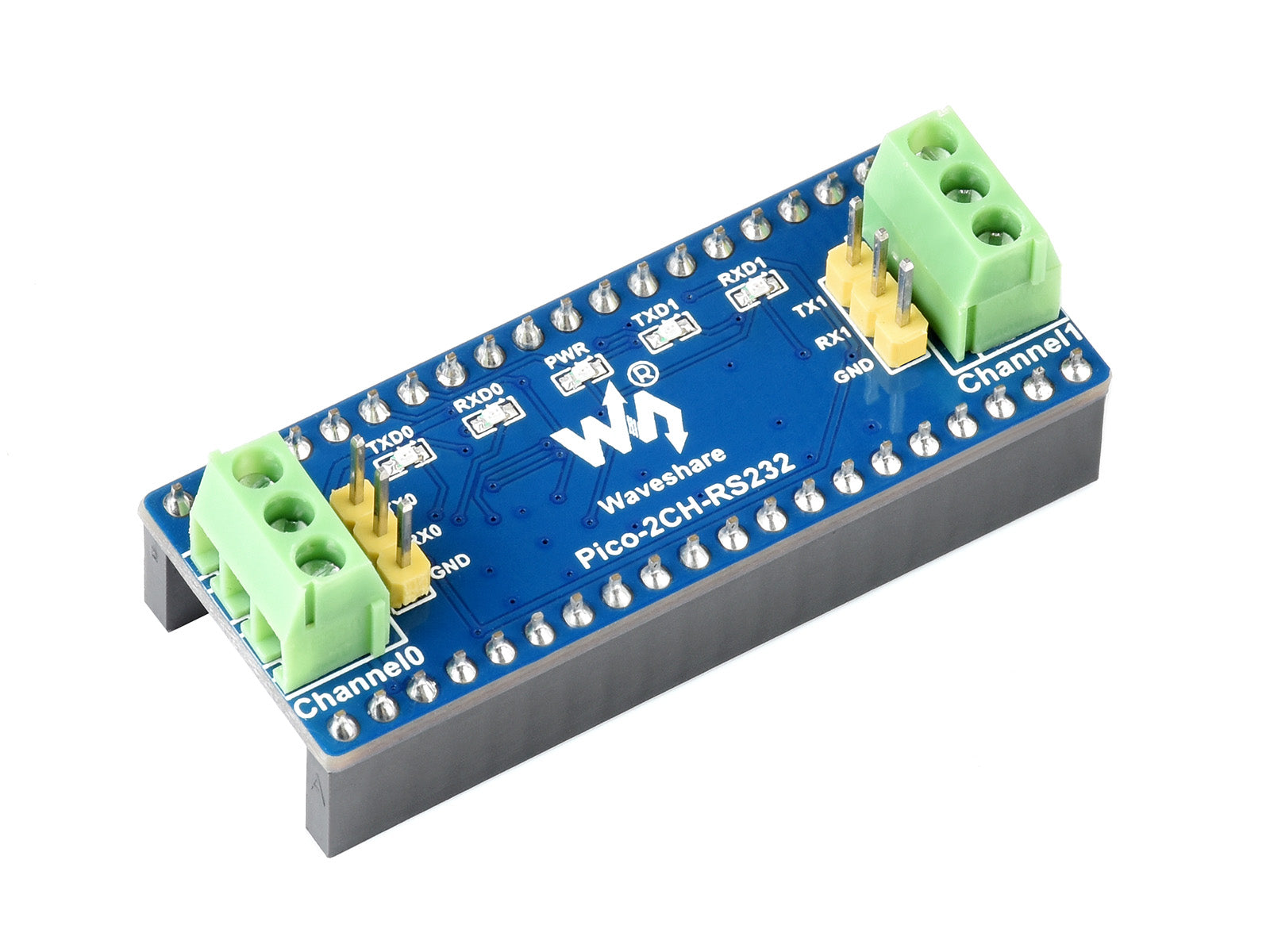

6. UART status indicators RXD0/TXD0: Channel 0 RX/TX indicatorsRXD1/TXD1: Channel 1 RX/TX indicators

Pinout definition

Outline dimensions

Resources & Services

---

WIKI:Pico-2CH-RS232

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

1. Pico-2CH-RS232 x1
2. DB9 to 3PIN adapter cable x1
