Kurzbeschreibung: 2-Channel RS485 Module For Raspberry Pi Pico, SP3485 Transceiver, UART To RS485

2-Channel RS485 Module for Raspberry Pi Pico, SP3485 transceiver, UART to RS485

2-Channel RS485 Module for Pico

incorporates RS485 transceiver SP3485, using UART bus

Features at a glance

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• Using UART bus, easily converting UART to RS485, or vice versa
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage	3.3V	RS485 transceiver	SP3485
Communication bus	UART	Baudrate	300~500000bps

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico,male pin header for stacking other modules

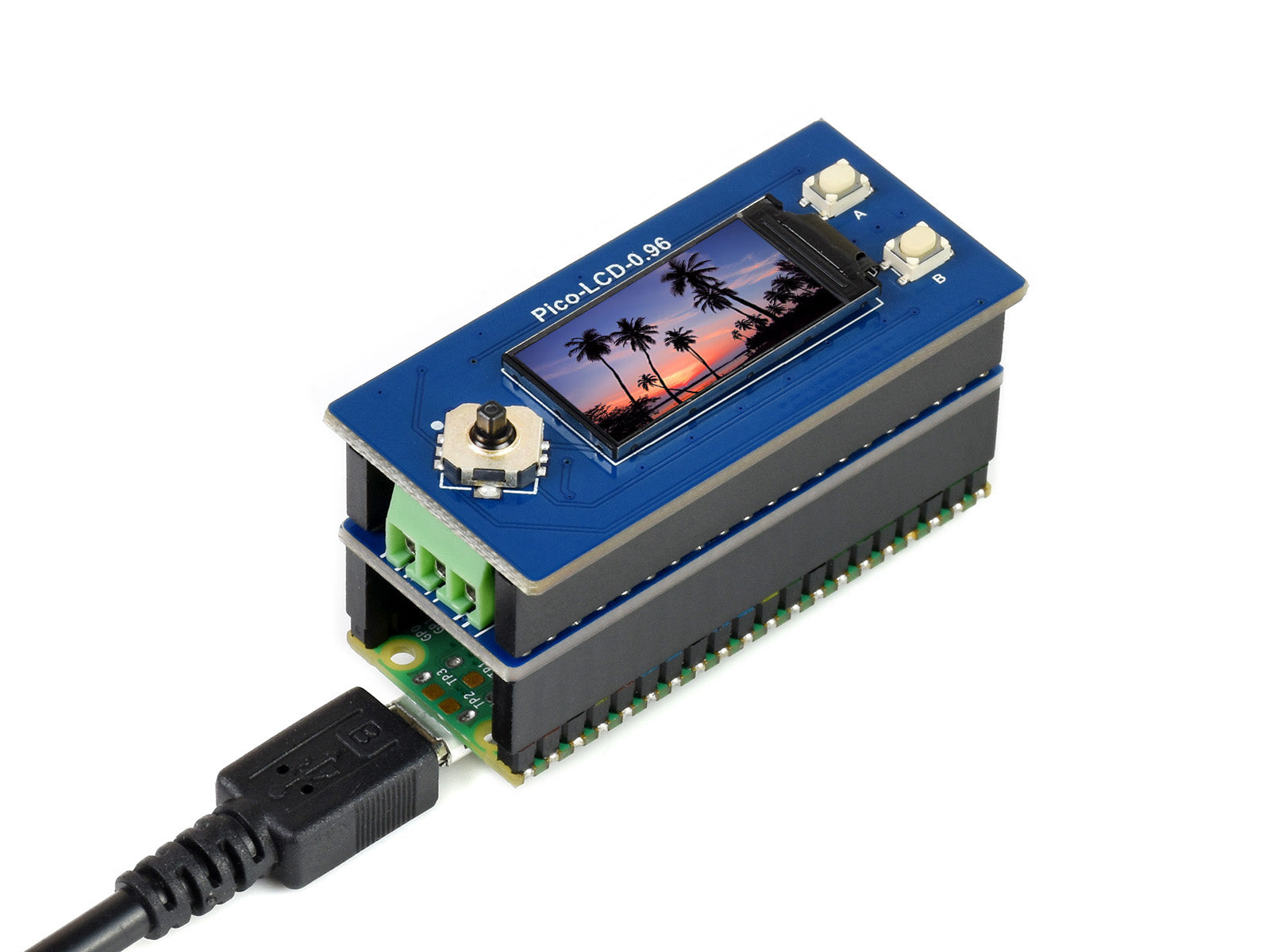

Raspberry Pi PicoandPico-LCD-0.96 are NOT included.

What's On Board

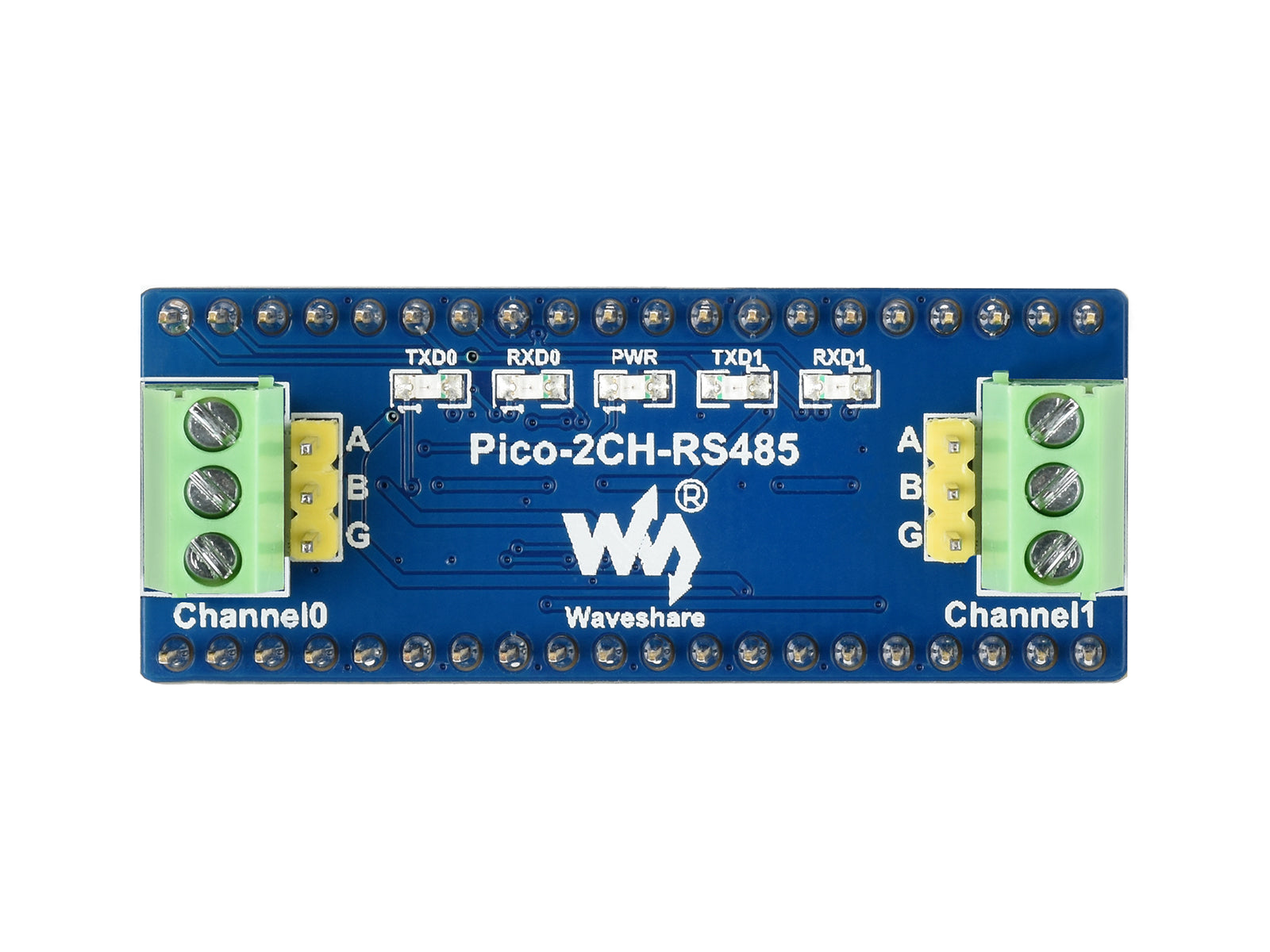

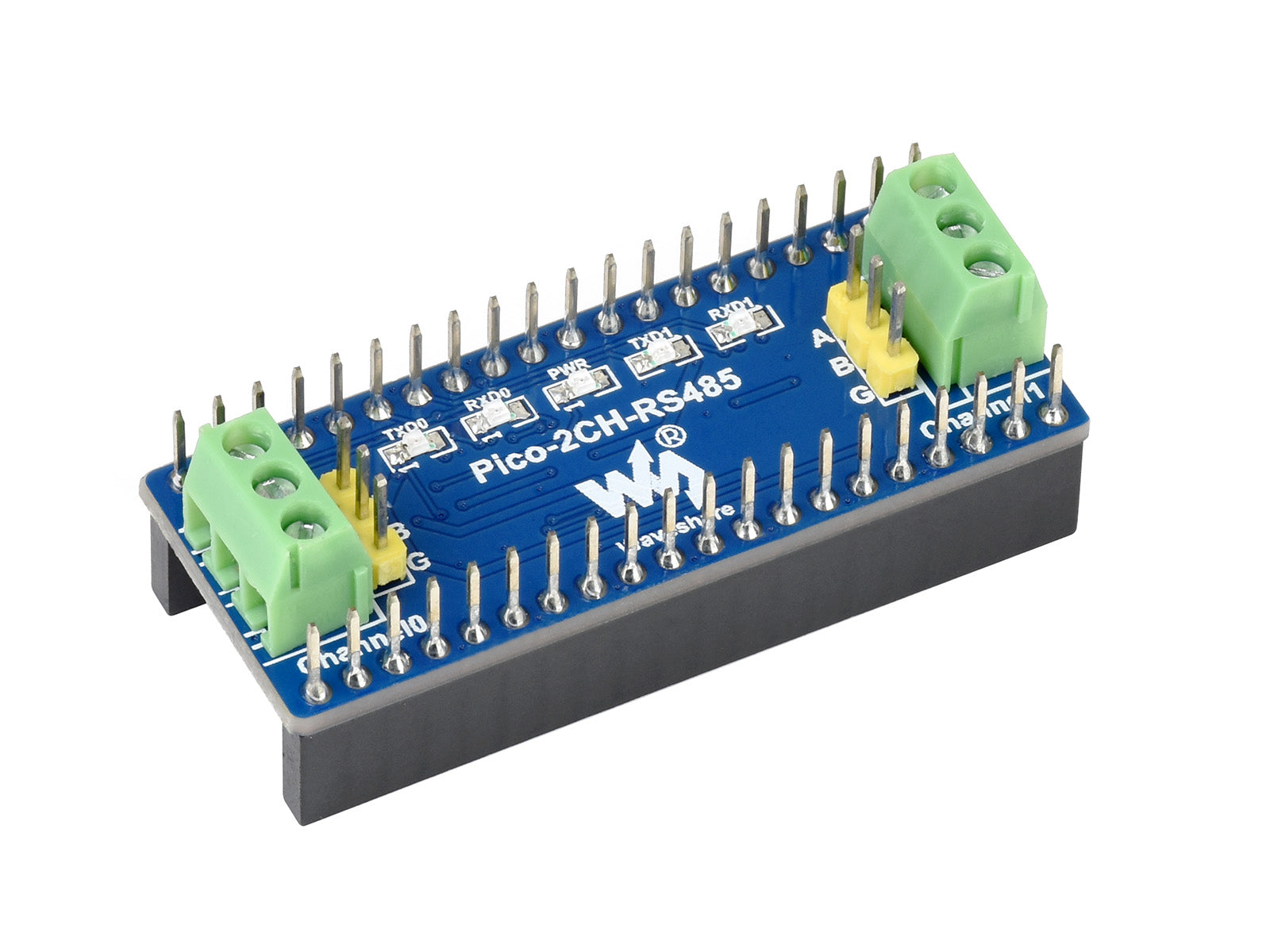

1. RS485 bus interface2-channel RS485
2. UART status indicators RXD0/TXD0: Channel 0 RX/TX indicatorsRXD1/TXD1: Channel 1 RX/TX indicators
3. Power indicator

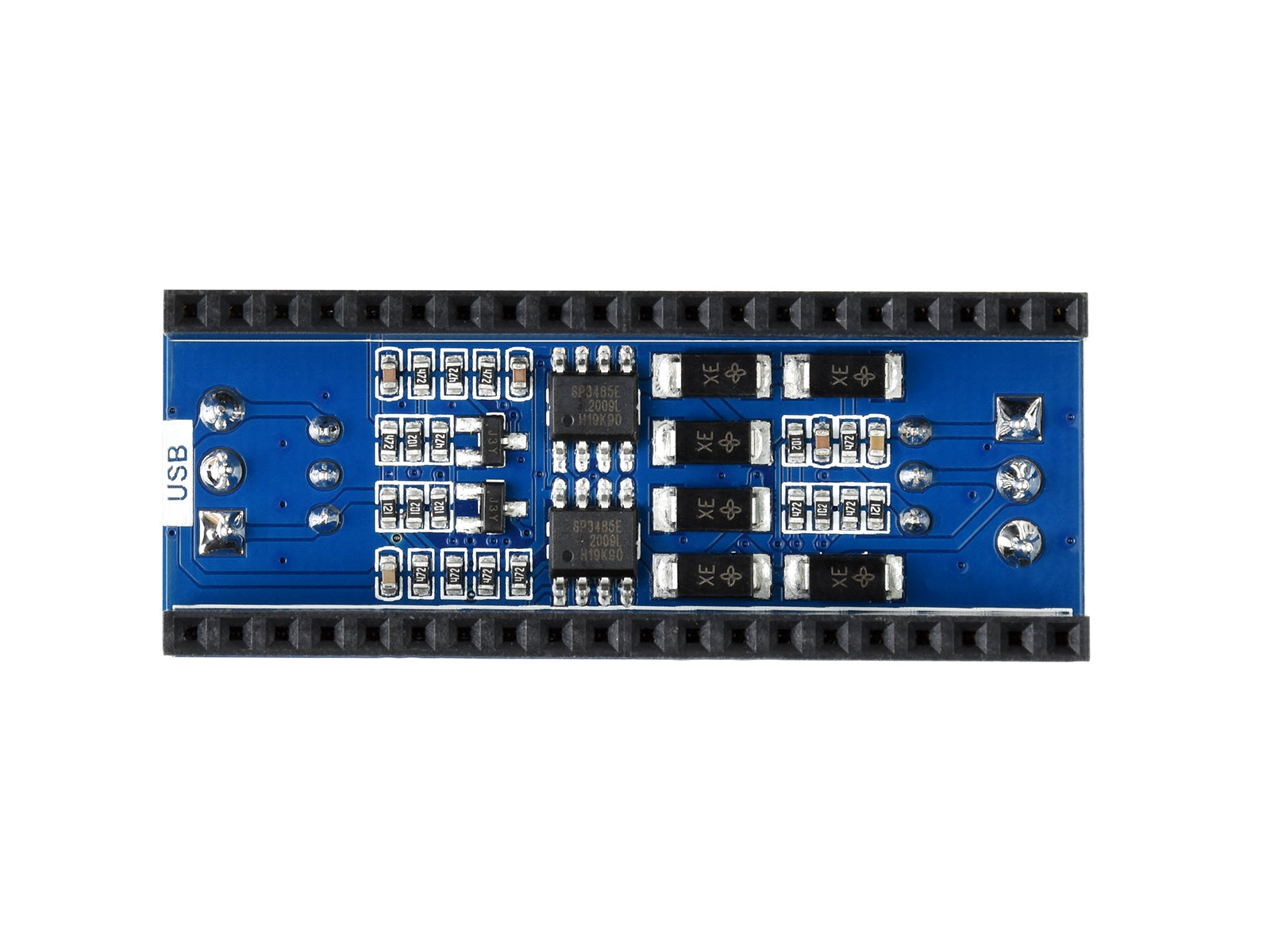

4. SP3485 RS485 transceiver
5. SMAJ12CA transient suppress diode array
6. Raspberry Pi Pico header

Pinout definition

Outline dimensions

Resources & Services

---

WIKI:Pico-2CH-RS485

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

1. Pico-2CH-RS485 x1
