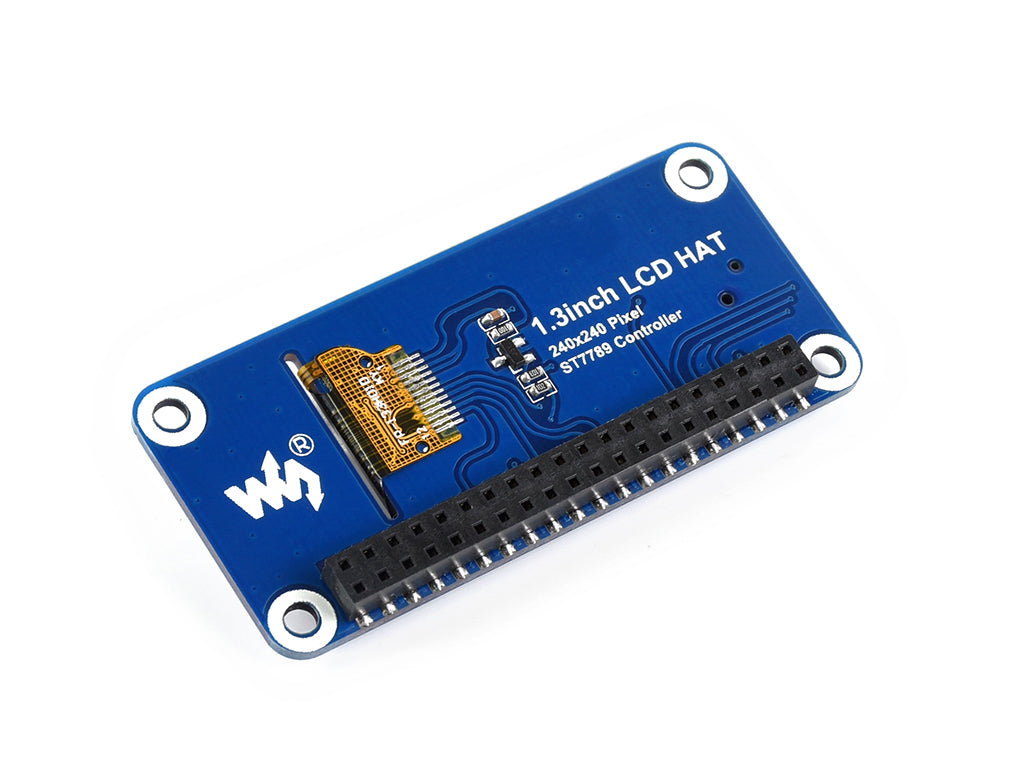

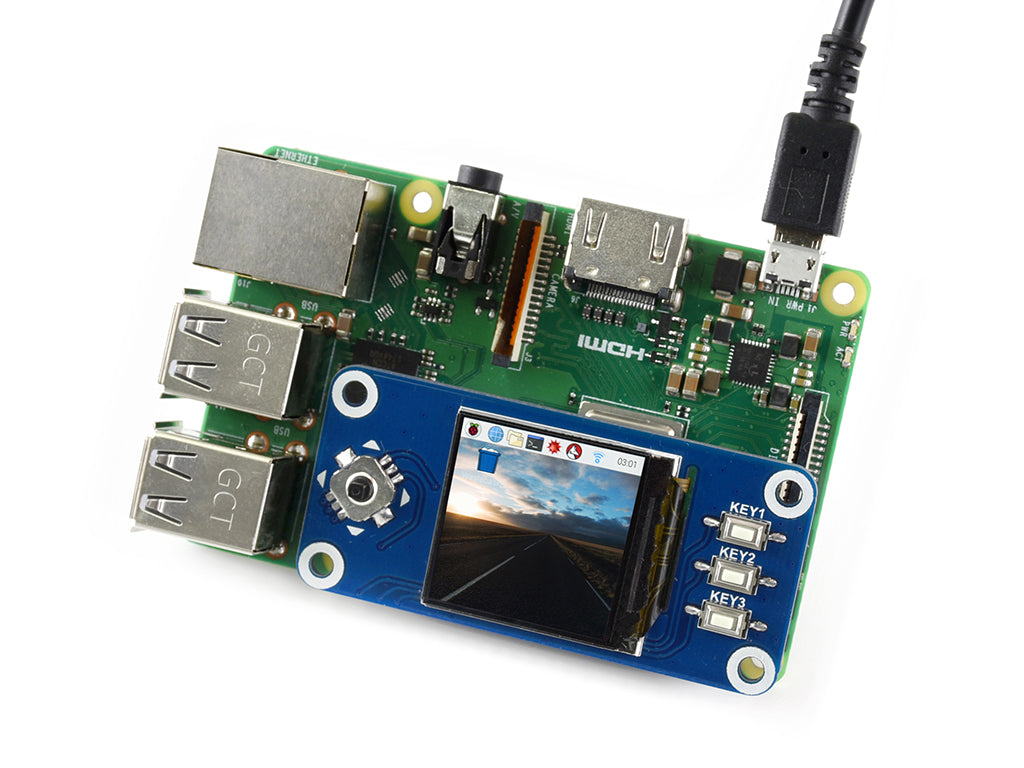

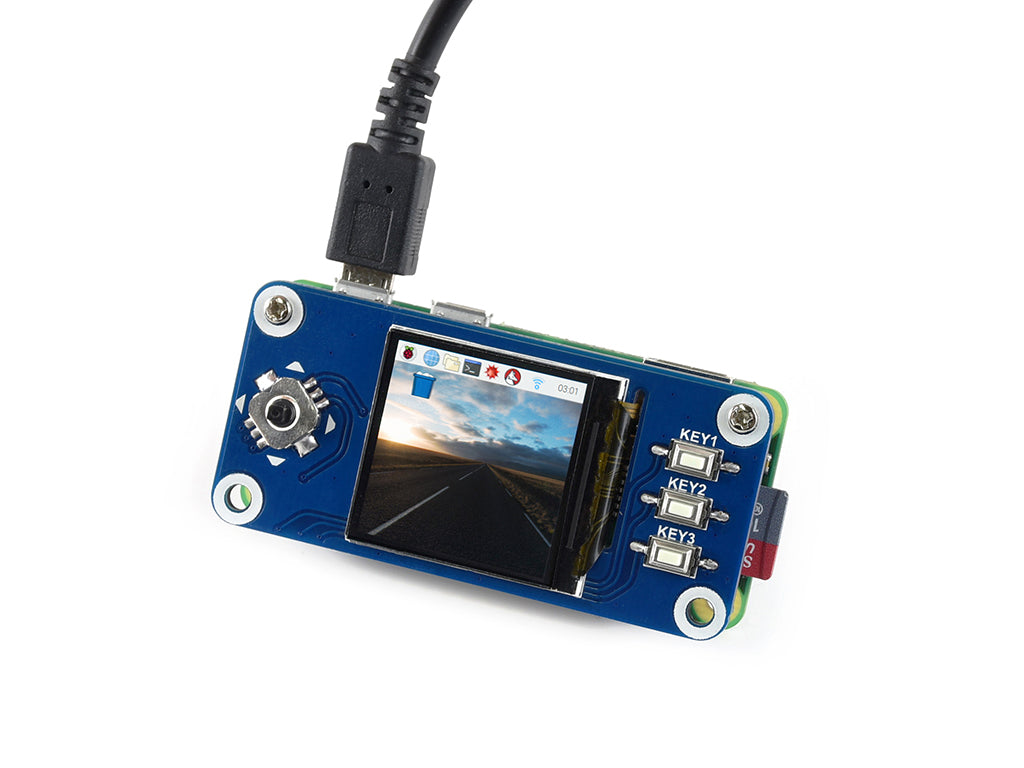

1.3inch IPS LCD display HAT for Raspberry Pi, 240x240 pixels, SPI interface

Overview

This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.

Features

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• IPS screen, wide viewing angle, better display
• High definition in small size
• 1x joystick, 3x pushbuttons, handy and useful
• Comes with development resources and manual (examples for Raspberry Pi)

Specifications

• Driver: ST7789
• Interface: SPI
• Display color: RGB, 65K color
• Resolution: 240x240
• Backlight: LED
• Operating voltage: 3.3V

Interface

SYMBOL	Raspberry Pi PIN (BCM)	DESCRIPTION
KEY1	P21	Button 1/GPIO
KEY2	P20	Button 2/GPIO
KEY3	P16	Button 3/GPIO
Joystick Up	P6	Joystick Up
Joystick Down	P19	Joystick Down
Joystick Left	P5	Joystick Left
Joystick Right	P26	Joystick Right
Joystick Press	P13	Joystick Press
SCLK	P11/SCLK	SPI clock input
MOSI	P10/MOSI	SPI data input
DC	P25	Data/Command selection (high for data, low for command)
CS	P8/CE0	Chip selection, low active
RST	P27	Reset, low active
BL	P24	Backlight

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.3inch_LCD_HAT

Lieferumfang

1. 1.3inch LCD HAT x1
2. RPi screws pack (2pcs) x1
