WSAL13378

264x176, 2.7inch E-Ink raw display

3.608 Ft
3.608 Ft 0 Ft
Sale Sold out
Tax included. Shipping calculated at checkout.

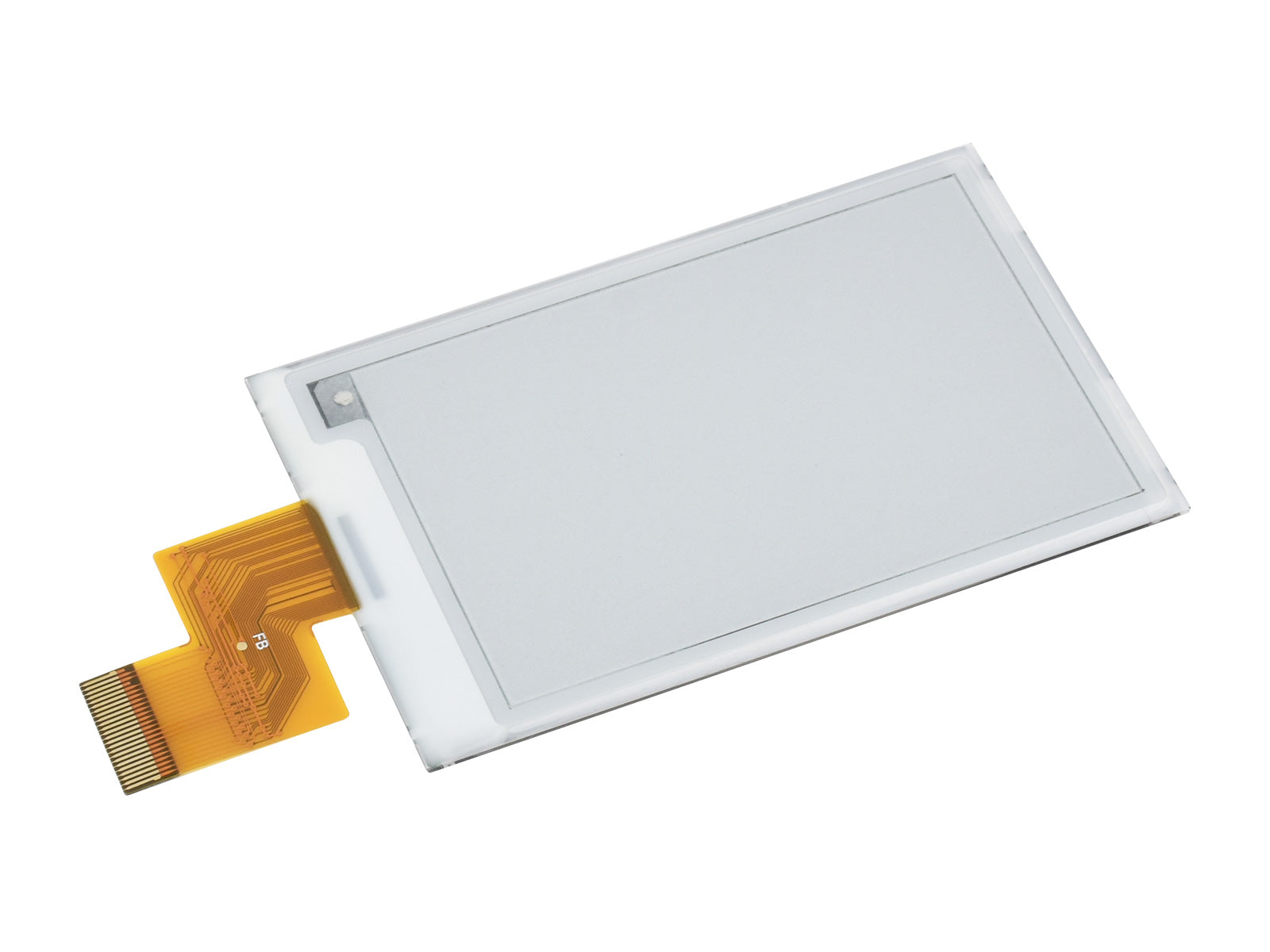

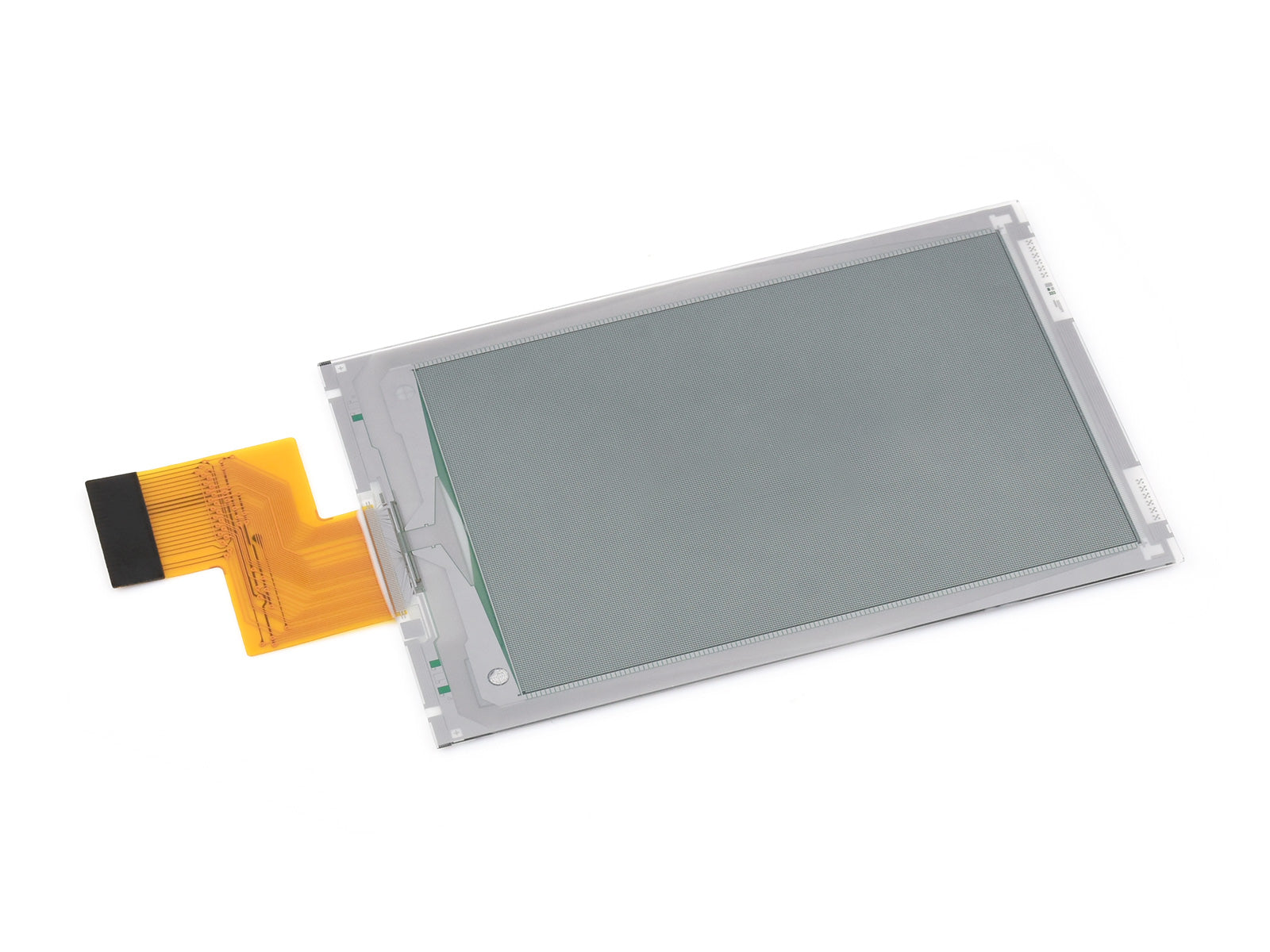

264x176, 2.7inch E-Ink raw display, SPI interface, without PCB
2.7″ e-Paper

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

  • Size2.7″
  • Resolution264×176
  • Viewing Angle>170°
  • Display ColorBlack/White
  • Grey Scale4
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual(driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
operating voltage 3.3V display color Black/White
interface 3-wire SPI, 4-wire SPI grey scale 4
outline dimensions 70.42 × 45.8 × 0.98mm full refresh time 6s
display size 57.29 × 38.19mm Partial refresh time 0.3s
refresh power 26.4mW(typ.) standby current <0.01uA (almost none)
DOT PITCH 0.217 × 0.217 mm viewing angle >170°
RESOLUTION 264 × 176 pixels
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

This is raw display without driver board

To test and compare this raw display easily, it is recommended to purchase the following solutions:

2.7inch e-apper with driver board2.7inch e-Paper HAT Click here to purchase
Universal e-Paper Raw Panel Driver HATe-Paper Driver HAT Click here to purchase
Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wirelesse-Paper ESP32 Driver Board Click here to purchase
Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi Wirelesse-Paper ESP8266 Driver Board Click here to purchase
Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEOe-Paper Shield Click here to purchase
Application examples

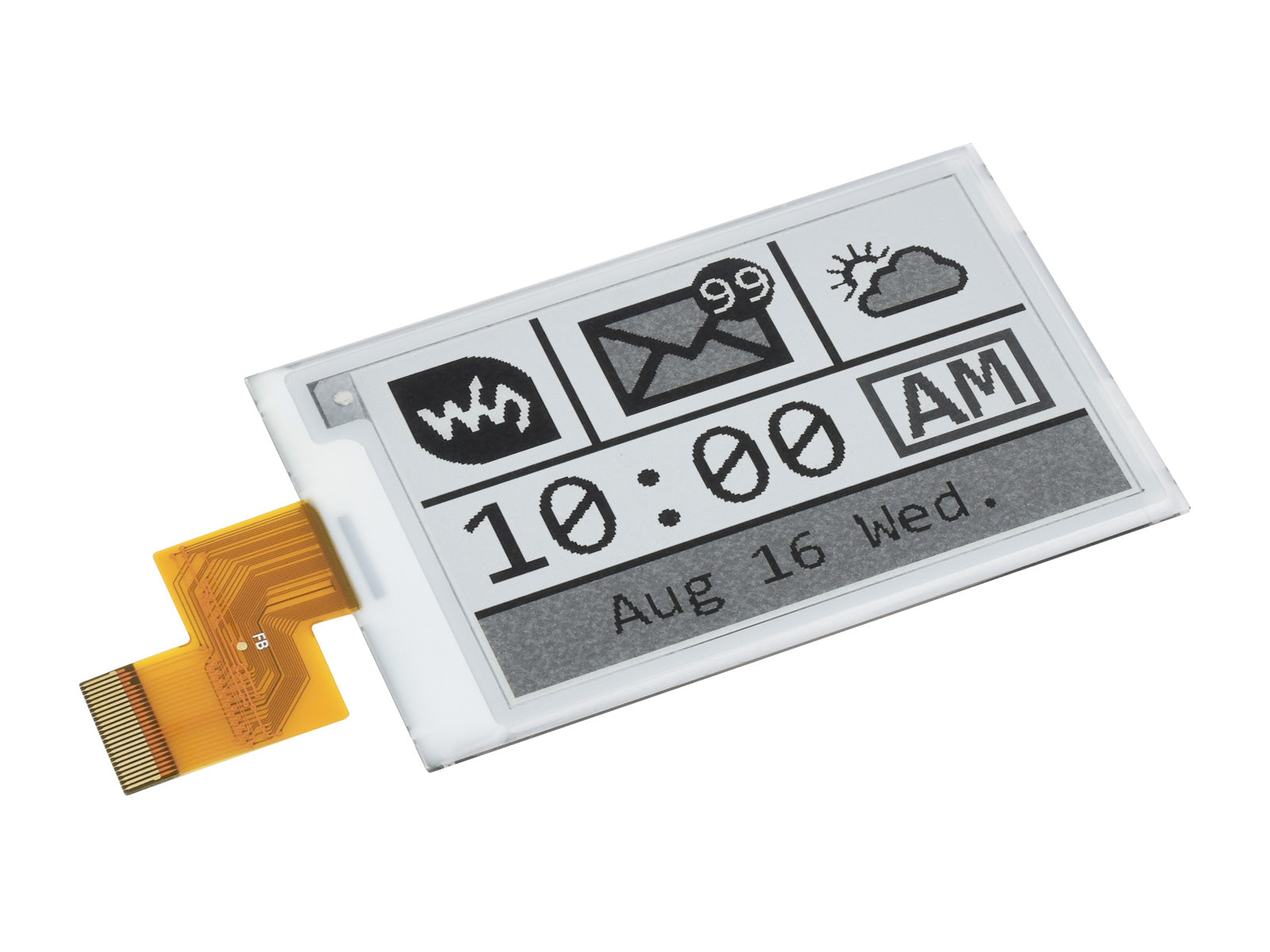

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

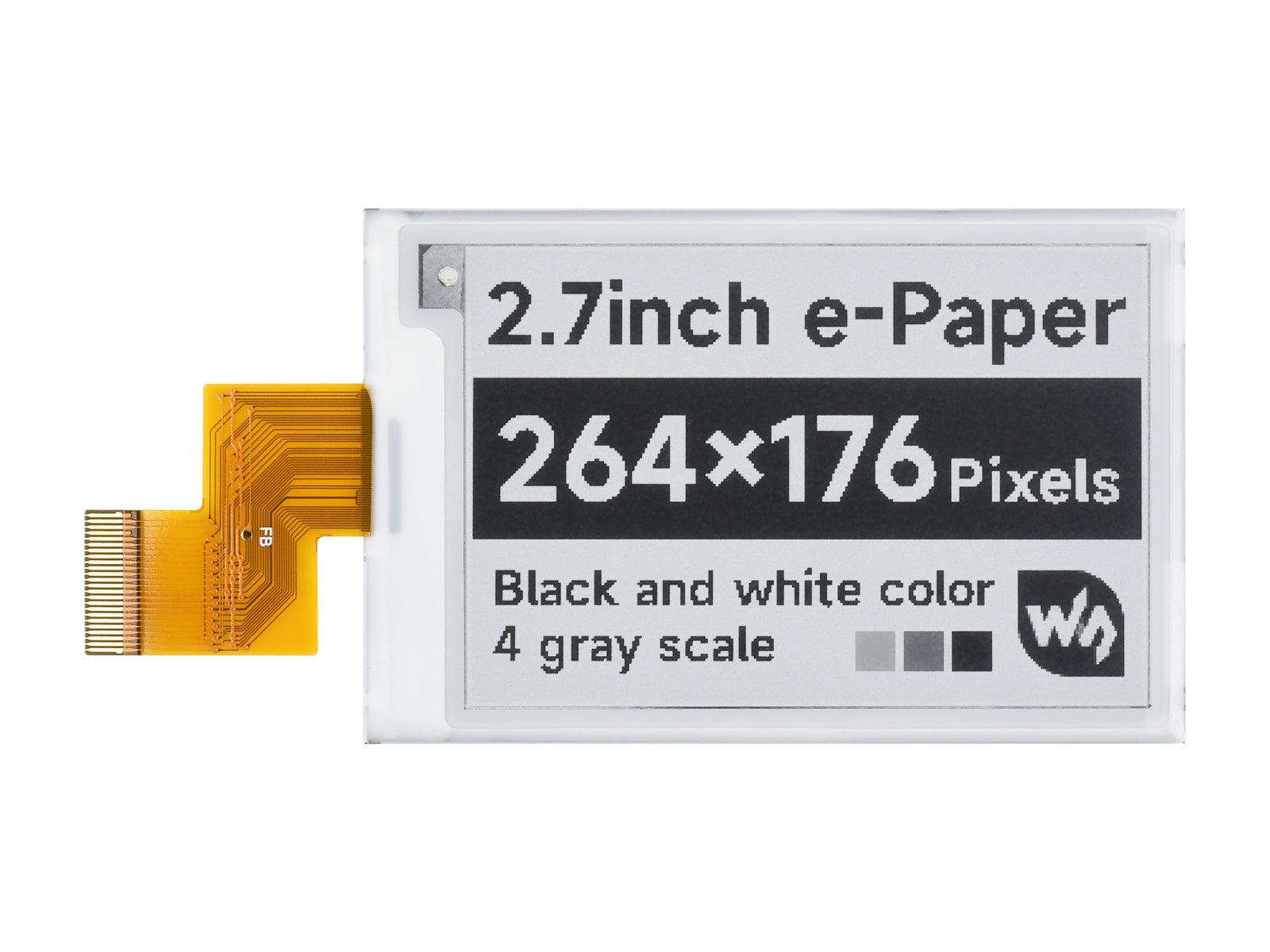

Product show
Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh Flexible Interface
1.02inch e-Paper black, white 2 128×80 21.76 × 14.00 32.57 × 18.60 × 0.98 2 √ SPI
1.54inch e-Paper black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 2 √ SPI
1.54inch e-Paper (B) red, black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 14 SPI
1.54inch e-Paper (G) red, yellow, black, white 2 200×200 27.00 × 27.00 37.32 × 31.8 × 1.00 20 SPI
1.64inch e-Paper (G) red, yellow, black, white 2 168×168 29.568 × 29.568 45.5 × 36.4 × 0.91 12 SPI
2.13inch e-Paper black, white 2 250×122 48.55 × 23.71 59.20 × 29.20 × 1.05 2 √ SPI
2.13inch e-Paper (B) red, black, white 2 250×122 48.55 × 23.70 59.20 × 29.20 × 0.98 15 SPI
2.13inch e-Paper (G) red, yellow, black, white 2 250×122 48.55 × 23.70 59.20 × 29.20 × 1.00 16 SPI
2.15inch e-Paper (B) red, black, white 2 296×160 48.10 × 26.00 60.8 × 31.8 × 1.00 23 SPI
2.15inch e-Paper (G) red, yellow, black, white 2 296×160 48.10 × 26.00 60.8 × 31.8 × 1.00 20 SPI
2.36inch e-Paper (G) red, yellow, black, white 2 296×168 52.096 × 29.568 68.1 × 37.9 × 0.85 12 SPI
2.66inch e-Paper black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 6 √ SPI
2.66inch e-Paper (B) red, black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 15 SPI
2.66inch e-Paper (G) red, yellow, black, white 2 360×184 60.05 × 30.69 72.59 × 37.11 × 1.00 26 SPI
2.7inch e-Paper black, white 4 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 6 √ SPI
2.7inch e-Paper (B) red, black, white 2 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 15 SPI
2.9inch e-Paper black, white 4 296×128 66.89 × 29.05 79.00 × 36.70 × 1.05 3 √ SPI
2.9inch e-Paper (B) red, black, white 2 296×128 66.90 × 29.06 79.00 × 36.70 × 1.20 14 √ SPI
2.9inch e-Paper (G) red, yellow, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.20 16 SPI
3inch e-Paper (G) red, yellow, black, white 2 400×168 70.4 × 29.568 86.4 × 39.2 × 0.85 12 SPI
3.5inch e-Paper (G) red, yellow, black, white 2 384×184 79.68 × 38.18 91.75 × 45.03 × 1.00 20 SPI
3.52inch e-Paper black, white 2 360×240 74.51 × 49.67 84.70 × 54.41 × 1.18 1.5 SPI
3.52inch e-Paper (B) red, black, white 2 360×240 74.51 × 49.67 84.70 × 54.41 × 0.85 16 SPI
3.6inch e-Paper (E) E6 full color 2 600×400 76.20 × 50.80 86.60 × 56.00 × 0.78 15 SPI
3.7inch e-Paper black, white 4 480×280 47.32 × 81.12 54.90 × 93.30 × 0.78 3 √ SPI
3.7inch e-Paper (G) red, yellow, black, white 2 416×240 81.54 × 47.07 92.99 × 53.00 × 1.00 20 SPI
3.97inch e-Paper black, white 4 800×480 99.50 × 60.00 96.62 × 56.24 × 0.92 3.5 √ SPI
3.97inch e-Paper (G) red, yellow, black, white 2 800×480 99.50 × 60.00 96.62 × 56.24 × 0.92 21 SPI
4inch e-Paper (E) E6 full color 2 600×400 84.6 × 56.4 99.00 × 66.00 × 0.85 19 SPI
4.2inch e-Paper black, white 4 400×300 84.80 × 63.60 91.00 × 77.00 × 1.18 5 √ SPI
4.2inch e-Paper (B) red, black, white 2 400×300 84.80 × 63.60 91.00 × 77.00 × 1.05 15 SPI
4.2inch e-Paper (G) red, yellow, black, white 2 400×300 84.80 × 63.60 91.00 × 77.00 × 1.00 21 SPI
4.26inch e-Paper black, white 4 800×480 92.8 × 55.68 129.33 × 62.37 × 0.93 4 √ SPI
4.37inch e-Paper (G) red, yellow, black, white 2 512×368 90.11 × 64.77 99.5 × 79.5 × 0.85 14 SPI
5inch e-Paper black, white 2 960×552 110.59 × 62.65 126.38 × 71.19 × 0.79 1.8 √ SPI
5.65inch e-Paper (F) 7-Color 2 600×448 114.9 × 85.8 125.4 × 99.5 × 0.91 <35 SPI
5.79inch e-Paper black, white 4 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 3.5 √ SPI
5.79inch e-Paper (B) red, black, white 2 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 24 SPI
5.79inch e-Paper (G) red, yellow, black, white 2 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 21 SPI
5.83inch e-Paper black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 5 SPI
5.83inch e-Paper (G) red, yellow, black, white 2 648×480 118.78 × 88.22 125.40 × 99.50 × 1.20 20 SPI
6inch HD e-Paper black, white 16 1448×1072 122.356 × 90.60 138.40 × 101.80 × 0.67 <1 √ Parallel port
7.3inch e-Paper (E) E6 full color 2 800×480 160 × 96 170.2 × 111.2 × 0.91 12 SPI
7.3inch e-Paper (F) 7-Color 2 800×480 160 × 96 170.2 × 111.2 × 0.91 35 SPI
7.5inch e-Paper black, white 4 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 4 √ SPI
7.5inch e-Paper (B) red, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 26 √ SPI
7.5inch e-Paper (G) black, white 2 800×480 163.20 × 97.92 177.20 × 118.20 × 2.00 5 √ SPI
7.5inch e-Paper (H) red, yellow, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.20 22 SPI
7.8inch e-Paper black, white 16 1872×1404 158.18 × 118.64 173.80 × 127.60 × 0.78 <1 √ Parallel port
9.7inch e-Paper black, white 16 1200×825 202.8 × 139.43 218.80 × 156.425 × 1.15 <1 √ Parallel port
10.2inch e-Paper (G) red, yellow, black, white 2 960×640 215.52 × 143.68 224.00 × 157.00 × 1.00 27 SPI
10.3inch e-Paper black, white 16 1872×1404 209.66 × 157.25 216.70 × 174.40 × 0.78 <1 √ Parallel port
10.3inch e-Paper (D) black, white 16 1872×1404 209.66 × 157.25 227.70 × 165.80 × 0.647 <1 √ √ Parallel port
10.85inch e-Paper black, white 2 1360×480 259.76 × 91.68 270.56 × 105.92 × 1.20 3.5 SPI
10.85inch e-Paper (G) red, yellow, black, white 2 1360×480 259.76 × 91.68 270.56 × 105.92 × 1.20 21 SPI
12.48inch e-Paper black, white 2 1304×984 252.98 × 190.90 261.50 × 211.00 × 0.30 <8 SPI
12.48inch e-Paper (B) red, black, white 2 1304×984 252.98 × 190.90 261.40 × 211.00 × 1.20 37 SPI
13.3inch e-Paper black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 × 0.78 <1 √ Parallel port
13.3inch e-Paper (B) red, black, white 2 960×680 275.52 × 195.16 286.32 × 212.26 × 1.20 22 √ SPI
13.3inch e-Paper (E) E6 full color 2 1600×1200 270.40 × 202.80 284.70 × 208.80 × 0.850 19 SPI
13.3inch e-Paper (K) black, white 4 960×680 275.52 × 195.16 286.32 × 212.26 × 1.20 5 √ SPI
e-Paper raw panels comparing
