SKU:WSAL17539

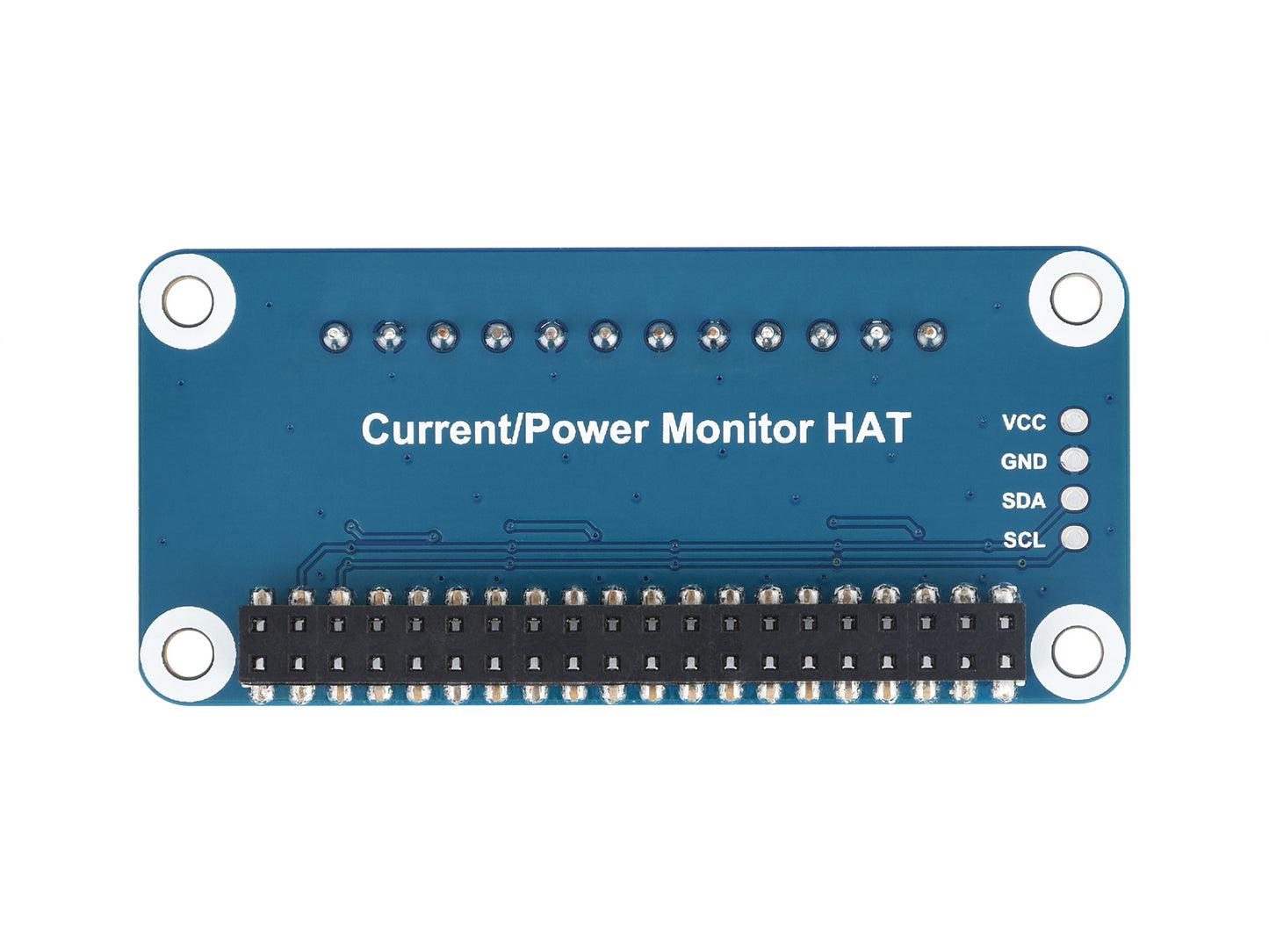

4-ch Current/Voltage/Power Monitor HAT for Raspberry Pi, I2C/SMBus Interface

Current/Voltage/Power Monitor HAT for Raspberry Pi

Supports Raspberry Pi series boards

4-ch monitoring, I2C/SMBus interface communication

Features at a glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• 4-ch monitoring, via I2C/SMBus interface
• Onboard 0.1Ω 1％ sampling resistor, allows measuring bi-directional current up to 3.2A
• Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
• Directly calculate and output measured power value through additional multiply register
• I2C control pins for connecting with other host boards
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

Operating voltage	3.3V/5V
Control interface	I2C/SMBus
Sampling resistor	0.1Ω 1%
Voltage range	0~26V
Current range	±3.2A
Resolution	0.8mA (±3.2A range) OR 0.1mA (±400mA range)
Dimensions	65mm × 30mm
Mounting hole size	3.0mm

Standard Raspberry Pi 40PIN GPIO Header

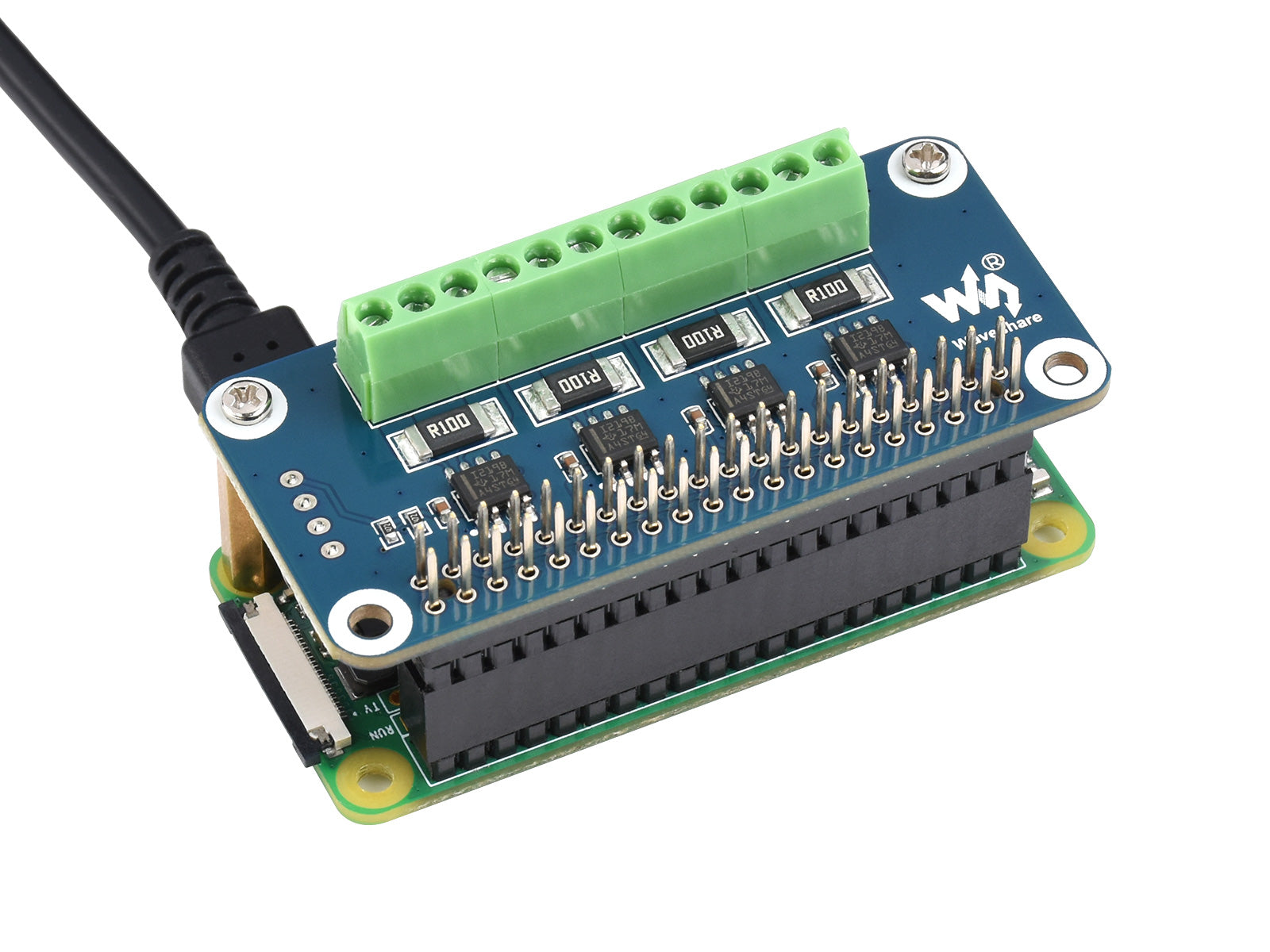

* for reference only, Raspberry Pi boards are NOT included.

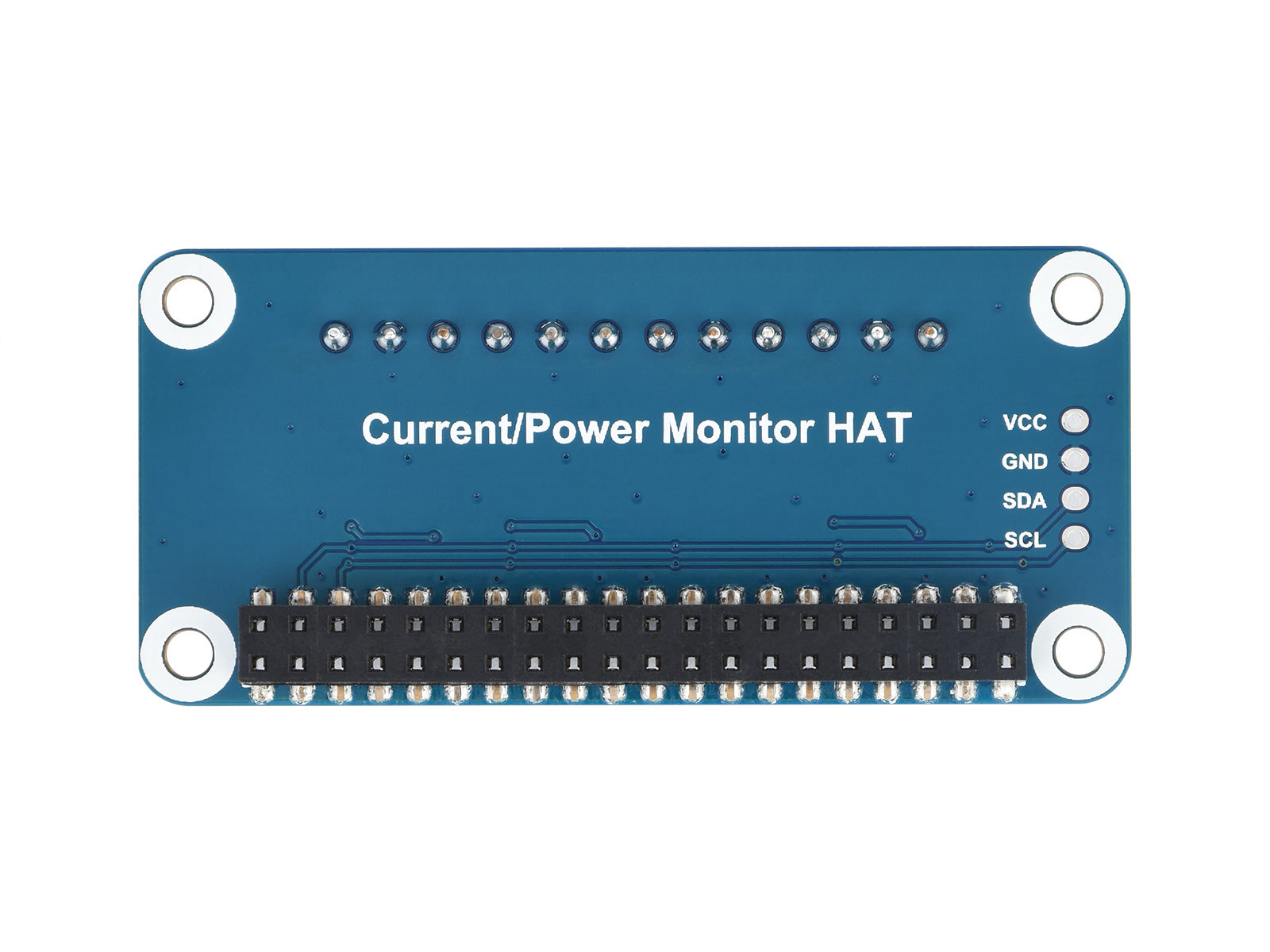

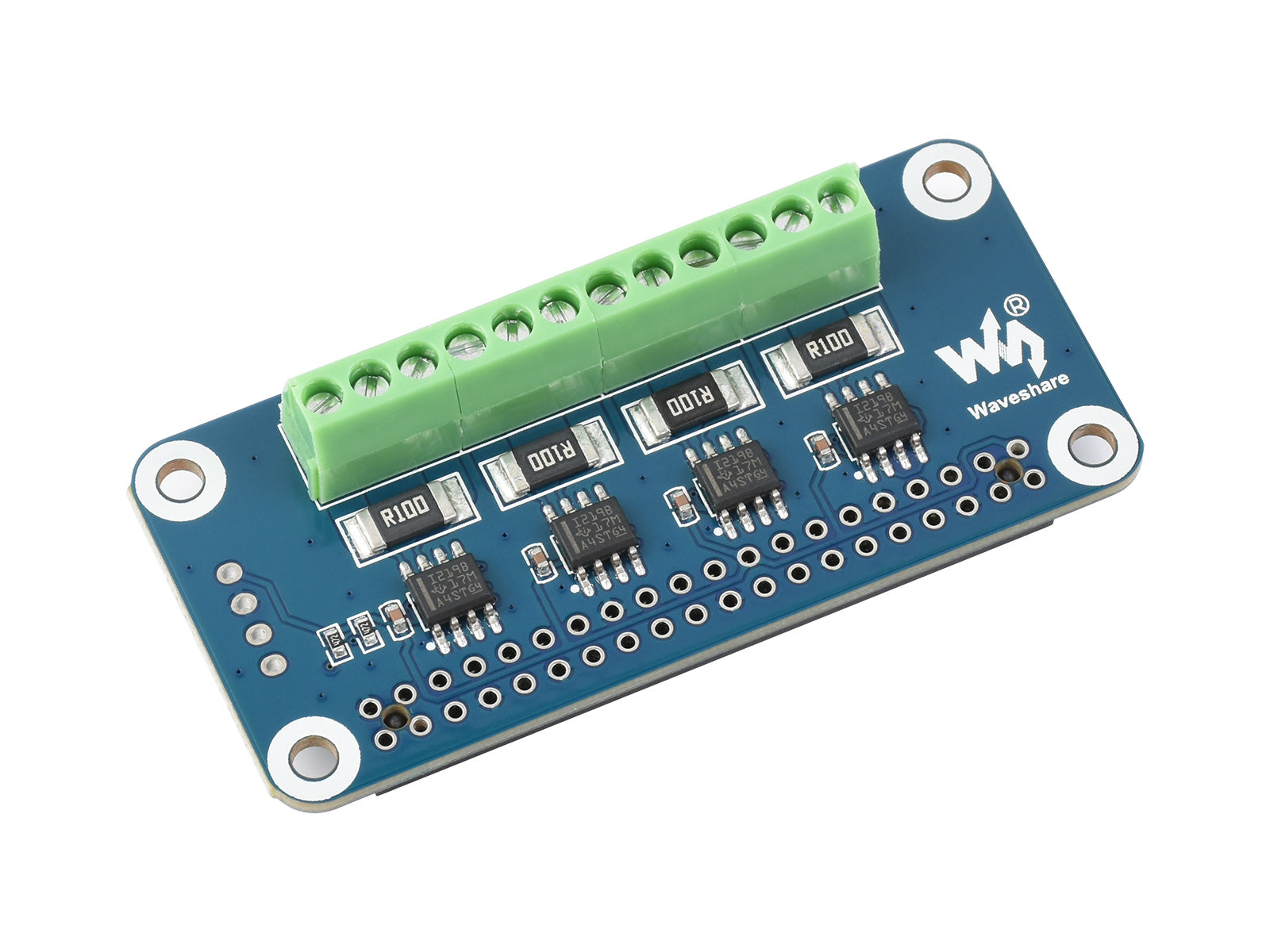

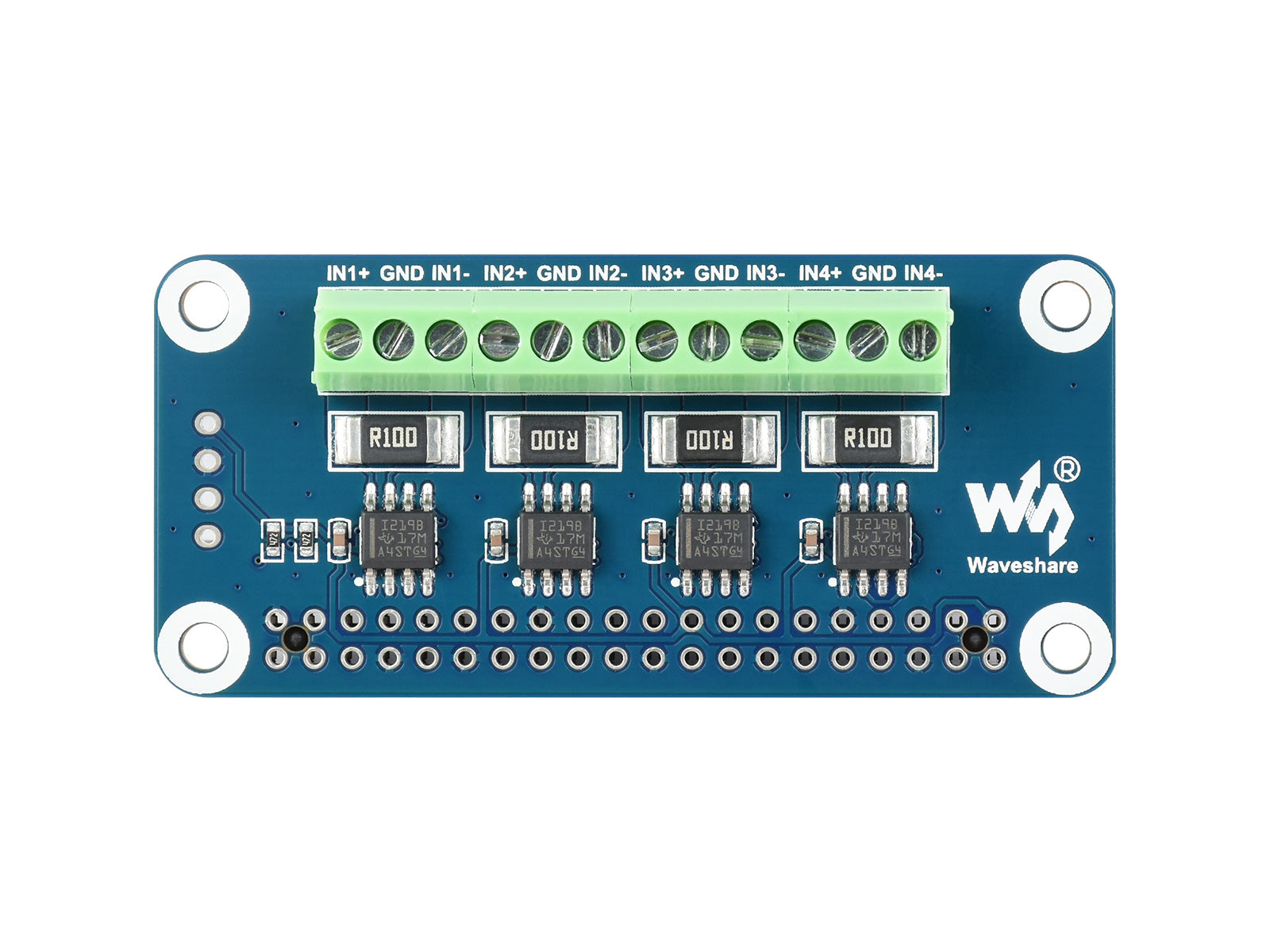

Product Show

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Current/Power_Monitor_HAT

Lieferumfang

1. Current/Power Monitor HAT x1
2. 2x20PIN female pinheader x1
3. Screws pack x1
