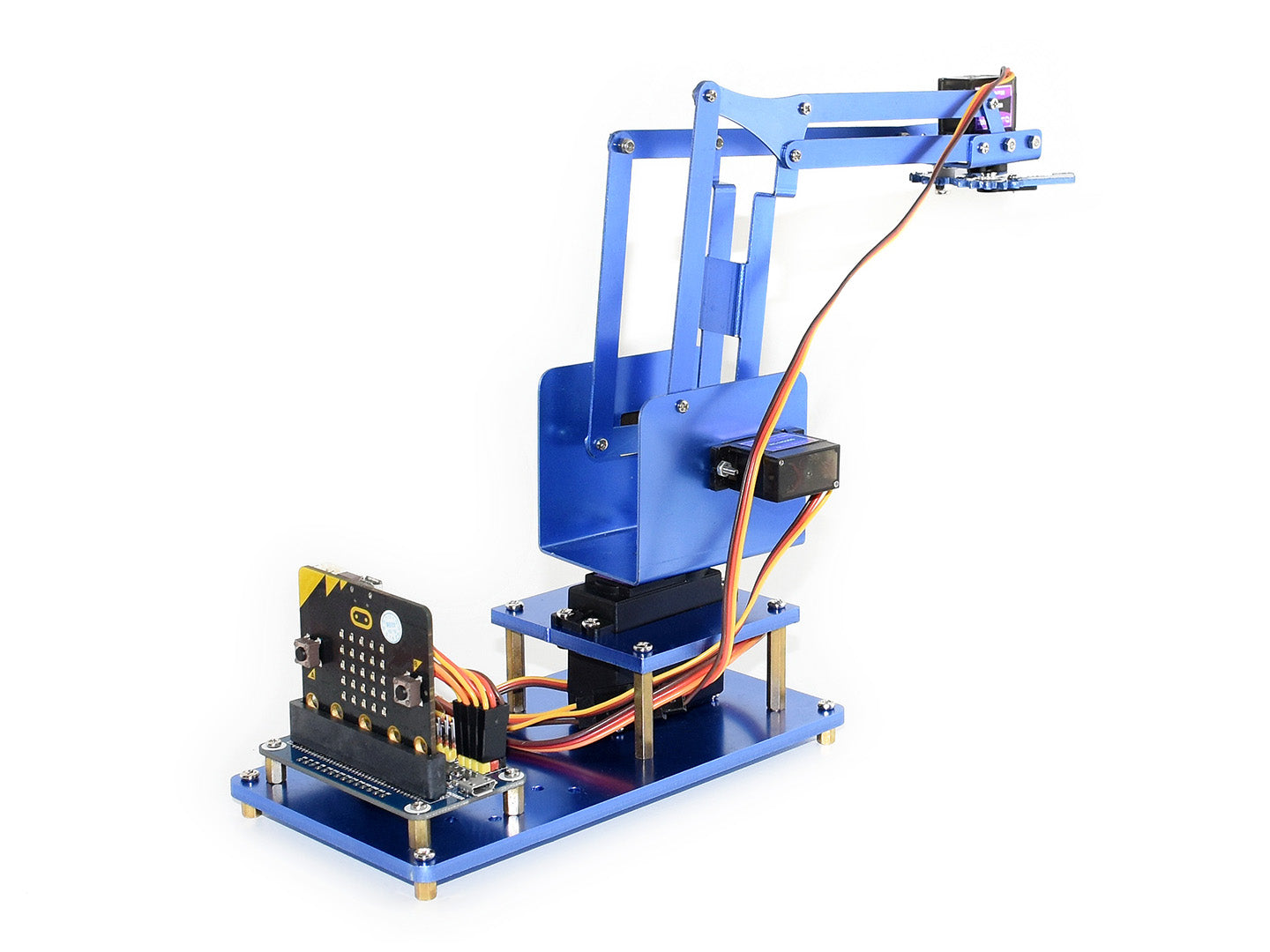

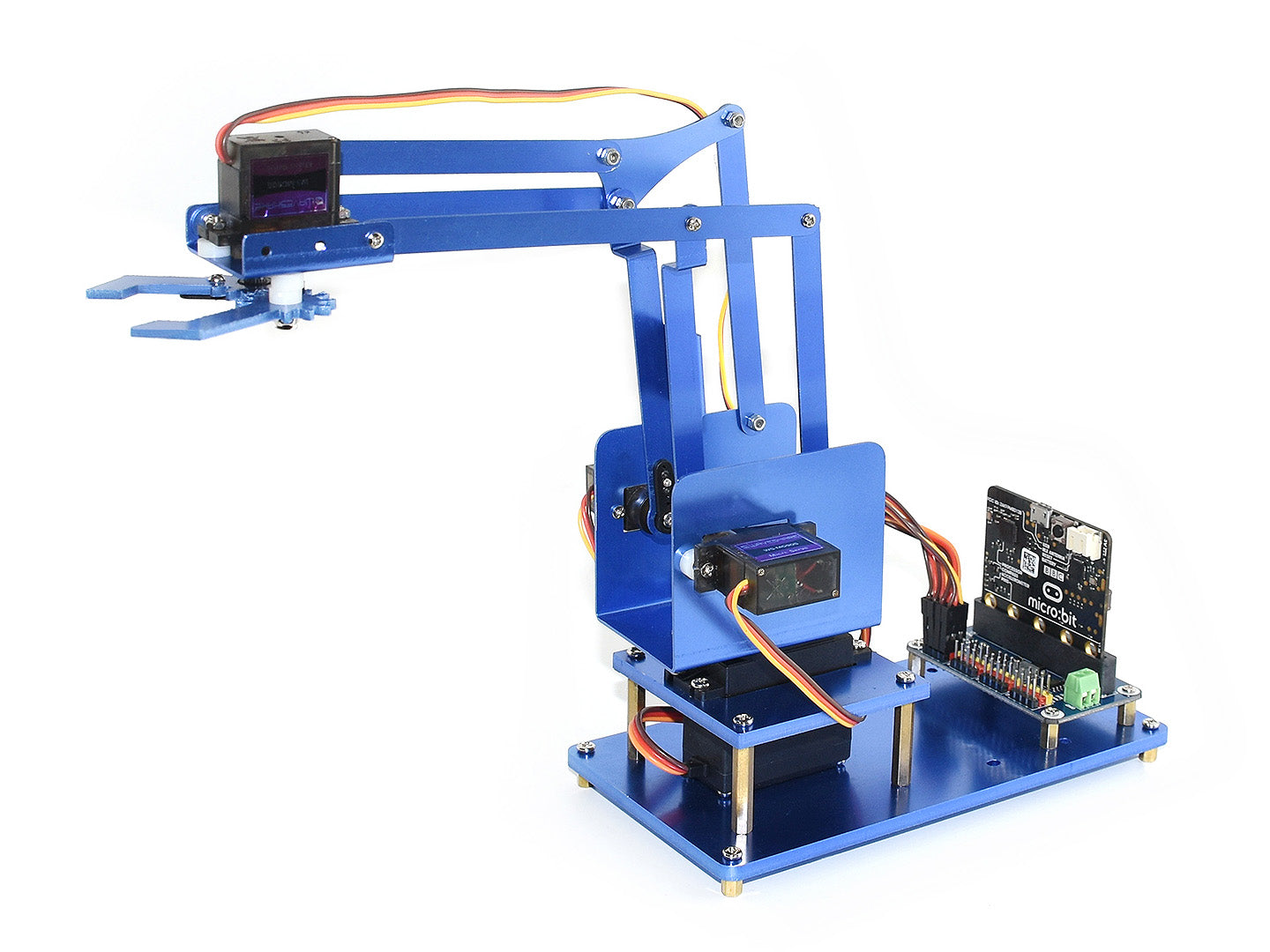

4-DOF Metal Robot Arm Kit for micro:bit, Bluetooth

Overview

Equip your micro:bit with this 4-DOF metal robot arm, and get started to explore the world of artificial intelligent robotic.

This starter robotic arm kit includes: servo driver board, metal mechanical arm structure, and 4x metal gear servos. When used with the micro:bit, it is easy to control the arm by smart phone through Bluetooth connection.

The Servo Driver

Adopts Servo Driver for micro:bit:

• micro:bit edge connector, directly pluggable
• I2C controlled, using only 2 pins
• Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Standard servo interface, supports common used servos
• Reserved I2C control pins, allows to work with other control boards
• Comes with development resources and manual (micro:bit graphical examples like Bluetooth/2.4G wir eless remote control)

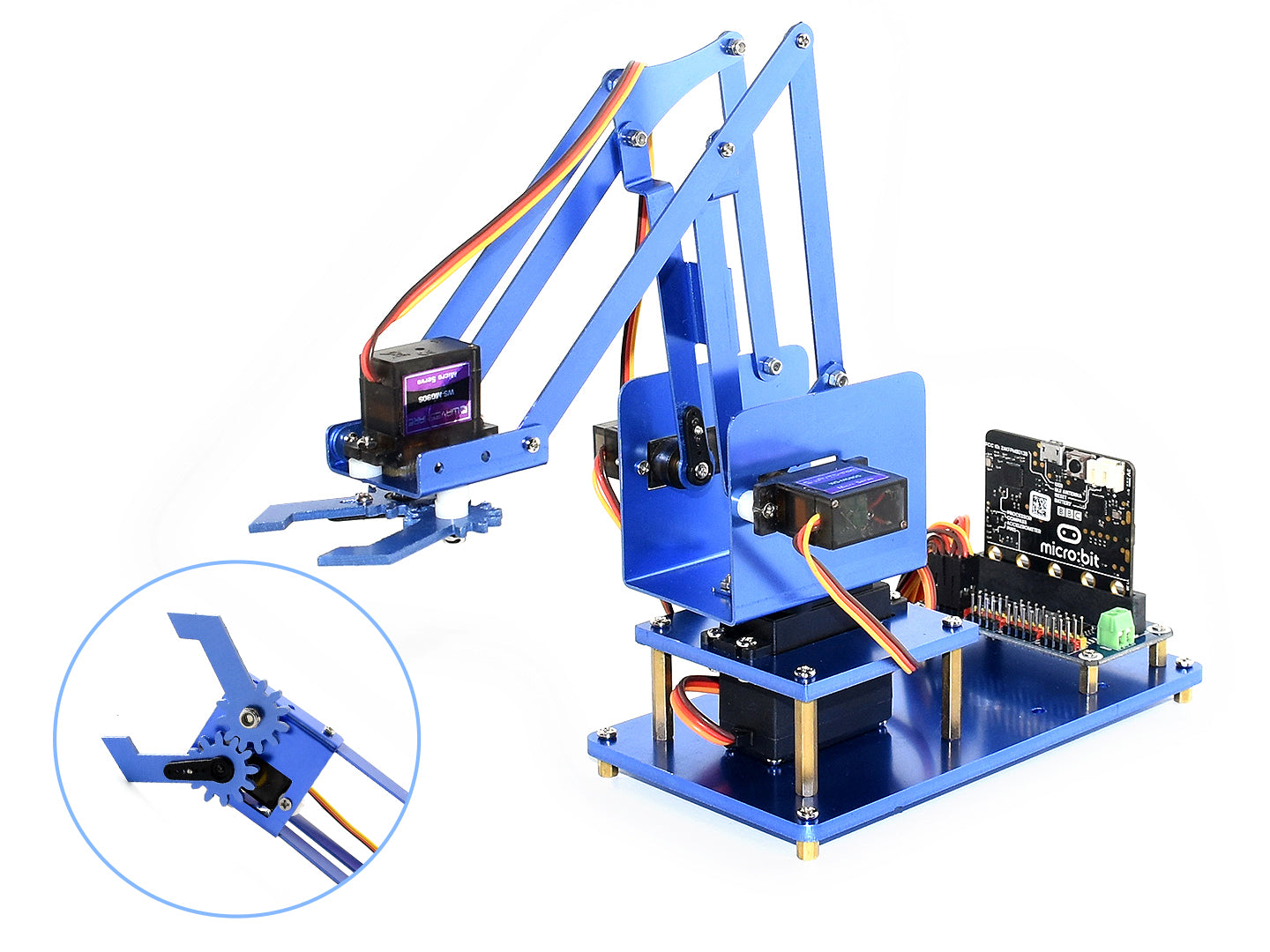

The Robot Arm Structure

• 4-DOF, large solid base, metal mechanical grasper
• Full aluminium alloy body, sandblasting oxidation surface, strong & durable
• Clever mechanical structure and mounting design, agile to control, easy to build
• Fitted with 4x metal gear servos, large torque force, smooth moving

Demo

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Robot_Arm_for_micro_bit

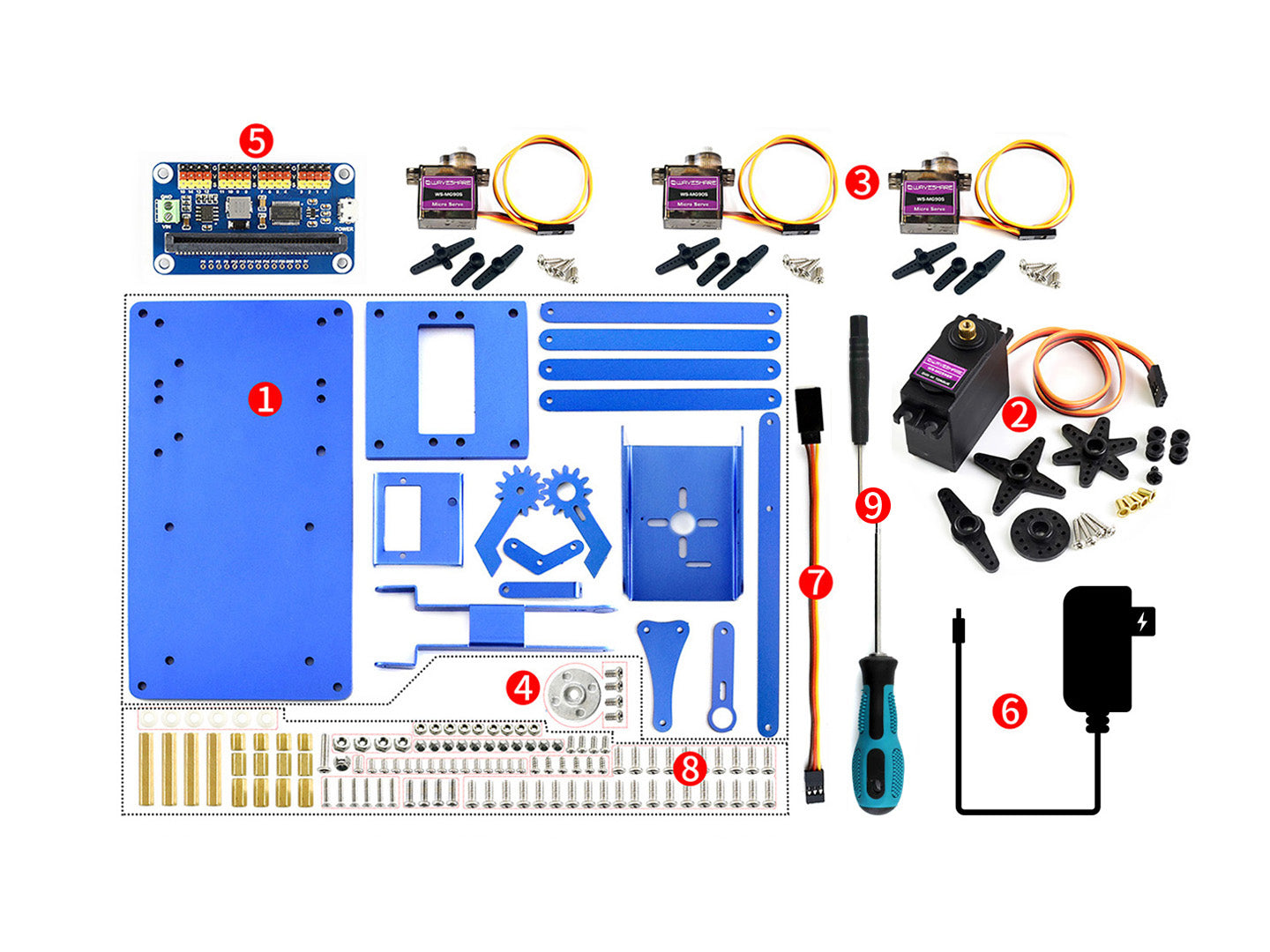

Lieferumfang

Note: micro:bit is NOT included.

1. Metal arm parts x1
2. MGR Servo x1
3. MGS Servo x3
4. MGR Servo wheel x1
5. Servo Driver for micro:bit x1
6. OPTIONS Power adapter x1
7. Servo extension wire 150mm x1
8. Screws pack x1
9. Screwdrivers 2PCS x1
