SKU:WSAL21121
4G High Gain SMA Antenna, 4G/3G/2G/LPWA Support
Regular price
718 Ft
Sale price
718 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Kurzbeschreibung: 4G High Gain SMA Antenna, 4G/3G/2G/LPWA Support, 700~2700MHz Range, 90° Flexible Rotation
4G high gain SMA antenna, 4G/3G/2G/LPWA support, 700~2700MHz range, 90° flexible rotation

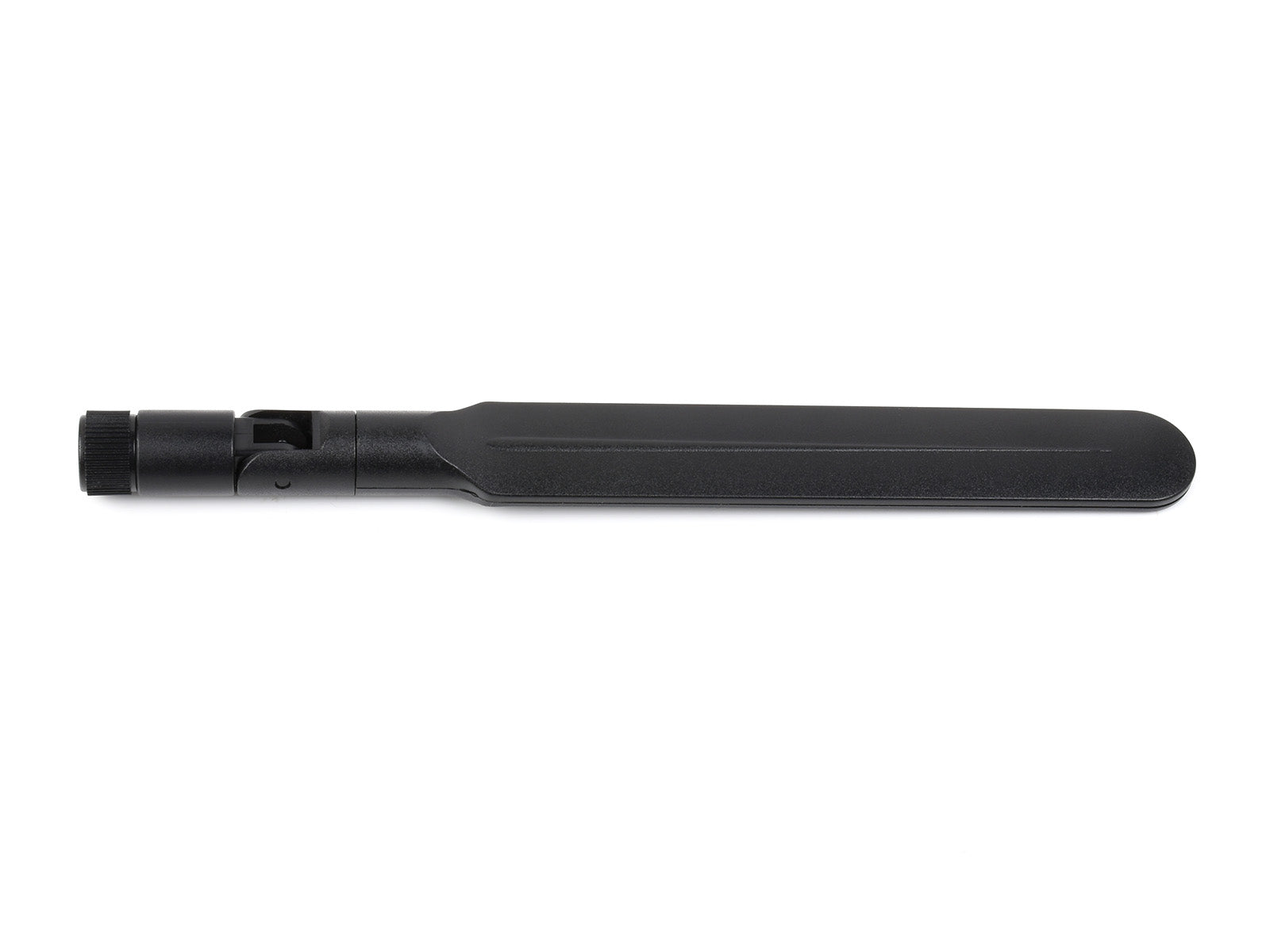

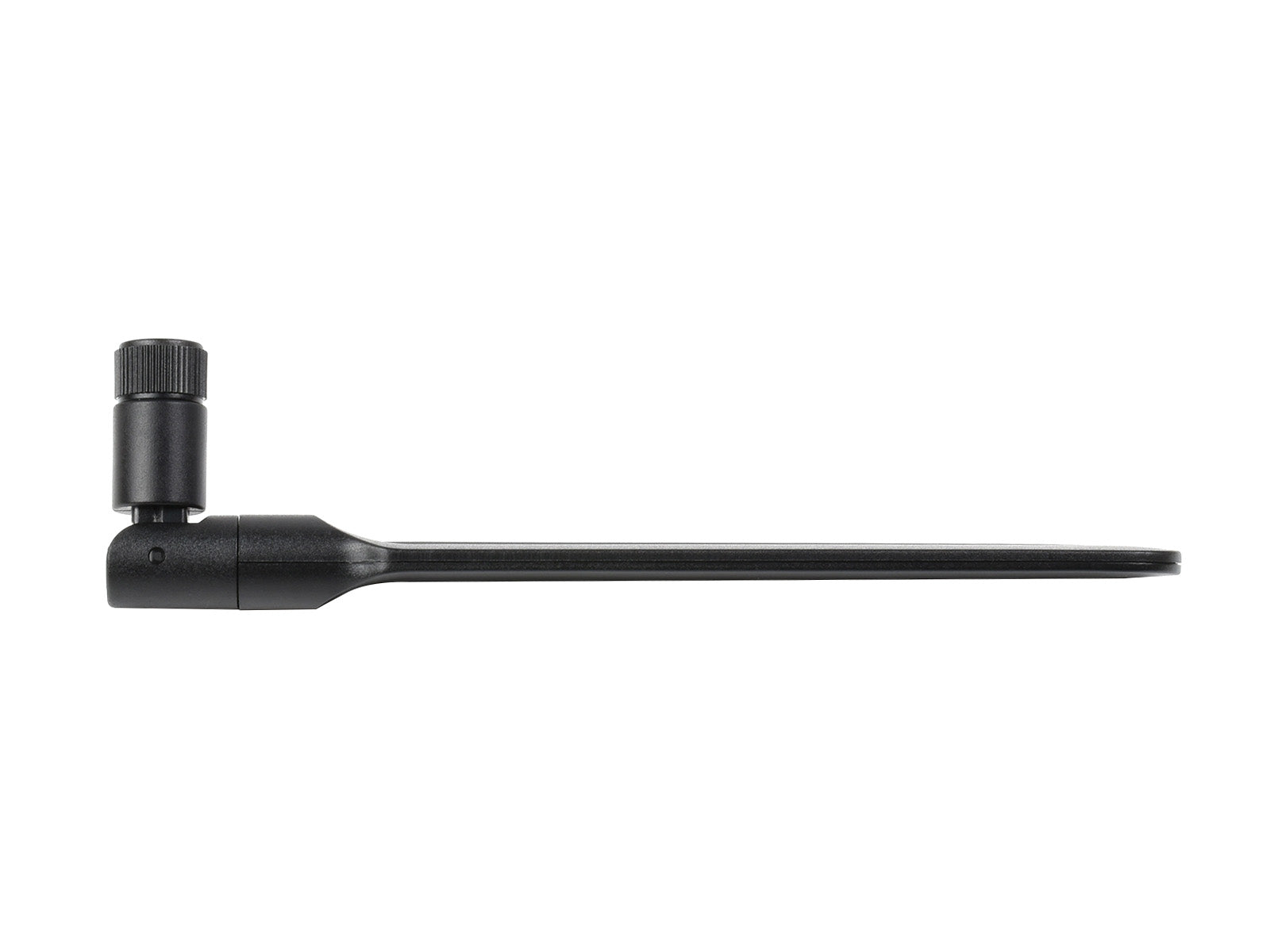

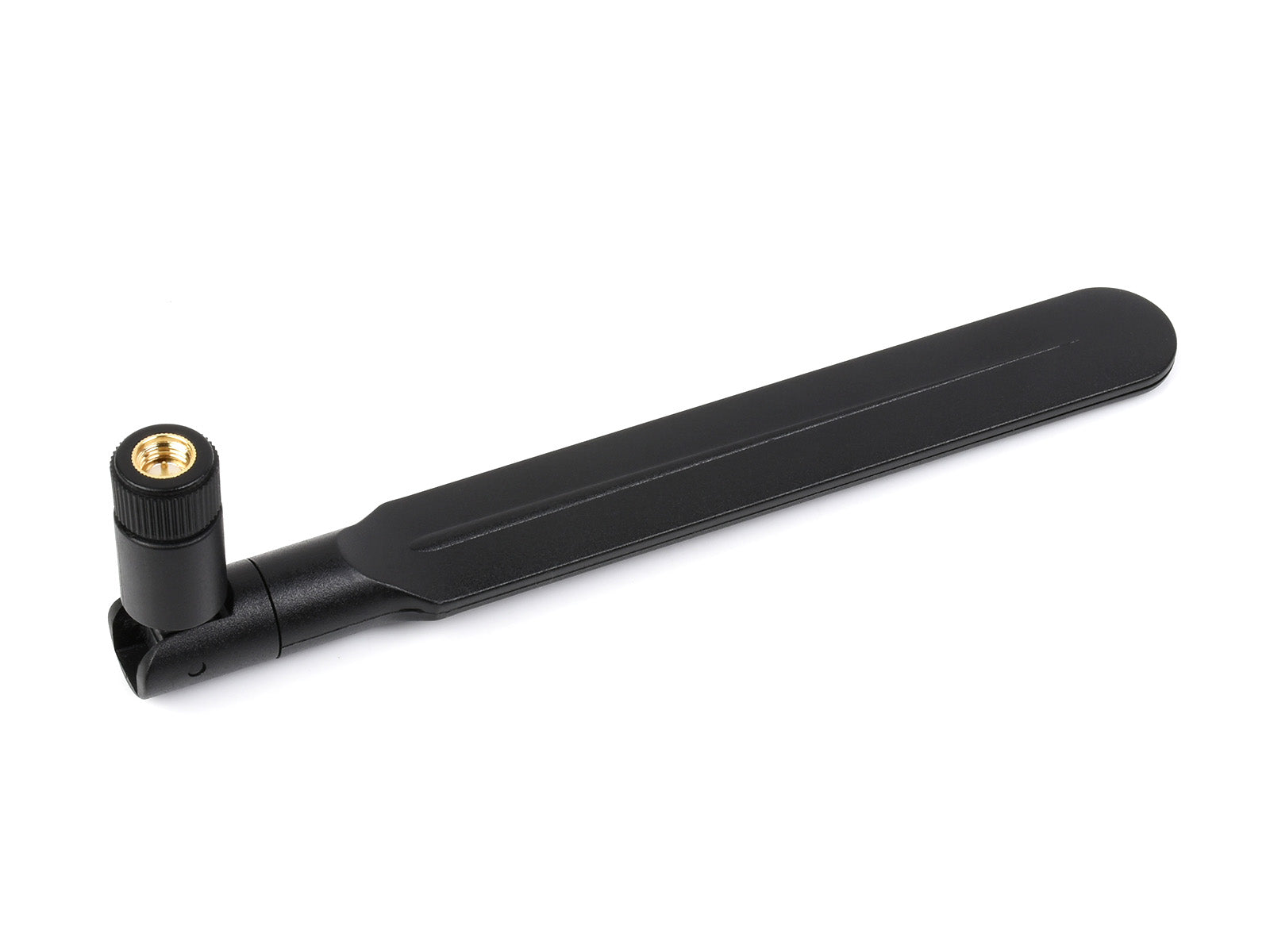

4G high gain SMA antenna
4G/3G/2G/LPWA support, SMA inner pin, 9DBI gain
Specifications
| Network support | 4G/3G/2G/LPWA | Gain | 9DBI ± 0.7DBI |
|---|---|---|---|
| Frequency range | 700~2700MHz | Connector | SMA inner pin |
| Output impedance | 50Ω | Length | 17CM |
| VSWR | ≤ 2.0 | Material | ABS |
| Polarisation | Vertical | Color | Black |
Application examples
using SMA to IPEX-1 cable
Connecting with SIM7600G-H-PCIE
Connecting with SIM7600G-H 4G HAT
using SMA to IPEX-4 cable
Connecting with SIM7600G-H-M.2
Connecting with SIM7600G-H 4G HAT (B)
for reference ONLY, please check the Package Content section for exact part list.
Outline dimensions
Lieferumfang
- 4G/3G/2G/LPWA External Antenna x1
