SKU:WSAL22024

Kurzbeschreibung: 5″ Touch Screen Expansion For Raspberry Pi Compute Module 4, PoE Header, Gigabit Ethernet, 4K Output

5″ touch screen expansion for Raspberry Pi Compute Module 4, PoE header, Gigabit Ethernet, 4K output

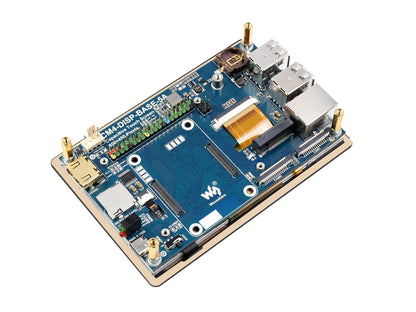

5″ touch screen expansion board

Designed for Raspberry Pi Compute Module 4

Specifications

CM4 socket	suitable for all variants of Compute Module 4
Networking	Gigabit Ethernet RJ45 connector
	M.2 M KEY, supports NVME SSD
PoE	PoE header (additional PoE HAT is required to enable PoE feature)
USB	USB 2.0 × 4
Display	5″ screen, 800 × 480 pixels, 5-point capacitive touch
Camera	MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector)
Video	HDMI, supports 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
Storage	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan header	allows speed adjustment and measurement, 5V / 12V
Power input	5V
Dimensions	127.7 × 87.45mm

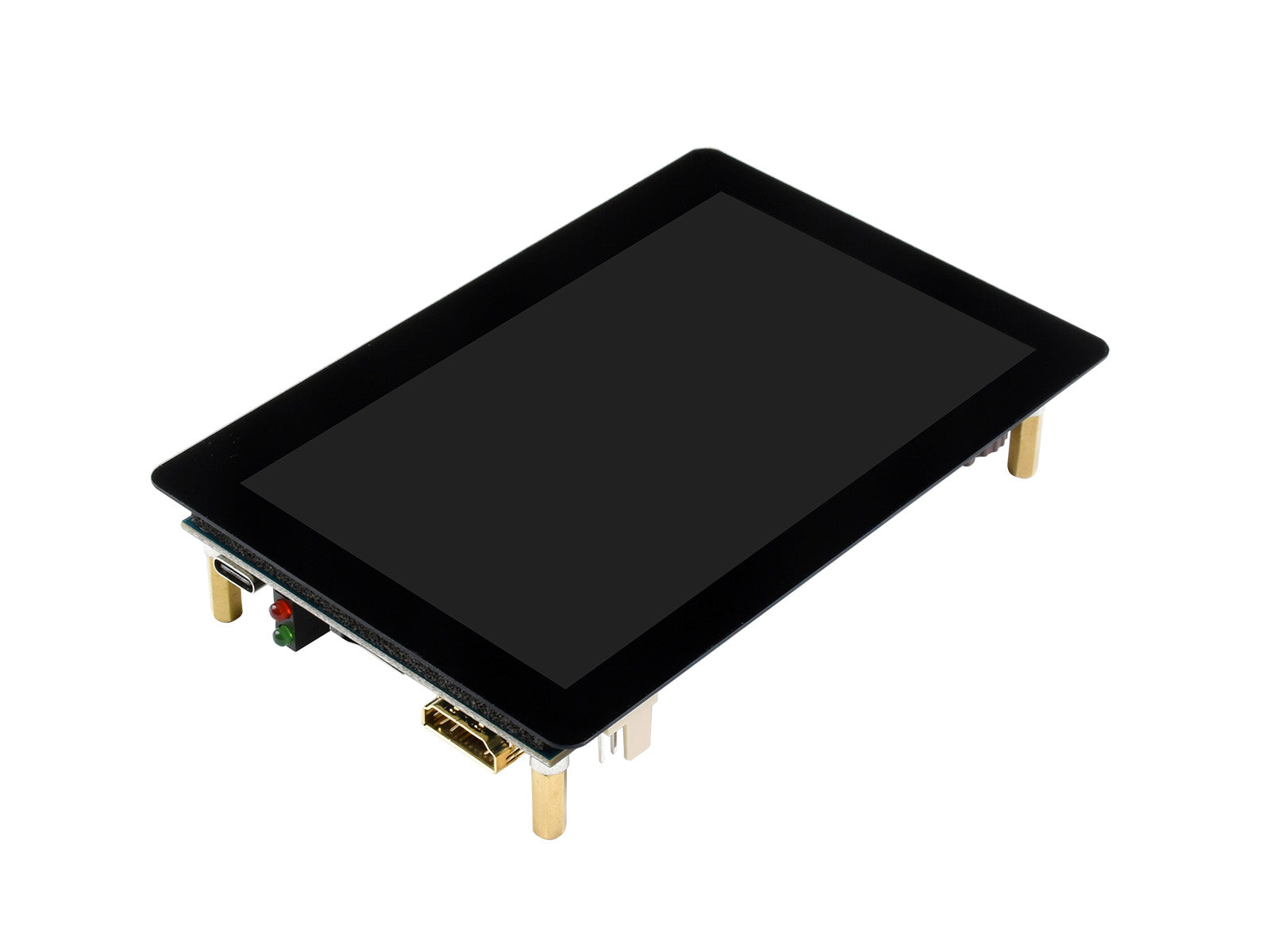

5″ · HD display

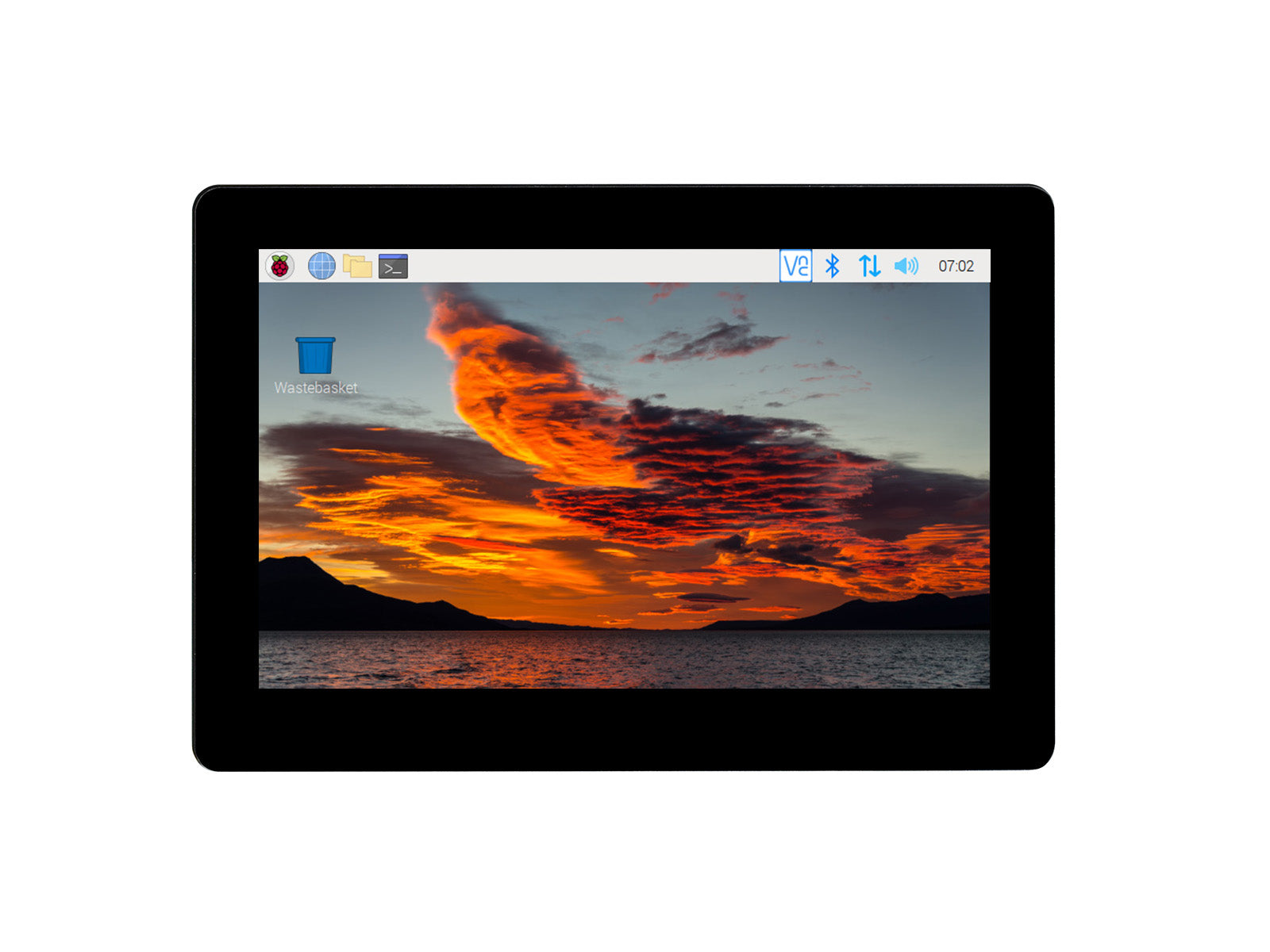

5″ 800 × 480 pixels display, clear details

IPS · natural color

wide viewing angle, fast response, precise and natural colorno ripple on touch, better touch experience

4K output to external display

supports 4K (3840*2160) 30fps output via HDMI portfully releasing the vision potentiality

5-point capacitive 「gentle」 touch

up to 5-point* capacitive touch screenjust gently touch it without any force, that is "capacitive"

* the actual touch points depend on the software system

Slide to adjust the brightness

the backlight brightness is adjustable by software for different scenariosmore power saving for the night or battery-powered projects

Love it, cool it

onboard fan header with speed adjustment and measurement supportcompatible with 5V/12V cooling fans

* for reference only, the CM4, cooling fan, and M.2 SSD are NOT included.

More details

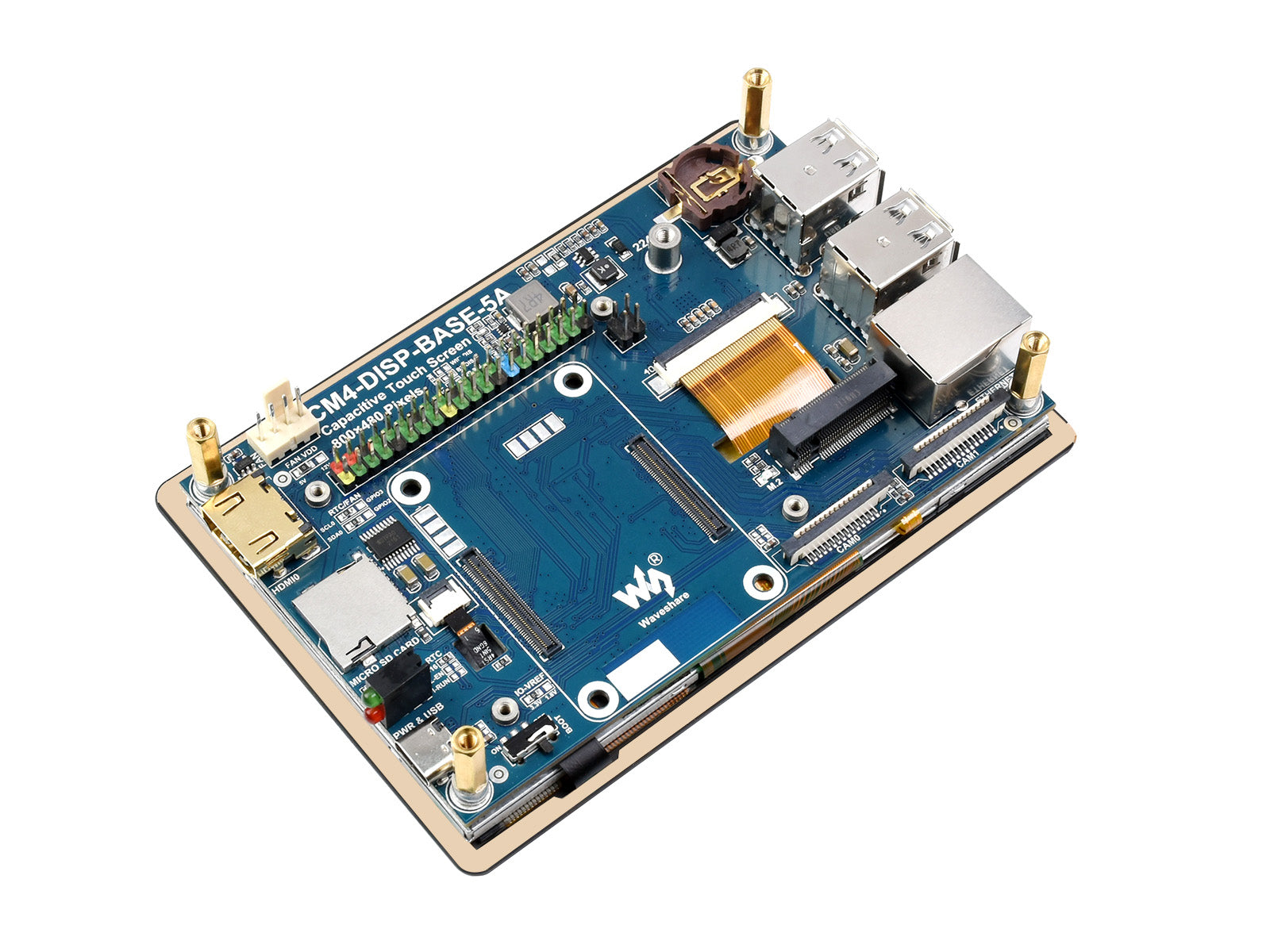

M.2 slotsupports M.2 M-key SSD

4x USB 2.0adequate connectors, for more USB devices as you like

Gigabit EthernetRJ45 Gigabit Ethernet connection, say goodbye to the snail

Dual MIPI CSI-2 portsallows connecting single camera or binocular cameras with different pixels

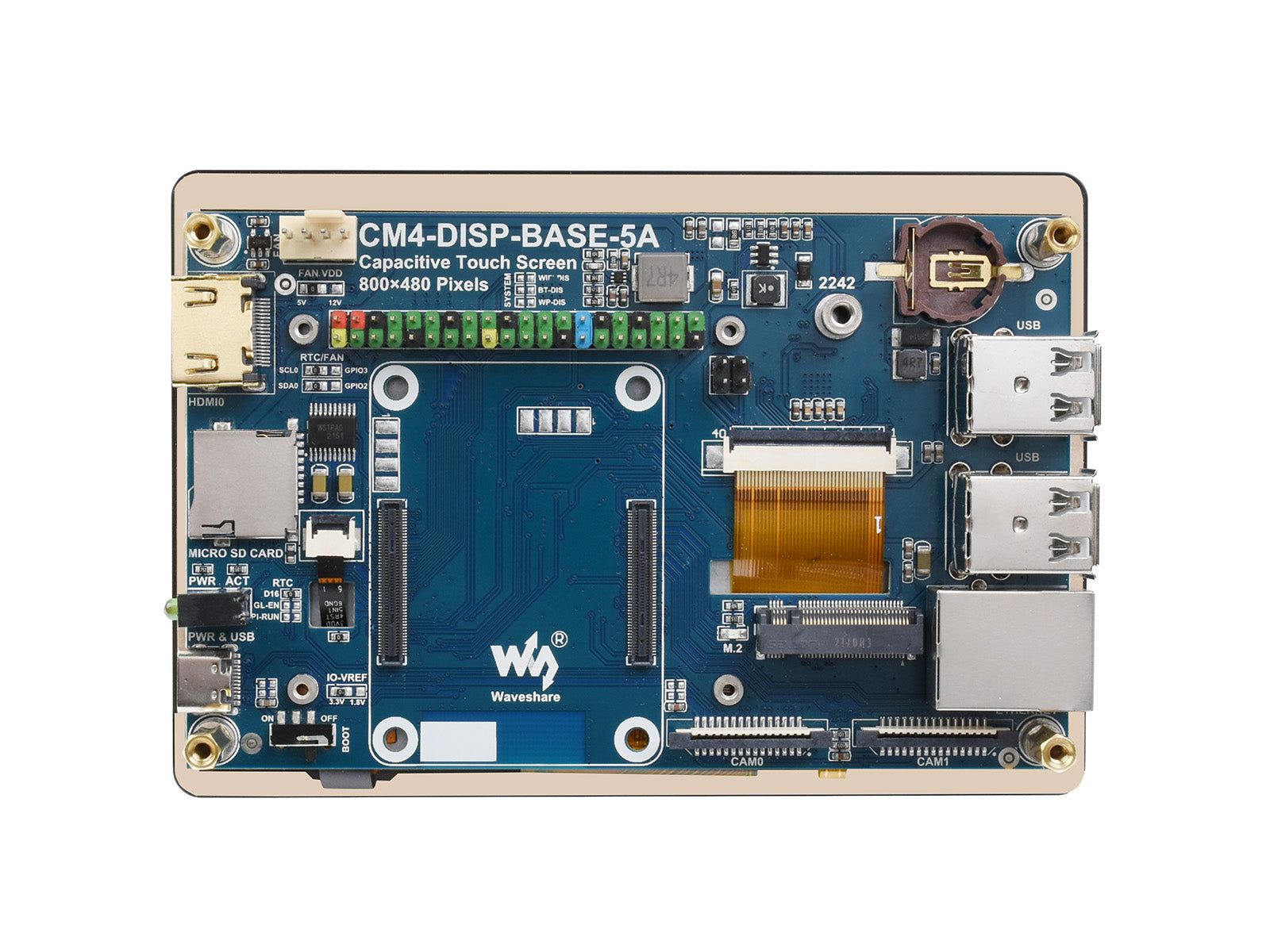

Interface introduction

Application Example

Suitable for Raspberry Pi applications or industrial scenarios requiring multi-function peripherals

Outline dimensions

Resources & Services

---

WIKI:www.waveshare.com/wiki/CM4-DISP-BASE-5A

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

What's the differences

CM4 Base Board	Interface count and specifications
	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G supportRS232RS485ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
