SKU:WSAL18574

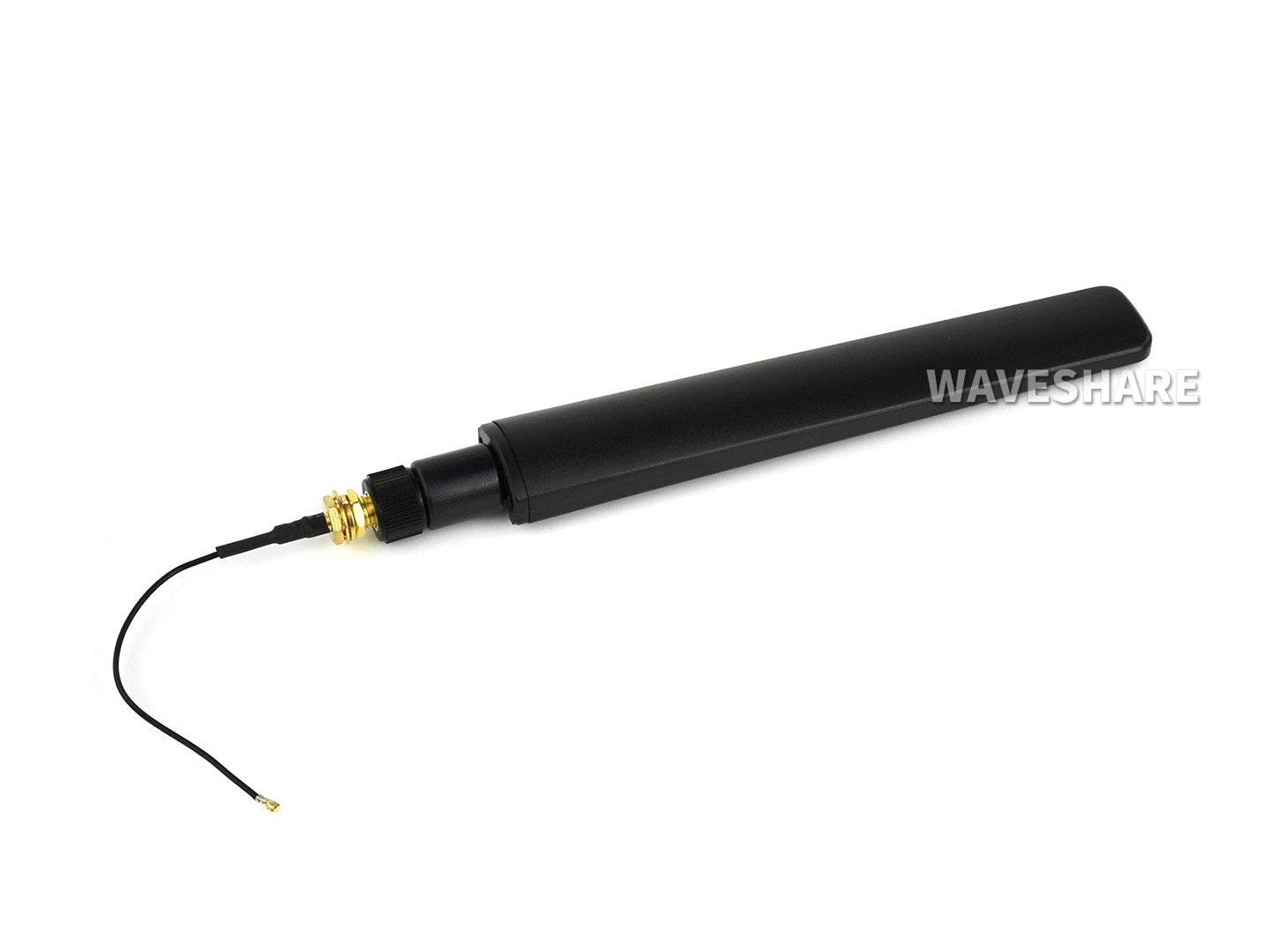

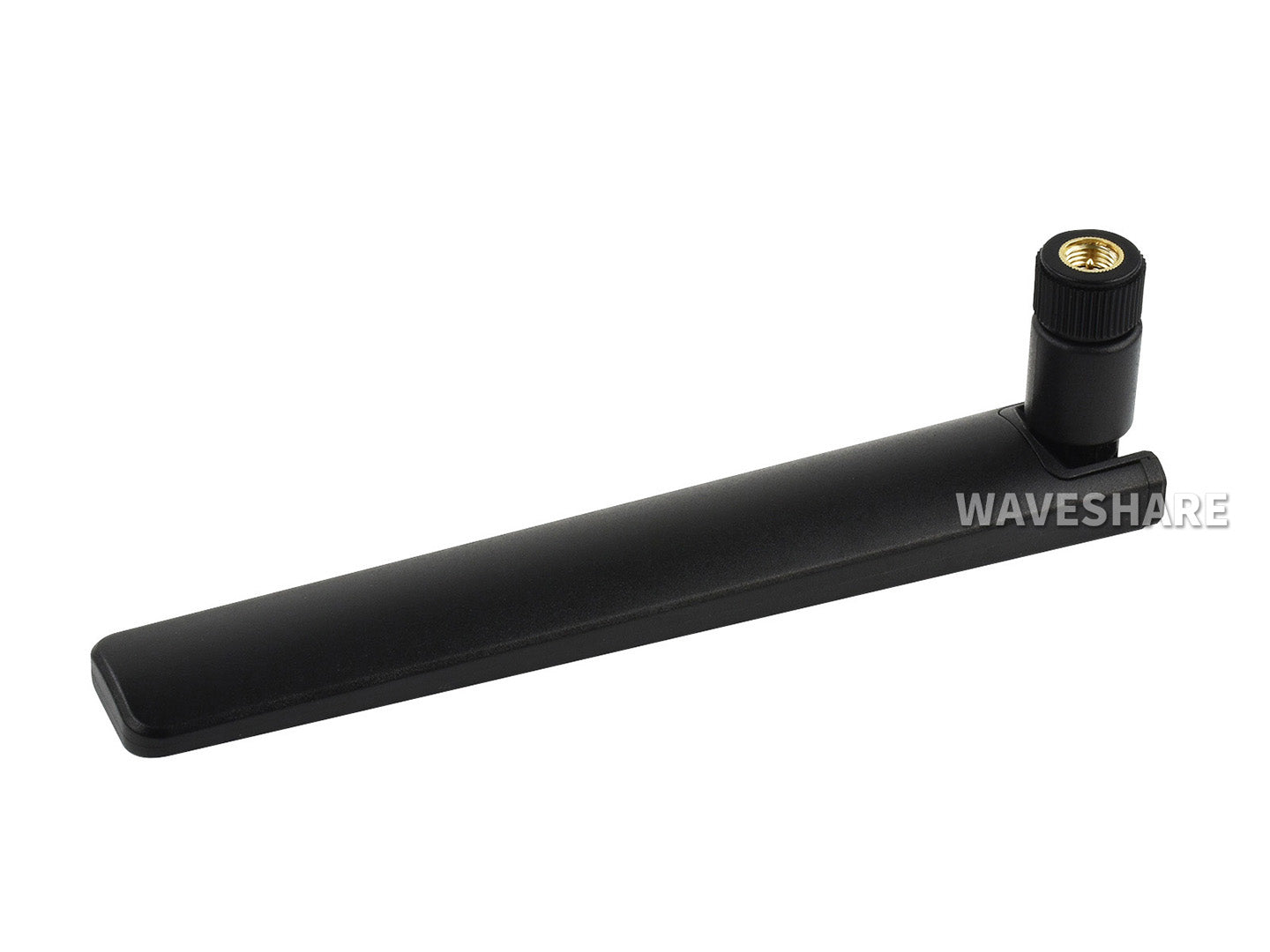

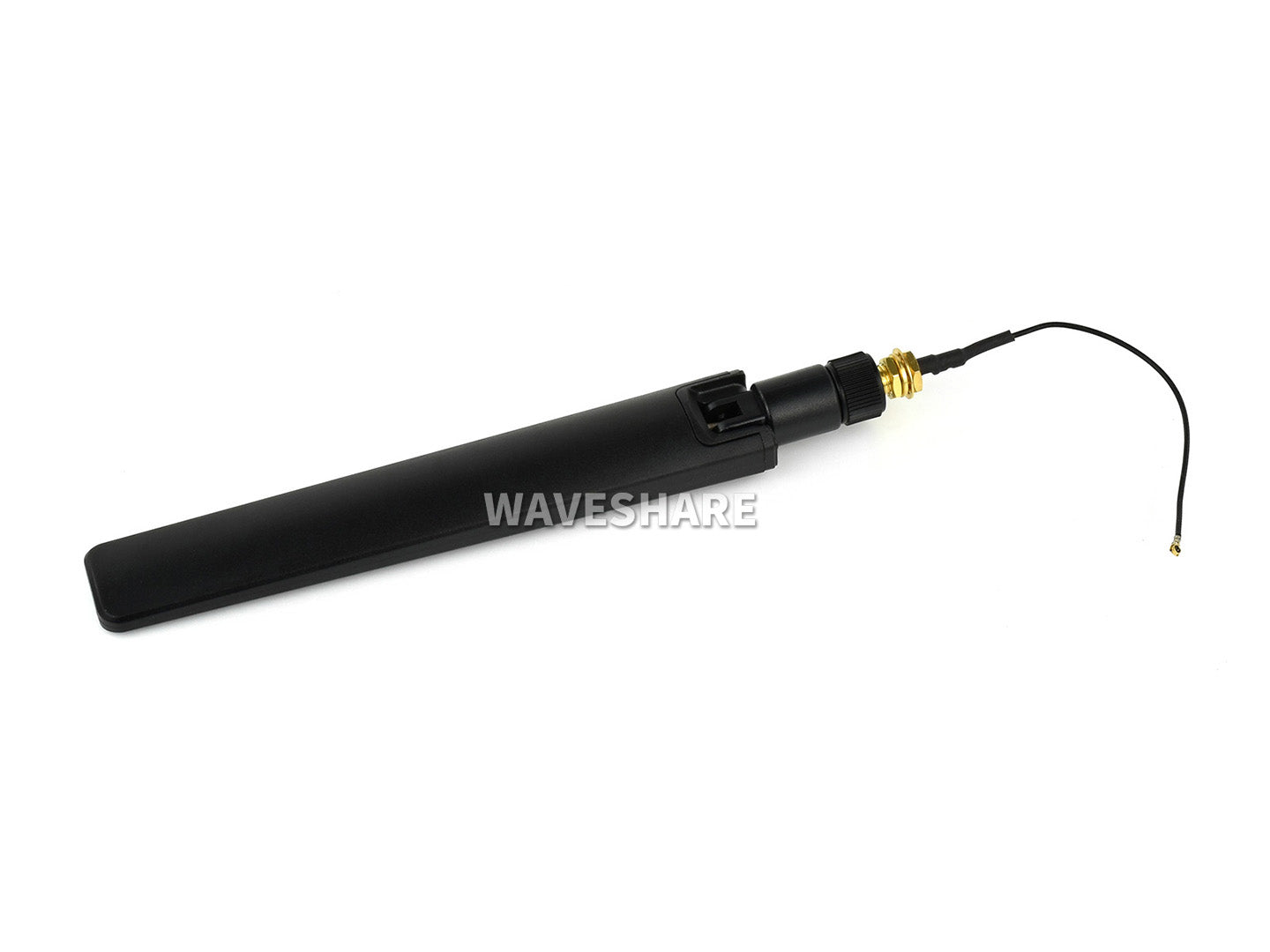

5G High Gain Omni Antenna, 5G/4G/3G/2G Compatible, SMA To IPEX-4 Connector
Regular price
2.027 Ft
Sale price
2.027 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Kurzbeschreibung: 5G High Gain Omni Antenna, 5G/4G/3G/2G Compatible, SMA To IPEX-4 Connector, Suitable For 5G Communication Modules
5G high gain omni antenna, 5G/4G/3G/2G compatible, SMA to IPEX-4 connector, suitable for 5G communication modules
5G high gain omni antenna
5G/4G/3G/2G compatible, SMA to IPEX-4 connector
Specifications
| Network support | 5G/4G/3G/2G | Output impedance (Ω) | 50 |
|---|---|---|---|
| Frequency band (MHz) | 600~6000MHz | Input Power (W) | 25 |
| Peak gain (dBi) | -2.0〜5.5dBi | Connector | SMA needle inside |
| Avg gain (dB) | -6.0〜-0.7dB | Connection wire | SMA to IPEX-4 |
| SWR | < 3.5 | Dimensions (mm) | 152.4 × 21.79 × 14.49 |
| Return loss | < -5.0 | Material | ABS |
| Efficiency (％) | 25〜85％ | Operating temperature (˚C) | -40˚C〜+ 85˚C |
| Polarization | Linear | Storage temperature (˚C) | -40˚C〜+ 85˚C |
| Emitting direction | Omni-directional |
Connection example
Connecting with 5G module SIM8200EA-M2
Connecting with Raspberry Pi 5G HAT SIM8200EA-M2 5G HAT
Outline Dimensions
Lieferumfang

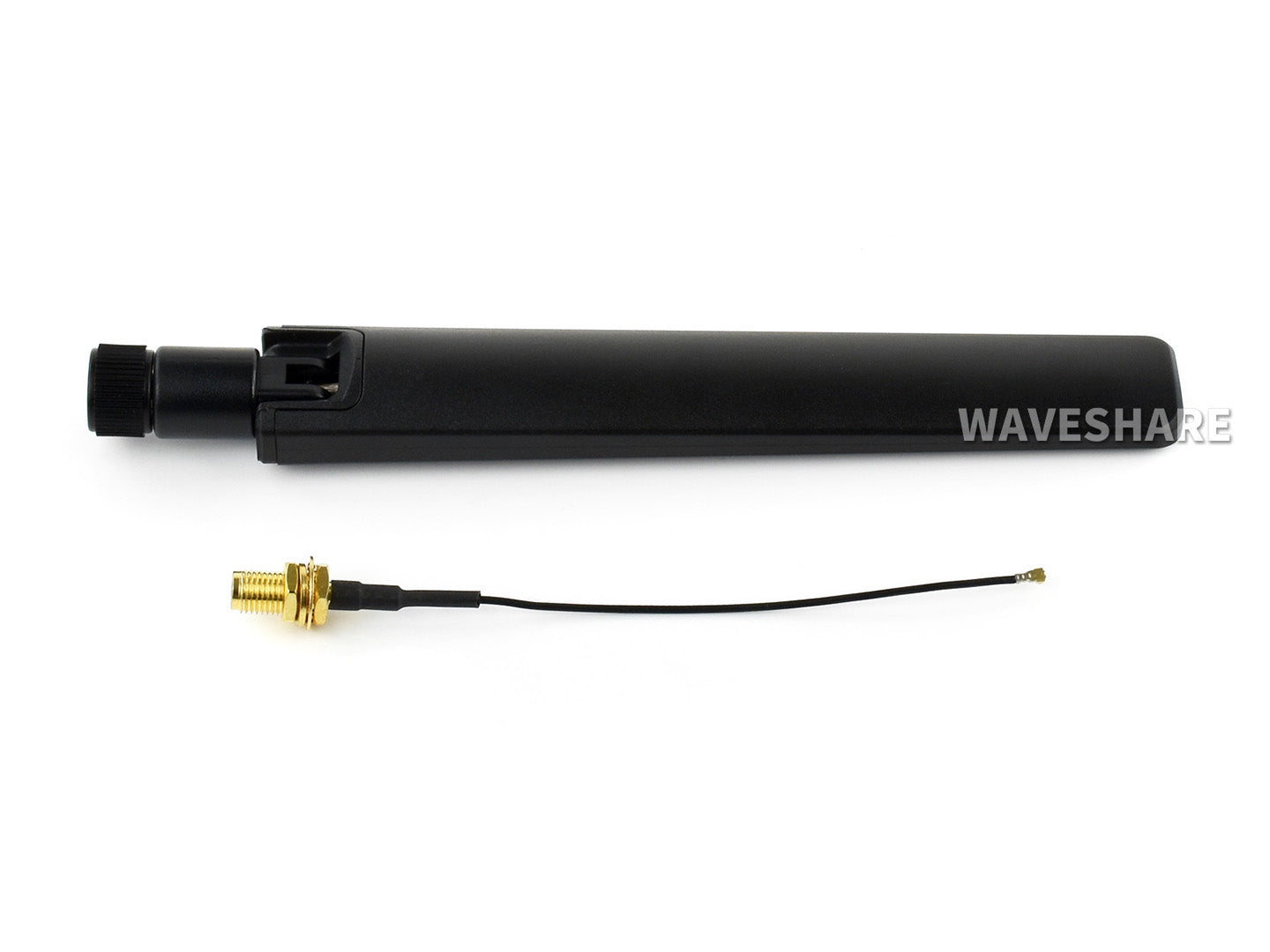

- 5G/4G/3G/2G External Antenna x1
