SKU:WSAL19297

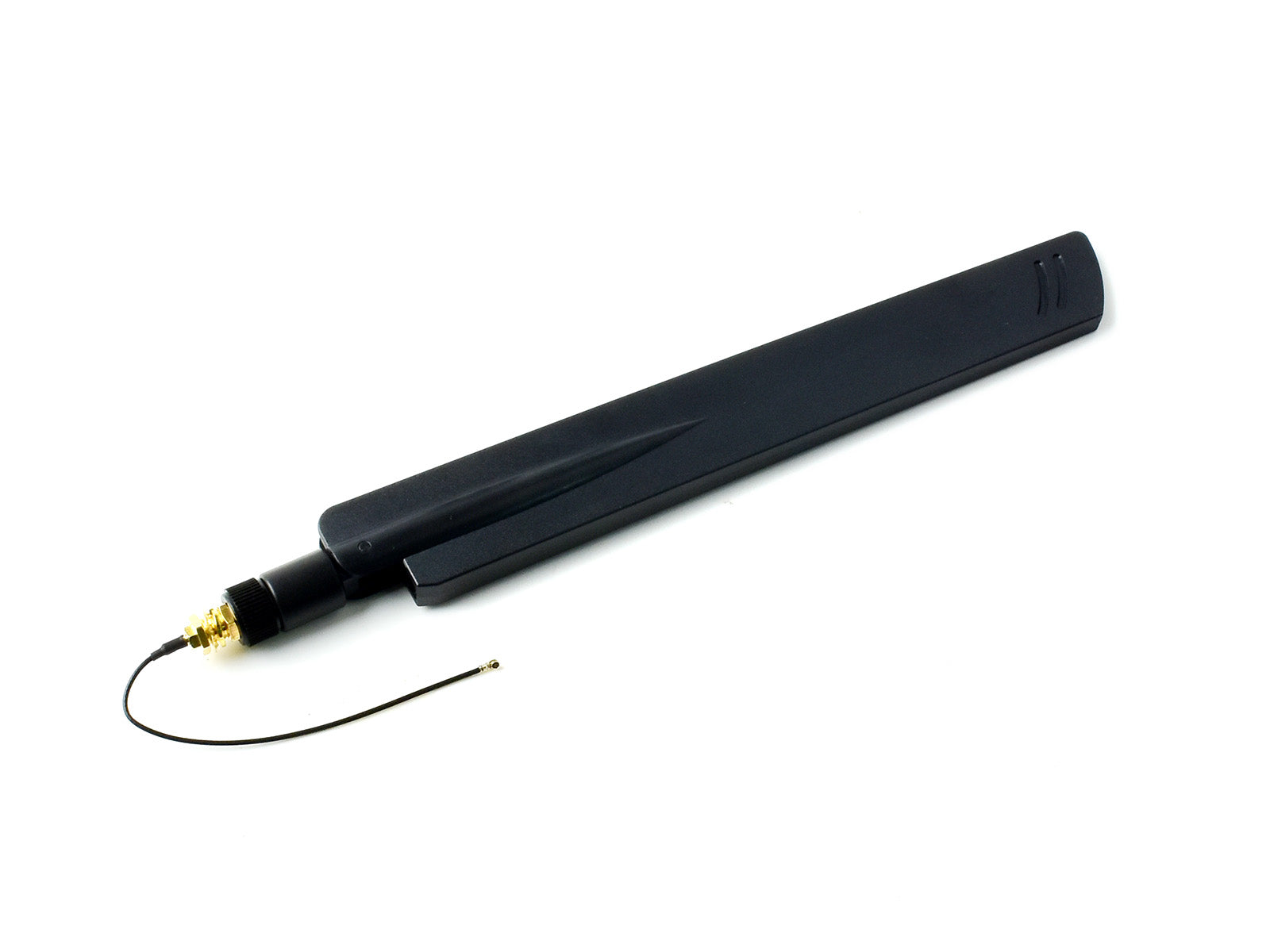

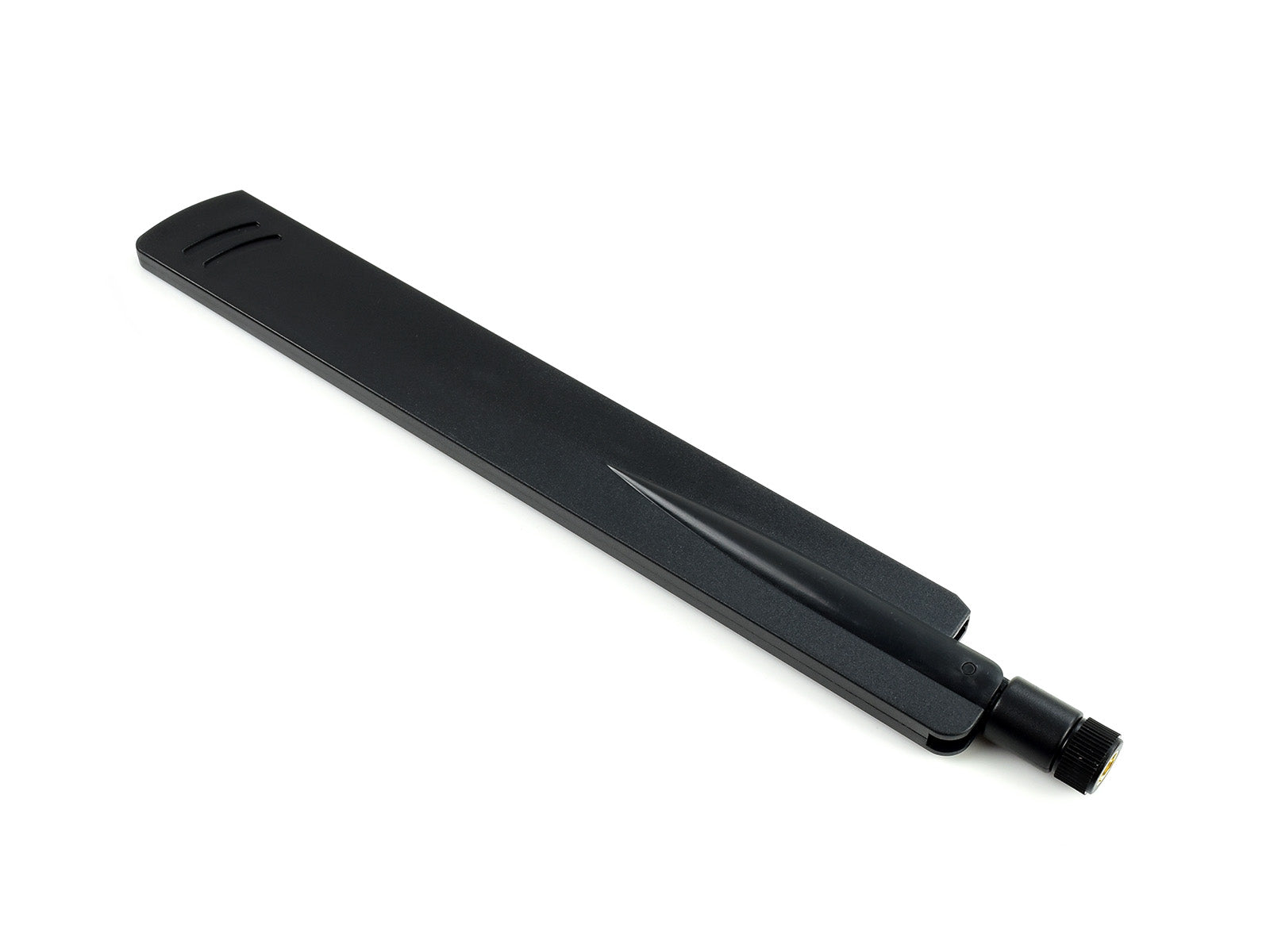

5G High Gain Omni Antenna, 5G/4G/3G/GNSS Compatible, SMA To IPEX-4 Connector
Regular price
2.027 Ft
Sale price
2.027 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Kurzbeschreibung: 5G High Gain Omni Antenna, 5G/4G/3G/GNSS Compatible, SMA To IPEX-4 Connector, Suitable For 5G Communication Modules
5G high gain omni antenna, 5G/4G/3G/GNSS compatible, SMA to IPEX-4 connector, suitable for 5G communication modules
5G high gain omni antenna
5G/4G/3G/GNSS compatible, SMA to IPEX-4 connector
Specifications
| Network support | 5G/4G/3G/GNSS | Output impedance (Ω) | 50 |
|---|---|---|---|
| Frequency band (MHz) | 600~6000MHz | Connector | SMA needle inside |
| gain (dBi) | 18dBi | Connection wire | SMA to IPEX-4 |
| SWR | < 3.0 | Dimensions (mm) | 220 × 24 |
| Polarization | Linear | connector inner diameter (mm) | 6 |
| Emitting direction | Omni-directional | Material | ABS |
| Operating temperature (˚C) | -20˚C〜+ 85˚C |
Connection example
Connecting with 5G module SIM8202G-M2
Connecting with Raspberry Pi 5G HAT SIM8202G-M2 5G HAT
* image for reference only, Raspberry Pi, 5G HAT/Module, and antenna sucker base are NOT included.
Outline Dimensions
Lieferumfang

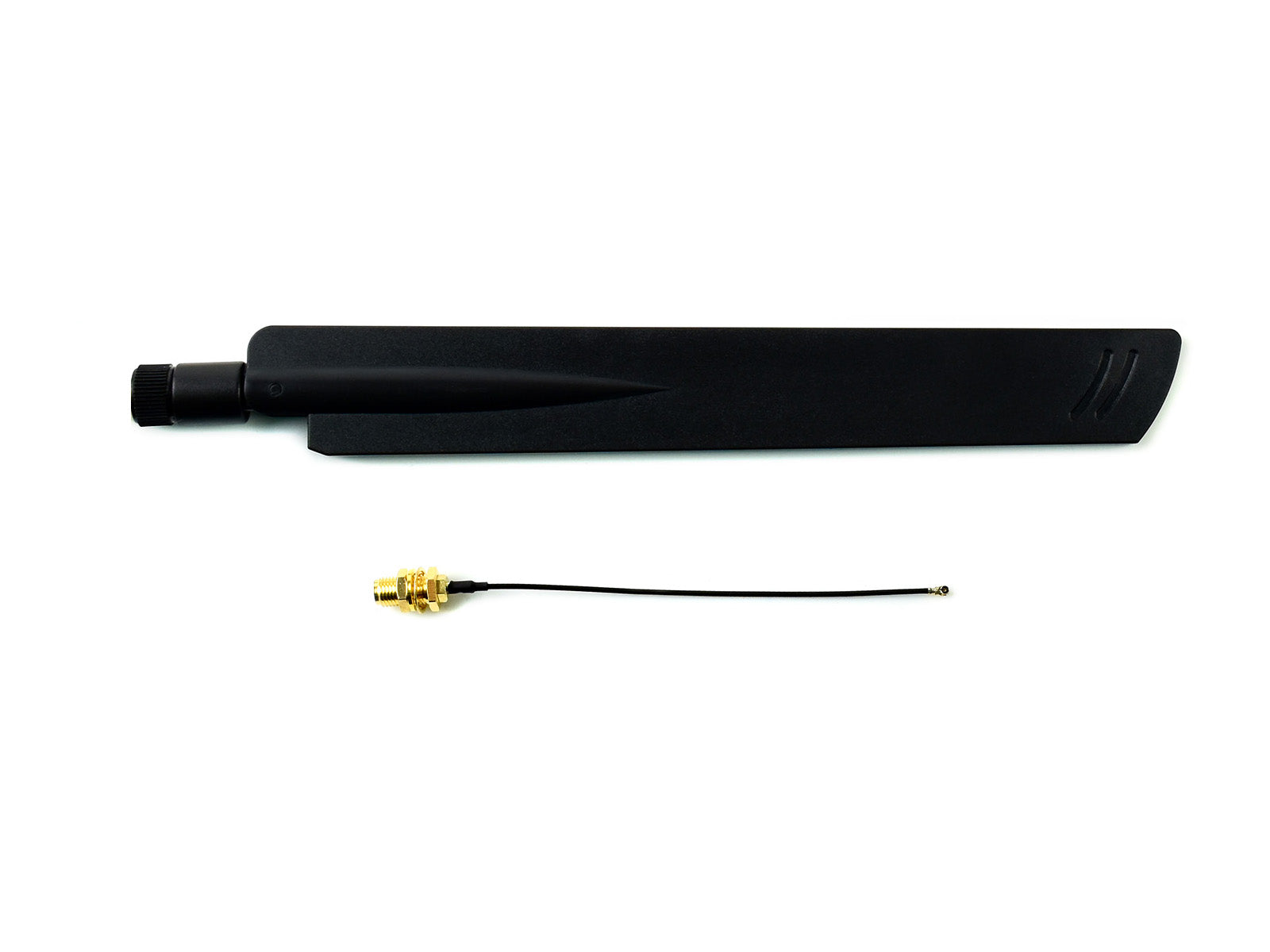

- 5G/4G/3G/GNSS External Antenna x1
