Kurzbeschreibung: 7″ Touch Screen All-In-One Kit Designed For Raspberry Pi CM4, 5MP Camera, Aluminum Case

7″ touch screen all-in-one kit Designed for Raspberry Pi CM4, 5MP camera, aluminum case

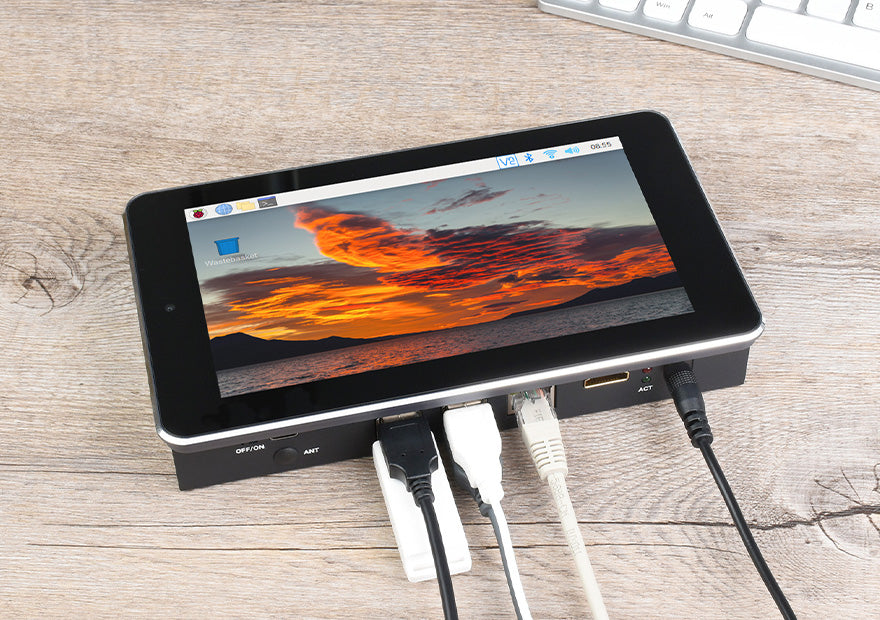

7″ touch screen all-in-one kit

Designed for Raspberry Pi Compute Module 4

* the Compute Module 4 is NOT included.

Specifications

CM4 socket	suitable for all variants of Compute Module 4
Networking	Gigabit Ethernet RJ45
	M.2 M KEY, supports NVME SSD
USB	USB 2.0 × 4
Connector	isolated RS485, RS232, GPIO, and I2C
Display	7inch, 800 × 480 pixels, 5-points capacitive touch, toughened glass panel
Camera	5MP, F2.4, 3.89mm fixed focal length, supports video recording
Video	HDMI, supports 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
Storage	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan	5V/12V, allows speed adjustment and measurement
Speaker	8Ω 2W dual track speakers
Power input	7-36V
Dimensions	196.68 × 114.42mm

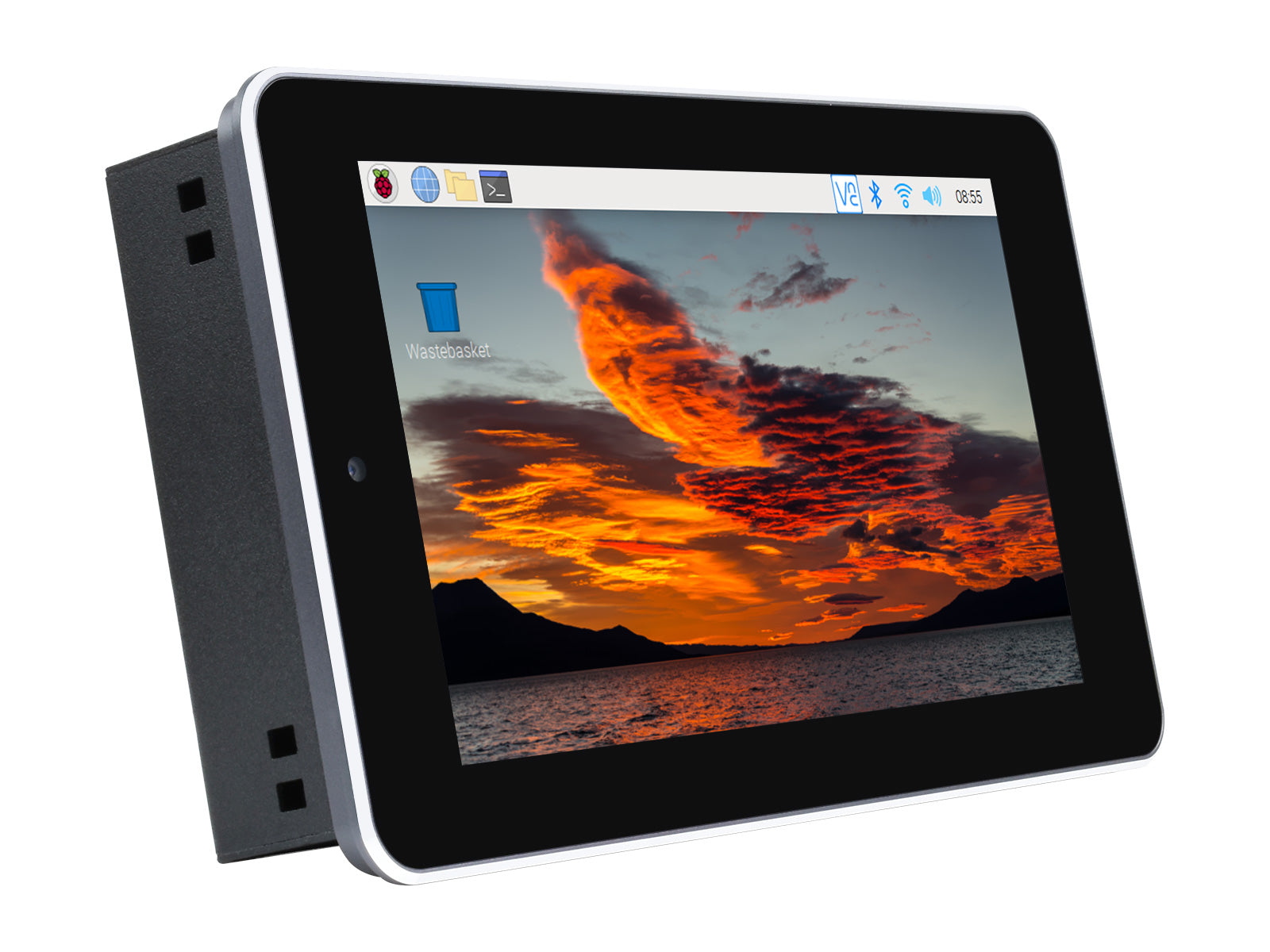

Toughened glass screen

7inch capacitive touch screen, 5-points capacitive touchalong with toughened glass panel, more safe to use

5MP front camera

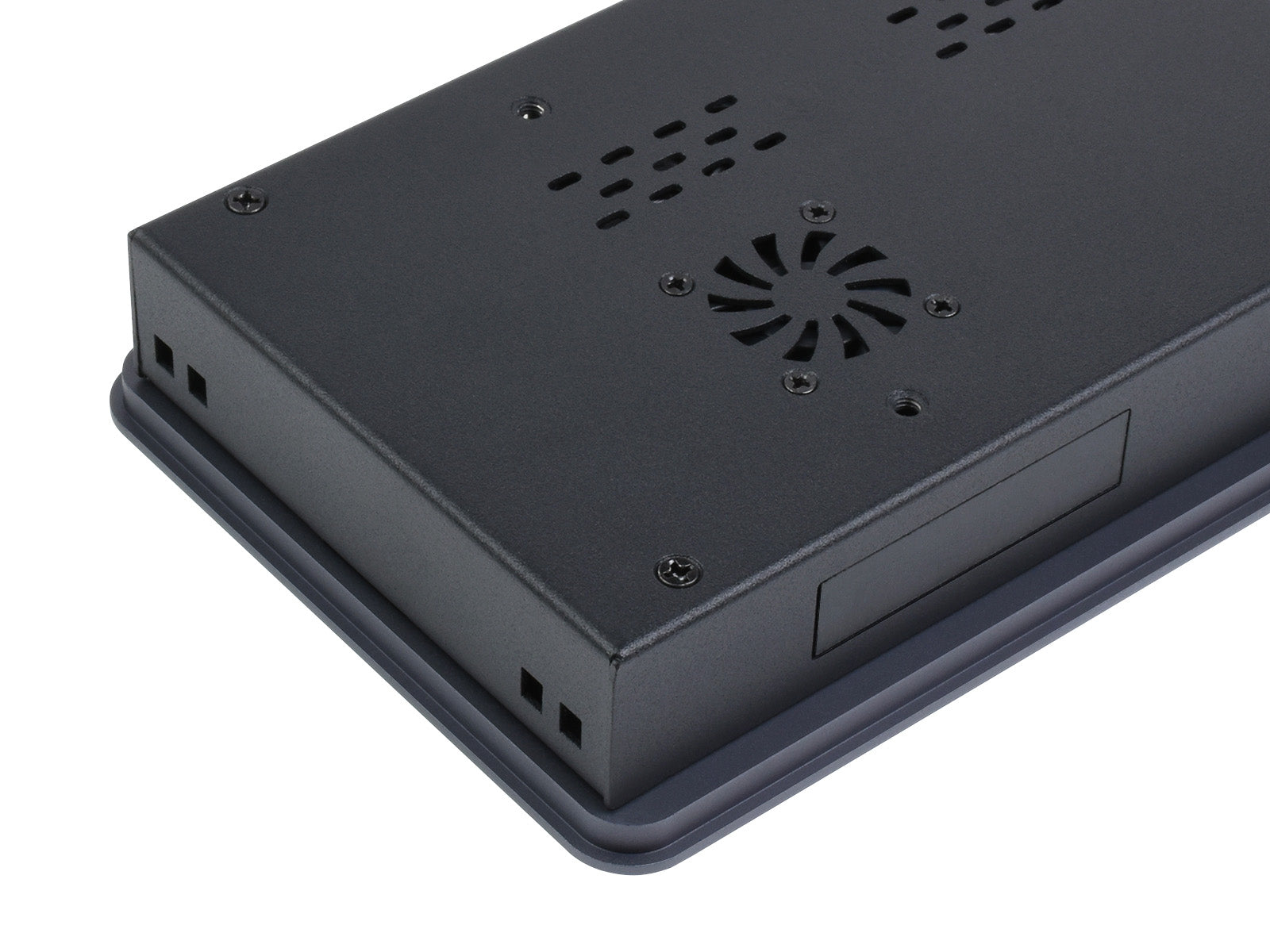

Design details

Rich interfaces

providing interfaces including: CSI, HDMI, USB, M.2, ETH, RS232, RS485

Application example

suitable for Raspberry Pi projects where multi peripherals are required, or other industrial applications

Adjustable brightness via software

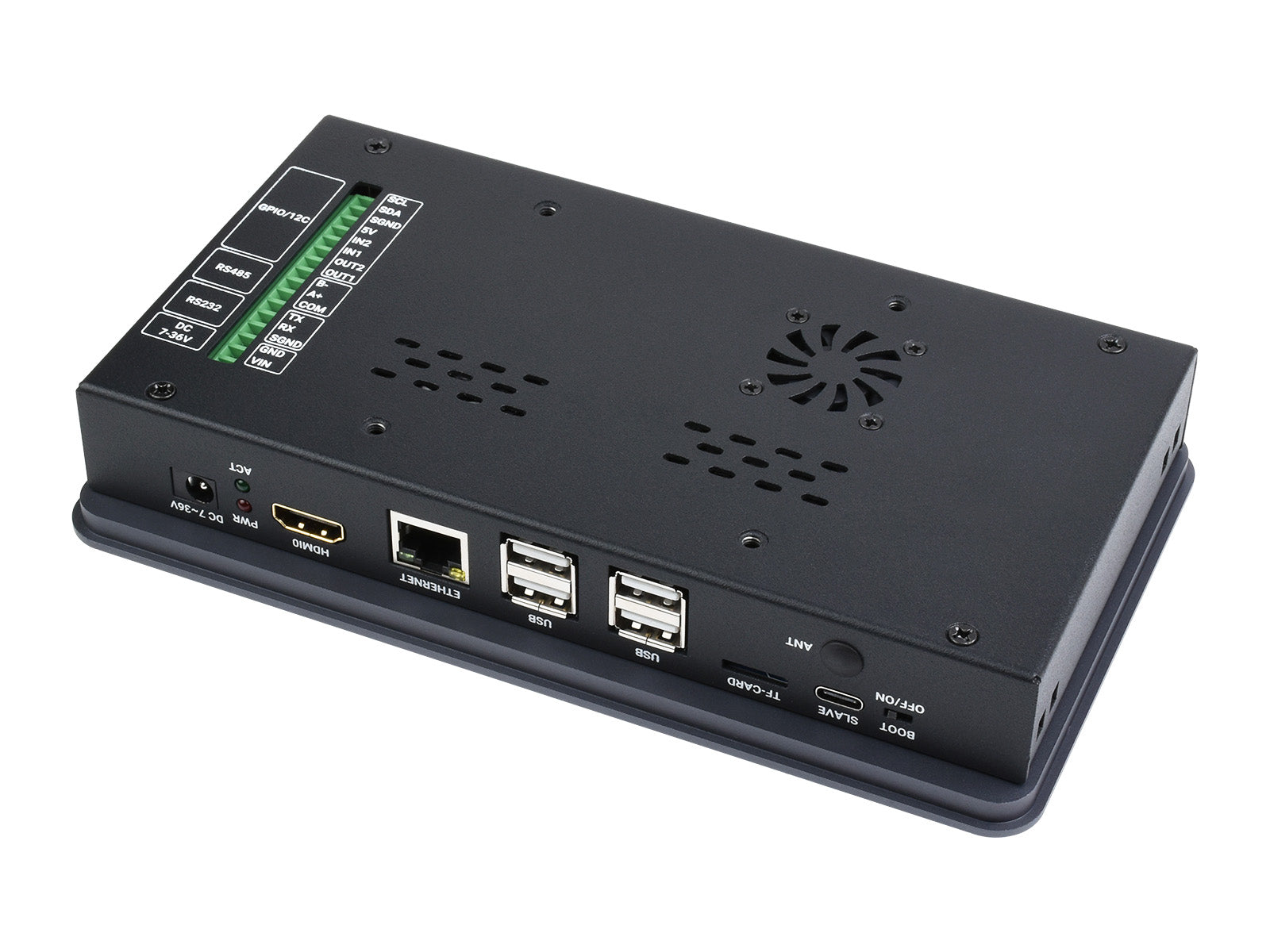

What's On Board

1. CM4 socket suitable for all variants of Compute Module 4
2. DC power supply7 ~ 36V DC input
3. CM4 status indicatorPWR: Raspberry Pi power indicatorACT: Raspberry Pi operating status indicator
4. HDMI connectorsupports 4K 30fps output
5. RJ45 Gigabit Ethernet10/100/1000M compatible
6. USB 2.0 ports4x USB 2.0, for connecting sorts of USB devices
7. Micro SD card slotfor connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
8. USB SLAVE port USB programming port
9. BOOT selectionON: CM4 will be booted from USB-C interfaceOFF: CM4 will be booted from eMMC or Micro SD card
10. MIPI CSI connectorconnected to the 5MP front camera
11. Isolated I2C for controlling or reading data from devices via I2C
12. Isolated GPIOfor controlling or detecting devices via GPIO
13. Isolated RS485
14. Isolated RS232
15. DC power supply7 ~ 36V DC input
16. RS485 terminal resistor and GPIO logic level selection RS485: connect/disconnect the 120R resistor GPIO: GPIO logic level selection

17. RTC battery holdersupports CR1220 button cell
18. Touch screen headerconnected to the capacitive touch screen
19. Display connectorconnected to the 7inch 800×480 display
20. M.2 M KEYsupports M.2 M KEY NVME SSD, or other communication modules using PCIe channel
21. Speaker headeraudio output
22. FAN headerfor connecting cooling fan, allows speed adjustment and measurement
23. RTC interruption configuration GL-EN: CM4 powerdown on RTC interruption PI-RUN: CM4 will reboot on RTC interruptionD16: D16 pin is triggered on RTC interruption (default)
24. System function configurationBT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLYWiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLYWP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
25. FAN power supply selectionselect 5V (default) or 12V power to drive the fan
26. IO-VREF selectionset the CM4 IO logic level as 3.3V (default) or 1.8V
27. RS485 switchGPIO13/12: using ttyAMA1 device (default)GPIO15/14: using ttyS0 device
28. RTC/FAN I2C bus selectionSDA0/SCL0: I2C-10 is shared with CSI/DSIGPIO3/2: I2C-1 is shared with 40PIN GPIO (default)

Outline dimensions

Resources & Services

---

WIKI:CM4-DISP-BASE-7A-BOX

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Comparing the expansion boards

CM4 Base Board	Interface count and specifications
	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G supportRS232RS485ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
