SKU:WSAL18245

Quality Industrial Zoom Lens, 8-50mm Adjustable Focal Length, Adjustable Angle of View, C-mount, Compatible with Raspberry Pi High Quality Camera

8-50mmZoomLens

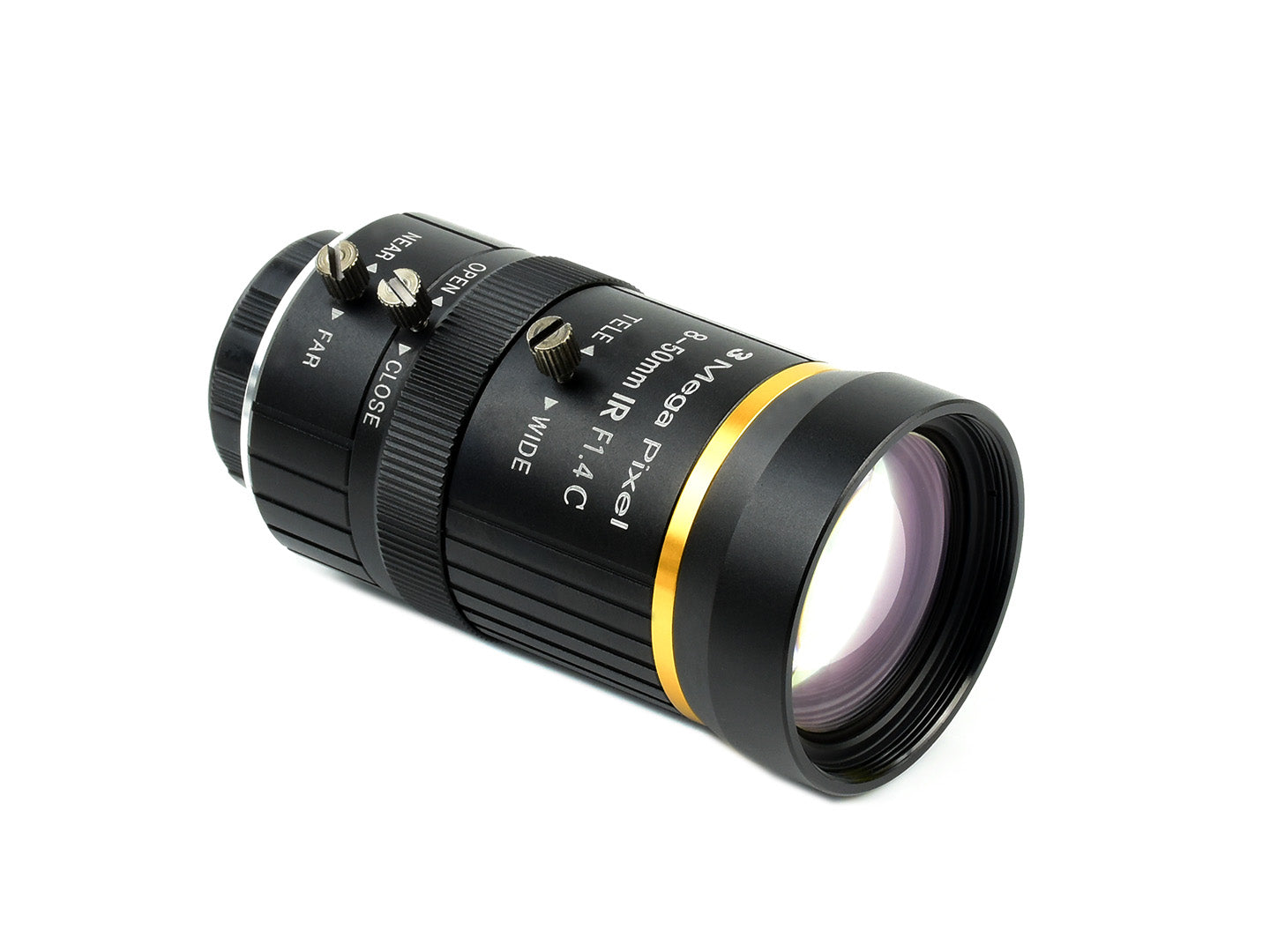

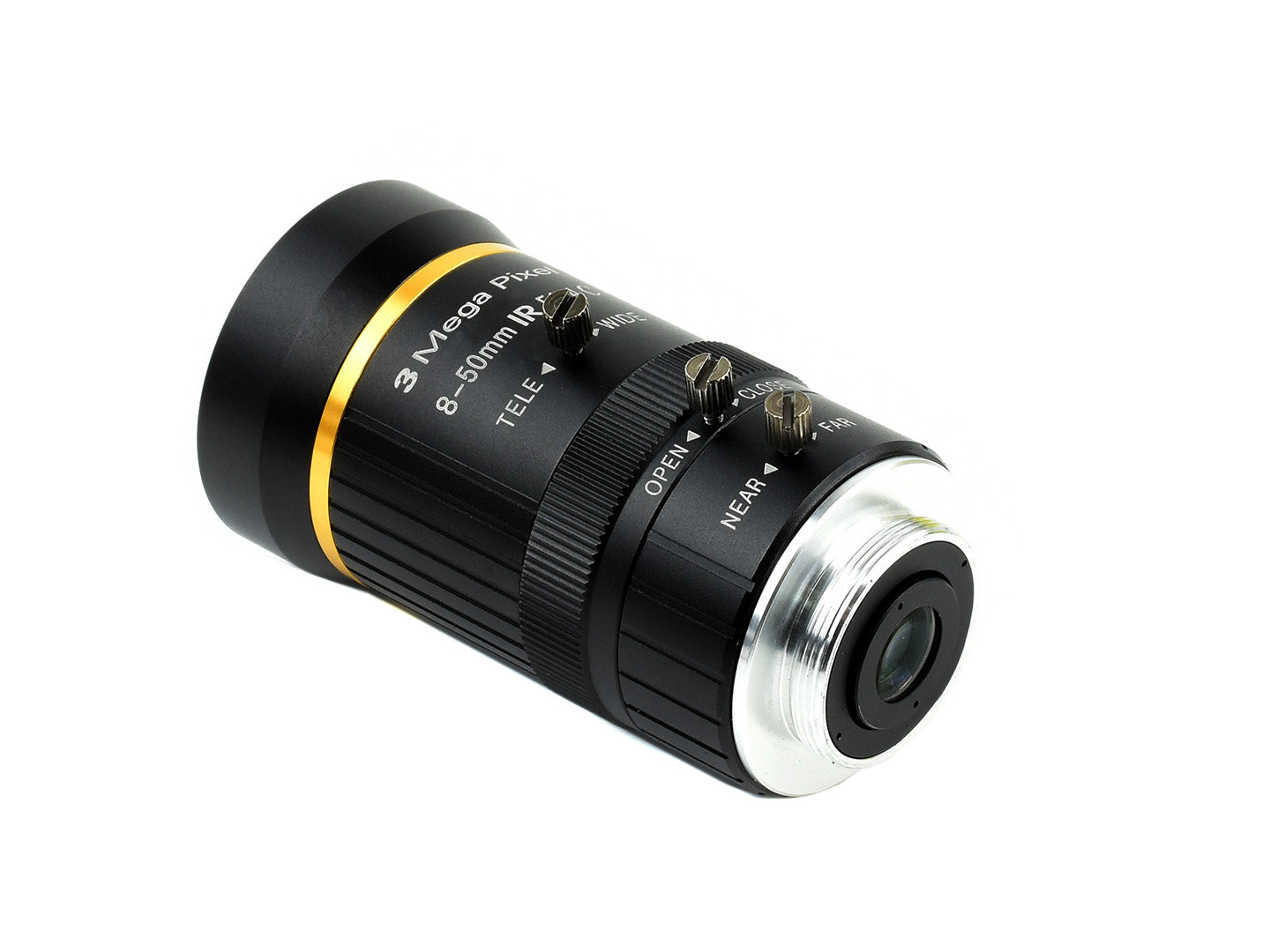

8-50mm C-mount Zoom lens for Raspberry Pi High Quality Camera

Flexible zoom in & out

8-50mm adjustable focal length, flexible photo composition at your will

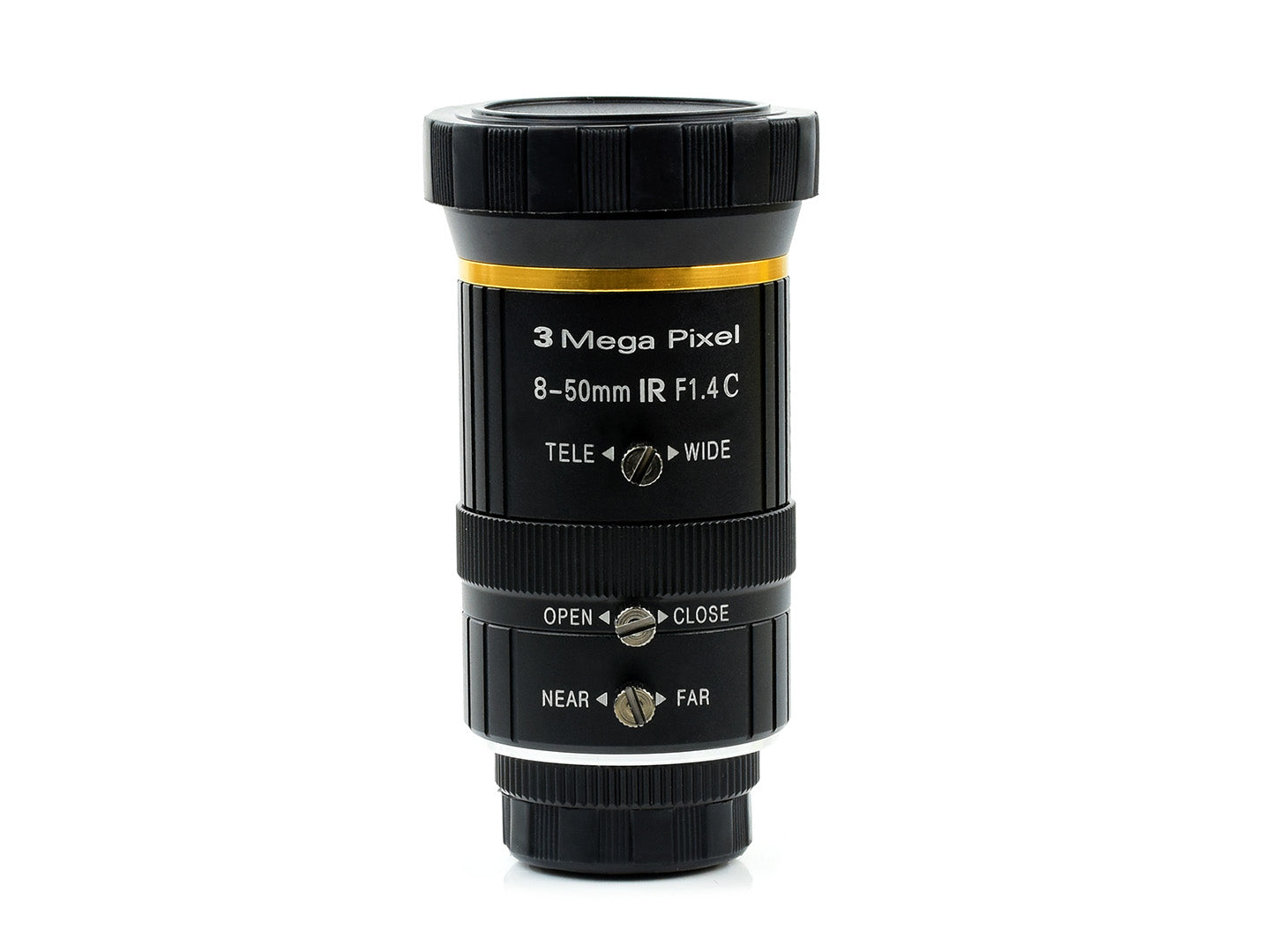

Adjustable focal length

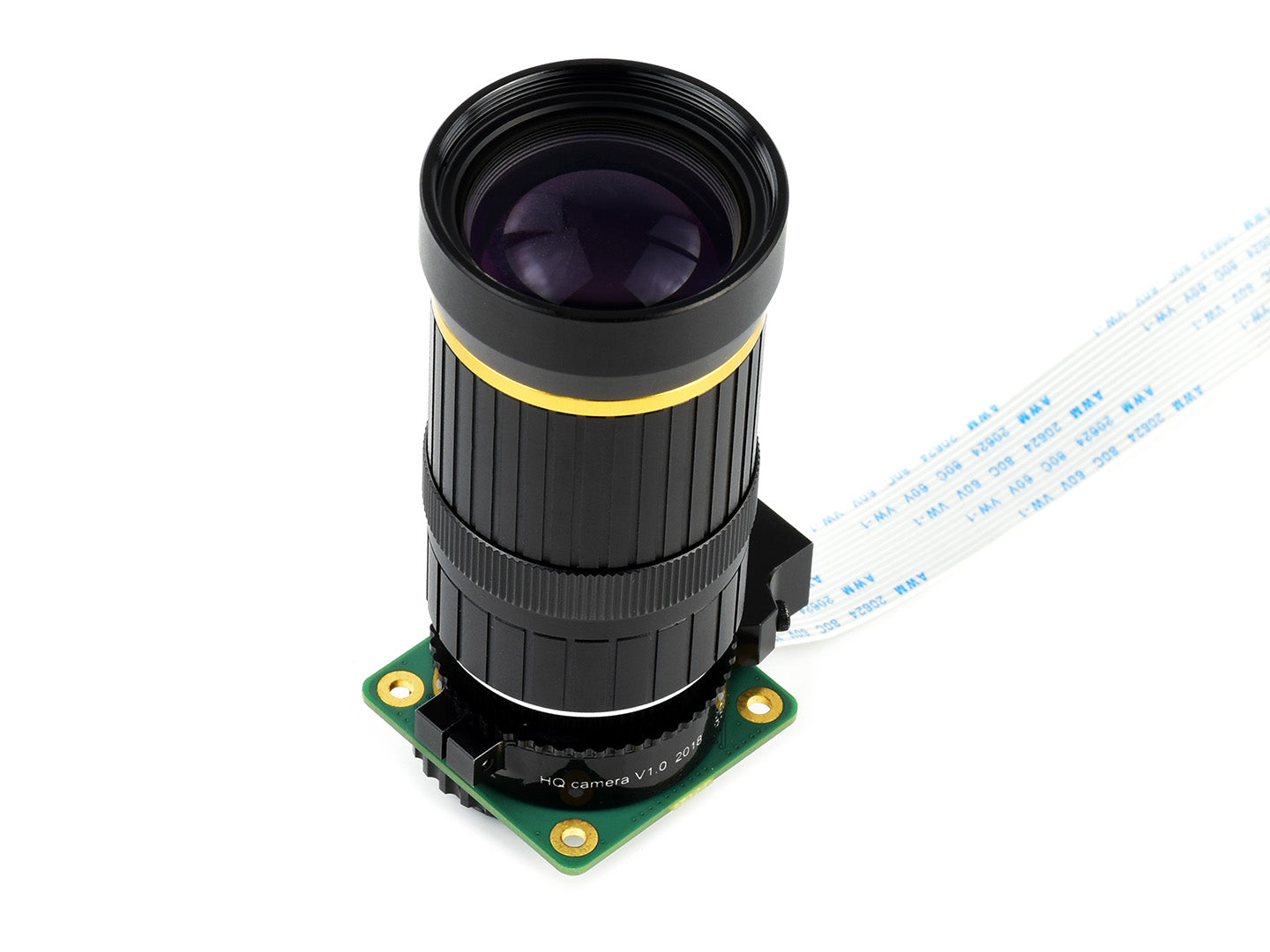

Fitting to the Camera

Fitting the lens to Raspberry Pi High Quality Camera(C-CS adapter required)

Working with Raspberry Pi

• Raspberry Pi, and High Quality Camera in the photos are NOT included
• To use with Raspberry Pi Zero, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

Outline Dimensions

Lens Selection

Product	6mm Wide Angle Lens	16mm Telephoto Lens	25mm Telephoto Lens	35mm Telephoto Lens	8-50mm Zoom Lens	100X Microscope Lens for Pi
Image format	1/2"	1"	2/3"	1"	1/2.3"	1/2"
Focal length	6mm	16mm	25mm	35mm	8-50mm	-
Aperture	F1.2	F1.4-16	F1.4-16	F1.7-16	F1.4	-
OPTICAL MAGNIFICATION	-					0.12X~1.8X
ZOOM RATIO	-					15:01
Mount	CS-mount	C-mount				C/CS-mount
Angle of view	63°	1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4°	2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°	1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°	45°-5.35°	-
Back focus	7.53mm	17.53mm				-
Optical length	-	67.53mm	-
Distortion	-	1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）	0.05%	0.35%	-	< -0.1%
M.O.D.	0.20m	0.20m	0.25m	0.30m	0.20m	2.4mm
Dimensions	Φ30.00 × 34.00mm	Φ39.00 × 50.00mm	Φ34.00 × 34.00mm	Φ35.00 × 34.00mm	Φ40.00×68.30mm	Φ39.00×112.00mm
Operation	Manual aperture adjustment					Fixed aperture
Weight	53g	133.7g	82g	78g	148g	202g

Resources & Services

Wiki:8-50mm_Zoom_Lens_for_Pi

Lieferumfang

1. 8-50mm Zoom Lens for Pi
2. C-CS adapter
