800x600, 4.3inch e-Paper UART Module

24.378 Ft
24.378 Ft 0 Ft
Sale Sold out
Tax included. Shipping calculated at checkout.

Kurzbeschreibung: 800x600, 4.3inch serial interface electronic paper display

800x600, 4.3inch serial interface electronic paper display

Overview

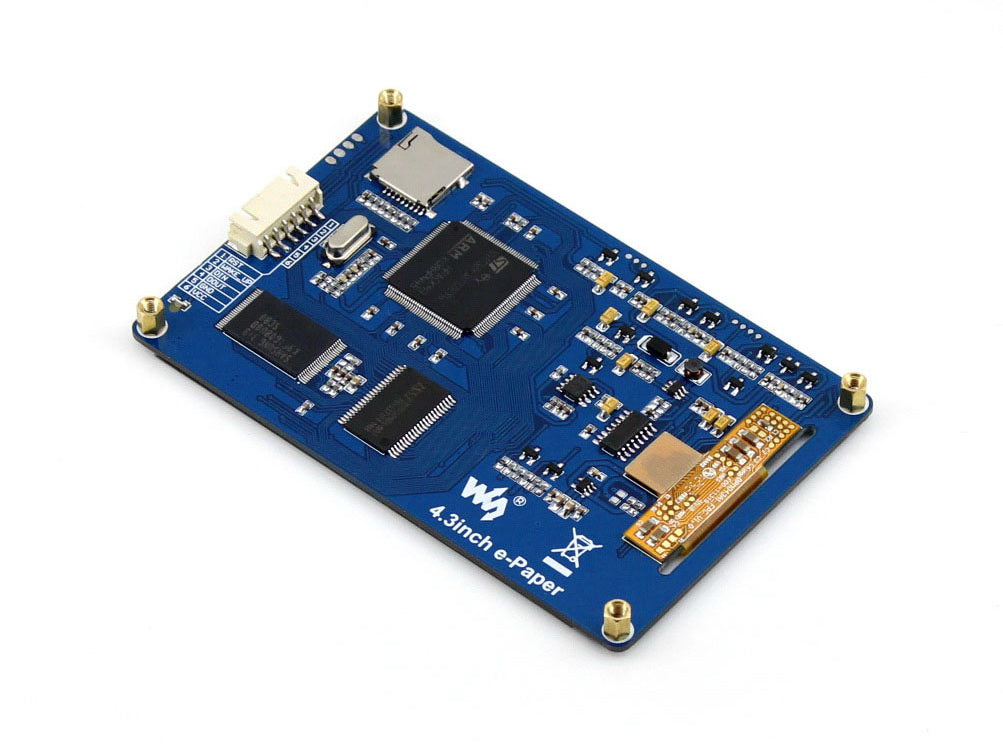

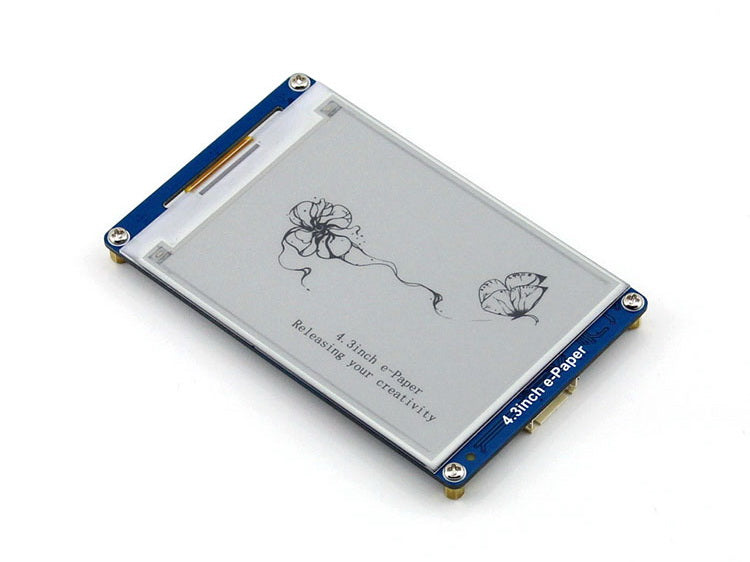

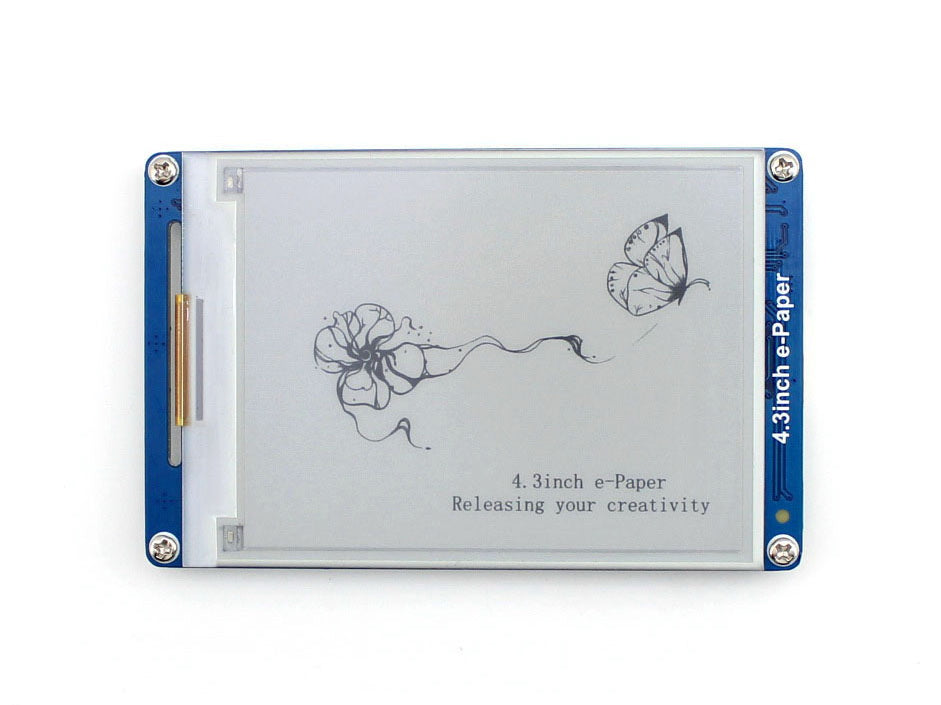

This is a serial interface E-Ink display module, 4.3inch, 800×600 resolution, with embedded font libraries, ultra low power consumption.

You don't have to know anything about the complex underlying details of e-Paper, nor the specific algorithms of displaying graphics, texts, and images. All it needs is the serial interface, and all it matters is your creativity.

Features

  • Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
  • Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
  • Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
  • 4 grey level displaying, 800×600 resolution
  • Adjustable serial interface baud rate, 115200 by default when power up
  • Powered from 3.3V to 5V, compatible with logic level
  • Ultra low power consumption, sleeping current lower than 5mA
  • Comes with host computer software, control it directly on your computer

Applications

  • e book
  • Shopping mall POS
  • Price label
  • Industry instrument

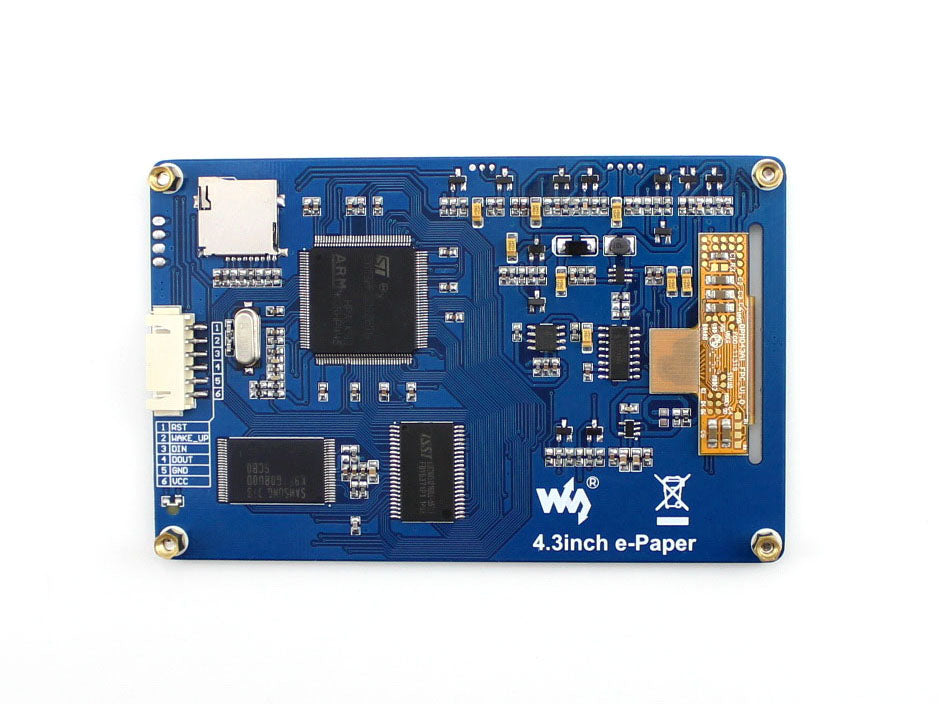

Pin Definitions

  • VCC : 3.3V~5.5V
  • GND : GND
  • DOUT : Serial data out
  • DIN : Serial data in
  • WAKE_UP : External wake up
  • RST : External reset

Limited by the hardware processing, it usually takes 1.5s to refresh each single frame image, therefore, this e-Paper is NOT capable of playing animations.

External Dimension

4.3inch-e-Paper-dimension

Development Resources

Wiki : www.waveshare.com/wiki/4.3inch_e-Paper_UART_Module

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh1 Pi Head-er2 Flexi-ble Interface
1.02inch e-Paper Module black, white 2 128×80 21.76 × 14.00 42.0 × 27.0 2 √ SPI
1.54inch e-Paper Module black, white 2 200×200 27.00 × 27.00 48.0 × 33.0 2 √ SPI
1.54inch e-Paper Module (B) red, black, white 2 200×200 27.00 × 27.00 48.0 × 33.0 14 SPI
1.54inch e-Paper Module (G) red, yellow, black, white 2 200×200 27.00 × 27.00 48.0 × 33.0 20 SPI
1.64inch e-Paper Module (G) red, yellow, black, white 2 168×168 29.568 × 29.568 47 × 38 12 SPI
2.13inch e-Paper HAT black, white 2 250×122 48.55 × 23.70 65.0 × 30.2 2 √ √ SPI
2.13inch e-Paper HAT+ black, white 2 250×122 48.55 × 23.70 65.0 × 30.5 2 √ √ SPI
2.13inch e-Paper HAT (B) red, black, white 2 250×122 48.55 × 23.70 65.0 × 30.2 15 √ SPI
2.13inch e-Paper HAT (G) red, yellow, black, white 2 250×122 48.55 × 23.70 65.0 × 30.2 16 √ SPI
2.13inch Touch e-Paper HAT black, white 2 250×122 48.55 × 23.70 69.15 × 38.90 2 √ √ SPI
2.13inch Touch e-Paper HAT (with case) black, white 2 250×122 48.55 × 23.70 72.20 × 41.90 2 √ √ SPI
2.15inch e-Paper HAT+ (B) red, black, white 2 296×160 48.10 × 26.00 65.0 × 34.0 23 √ SPI
2.15inch e-Paper HAT+ (G) red, yellow, black, white 2 296×160 48.10 × 26.00 65.0 × 34.0 20 √ SPI
2.36inch e-Paper Module (G) red, yellow, black, white 2 296×168 52.096 × 29.568 69.5 × 38.5 12 SPI
2.66inch e-Paper Module black, white 2 296×152 30.704 × 60.088 37.0 × 83.5 6 √ SPI
2.66inch e-Paper Module (B) red, black, white 2 296×152 30.704 × 60.088 37.0 × 83.5 15 SPI
2.66inch e-Paper Module (G) red, yellow, black, white 2 360×184 60.05 × 30.69 85.0 × 38.5 26 SPI
2.7inch e-Paper HAT black, white 4 264×176 57.29 × 38.19 85.0 × 56.0 6 √ √ SPI
2.7inch e-Paper HAT (B) red, black, white 2 264×176 57.288 × 38.192 73.5 × 56.0 15 √ SPI
2.9inch e-Paper Module black, white 4 296×128 66.89 × 29.05 89.5 × 38.0 3 √ SPI
2.9inch e-Paper Module (B) red, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15 SPI
2.9inch e-Paper Module (G) red, yellow, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 16 SPI
2.9inch Touch e-Paper HAT black, white 4 296×128 66.89 × 29.05 89.10 × 42.70 3 √ √ SPI
3inch e-Paper Module (G) red, yellow, black, white 2 400×168 70.4 × 29.568 88.5 × 41 12 SPI
3.5inch e-Paper Module (G) red, yellow, black, white 2 384×184 79.68 × 38.18 94.00 × 47.50 20 SPI
3.52inch e-Paper HAT black, white 2 360×240 74.51 × 49.67 86.5 × 57 1.5 √ SPI
3.52inch e-Paper HAT (B) red, black, white 2 360×240 74.51 × 49.67 86.5 × 57 16 √ SPI
3.6inch e-Paper HAT+ (E) E6 full color 2 600×400 76.20 × 50.80 89.50 × 59.00 15 √ SPI
3.7inch e-Paper HAT black, white 4 480×280 47.32 × 81.12 58.0 × 96.5 3 √ √ SPI
3.7inch e-Paper HAT+ (G) red, yellow, black, white 2 416×240 81.54 × 47.04 96.00 × 57.00 20 √ SPI
3.97inch e-Paper HAT+ black, white 4 800×480 86.40 × 51.84 99.50 × 60.00 3.5 √ √ SPI
3.97inch e-Paper HAT+ (G) red, yellow, black, white 2 800×480 86.40 × 51.84 99.50 × 60.00 21 √ SPI
4inch e-Paper HAT+ (E) E6 full color 2 600×400 84.6 × 56.40 101.00 × 68.00 19 √ SPI
4.2inch e-Paper Module black, white 4 400×300 84.80 × 63.60 103.0 × 78.5 5 √ SPI
4.2inch e-Paper Module (B) red, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15 SPI
4.2inch e-Paper Module (G) red, yellow, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 21 SPI
4.26inch e-Paper HAT black, white 4 800×480 92.80 × 55.68 107.0 × 64.0 4 √ √ SPI
4.3inch e-Paper UART Module black, white 4 800×600 88.00 × 66.00 118.0 × 75.0 1.5 UART
4.37inch e-Paper Module (G) red, yellow, black, white 2 512×368 90.11 × 64.77 101.5 × 81.5 14 SPI
5inch e-Paper HAT black, white 2 960×552 110.59 × 62.65 126.38 × 71.19 1.8 √ √ SPI
5.79inch e-Paper Module black, white 4 792×272 139.00 × 47.74 152.50 × 58.50 3.5 √ SPI
5.79inch e-Paper Module (B) red, black, white 2 792×272 139.00 × 47.74 152.50 × 58.50 24 SPI
5.79inch e-Paper Module (G) red, yellow, black, white 2 792×272 139.00 × 47.74 152.50 × 58.50 21 SPI
5.83inch e-Paper HAT black, white 2 648×480 119.232 × 88.320 125.4 × 99.5 5 √ SPI
5.83inch e-Paper HAT (G) red, yellow, black, white 2 648×480 118.78 × 88.22 125.40 × 99.50 20 √ SPI
6inch e-Paper HAT black, white 16 800×600 122.4 × 90.6 138.4 × 101.8 <1 √ √ USB/SPI/ I80
6inch HD e-Paper HAT black, white 16 1448×1072 122.4 × 90.6 138.4 × 101.8 <1 √ √ USB/SPI/ I80
7.3inch E-Paper HAT (E) E6 full color 2 800×480 160 × 96 170.2 × 111.2 12 √ SPI
7.3inch E-Paper HAT (F) 7-Color 2 800×480 160 × 96 170.2 × 111.2 35 √ SPI
7.5inch e-Paper HAT black, white 4 800×480 163.20 × 97.92 170.2 × 111.2 4 √ √ SPI
7.5inch HD e-Paper HAT black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 5 √ SPI
7.5inch e-Paper HAT (B) red, black, white 2 800×480 163.20 × 97.92 170.2 × 111.2 26 √ √ SPI
7.5inch e-Paper HAT (H) red, yellow, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 22 √ SPI
7.8inch e-Paper HAT black, white 16 1872×1404 158.18 × 118.64 173.8 × 127.6 <1 √ √ USB/SPI/ I80
9.7inch e-Paper HAT black, white 16 1200×825 202.8 × 139.43 218.8×156.4 <1 √ √ USB/SPI/ I80
10.2inch e-Paper HAT (G) red, yellow, black, white 2 960 × 640 215.52 × 143.68 224.00 × 157.00 27 √ SPI
10.3inch e-Paper HAT black, white 16 1872×1404 209.66 × 157.25 216.7 × 174.4 <1 √ √ USB/SPI/ I80
10.3inch e-Paper HAT (D) black, white 16 1872×1404 209.66 × 157.25 227.7 × 165.8 <1 √ √ √ USB/SPI/ I80
10.85inch e-Paper HAT+ black, white 2 1360 × 480 259.76 × 91.68 270.56 × 105.92 3.5 √ SPI
10.85inch e-Paper HAT+ (G) red, yellow, black, white 2 1360 × 480 259.76 × 91.68 270.56 × 105.92 21 √ SPI
12.48inch e-Paper Module black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 <8 √ SPI
12.48inch e-Paper Module (B) red, black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 37 √ SPI
13.3inch e-Paper HAT black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 <1 √ √ USB/SPI/ I80
13.3inch e-Paper HAT (B) red, black, white 2 960×680 275.52 × 195.16 286.32 × 212.26 22 √ √ SPI
13.3inch e-Paper HAT (K) black, white 4 960×680 275.52 × 195.16 286.32 × 212.26 5 √ √ SPI
13.3inch e-Paper HAT (E) E6 full color 2 1600×1200 270.40 × 202.80 284.70 × 208.80 19 √ SPI
  1. It usually takes about 0.3s for partial refresh
  2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
e-Paper panels comparing

Lieferumfang

  1. 4.3inch e-Paper UART Module x1
  2. XH2.54 6-pin cable ×1
