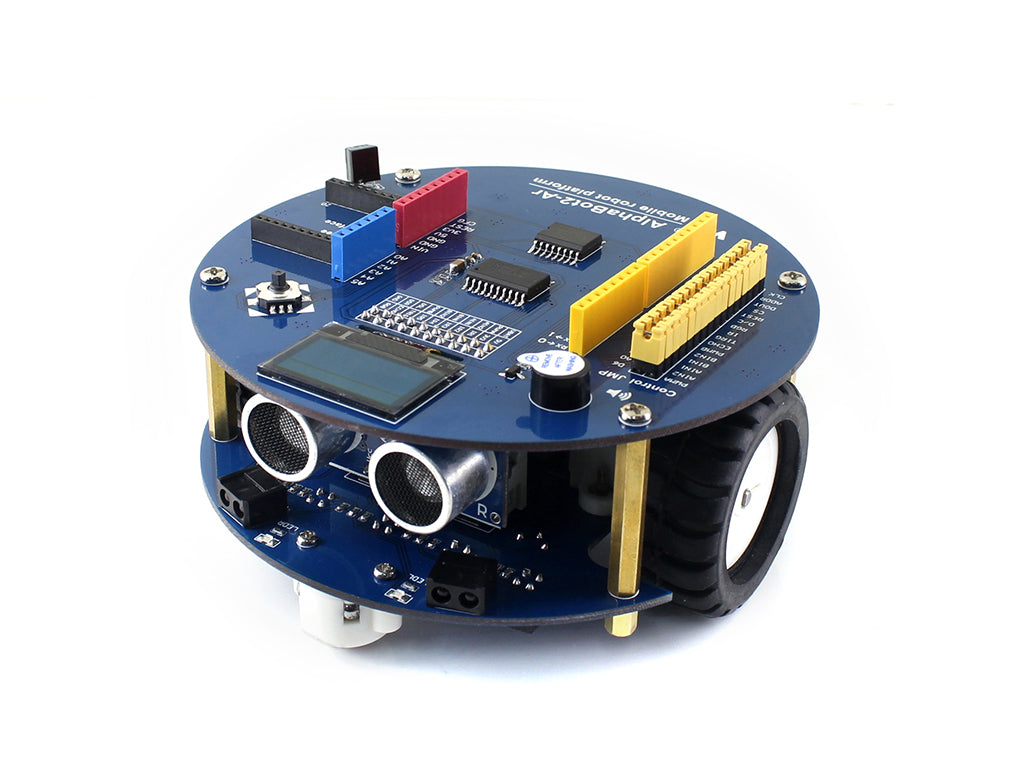

AlphaBot2 robot building kit for Arduino (no Arduino controller)

Name: AlphaBot2 robot building kit for Arduino (no Arduino controller)
Brand: WaveShare
SKU: WSAL12911
Price: 34311.13 HUF
Availability: InStock

34.311 Ft

34.311 Ft 0 Ft

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

AlphaBot2 robot building kit for Arduino

The Arduino controller is NOT included.

SAFETY CAUTIONS

Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Overview

This AlphaBot2 robot kit is designed to use with an Arduino compatible controller (not included). It features rich common robot functions including line tracking, obstacle avoiding, ultrasonic ranging, infrared remote control, Bluetooth communication, etc.

Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, you're almost there, our open source demo codes is ready to help you get started fast.

AlphaBot2 Features

AlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.

AlphaBot2-Base, the lower base chassis:

5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking
Onboard modules like line tracking, obstacle avoiding, needs no messy wiring
TB6612FNG dual H-bridge motor driver, compared with L298P, it's more efficient, more compact, and less heating
N20 micro gear motor, with metal gears, low noise, high accuracy
Onboard RGB LEDs, true color lighting, pretty cool

AlphaBot2-Ar, the upper adapter board for controller:

Onboard Arduino interface, into which Arduino controller can be directly plugged
0.96inch 128x64 yellow/blue dual color OLED
TLC2543 AD acquisition chip
PC8574 I/O expander, avoid I/O shortage
Xbee connector, for connecting dual-mode Bluetooth module

What's on the AlphaBot2-Base

AlphaBot2 control interface: for connecting sorts of controller adapter board
Ultrasonic module interface
Obstacle avoiding indicators
Omni-direction wheel
ST188: reflective infrared photoelectric sensor, for obstacle avoiding
ITR20001/T: reflective infrared photoelectric sensor, for line tracking
Potentiometer for adjusting obstacle avoiding range
TB6612FNG dual H-bridge motor driver
LM393 voltage comparator
N20 micro gear motor reduction rate 1:30, 6V/600RPM
Rubber wheels diameter 42mm, width 19mm
Power switch
Battery holder: supports 14500 batteries
WS2812B: true color RGB LEDs
Battery charging indicator
5V USB battery charging port
Power indicator

What's on the AlphaBot2-Ar

AlphaBot2-Ar on board resource

AlphaBot2 control interface: for connecting AlphaBot2-Base
Arduino expansion header: for connecting Arduino shields
Arduino interface: for connecting Arduino compatible controller
Xbee connector: for connecting dual-mode Bluetooth module, remotely control the robot via Bluetooth
IR receiver
PC8574: I/O expander, SPI interface
Arduino peripheral jumpers
TLC2543: 12-bit AD acquisition chip
Buzzer
0.96inch OLED 128x64 resolution
Joystick

Photos

AlphaBot2-Ar top view

AlphaBot2-Ar bottom view

AlphaBot2-Base top view

AlphaBot2-Base bottom view

AlphaBot2-Ar robot side view

AlphaBot2-Ar robot front view

AlphaBot2-Ar robot back view

AlphaBot2-Ar robot bottom view

AlphaBot2-Ar robot top view

AlphaBot2-Ar robot disassembly

Examples

AlphaBot2 multi robots line following

AlphaBot2-Ar robot line tracking

AlphaBot2-Ar robot obstacle avoiding

AlphaBot2-Ar robot Bluetooth control

Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/AlphaBot2-Ar

Wiki : www.waveshare.com/wiki/R3_PLUS

Selection Guide

Package Contents		AlphaBot2 Robot Kits
Item	Description	micro:bit	Ar	Zero W	Pi
Raspberry Pi	Raspberry Pi Model 3B/3B+/4B				optional
AlphaBot2-Pi	Adapter board, for connecting Raspberry Pi				√
Raspberry Pi Zero W	Raspberry Pi Zero W/WH (built-in WiFi)			optional
AlphaBot2-PiZero	Adapter board, for connecting RPi Zero W/WH			√
R3 PLUS	ATMEGA328P MCU development board, Arduino-compatible		optional
Dual-mode Bluetooth	Dual-mode Bluetooth module		optional
AlphaBot2-Ar	Adapter board, for connecting Arduino		√
micro:bit	BBC micro:bit, a pocket-sized computer, original version or V2	optional
AlphaBot2 for micro:bit	Adapter board, for connecting micro:bit	√
AlphaBot2-Base	Motor driver, integrates sensors for obstacle avoiding, line tracking	√	√	√	√
Ultrasonic sensor	Ultrasonic obstacle avoiding, ranging	√	√	√
IR remote controller	remotely control the robot		√	√	√
RPi Camera (B)	Raspberry Pi camera, adjustable focus			√	√
SG90	Servo, working with the pan head, controlling the rotation of the camera			√	√
TF Card 32GB	32GB TF Card, class 10			√	√
5V 3A Power Adapter	Provides 5V 3A power supply, micro USB plug			√	√
