SKU:WSAL18944

Kurzbeschreibung: Compatible Antenna For Raspberry Pi Compute Module 4 / 5, Supports 2.4G/5G WiFi Frequency Band

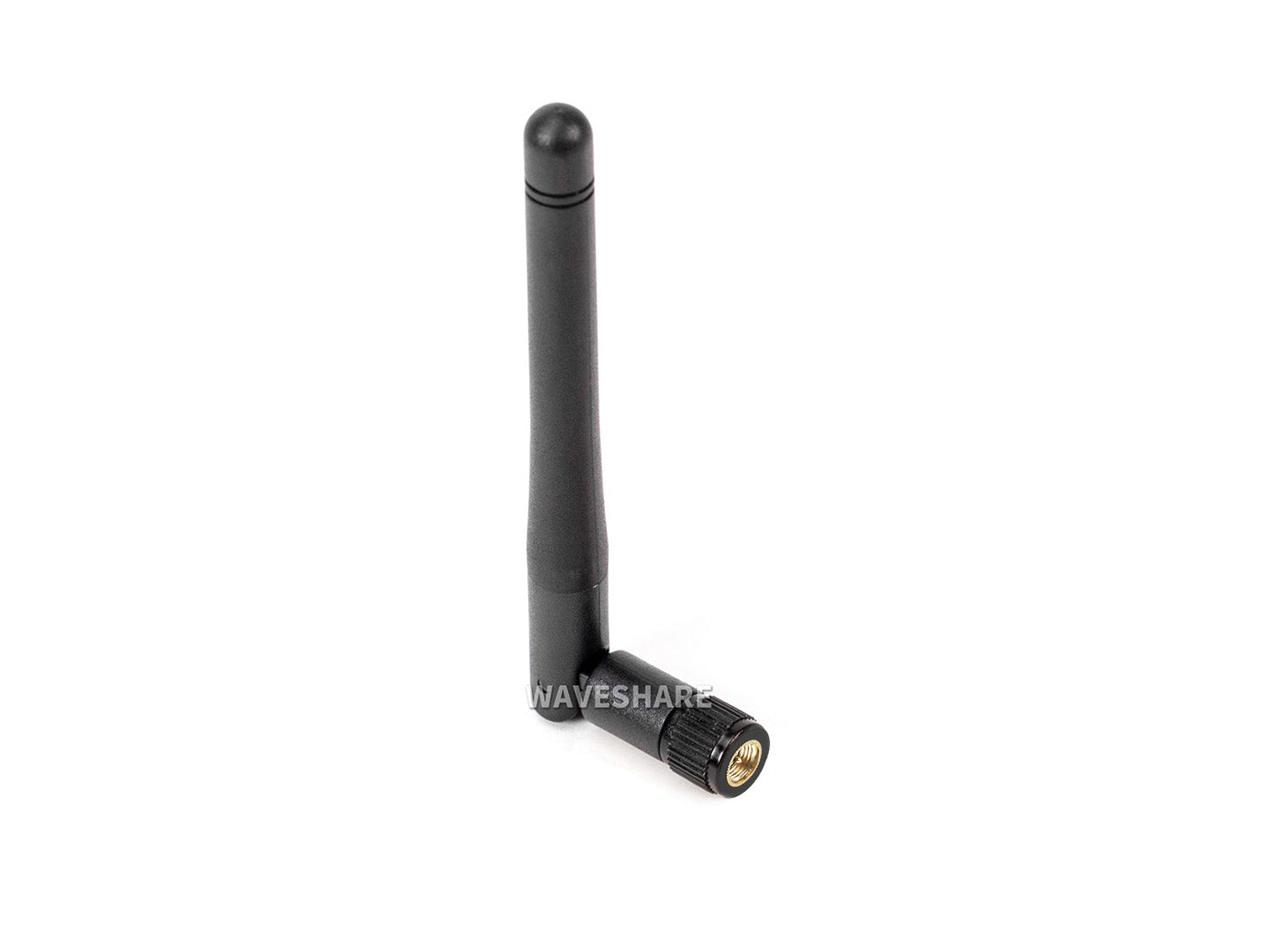

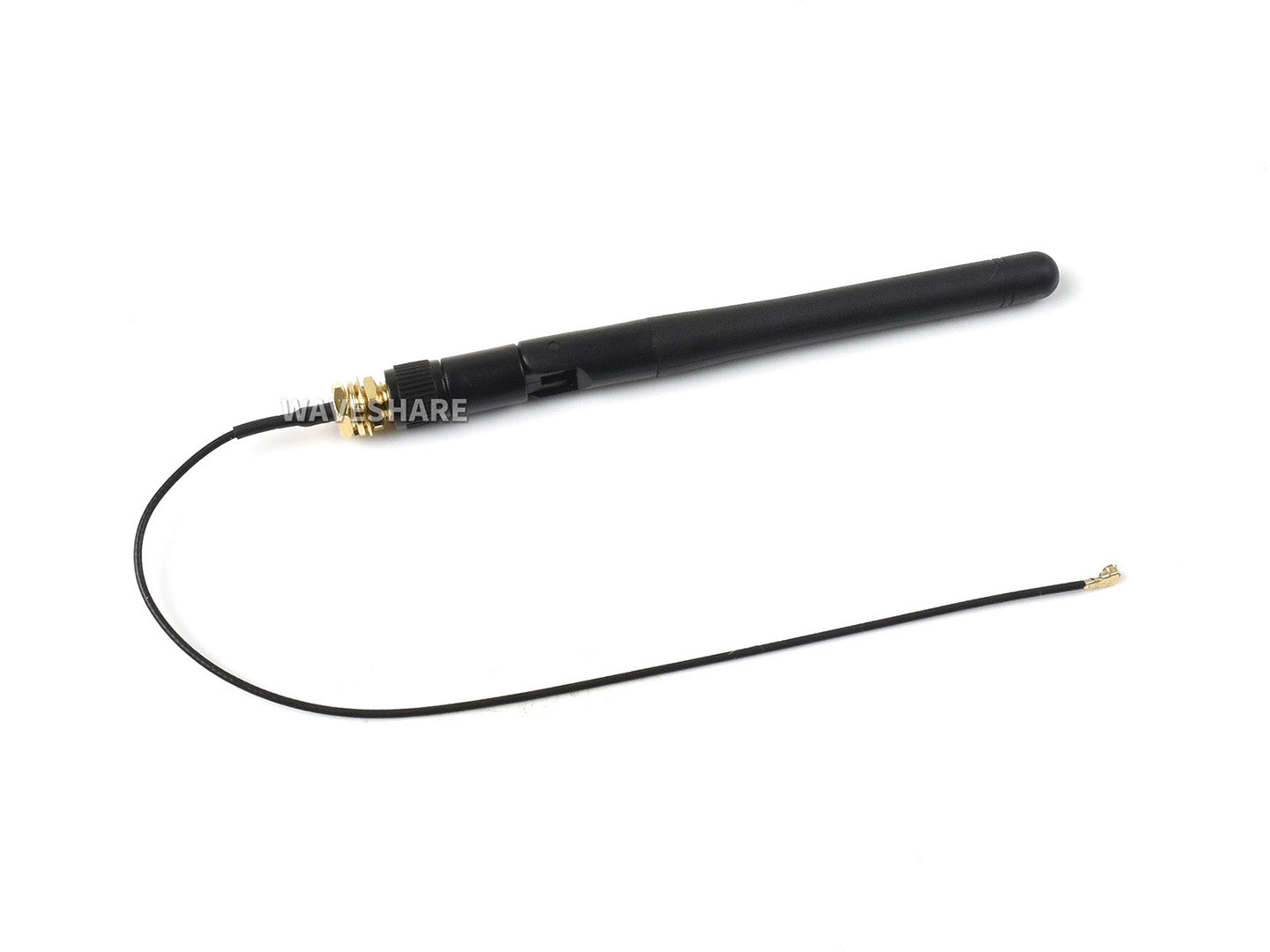

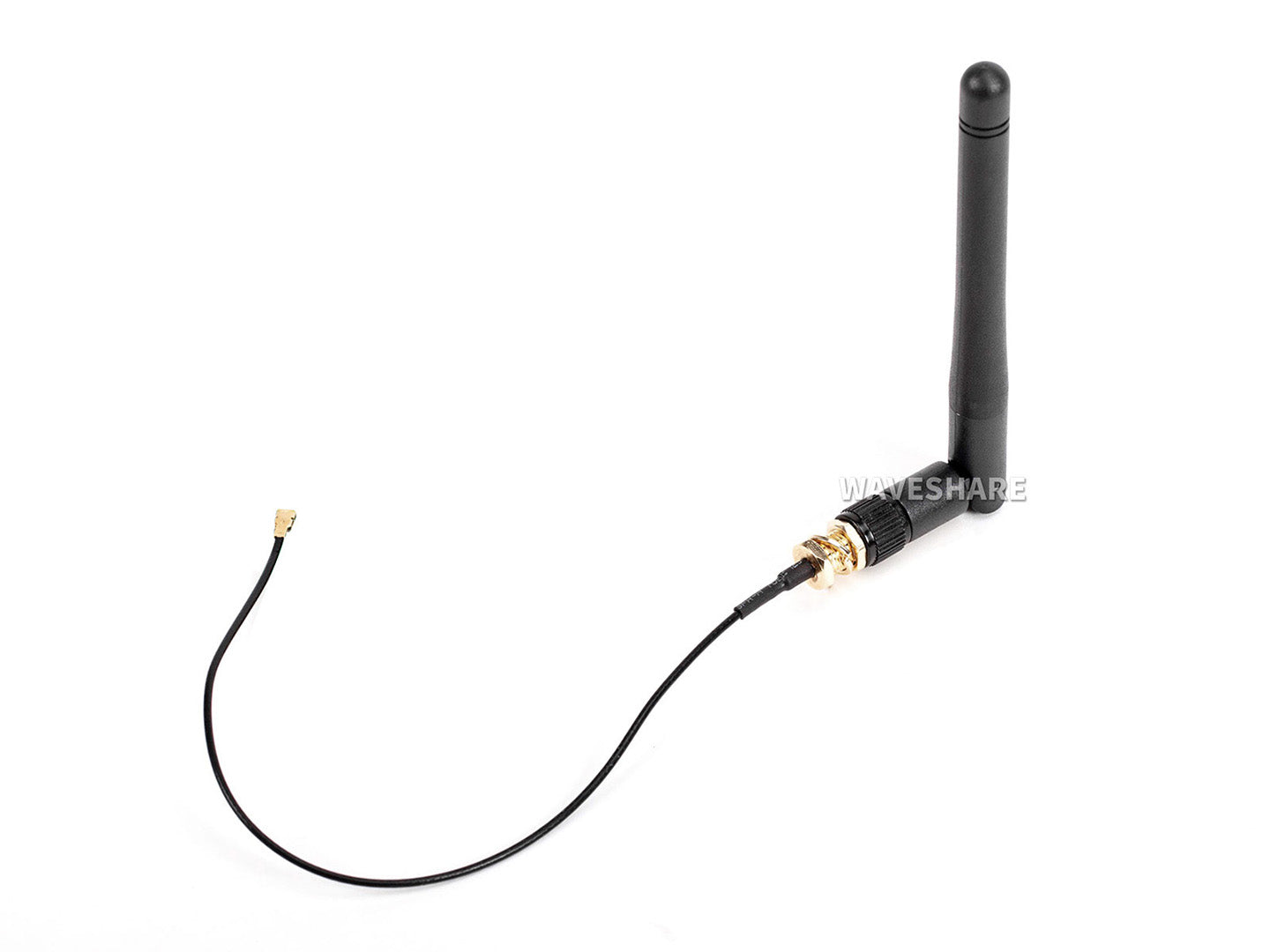

Compatible Antenna for Raspberry Pi Compute Module 4 / 5, supports 2.4G/5G WiFi frequency band

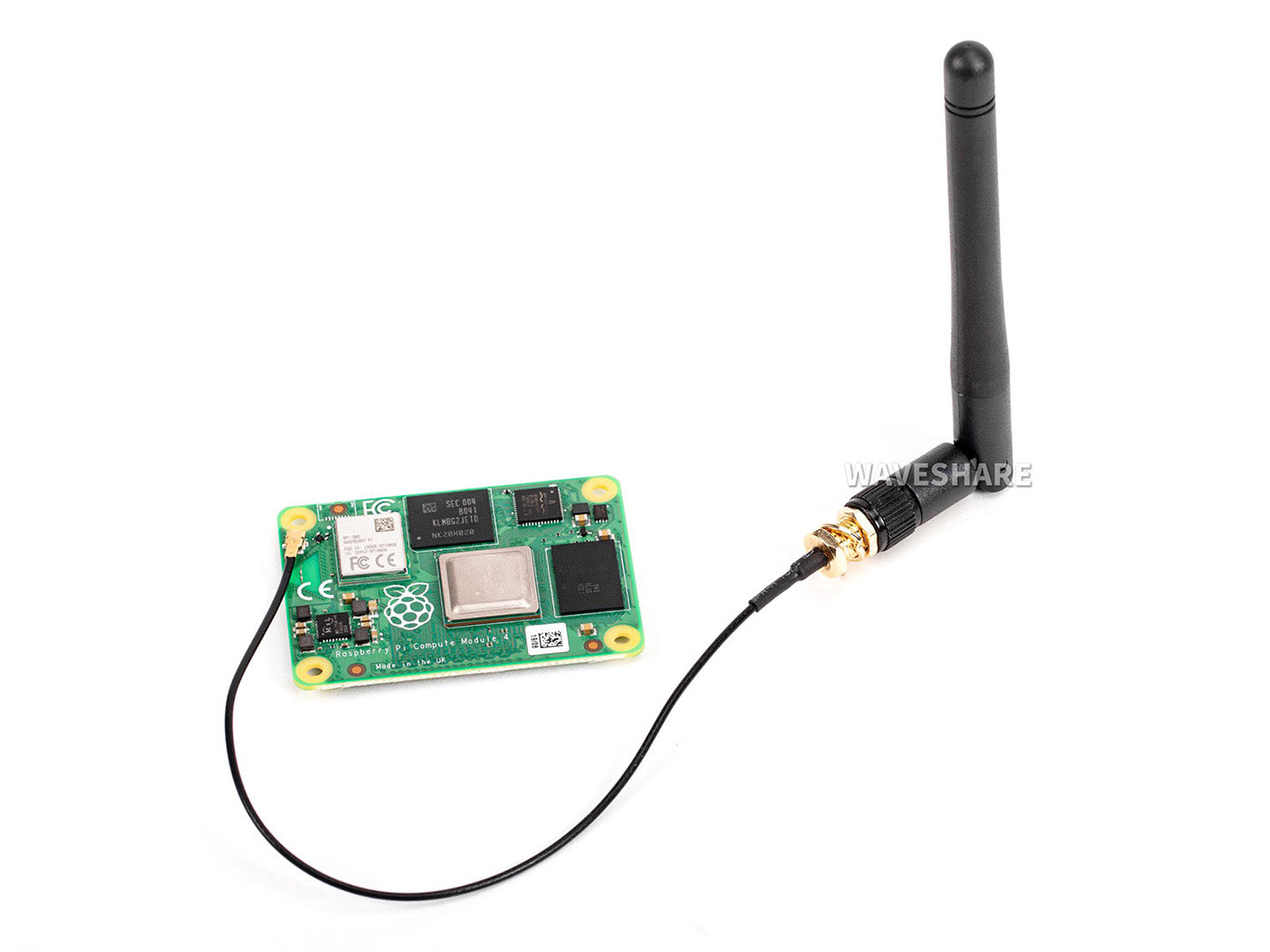

Compatible Antenna for Compute Module 4 / 5

TheCompute Module 4andCompute Module 5 are NOT included.

Antenna specification

Frequency range	2400-2500/5150-5850 MHz	Maximum power	10 W
Bandwidth	100–700 MHz	Dimensions	109 × 10 mm
VSWR	≤1.92	Connector	SMA male central pin
Peak Gain	2±0.5 dBi	Body Material	TPEE
Output Impedance	50 Ω	Operating Voltage	-20˚C ~ + 70˚C
Polarisation	Vertical	Radiation	Omnidirectional

Outline dimensions

Lieferumfang

1. ORD-CM4-ANTENNA x1
