Core3S500E, XILINX Core Board

Overview

Core3S500E is an FPGA core board that features an XC3S500E device onboard, supports further expansion.

• onboard 1pcs XCF04S
• integrated FPGA basic circuit, such as clock circuit
• onboard nCONFIG button, RESET button, 4 x LEDs
• all the I/O ports are accessible on the pin headers
• onboard JTAG debugging/programming interface
• 2.0mm header pitch design, suitable for being plugged-in your application system

What's On Board

1. XC3S500E:the XILINX Spartan-3E FPGA device which features:
   • Operating Frequency:50MHz
   • Operating Voltage:1.15V～3.3V
   • Package:QFP208
   • I/Os:116
   • LEs:500K
   • RAM:360kb
   • DCMs:4
   • Debugging/Programming: supports JTAG
2. AMS1117-3.3, 3.3V voltage regulator
3. AMS1117-2.5, 2.5V voltage regulator
4. AMS1117-1.2, 1.2V voltage regulator
5. XCF04S, onboard serial FLASH memory, for storing code
6. Power indicator
7. LEDs
8. FPGA initialization indicator
9. Reset button
10. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
11. 50M active crystal oscillator
12. JTAG interface: for debugging/programming
13. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

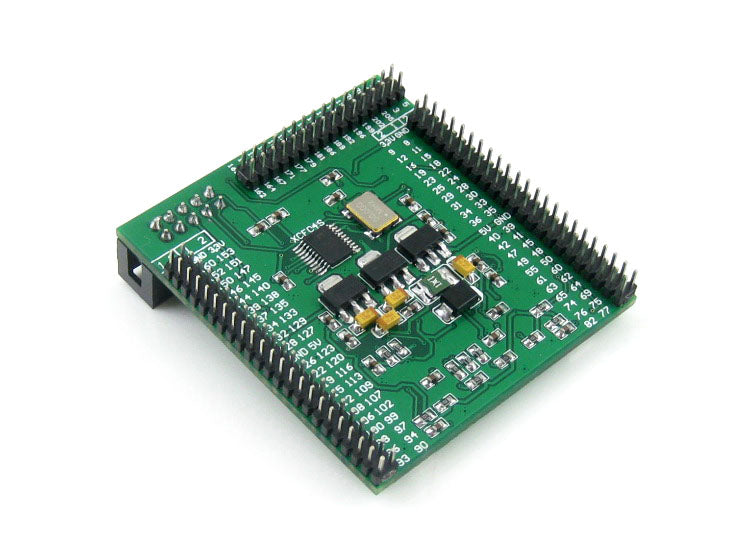

Photos

Note:Core3S500E provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required.Mother board and programmer/debugger in the photos are NOT included in the price.

Debugging/Programming Interface

The Core3S500E FPGA core board integrates JTAG interface for programming/debugging.

Development Resources

• Related software (Xilinx ISE 12 - supports Winxp/Win7, doesn't support Win8)
• Demo code (Verilog, VHDL)
• Schematic (PDF)
• FPGA development documentations

Wiki:www.waveshare.com/wiki/Core3S500E
