SKU:WSAL20467

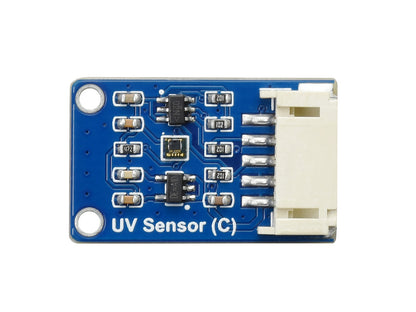

Digital LTR390-UV Ultraviolet Sensor (C), Direct UV Index Value Output, I2C
Couldn't load pickup availability
Kurzbeschreibung: Digital LTR390-UV Ultraviolet Sensor (C), Direct UV Index Value Output, I2C Bus
Ultraviolet ray sensing & ambient light intensity measuring
Direct outputs UV index and light intensity value

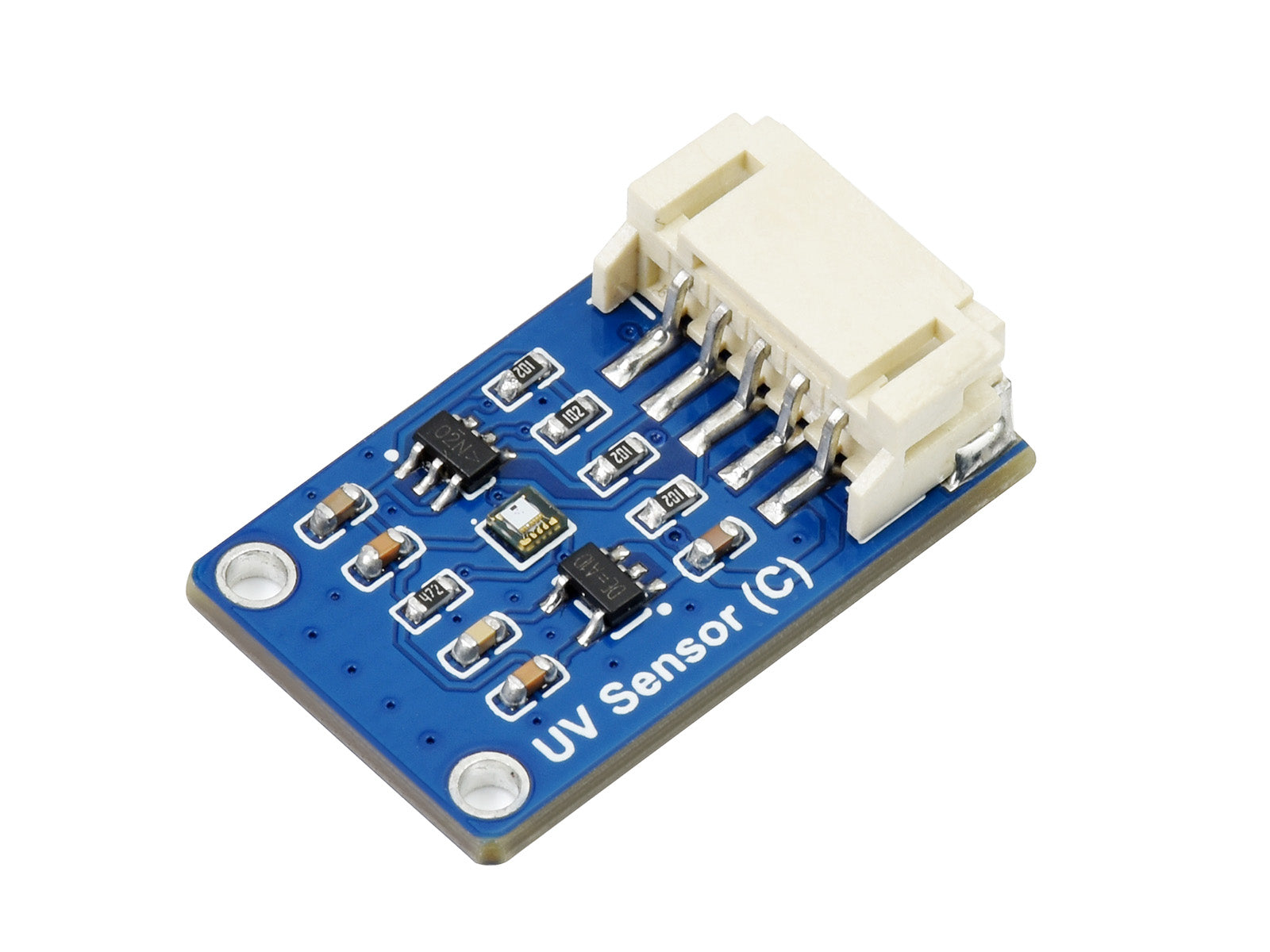

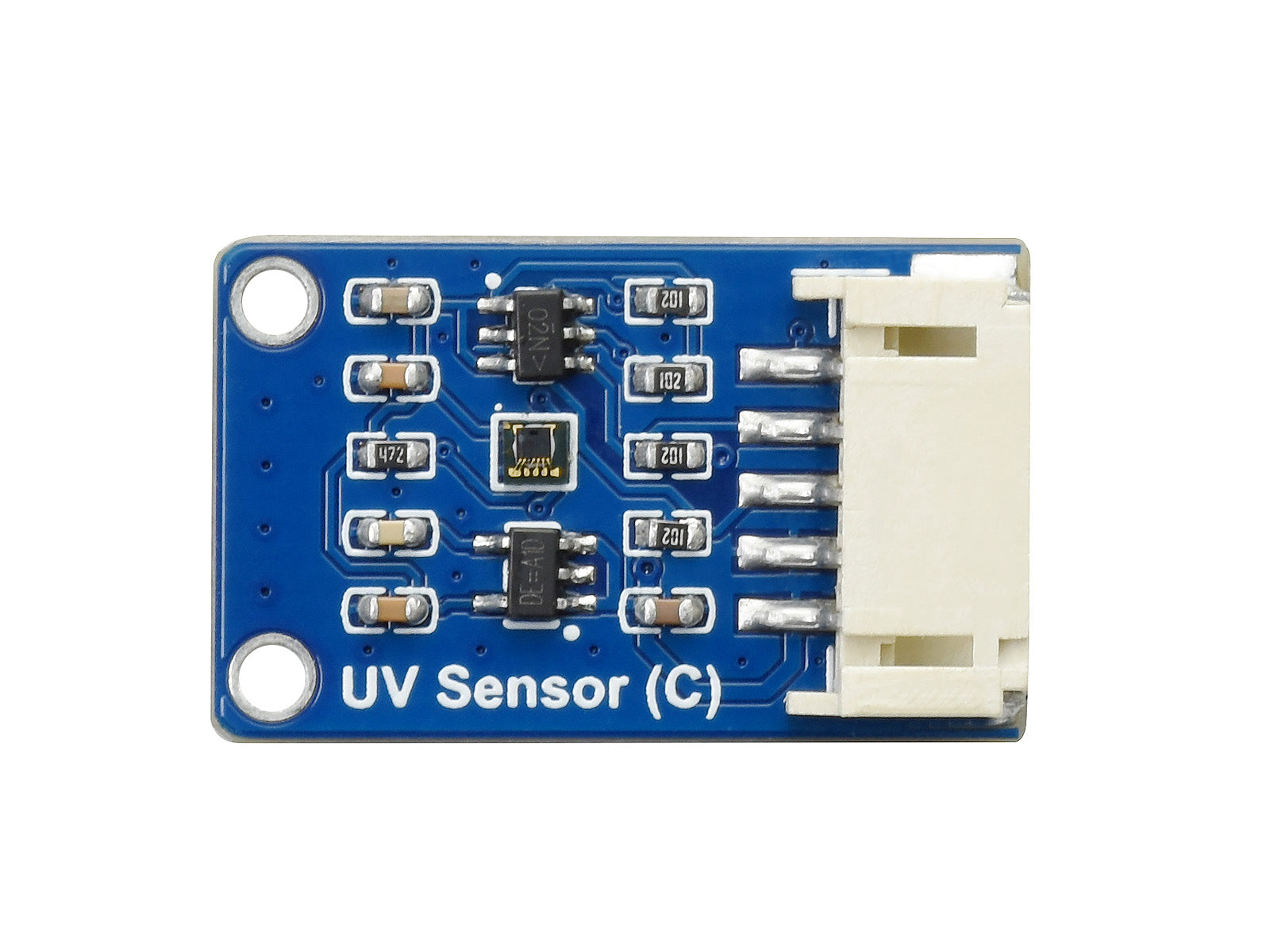

TheUV Sensor (C) is an I2C digital UV sensor module which incorporates LTR390-UV-01, designed for measuring ultraviolet ray as well as visible light, and providing light intensity value output. With features including sensitive detection, fast response, and small form factor, the UV Sensor (C) integrates the main sensor LTR390-UV-01 onits27 × 20mm body, allowing easy integration into other devices.
- Incorporates LTR390-UV-01, for measuring ultraviolet ray and visible light
- Embedded ADC, direct light intensity value output via I2C bus, less noise interference
- Supports interrupt output, programmable upper/lower threshold
- Onboard voltage translator, compatible with 3.3V/5V operating voltages
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
| Sensor | LTR390-UV-01 | Response Spectrum | 280 - 430nm |
|---|---|---|---|
| Communication bus | I2C (constant address: 0x53) | Operating voltage | 3.3V/5V |
| Dimensions | 27 × 20mm | Mounting hole size | 2.0mm |
supports host boards including Raspberry Pi/Arduino/STM32...

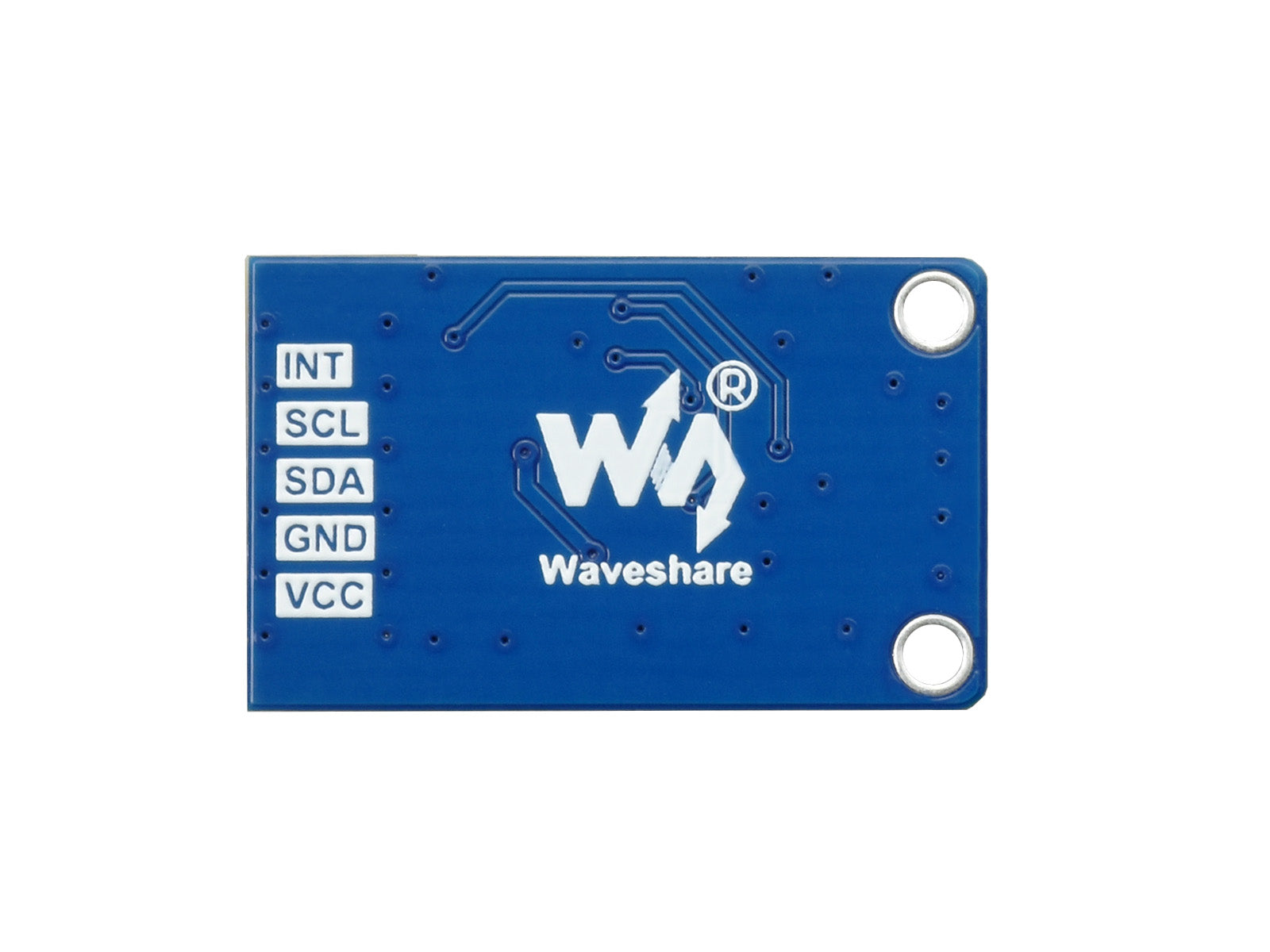

| VCC | 3.3V/5V power input |
| GND | GND |
| SDA | connects to MCU I2C data pin |
| SCL | connects to MCU I2C clock pin |
| INT | GPIO input, triggering pulse signal on interruption |
connecting with Raspberry Pi
connecting with Arduino board
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
| UV Sensor | UV Sensor (C) | |
|---|---|---|
| Sensor | GUVA-S12SD | LTR390-UV-01 |
| Hardware interface | analog output | I2C |
| Calibration Required | Yes, the analog output needs to be turned into UV index value | No, direct outputs UV index value |
| Intensity Measuring | N/A | Yes |
| Interrupt Output | N/A | Yes |
| UV Response Spectrum | 200-370nm | 280-430nm |
| Dimensions | 22 × 16mm | 27 × 20mm |
Lieferumfang
- UV Sensor (C) x1

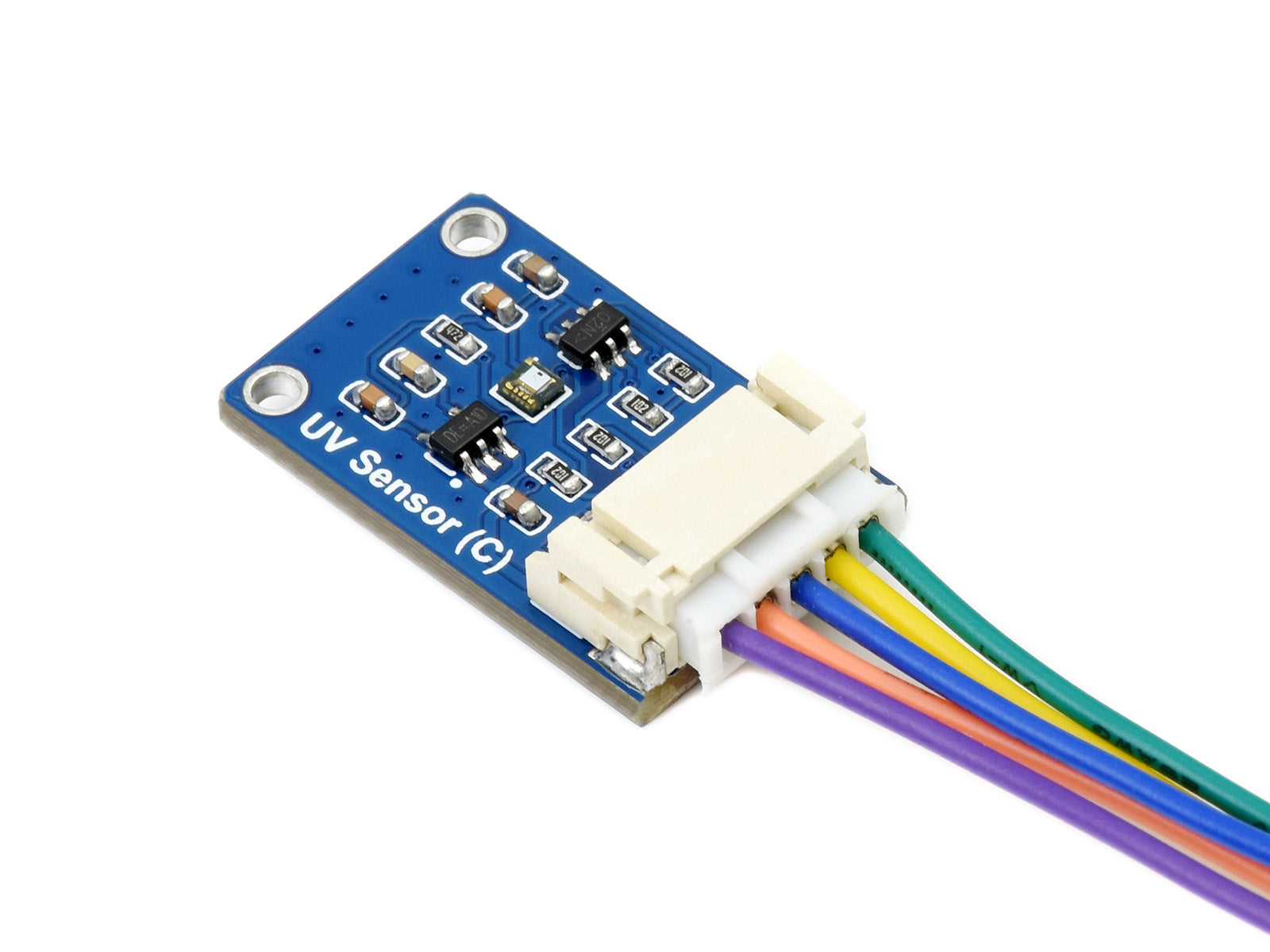

- PH2.0 5PIN wire x1
