SKU:WSAL14721

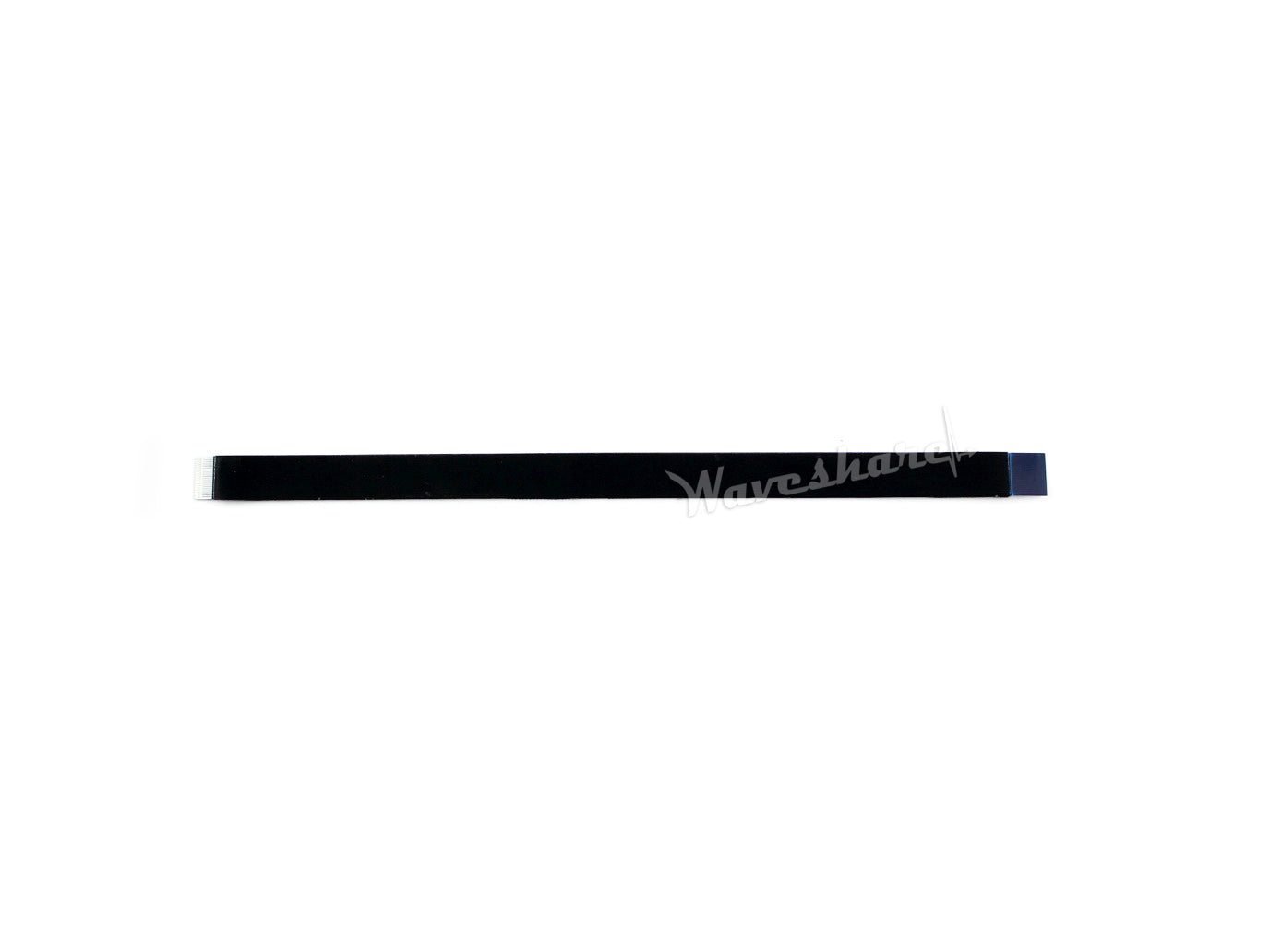

0.2m FFC for DIY HDMI Cable

Specifications

• Category: FFC
• Feature:
  • flexible, easy wring
  • EMI shielded, more stable transmission
  • gold/tin-plating, anti-oxidation, capable of dealing with complex environment
• Exposed contact: 20 pin, 0.5mm pitch, opposite side
• Impendence control: 100 ± 10Ω
• Compliance: RoHS-compliant
• Dimension: 200mm x 10.7mm x 0.5mm
• For DIY HDMI Cable

Examples

To DIY an HDMI cable, 2 adapters and 1 FFC are required, there are different options for each part:

• Adapter:Straight/Right-angle/Mini HDMI/Micro HDMI
• FFC:0.2m/0.5m/1m

Lieferumfang

1. FFC 20PIN 0.5Pitch 0.2m (opposite side contact) x1
