SKU:WSAL15220

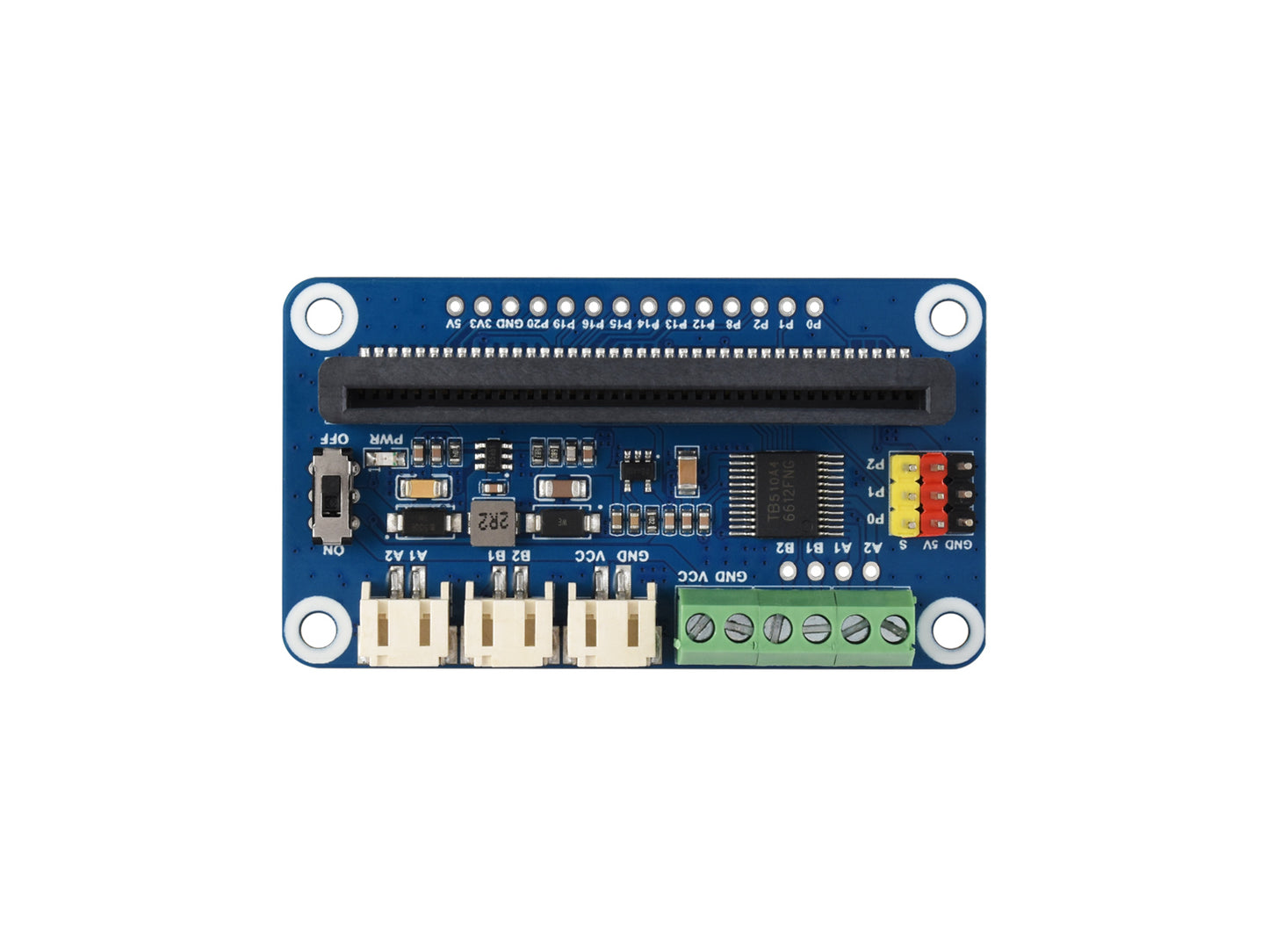

Driver Breakout for micro:bit, drives motors and servos

Overview

This driver board gives your micro:bit the ability to drive two channel DC motors and three channel servos. It's an ideal choice for you to DIY mobile robots.

Features

• micro:bit edge connector, directly pluggable
• 2x DC motor interfaces, 3x servo interfaces
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Onboard multi connector options for DC motors in different specifications, onboard standard servo headers
• Comes with development resources and manual (micro:bit graphical examples)

Specifications

• Power supply: 6V~12V (VIN terminal)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: TB6612FNG
• Dimension: 65mm x 36mm
• Mounting hole size: 3.0mm

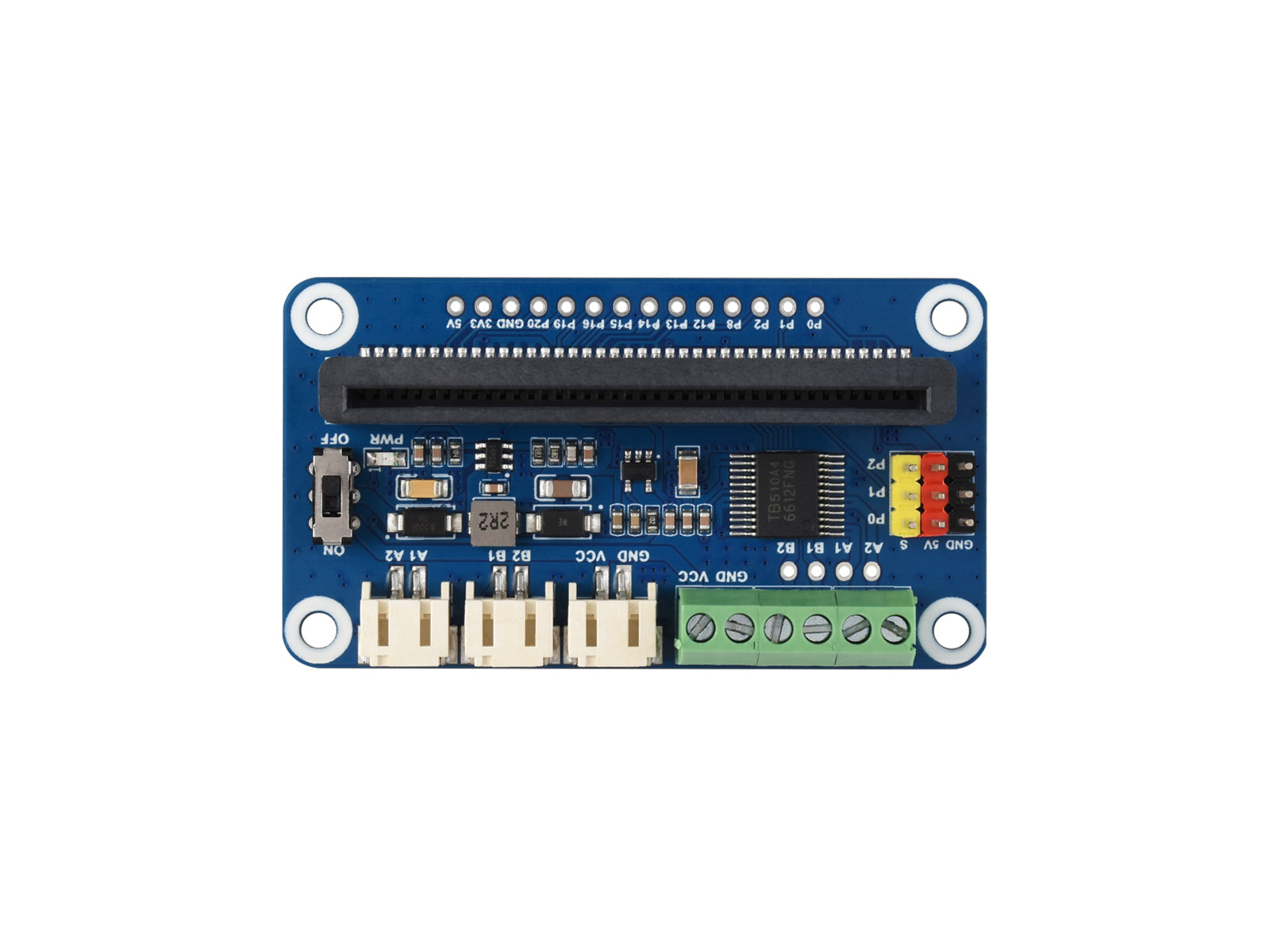

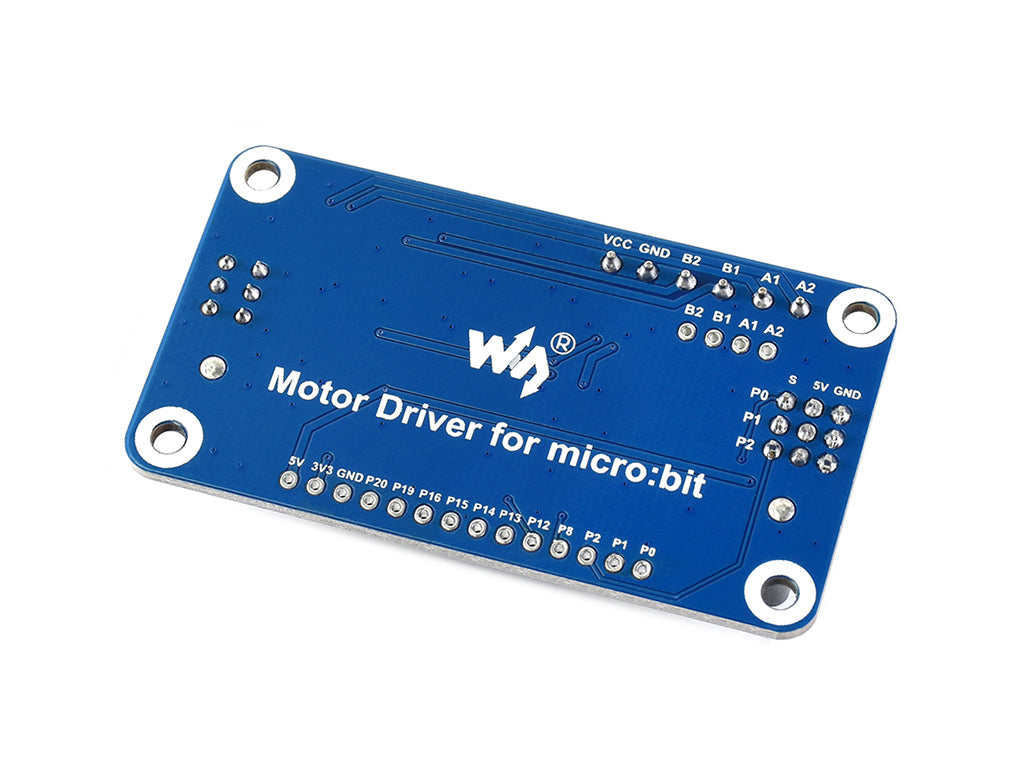

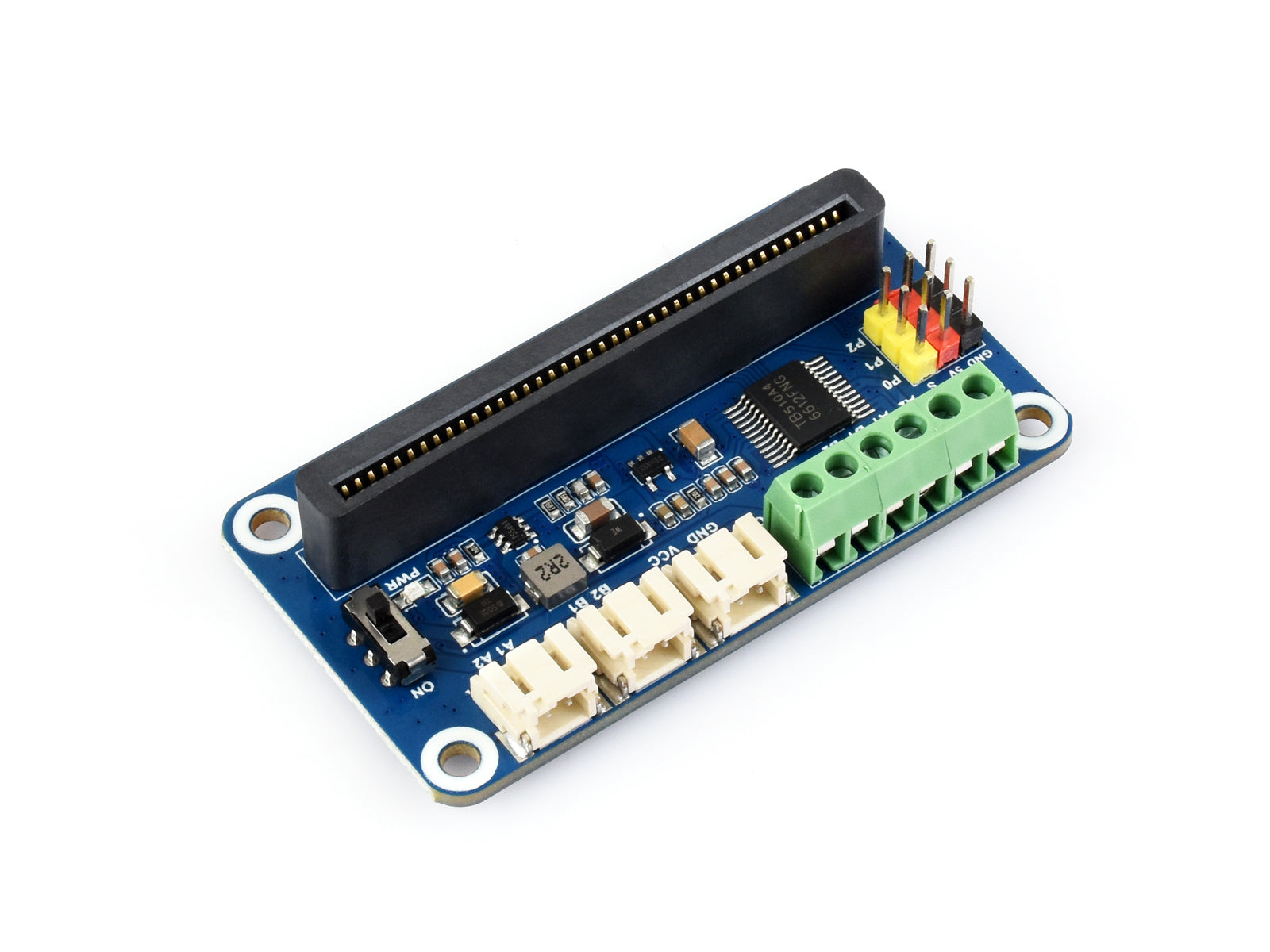

Product Images

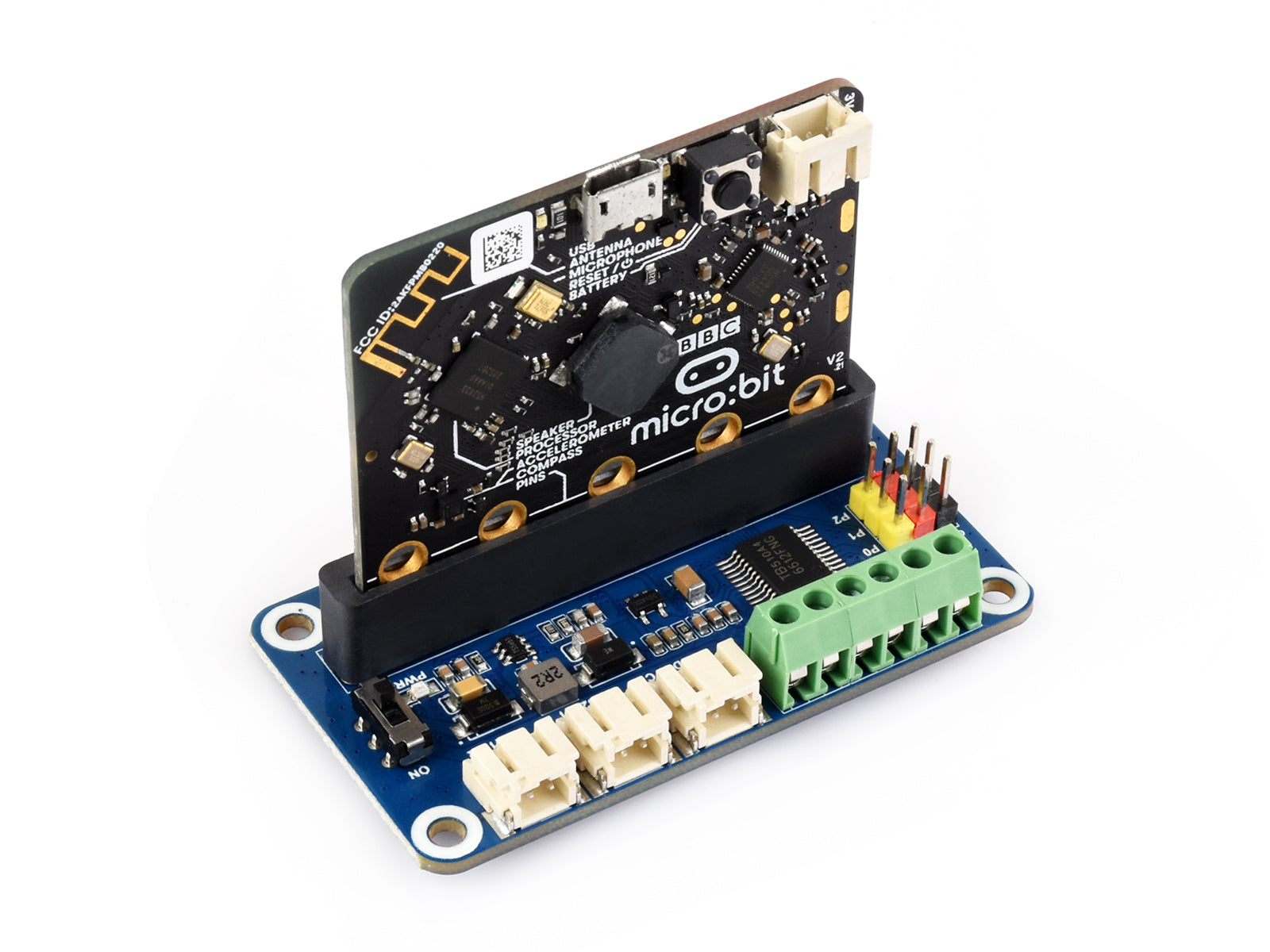

Note: The micro:bit is NOT included, please purchase separately.

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Motor_Driver_for_micro:bit

Lieferumfang

Note: micro:bit in the photos is NOT included.

1. Motor Driver for micro:bit x1
