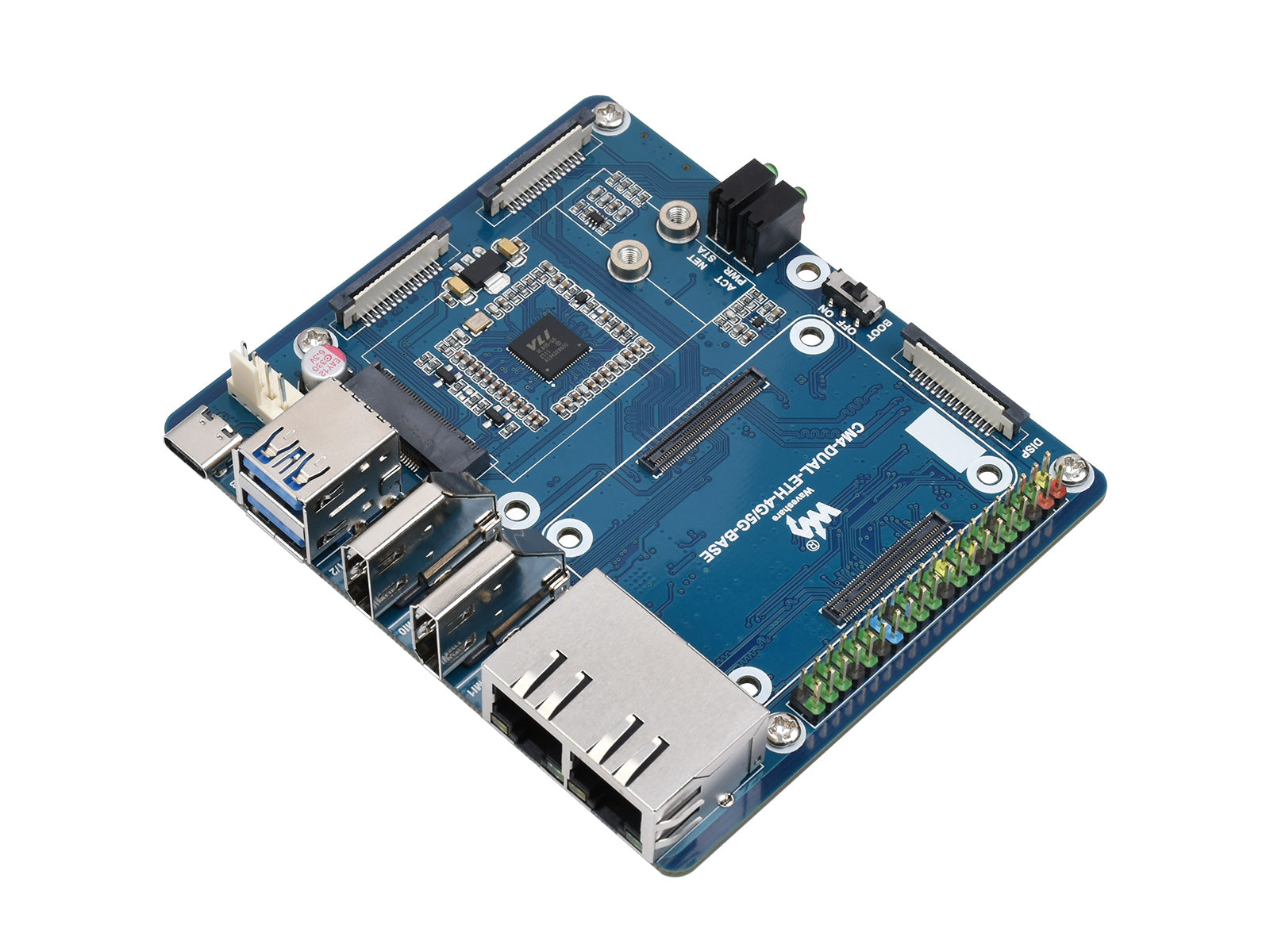

Dual Gigabit Ethernet 5G/4G Base Board Designed for Raspberry Pi Compute Module 4

Name: Dual Gigabit Ethernet 5G/4G Base Board Designed for Raspberry Pi Compute Module 4
Brand: WaveShare
SKU: WSAL20885
Price: 24829.15 HUF
Availability: InStock

24.829 Ft

24.829 Ft 0 Ft

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Kurzbeschreibung: Dual Gigabit Ethernet 5G/4G Base Board Designed For Raspberry Pi Compute Module 4

Dual Gigabit Ethernet 5G/4G Base Board designed for Raspberry Pi Compute Module 4

Dual GigE 5G/4G Base for CM4

suitable for evaluating the Raspberry Pi CM4 or being integrated into end products

Powerful Ethernet Capability, 5G/4G Cellular Support

Communication module compatibility

compatible with communication modules with M.2 B KEY interface

An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2 , SIM8202G-M2 ,SIM8200EA-M2

Specifications

CM4 socket	suitable for all variants of Compute Module 4
Networking	Dual Gigabit Ethernet RJ45
	M.2 B KEY, for connecting 5G / 4G module
	Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
USB	USB 3.2 Gen1 × 2
Pin header	Raspberry Pi 40PIN GPIO header
Display	MIPI DSI port (15pin 1.0mm FPC connector)
Camera	MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector)
Video	HDMI × 2, supports 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
Storage	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan header	5V/12V (12V by default), allows speed adjustment and measurement
Power input	5V/2.5A
Dimensions	99.6 × 87.0mm

What's the differences

CM4 Base Board	Interface count and specifications
CM4 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G supportRS232RS485ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 4

standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO headersuitable for Compute Module 4 Lite/eMMC series module

Rich interfaces

providing interfaces including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB/M.2 B KEY

Application example

suitable for Raspberry Pi projects which require multi peripherals, or industrial applications

for reference only, CM4, display, cameras, and fan are NOT included.

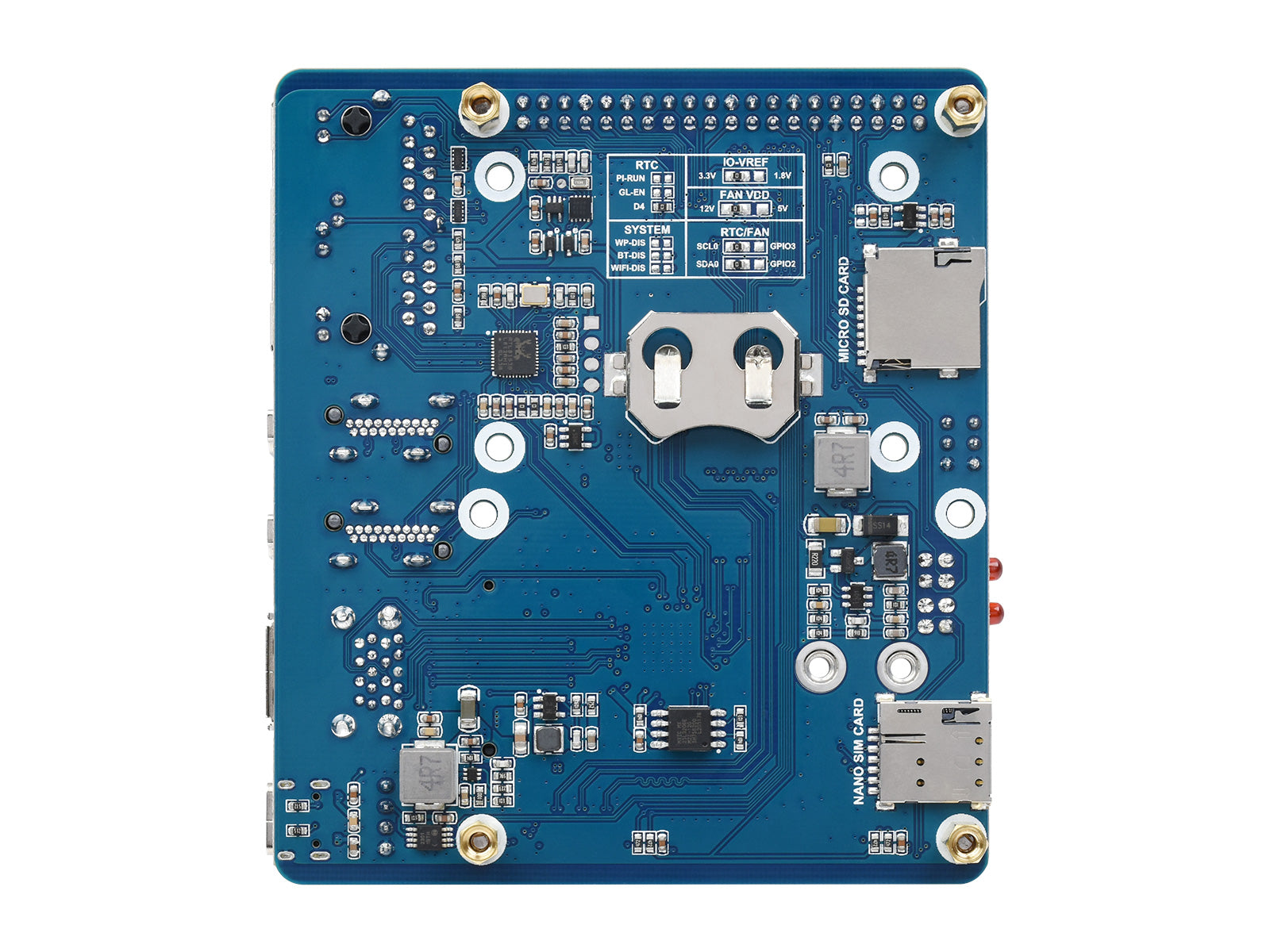

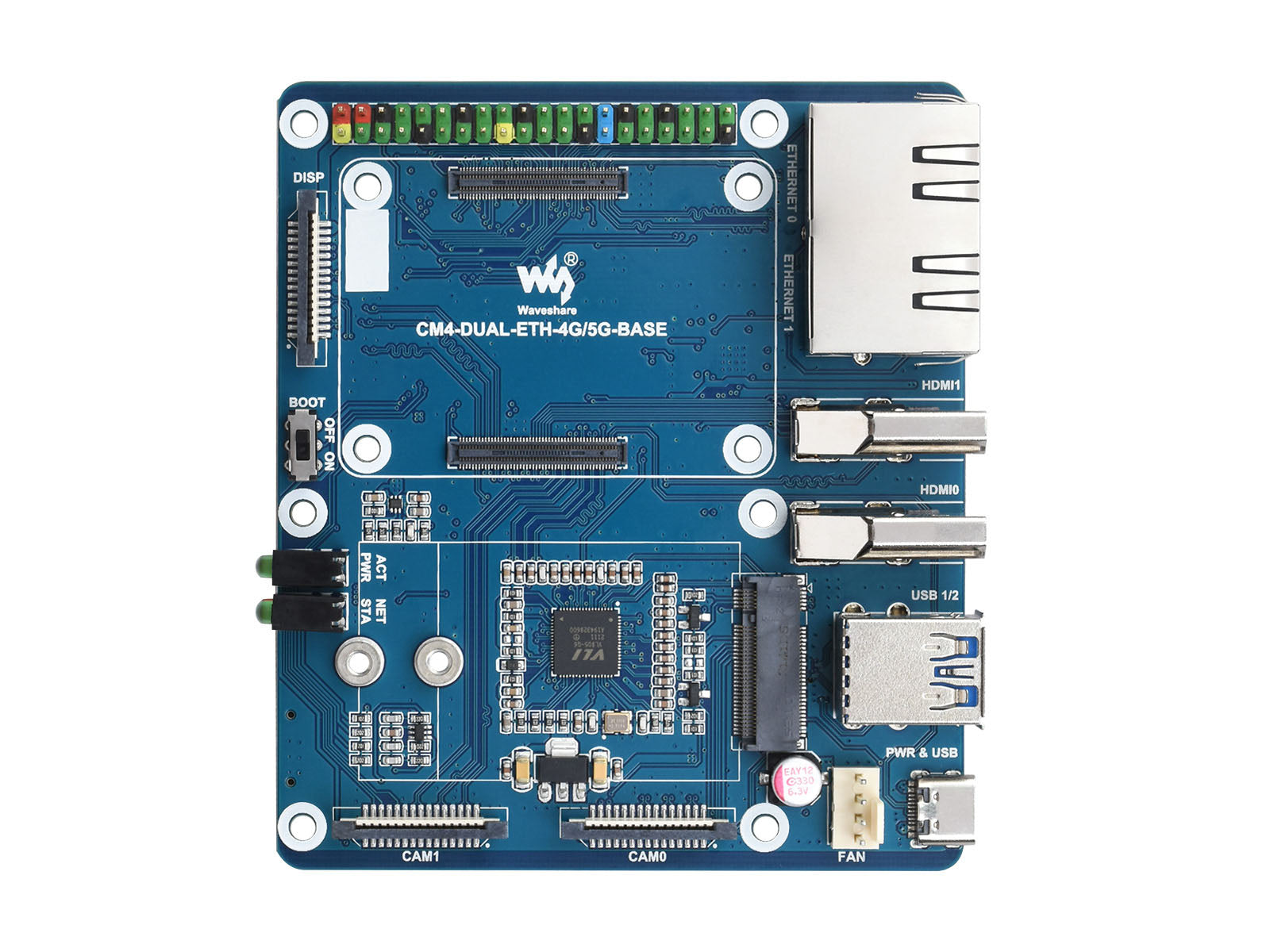

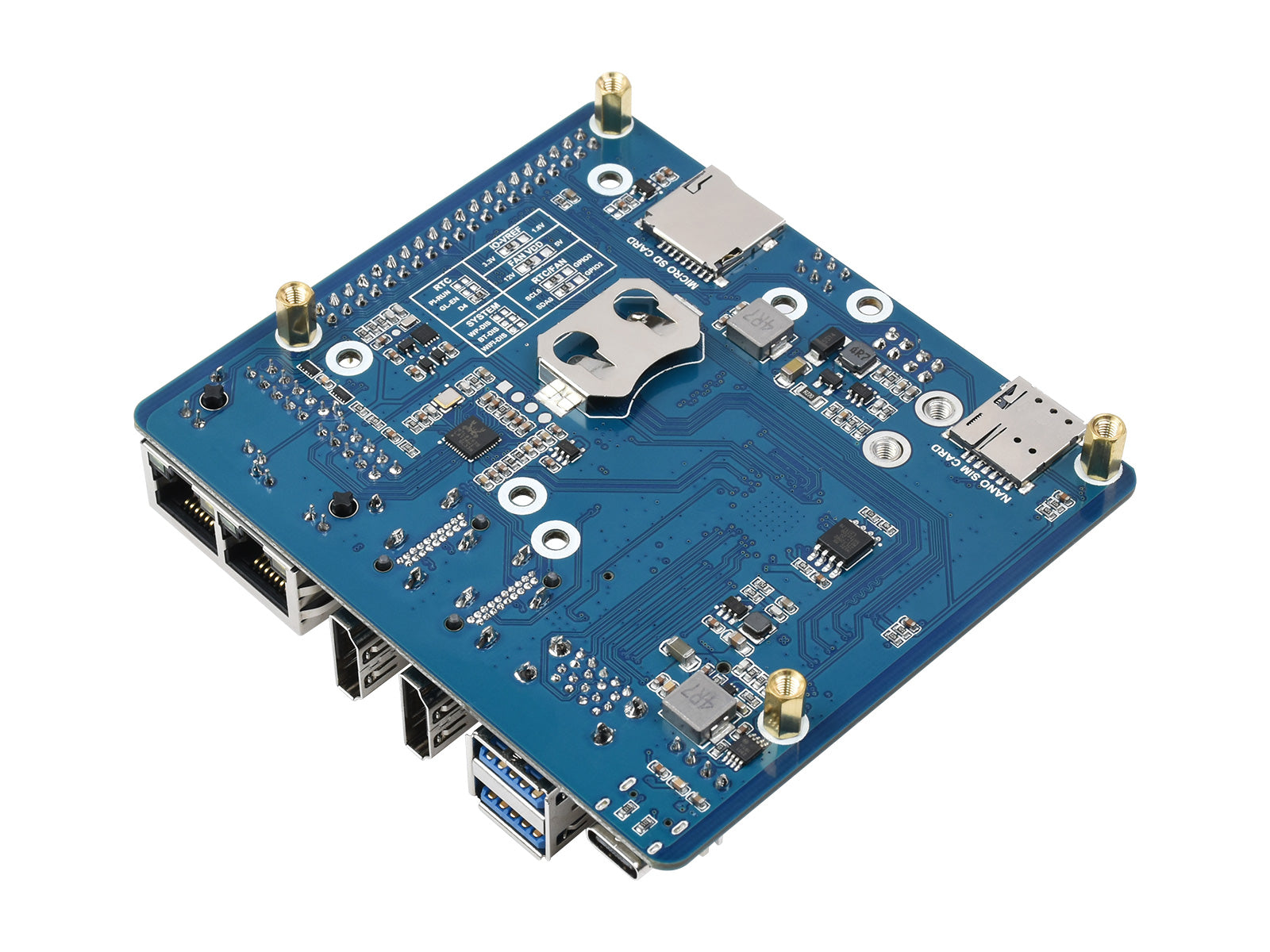

What's On Board

CM4 socket suitable for all variants of Compute Module 4
40PIN GPIO headerfor connecting sorts of HATs
Dual RJ45 Gigabit Ethernet10/100/1000M compatibleETHERNET 0: CM4 original ETHETHERNET 1: USB extended ETH
HDMI connectors2x HDMI, supports 4K 30fps output
USB 3.2 ports 2x USB 3.2 Gen1, for connecting sorts of USB devices
PWR & USBDC power supply or USB programming port
FAN headerfor connecting cooling fan, allows speed adjustment and measurement
CAM 2x MIPI CSI camera ports
4G/5G module status indicatorSTA red: module enable indicatorNET green: module operating status indicator
CM4 status indicatorPWR red: Raspberry Pi power indicatorACT green: Raspberry Pi operating status indicator
BOOT selection ON: CM4 will be booted from USB-C interface OFF: CM4 will be booted from eMMC or Micro SD card
DISPMIPI DSI display port

M.2 B KEYsupports 4G/5G modules, or other communication modules using USB channel
Nano-SIM card slot supports standard Nano-SIM card for 5G/4G/3G/2G communication
Micro SD card slotfor connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
RTC battery holdersupports CR2032 button cell
RTC interruption configuration PI-RUN: CM4 will reboot on RTC interruption GL-EN: CM4 powerdown on RTC interruption D4: D4 pin is triggered on RTC interruption (default)
IO-VREF selection set the CM4 IO logic level as 3.3V (default) or 1.8V
FAN power supply selectionselect 12V (default) or 5V power to drive the fan
RTC/FAN I2C bus selectionSDA0/SCL0: I2C-10 is shared with CSI/DSI (default)GPIO3/2: I2C-1 is shared with 40PIN header
System function configuration BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
RTL8153USB Gigabit Ethernet chip
