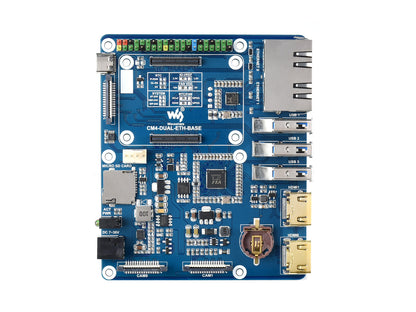

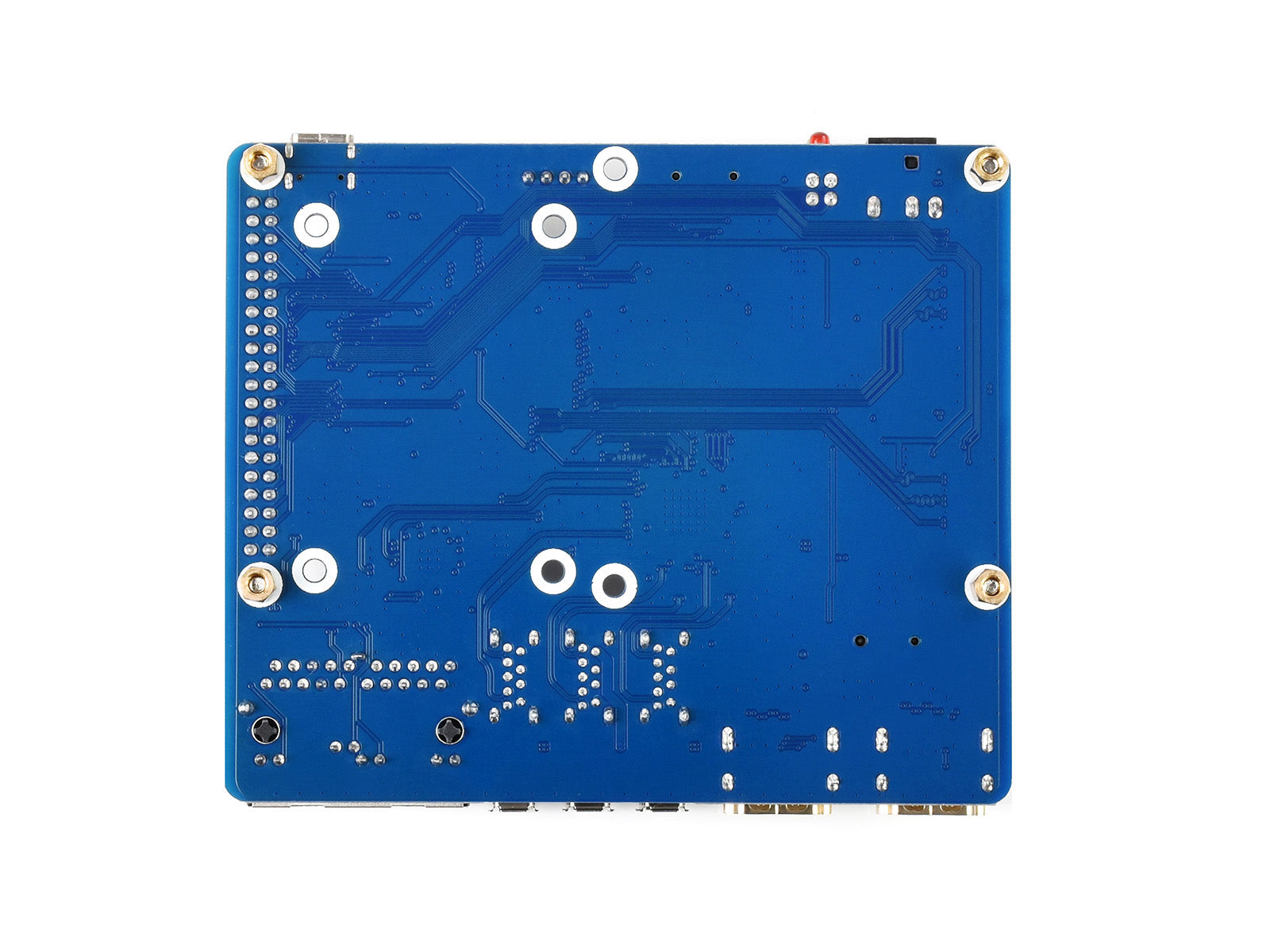

Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

Name: Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4
Brand: WaveShare
SKU: WSAL19838
Price: 24829.15 HUF
Availability: InStock

24.829 Ft

24.829 Ft 0 Ft

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

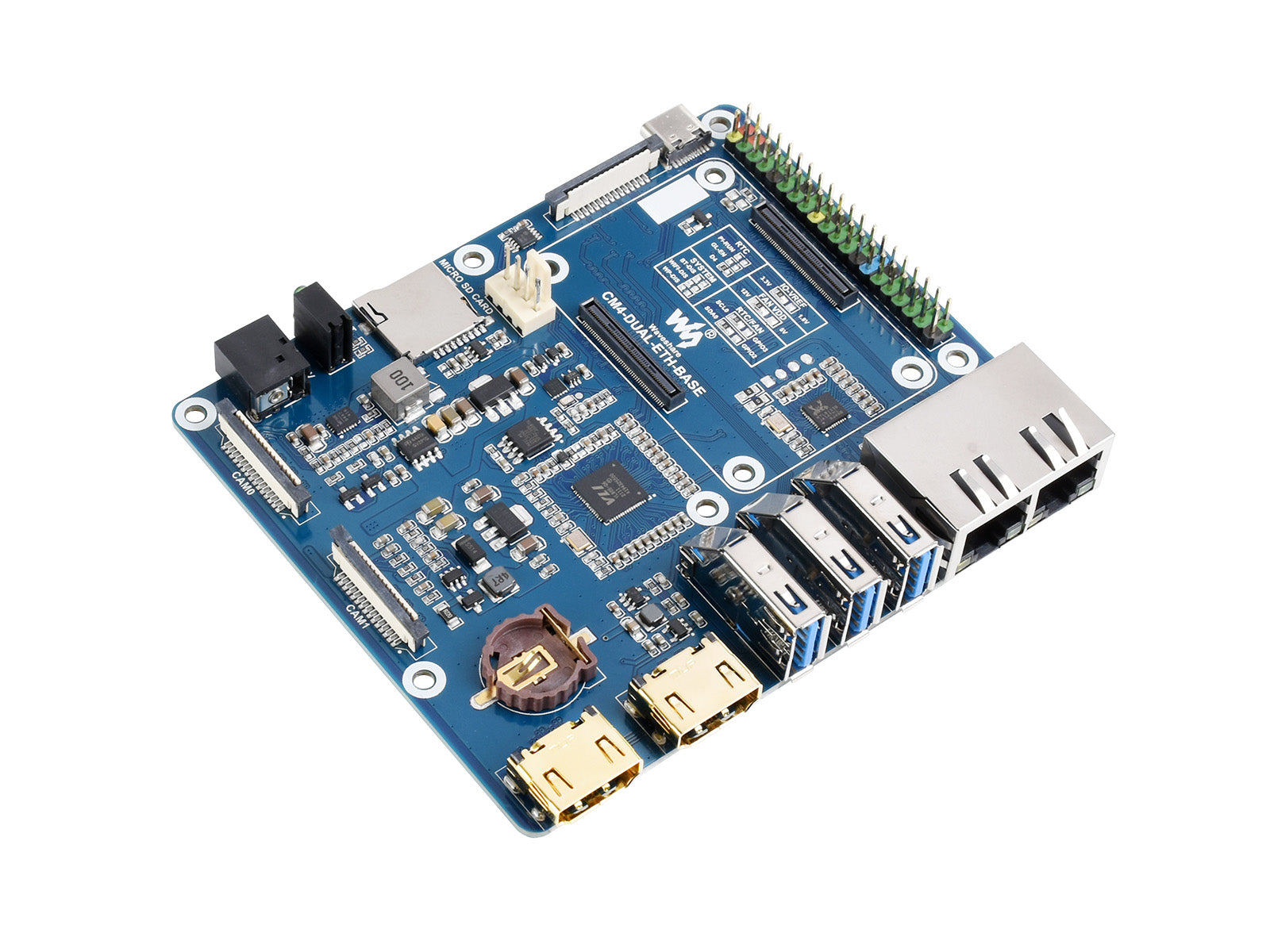

Dual Gigabit Ethernet Base Board/Mini-Computer designed for Raspberry Pi Compute Module 4

Dual Gigabit Ethernet Base for CM4

suitable for evaluating the Raspberry Pi CM4 or being integrated into end products

Powerful Ethernet Capability

Version Option

Dual Gigabit Ethernet Base Board

Dual Gigabit Ethernet Mini-Computer Kit In addition to the Dual Gigabit Ethernet Base Board, it is equipped with Aluminum Alloy case, fan and power supply adapter

Base Board Version

Note: There are two versions of base board: V2 and V3, the components layout are slightly different but the functions are the same

Optional Black Metal Case

make it easy to build your own Raspberry Pi CM4 mini PC

for reference only, CM4 is NOT included.

Specifications

CM4 socket	suitable for all variants of Compute Module 4
Ethernet	Dual Gigabit Ethernet RJ45
USB	USB 3.2 Gen1 × 3
Pin header	40PIN GPIO header × 1
DSI display	MIPI DSI display port × 1, 15pin 1.0mm FPC connector
CSI camera	MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI	HDMI × 2, supports 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
TF card slot	TF card socket for Compute Module 4 Lite (without eMMC) variants
Fan	5V/12V, allows speed adjustment and measurement
Power input	7V-36V
Dimensions	109.0 × 91.5mm

Comparing the expansion boards

CM4 Base Board	Interface count and specifications
CM4 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G supportRS232RS485ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 4

standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO headersuitable for Compute Module 4 Lite/eMMC series module

Rich interfaces

Precise cut-out with clear label

each cut-out is completely aligned with the connector

Cooling fan included

comes with cooling fan, combined with the airflow vent, better heat dissipation

Wall mount support

wall mount holes on two sides, handy for mounting

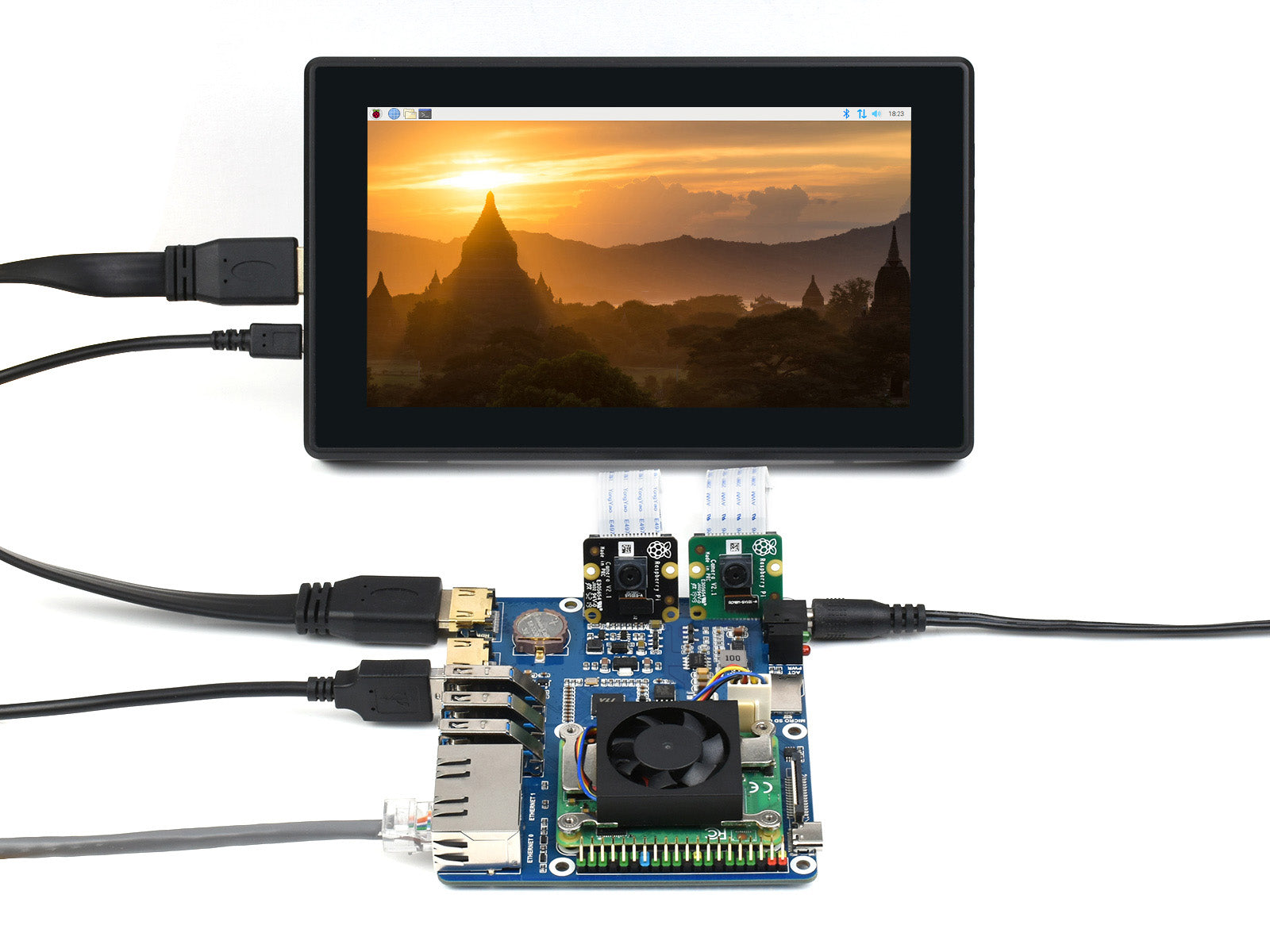

Application examples

Binocular Vision Raspberry Pi Projects, Or Other Industrial Context

for reference only, display, cameras, and antenna are NOT included.

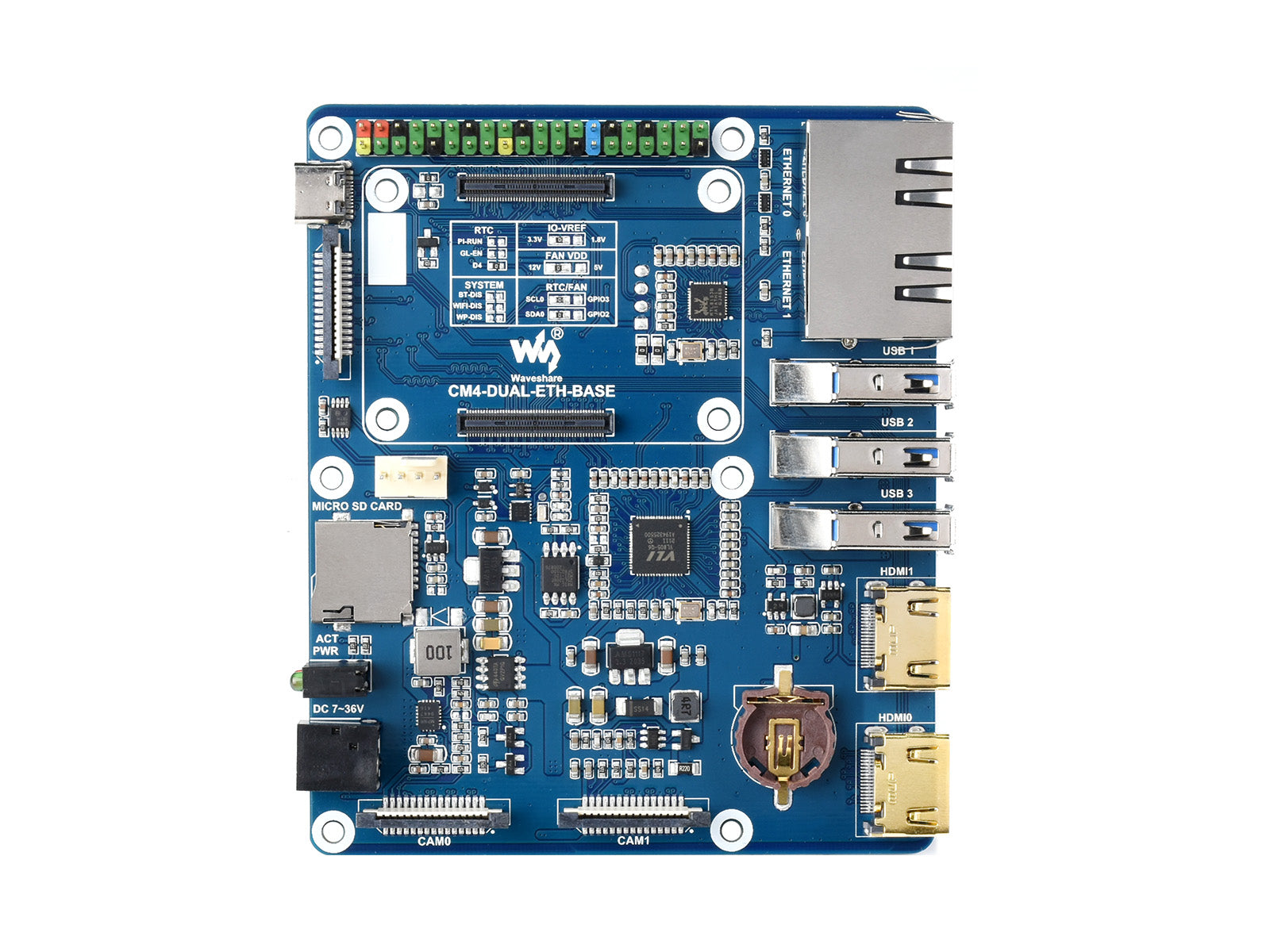

What's On Board

CM4 socket suitable for all variants of Compute Module 4
40PIN GPIO headerfor connecting sorts of HATs
RJ45 Gigabit Ethernetdual RJ45 Gigabit Ethernet, 10/100/1000M compatibleETHERNET 0: CM4 original ETHETHERNET 1: USB extended ETH
USB 3.2 ports3x USB 3.2 Gen1, for connecting sorts of USB devices
HDMI connectors2x HDMI, supports 4K 30fps output
CAM2x MIPI CSI camera ports
DC power supply 7~36V DC wide voltage range power input
Dual LED indicatorsred: Raspberry Pi power indicatorgreen: Raspberry Pi operating status indicator
TF card slotfor connecting a TF card with pre-burnt image (Lite variant ONLY)
FAN headerfor connecting cooling fan, allows speed adjustment and measurement
DISP0MIPI DSI display port
USB SLAVE portfor burning system image into Compute Module 4 eMMC variants
RTC battery holdersupports CR1220 button cell

RTC interruption configuration PI-RUN: CM4 will reboot on RTC interruption GN-EN: CM4 powerdown on RTC interruption D4: D4 pin is triggered on RTC interruption
IO-VREF selection set the CM4 IO logic level as 3.3V or 1.8V
FAN power supply selectionselect 5V or 12V power to drive the fan
System function configurationBT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLYWiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLYWP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or TF card
RTC/FAN I2C bus selectionSDA0/SCL0: I2C-10 is shared with CSI/DSIGPIO3/2: I2C-1 is shared with 40PIN header
RTL8153USB Gigabit Ethernet chip
EMC2301 fan controller, allows fan speed adjustment and measurement
VL805 USB 3.0 HUB
