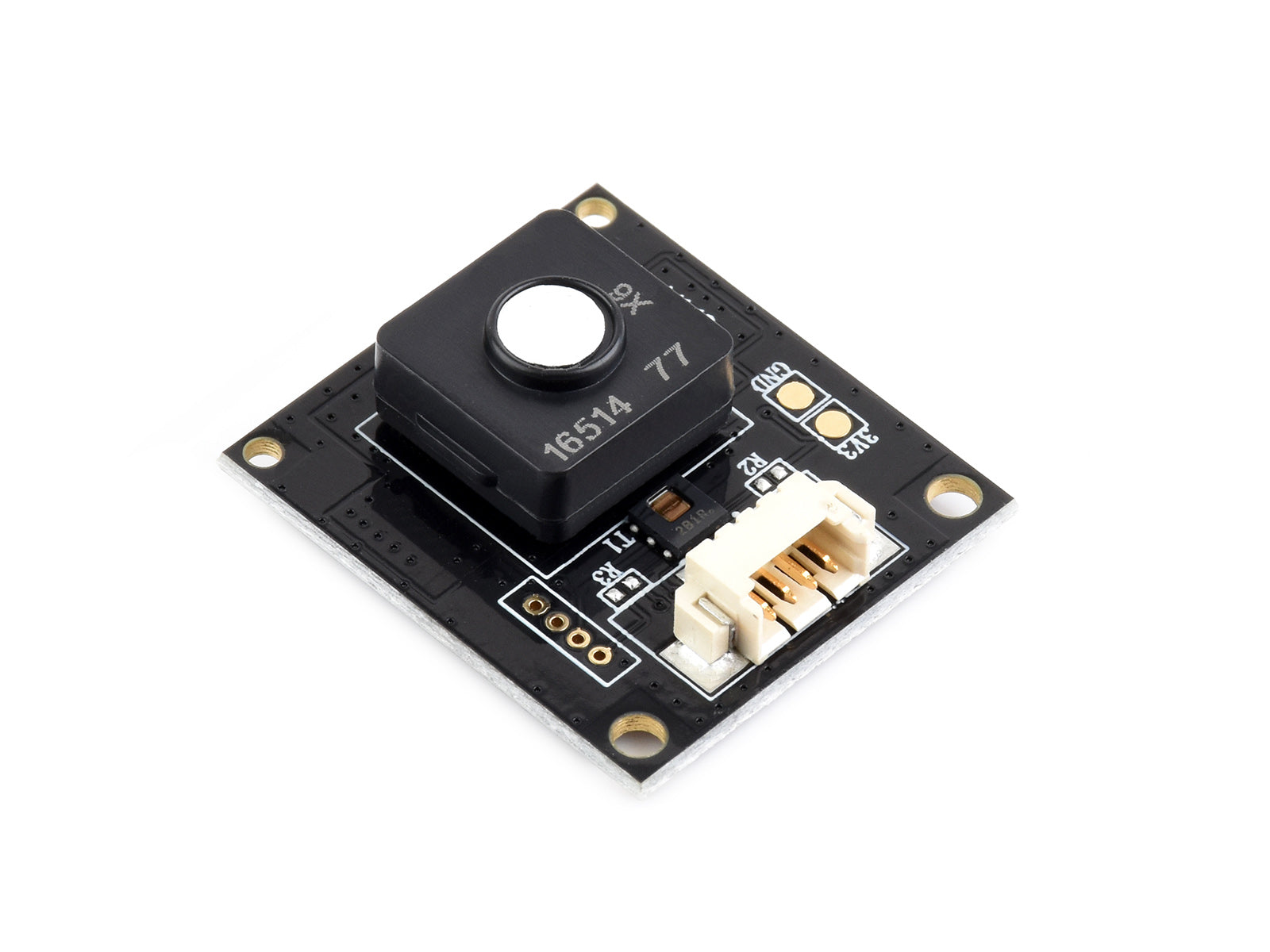

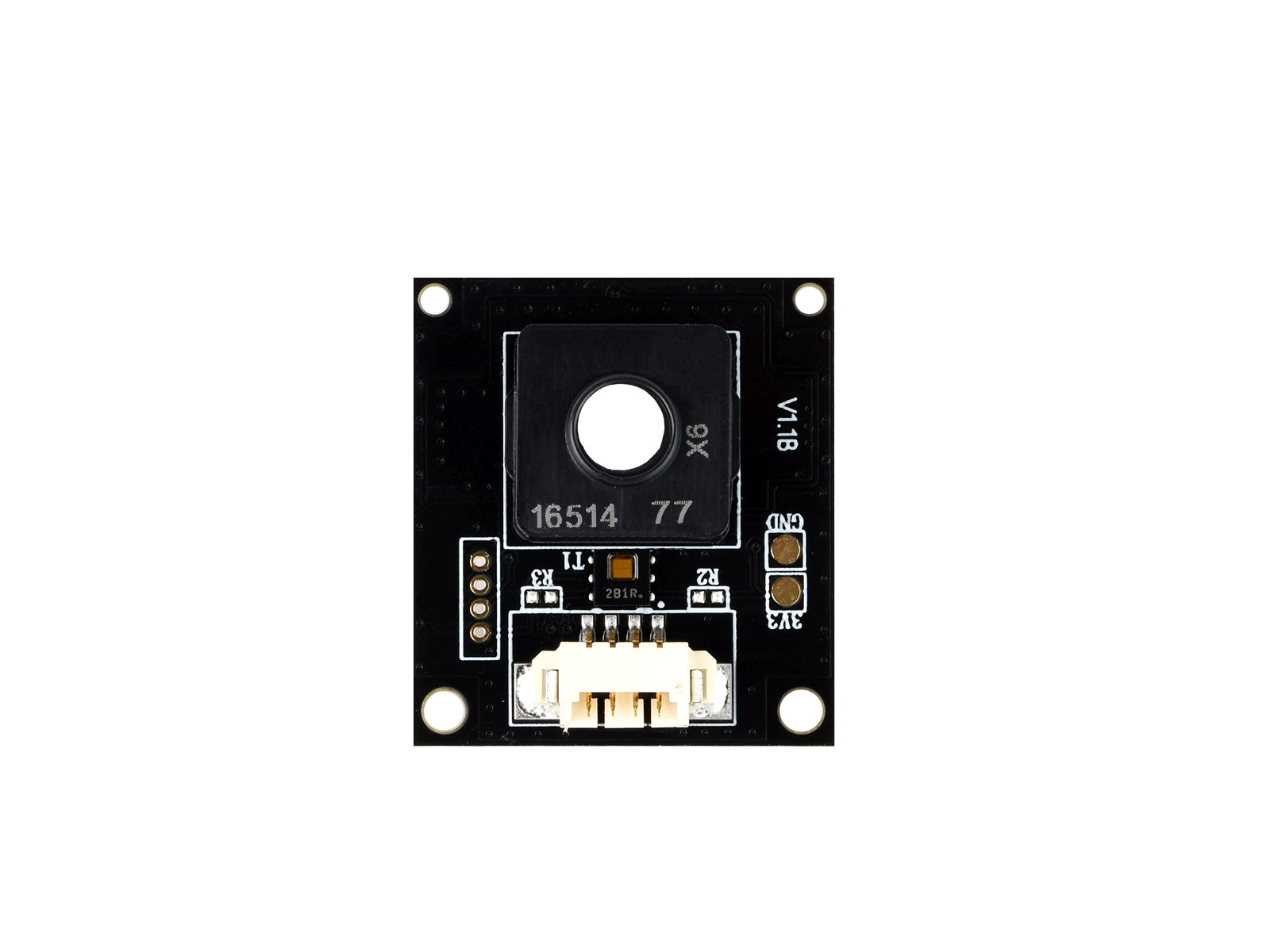

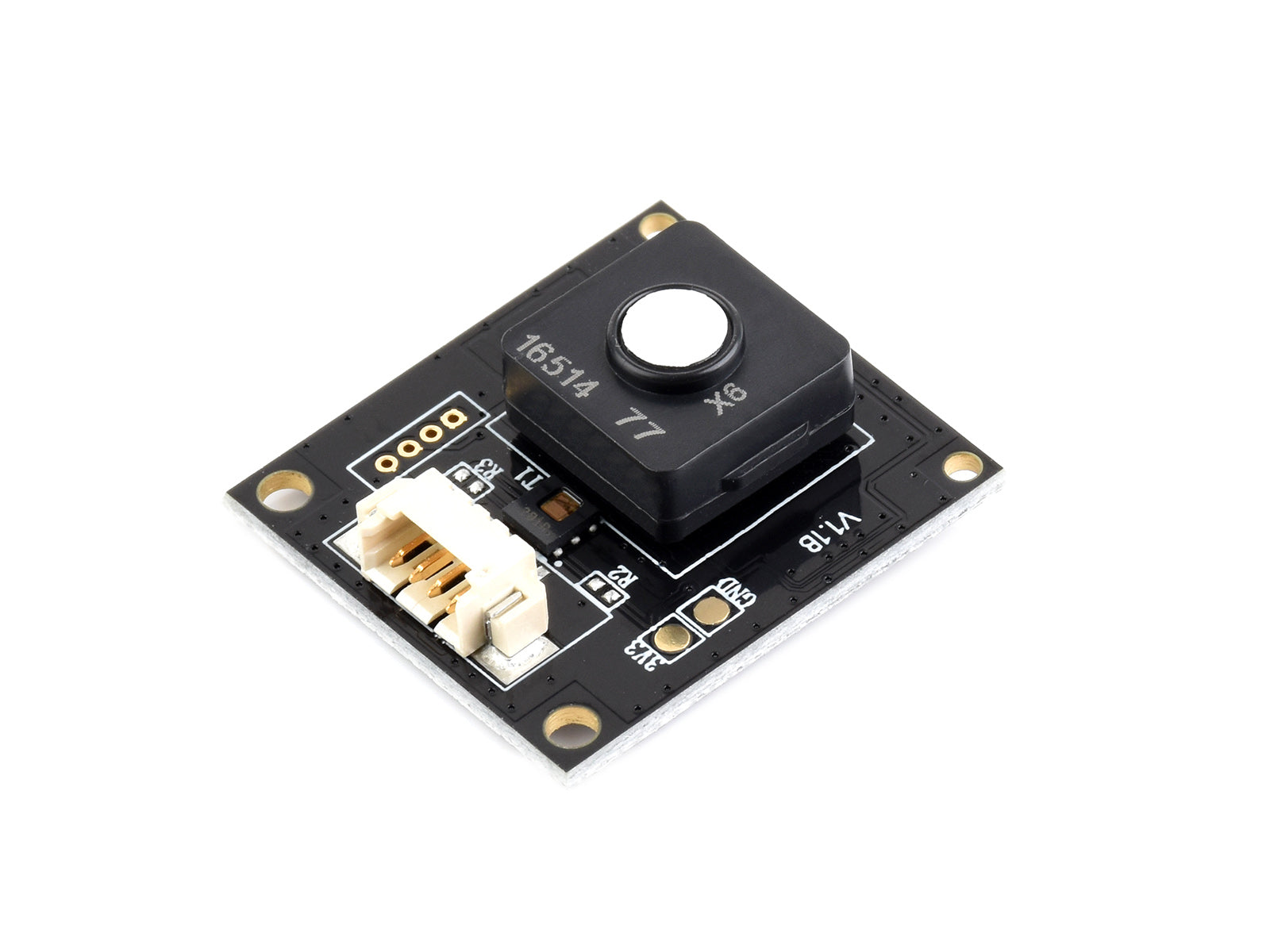

Environment 6-in-1 Gas Sensor Module, Integrates Detection Of HCHO, TVOC, CO, IAQ, Temperature, And Humidity, Supports UART Control Interface

Name: Environment 6-in-1 Gas Sensor Module, Integrates Detection Of HCHO, TVOC, CO, IAQ, Temperature, And Humidity, Supports UART Control Interface
Brand: WaveShare
SKU: WSAL34169
Price: 19410.87 HUF
Availability: InStock

19.411 Ft

19.411 Ft 0 Ft

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Kurzbeschreibung: Environment 6-in-1 Gas Sensor Module, integrates detection of HCHO, TVOC, CO, IAQ, temperature, and humidity, supports UART control interface

Environment 6-in-1 Gas Sensor Module, integrates detection of Formaldehyde (HCHO), TVOC, Carbon Monoxide (CO), IAQ, temperature, and humidity, supports UART control interface

6-in-1 Gas Sensor Module

Enables detection of HCHO, TVOC, CO, IAQ, temperature, and humidity

Supports Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32, etc.

Features at a glance

TheEnvironment X6 Sensor is based on solid polymer electrochemical technology from Germany’s EC Sense. It adopts a multi-electrode integrated structure and a solid electrolyte system, outputting current signals through electrochemical reactions at the working electrode surface, enabling highly sensitive detection of target gas concentrations. Compared to traditional gas sensors, the solid-state polymer design offers advantages such as no leakage, no poisoning, virtually no drift, and a long service life.

Integrates detection of Indoor Air Quality (IAQ), Carbon Monoxide (CO), Total Volatile Organic Compounds (TVOC), Formaldehyde (HCHO), temperature, and humidity
Supports UART communication with 9600bps baud rate, 8 data bits, 1 stop bit, and no parity bit
Compact size, low cost, and cost-effective
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Specifications

Operating Voltage	5V	Logic Voltage	3.3V
Communication Interface	UART	Baud Rate	9600bps
Detection range	HCHO: 0 ~ 1ppm	Resolution	HCHO: 0.001ppm (effective detection limit: 0.015ppm)
	TVOC: 0 ~ 5ppm		TVOC: 0.001ppm (effective detection limit: 0.050ppm)
	CO: 0 ~ 100ppm		CO: 0.001ppm (effective detection limit: <8ppm)
Accuracy Error	HCHO: 0 ~ 0.15ppm (±0.02ppm); 0.16ppm+ (<±2% FS)	Response Time	HCHO: T10: <5s; T90: <90s (gas injection measurement)
	TVOC: 0 ~ 0.2ppm (±0.05ppm); 0.2ppm+ (<±2% FS)		TVOC: T10: <3s; T90: <120s (Isobutylene gas injection measurement)
	CO: 0 ~ 8ppm (±2.5ppm); 8ppm+ (<±1% FS)		CO: T10: <3s; T90: <15s (gas injection measurement)
Dimensions	23 × 25.5 × 9.5 (mm)	Mounting hole size	2.0mm
Operating Current	6.5mA	Operating Temperature	-40 °C ~ +55 °C
Operating Humidity	>15%RH	Lifespan	10 years
