SKU:WSAL34056

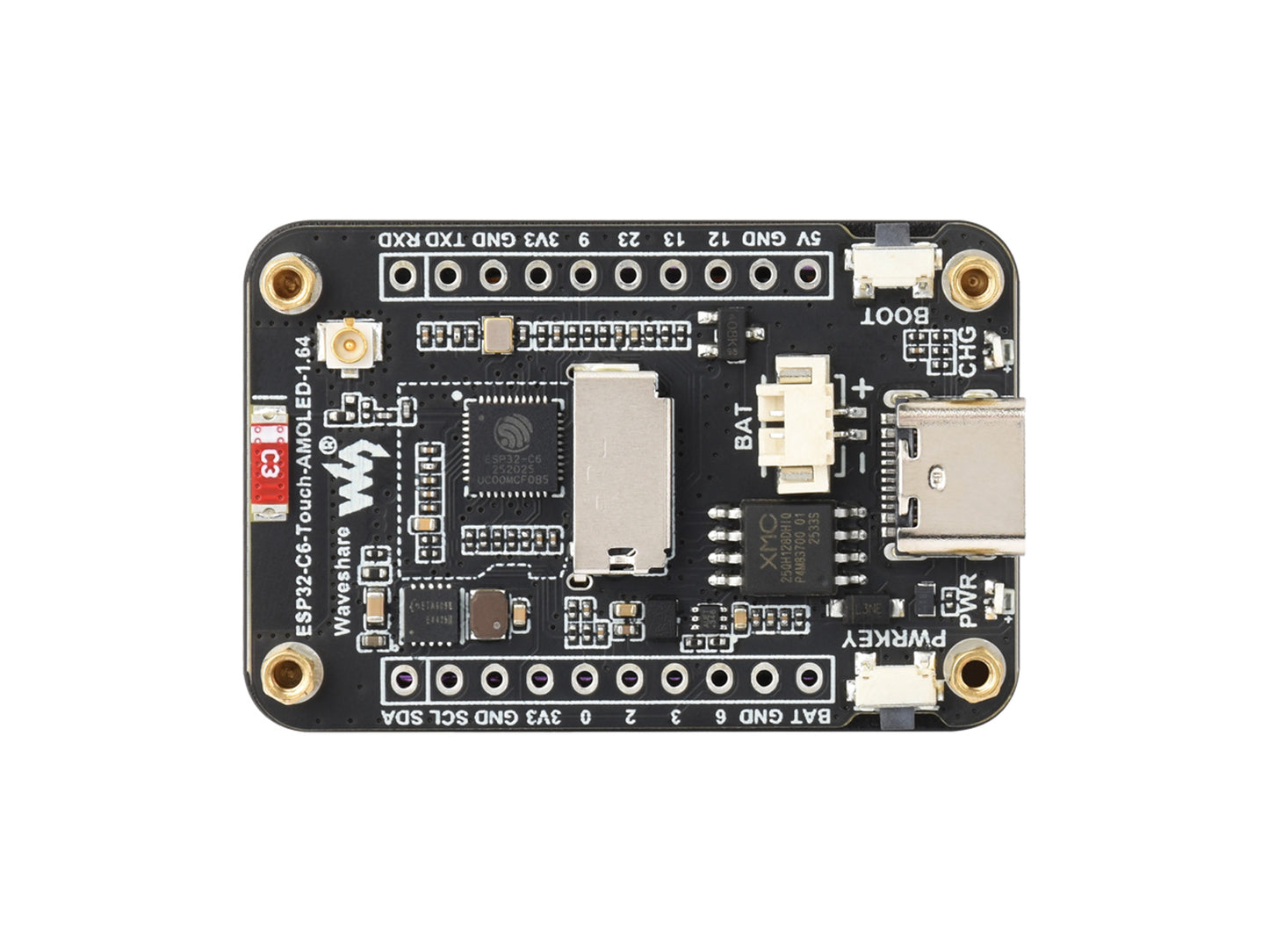

ESP32-C6 1.64inch AMOLED Touch Display Development Board, 280 × 456 resolution, 16.7M color, QSPI Interface, supports Wi-Fi 6 and BLE 5

ESP32-C6 1.64" AMOLEDTouch Display Development Board

Embedded with CO5300 Display Driver and FT6146 Capacitive Touch Chip

Version Options

ESP32-C6-Touch-AMOLED-1.64Standard version

ESP32-C6-Touch-AMOLED-1.64-MWith pre-soldered header (black)

Features

TheESP32-C6-Touch-AMOLED-1.64 is a low-cost, high-performance microcontroller development board designed by Waveshare. Onboard 1.64inch AMOLED display, capable of smoothly running GUI programs such as LVGL. Onboard rich peripheral resources such as QMI8658 6-axis IMU, TF card slot, and Lithium Batt header, while also adapting USB, UART, I2C and multiple MUX_GPIO interfaces for strong expandability. It is ideal for the quick development of the HMI and other ESP32-C6 applications.

• Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
• Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna, and supports switching to an external antenna by resoldering an onboard resistor
• Built-in 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM, with external 16MB Flash
• Onboard 1.64inch AMOLED capacitive touch display, 280 × 456 resolution, 16.7M color
• Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more
• Onboard PWR button, along with programmable BOOT button for customizable functionality and flexible development
• Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
• Onboard TF card slot, enabling external storage for pictures or files
• Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient
• Adapting I2C, UART and USB pins for connecting peripherals and debugging, enabling flexible configuration of peripheral functions

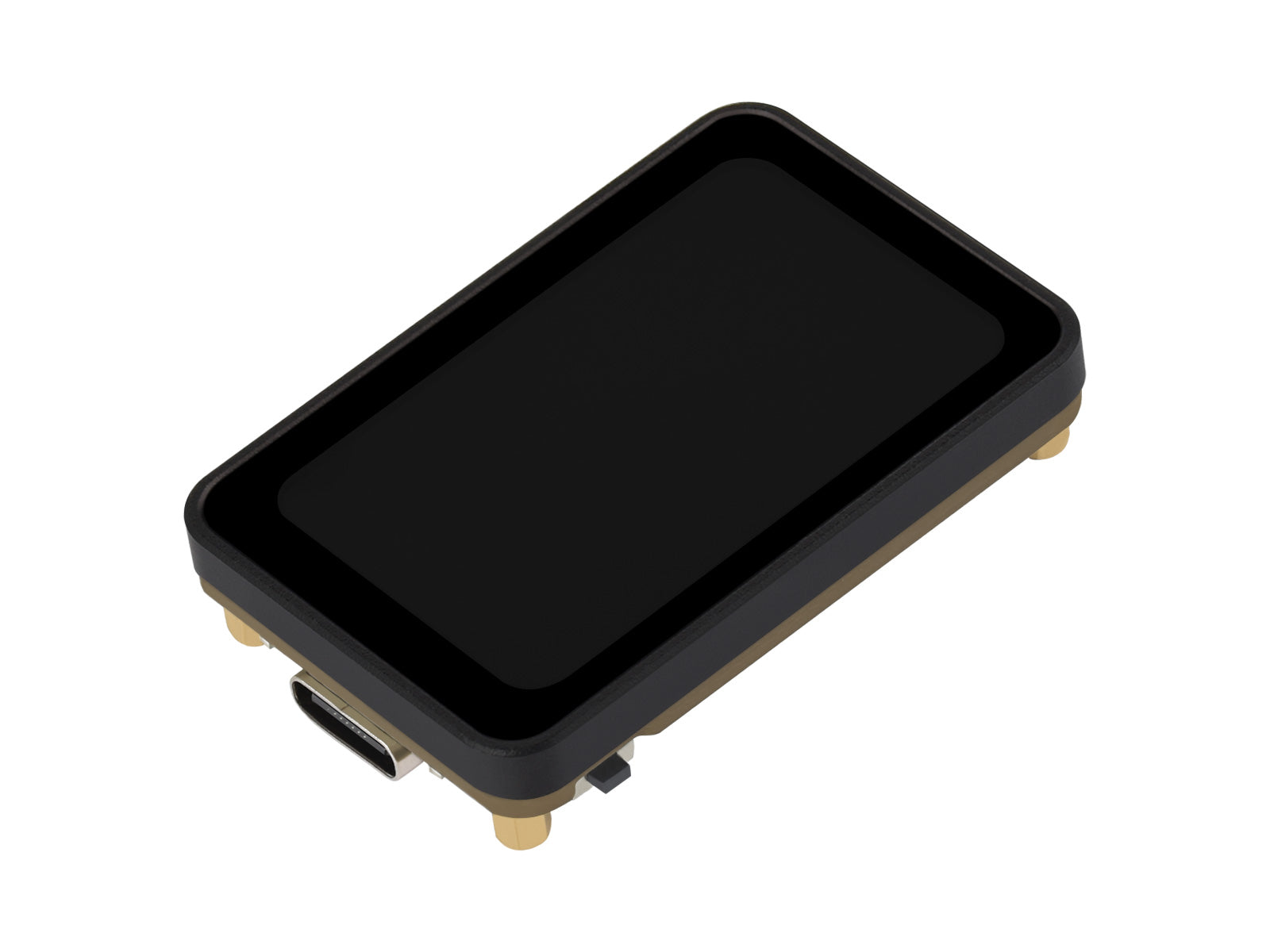

• Adopts CNC-machined case with precision-wrapped edges for better protection, nice looking and more durable

AMOLED parameters

Display Panel	AMOLED	Display Size	1.64 inch
Resolution	280 × 456	Display Colors	16.7M
Brightness	350 cd/㎡	Contrast Ratio	60000:1
Communication Interface	QSPI	Driver IC	CO5300
Touch	Supported	Touch IC	FT6146

Application Scenarios

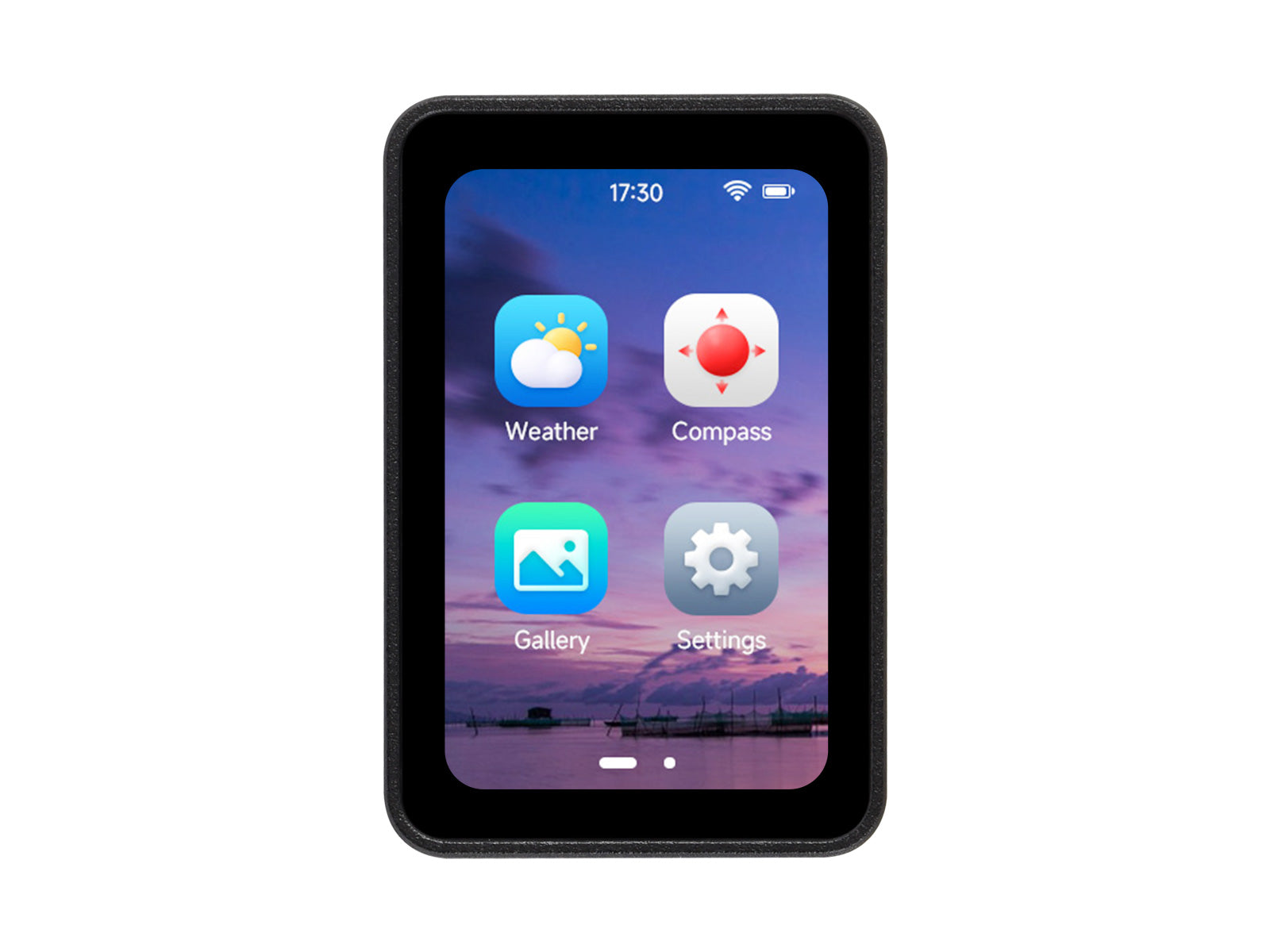

Adopts AMOLED screen

The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, tutorials to help you easily get started

Wi-Fi 6 and BLE 5 support

supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Pin definition

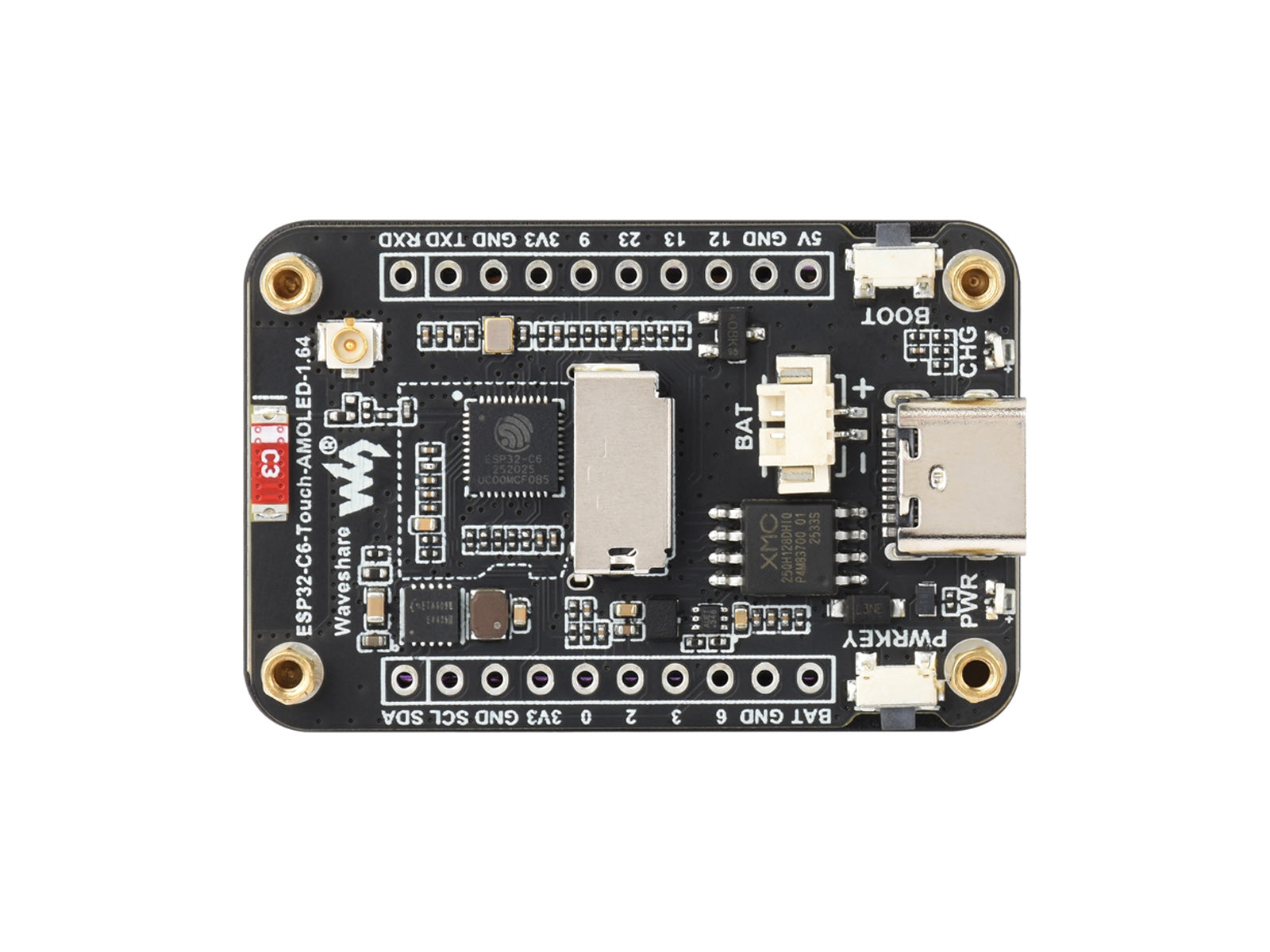

What's On Board

outline dimensions

Resources & Services

Wiki:docs.waveshare.com/ESP32-C6-Touch-AMOLED-1.64

ESP32 LCD Selection

Model	Core Configuration			display				onboard resources						Peripheral interfaces
	CPU	PSRAM	Flash	pixels	Interface	Display	Touch	IMU	RTC	TF	Speaker	mic	batteryheader
AMOLED display
ESP32-S3-Touch-AMOLED-2.41	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header
ESP32-S3-Touch-AMOLED-2.41-B	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header, with case
ESP32-C6-Touch-AMOLED-2.16	ESP32-C6	-	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.16	ESP32-S3R8	8MB	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.06	ESP32-S3R8	8MB	32MB	410 × 502	QSPI	CO5300	FT3168	√	√	√	√	√	√	I2C, UART, and USB reserved pads
ESP32-C6-Touch-AMOLED-2.06	ESP32-C6	-	16MB	410 × 502	QSPI	CO5300	FT3168	√	√	-	√	√	√	I2C, UART, and USB reserved pads
ESP32-S3-Touch-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	FT3168	√	-	√	-	-	√	40PIN header
ESP32-S3-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	-	√	-	√	-	-	√	40PIN header
ESP32-C6-Touch-AMOLED-1.8	ESP32-C6	-	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, USB pads
ESP32-S3-Touch-AMOLED-1.8	ESP32-S3R8	8MB	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-AMOLED-1.75	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75C	ESP32-S3R8	8MB	32MB	466 × 466	QSPI	CO5300	CST9217	√	-	-	√	√	√	I2C, UART, USB, GPIO pads
ESP32-C6-Touch-AMOLED-1.64	ESP32-C6	-	16MB	280 × 456	QSPI	CO5300	FT6146	√	-	√	-	-	√	22PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.64	ESP32-S3R8	8MB	16MB	280 × 456	QSPI	CO5300	FT3168	√	-	√	-	-	√	2 × 11PIN headers (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43-B	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.43	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601/C05300	FT3168/FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-S3-Touch-AMOLED-1.43-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601/C05300	FT3168/FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-S3-Touch-AMOLED-1.32	ESP32-S3-PICO-1-N8R8	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
LCD display
ESP32-Touch-LCD-3.5	ESP32-D0WDR2-V3	2MB	16MB	320 × 480	SPI	ST7796	FT6336	-	√	√	√	√	√	32PIN GPIO header
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.49	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-Touch-LCD-3.49B	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-LCD-3.16	ESP32-S3R8	8MB	16MB	320 × 820	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, USB headers
ESP32-S3-Touch-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	CST328	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	-	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	GT911	√	√	√	-	-	√	20PIN header
ESP32-S3-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	-	√	√	√	-	-	√	20PIN header
ESP32-S3-Touch-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	GT911	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1B	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	CST816	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	-	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-Touch-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-Touch-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-Touch-LCD-1.85C	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85C-BOX	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	-	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-LCD-1.83	ESP32-S3R8	8MB	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.83	ESP32-C6	-	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	CST816T	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-C6-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	-	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-S3-Touch-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	CST816	√	√	-	-	-	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	-	√	√	-	-	-	√	SH1.0 12PIN header
ESP32-S3-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	JD9853	AXS5106L	-	-	√	-	-	√	22PIN header
ESP32-S3-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-LCD-1.47B	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	√	-	√	-	-	√	18PIN header
ESP32-C6-Touch-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	JD9853	AXS5106L	√	-	√	-	-	√	22PIN header
ESP32-C6-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-Touch-LCD-1.46B	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-S3-Touch-LCD-1.46	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-C6-LCD-1.3	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	-	-	-	√	2.54mm 12PIN header
ESP32-C6-LCD-1.3-M	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	-	-	-	√	2.54mm 12PIN header
ESP32-S3-LCD-1.3	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header
ESP32-S3-LCD-1.3-B	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case
ESP32-S3-LCD-1.3-C	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case and prism cube
ESP32-S3-Touch-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	CST816	√	-	-	-	-	√	SH1.0 12PIN header
ESP32-S3-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	-	√	-	-	-	-	√	2 × 20PIN header (1.27mm pitch)
ESP32-C3-LCD-0.71	ESP32-C3FH4	-	4MB	160 × 160	SPI	GC9D01	-	-	-	-	-	-	√	12PIN GPIO pads
ESP32-S3-LCD-0.85	ESP32-S3	8MB	8MB	128 × 128	SPI	GC9107	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-GEEK	ESP32-C6	-	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO
ESP32-S3-GEEK	ESP32-S3R2	2MB	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO

Lieferumfang

ESP32-C6-Touch-AMOLED-1.64

1. ESP32-C6-Touch-AMOLED-1.64 x1
2. Black pinheader x2

1

2

ESP32-C6-Touch-AMOLED-1.64-M

1. ESP32-C6-Touch-AMOLED-1.64 with pre-soldered header x1

1
