SKU:WSAL33874

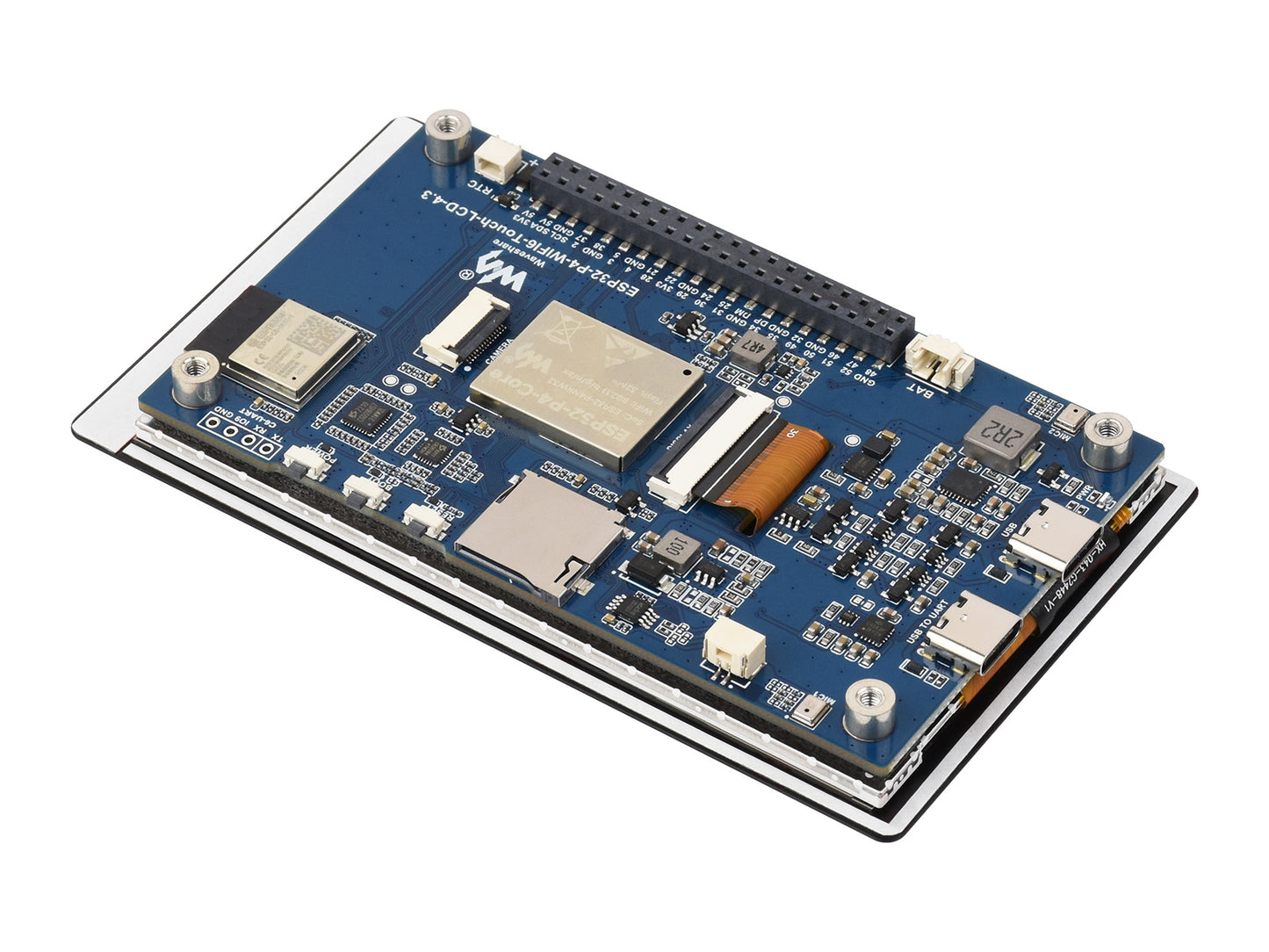

ESP32-P4-WIFI6 4.3inch Development Board, 480 × 800 Resolution, 5-Point Touch, Onboard Audio Codec Chip, Supports Wi-Fi 6 And BLE 5, Optional For OV5647 Camera
Couldn't load pickup availability
Based on ESP32-P4 and ESP32-C6 High-Performance Development Board
Integrated audio input/output module for AI interaction and voice control
ESP32-P4-WIFI6-Touch-LCD-4.3 Standard version, without camera
ESP32-P4-WIFI6-Touch-LCD-4.3-C With OV5647 camera
TheESP32-P4-WIFI6-Touch-LCD-4.3 is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 4.3inch 480 × 800 resolution IPS touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed connectivity and features an onboard 40PIN GPIO expansion header, compatible with some Raspberry Pi HATs for broader application adaptability. The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.
- High-performance MCU with RISC-V 32-bit dual-core and single-core processors
- Onboard ESP32-C6-MINI module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4
- 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
- Onboard Type-C ports, more convenient, better device compatibility
- Onboard 4.3inch capacitive touch IPS display for clear color picture display, 480 × 800 resolution
- Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
- Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration
- Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit design
- Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
| DISPLAY PANEL | IPS | DISPLAY SIZE | 4.3inch |
|---|---|---|---|
| Display Resolution | 480 × 800 resolution | Viewing angle | 160° |
| Brightness | 500cd/㎡ | Contrast Ratio | 1000:1 |
| Communication Interface | MIPI-DSI 2-lane | Display Driver | ST7701 |
| Touch Type | Capacitive touch | Touch IC | GT911 |
Excellent Display Performance With 160° Wide Viewing Angle
Suitable for developing various smart devices, enabling human-machine interaction functions
- up to 5-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Onboard MIPI CSI camera interface, optional for OV5647 camera, suitable for image capture, video surveillance, and other applications, meeting diverse requirements
| Sensor | OV5647 | CMOS Size | 1/4inch |
| Pixel | 5MP | Aperture | F2.4 |
| Focal Length | 3.07mm | FOV | 72.9° |
| Distortion | < 1.5% | DOF | 20cm ~ ∞ |
| Image | static image resolution: 2592 × 1944 pixel | ||
| Video Recording | 1920 × 1080p at 30 fps, 1280 × 720p at 60 fps 640 × 480p at 60 fps, 640 × 480p at 90 fps | ||
onboard ESP32-C6-MINI module extends 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4, using SDIO interface protocol for stable connection and efficient transmission
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit for daily audio application scenarios
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
- ESP32-P4-Coreintegrated ESP32-P4NRW32 and 32MB Nor Flash
- ESP32-C6-MINI-1 moduleSDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE)
- ES7210 echo cancellation chipEcho cancellation algorithm chip, used to eliminate echo and improve audio capture accuracy
- ES8311 low-power audio codec chipfor audio encoding and decoding
- MIPI CSI interface15PIN 1.0mm pitch interface for connecting MIPI-2lane camera
- 2.54mm 4PIN padsfor ESP32-C6 module firmware burning
- RTC Batt headerfor connecting rechargeable RTC Batt (supports rechargeable RTC Batts only)
- POWER buttonLong press 2s to power off, short press to power on
- BOOT buttonPress it when powering on or resetting to enter download mode
- RESET button
- TF card slotSDIO 3.0 interface protocol
- MIPI DSI LCD interfacefor connecting MIPI 2-lane display
- Speaker headerGH 1.25 2PIN connector (with lock), supports 8Ω 2W speaker (recommended)
- USB TO UART Type-C portfor power supply, programming and debugging
- USB OTG Type-C portUSB OTG 2.0 High Speed port
- Onboard microphonesdual-microphone array input
- PWR LED indicatorPower indicator
- MX1.25 Lithium Batt headerMX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging
- 40PIN expansion header2.54mm pitch, compatible with some Raspberry Pi HATs (may require a 2*20pin male-to-male header for connection)
Lieferumfang
- ESP32-P4-WIFI6-Touch-LCD-4.3 host x1
- GH1.25 2PIN 8Ω 2W speaker 50mm x1
- OPTIONAL OV5647 camera x1
