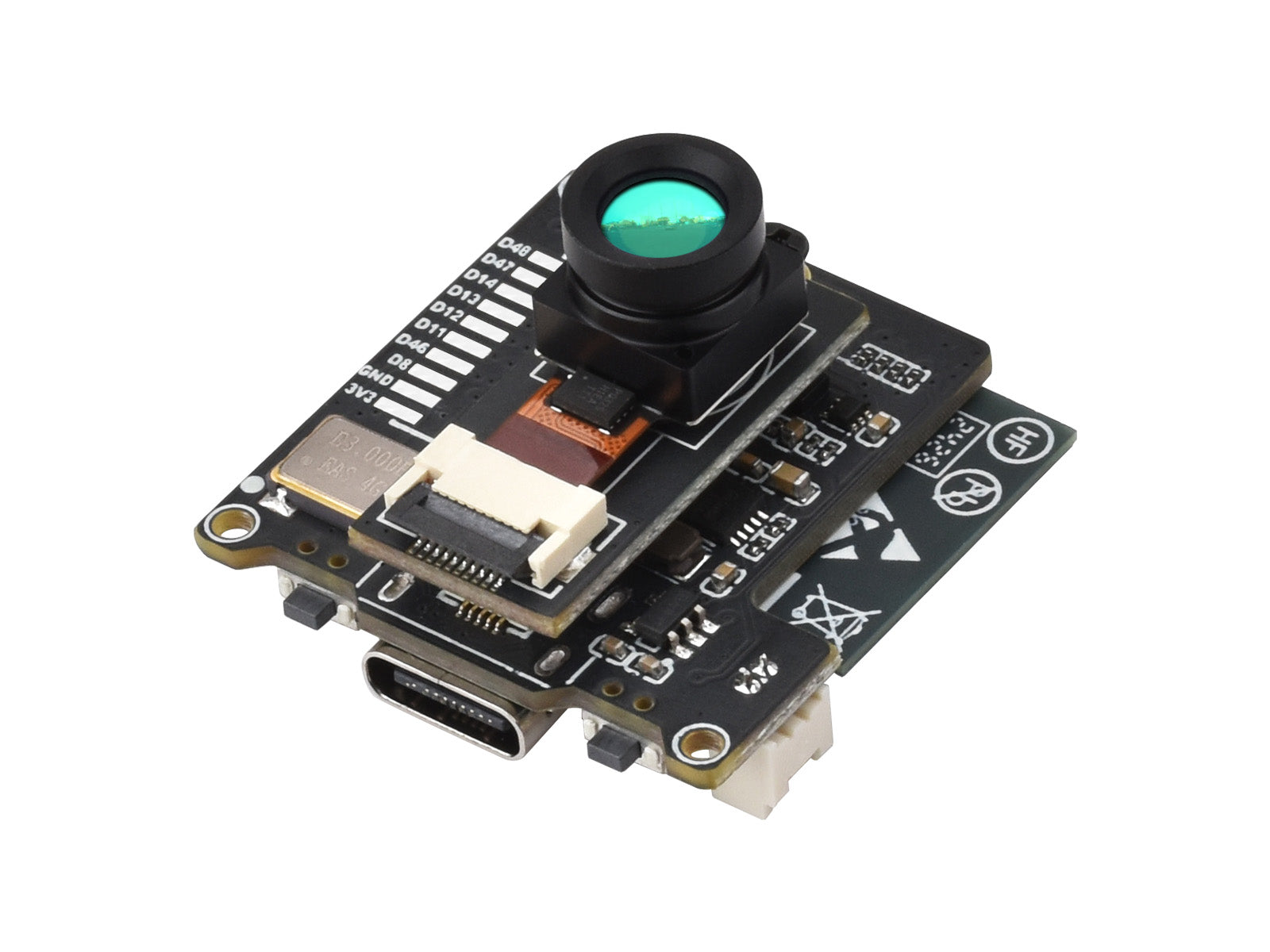

ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels, Options for 45° / 90° FOV
Couldn't load pickup availability
80×62 Pixels IR Array, Options for 45° / 90° FOV
Thermal-45 Camera ESP32 ModuleBasic version: 45° FOV
Thermal-90 Camera ESP32 Module Wide angle version: 90° FOV
This product is a wireless IR thermal imaging camera based on the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. It integrates a recharge and discharge circuit, with onboard Lithium battery header for flexible power supply.
Key features include:

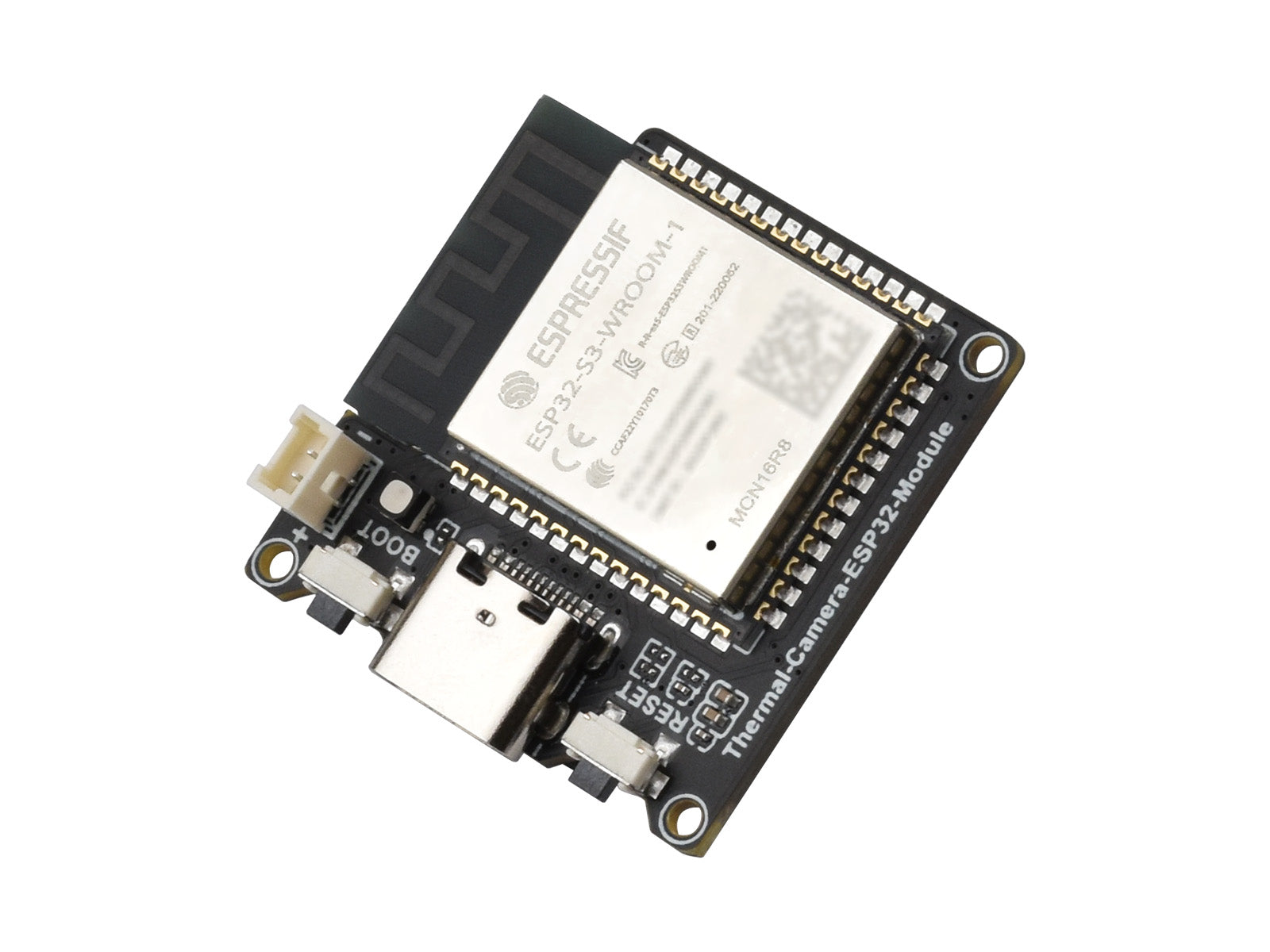

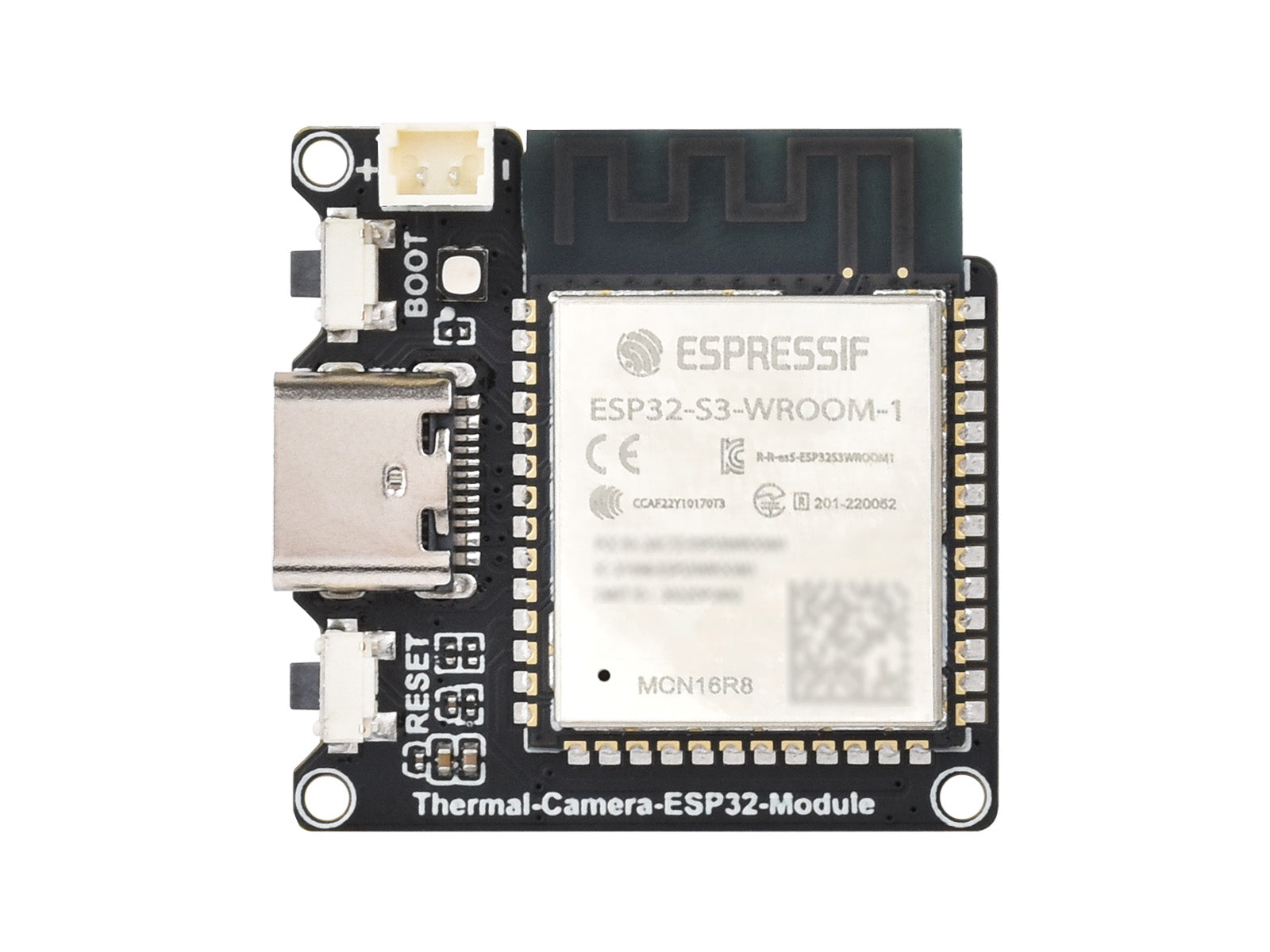

- Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities
- Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Type-C connector, enhancing device compatibility and user convenience
- Onboard RGB LED indicator for real-time monitoring the operating status of the module
- Onboard 3.7V MX1.25 Lithium battery recharge / discharge header for flexible power supply solution, extending device operation time

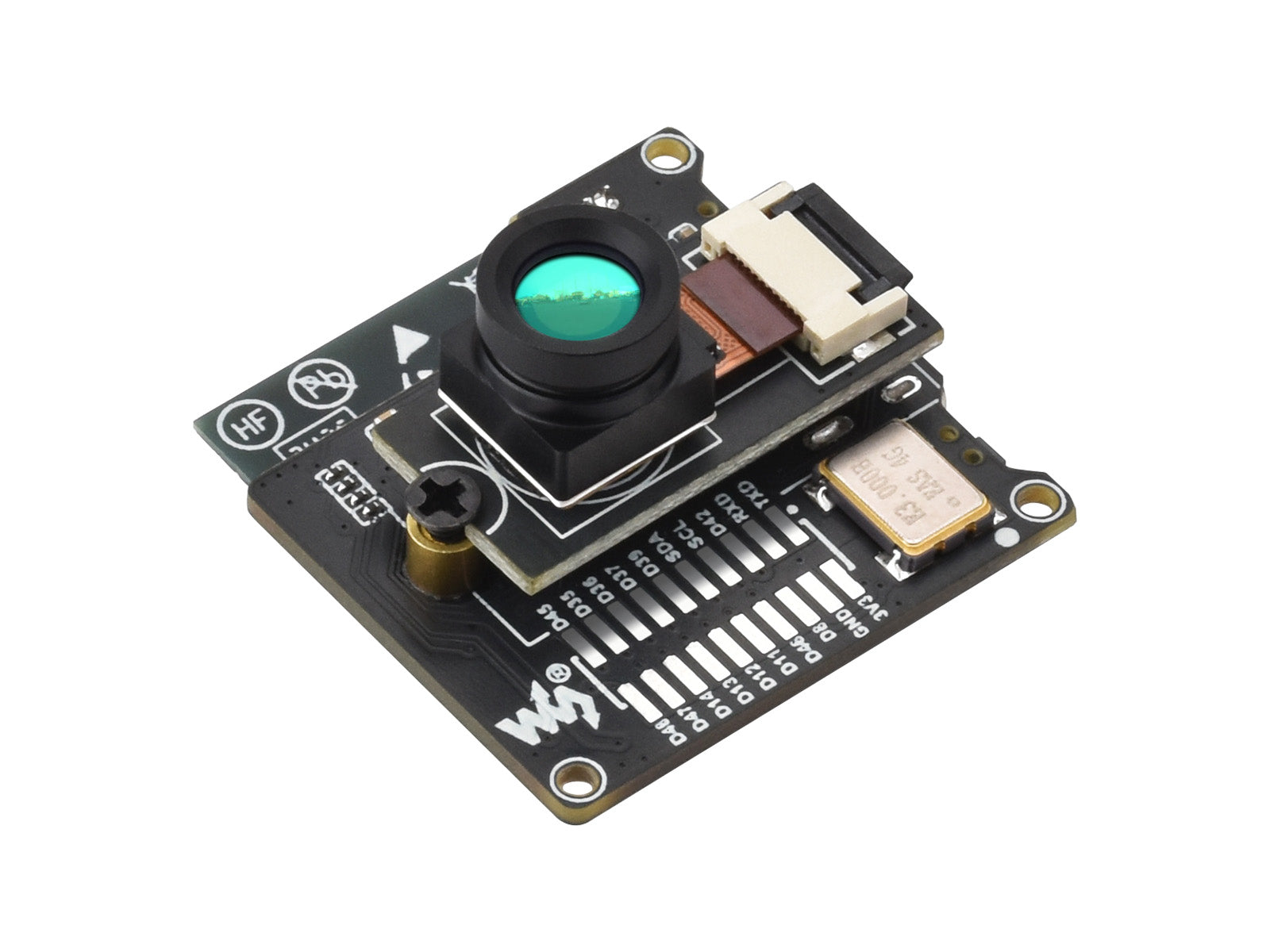

- Onboard 2 × 10 solder pads, including 14 × GPIO, 1 × I2C, and 1 × UART, for external device expansion
- Compact size design, more space-saving, making it ideal for embedded applications
Meet the needs of different scenarios
Supports TCP communication and WiFi AP /STA preview modes, compatible with Windows systems
Provides an Android APP for easy configuration of module parameters
* The Bluetooth APP is only used for configuring parameters such as the module's IP and device name. It does not support viewing thermal images.
Onboard 3.7V MX1.25 lithium battery recharge / discharge header for flexible power supply
* Note: the Lithium battery is NOT included.
Modular design, compact in size yet fully functional
Comprehensive SDK, dev resources, and tutorials to help you easily get started
| Model | Pixel array | Absolute accuracy | Target temp. range | Field of view (FOV-D/H/V) | Refresh rate | Operating temperature | Current |
|---|---|---|---|---|---|---|---|
| Thermal Camera HAT | 80×62 | ±2℃ (ambient temp. 10 ~ 70℃) | -20~400℃ | 55°×44°×35° | 25FPS | -20 ~ 85℃ | 61mA |
| Thermal-44 Camera Module | |||||||
| Thermal USB Camera | |||||||
| Thermal-90 Camera HAT | 143°×90°×66° | ||||||
| Thermal-90 Camera Module | |||||||
| Thermal-90 USB Camera | |||||||
| Thermal-45 Camera HAT (B) | ±1.5℃ (ambient temp. 10 ~ 70℃) | -40~400℃ | 56°×45°×34° | -40 ~ 85℃ | 20mA | ||
| Thermal-45 USB Camera (B) | |||||||
| Thermal-90 Camera HAT (B) | 122°×90°×67° | ||||||
| Thermal-90 USB Camera (B) | |||||||
| Thermal-45 Camera ESP32 Module | 56°×45°×36° | 127mA | |||||
| Thermal-90 Camera ESP32 Module | 122°×90°×67° | ||||||
| Thermal-45 USB Camera (C) | 160×120 | ±3.5℃ (ambient temp. 0 ~ 100℃) | 20°C~300°C | 56°×45°×34° | 9FPS | -20°C~85°C | 81mA |
| Thermal-88 USB Camera (C) | 20°C~250°C | 110°×88°×66° |
Lieferumfang
Thermal-45 Camera ESP32 Module
- Thermal-45 Camera ESP32 Module x1
- USB Type-A to Type-C cable ~1m x1
- Screws pack x1
Thermal-90 Camera ESP32 Module
- Thermal-90 Camera ESP32 Module x1
- USB Type-A to Type-C cable ~1m x1
- Screws pack x1
