FT232 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

Name: FT232 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector
Brand: WaveShare
SKU: WSAL20646
Price: 2252.99 HUF
Availability: InStock

2.253 Ft

2.253 Ft 0 Ft

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

FT232 USB To UART (TTL) Communication Module, USB-C Connector

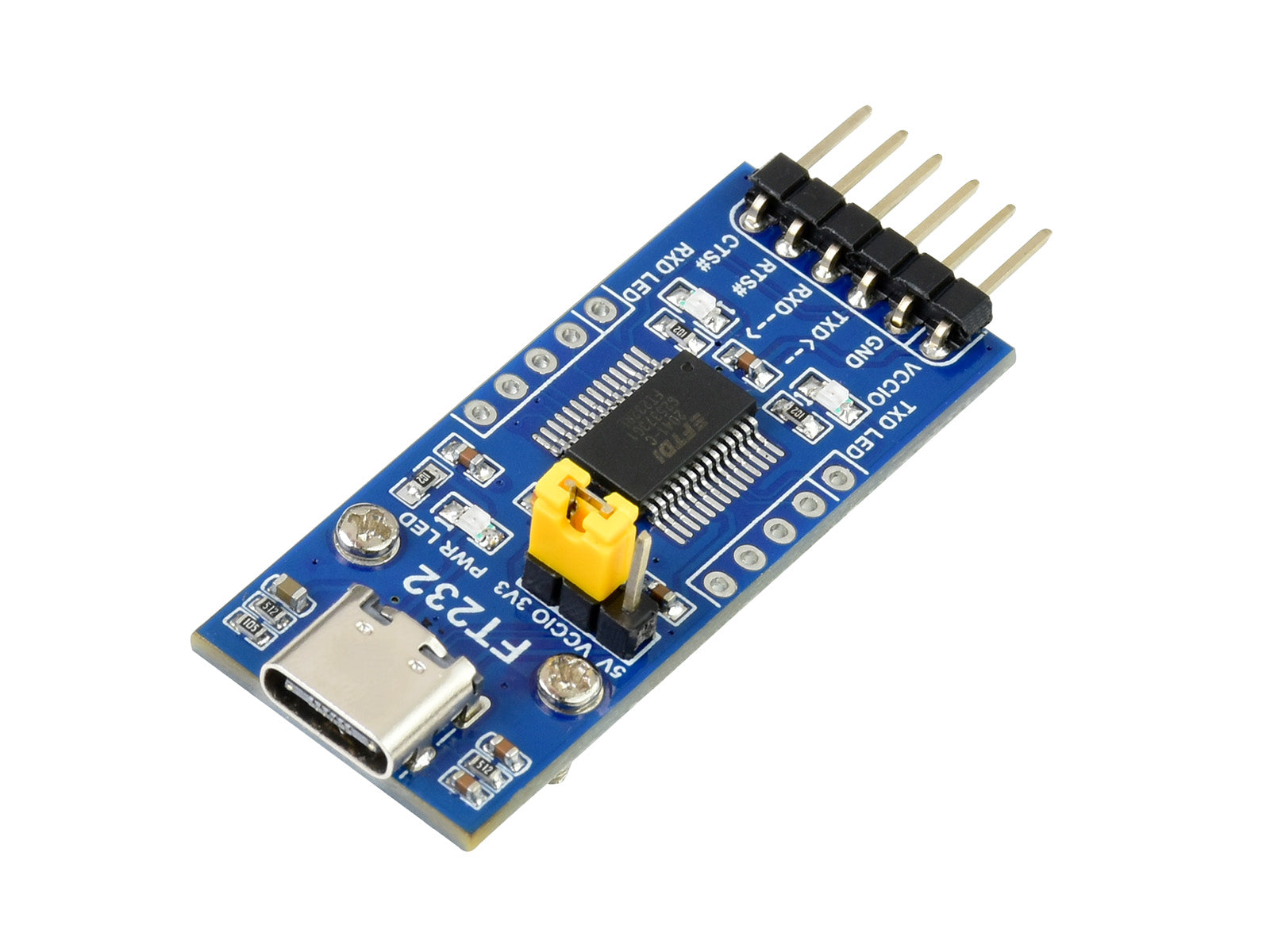

FT232 USB-C To UART Module

adopts FT232RL, compatible with 3.3V/5V logic level

Features at a glance

Original FT232RL onboard
Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
3x VCCIO power mode via jumper setting:
- VCCIO - 5V: 5V output
- VCCIO - 3.3V: 3.3V output
- open the jumper: powered from target board (3.3V-5V)
3x LED indicators: TXD, RXD, PWR

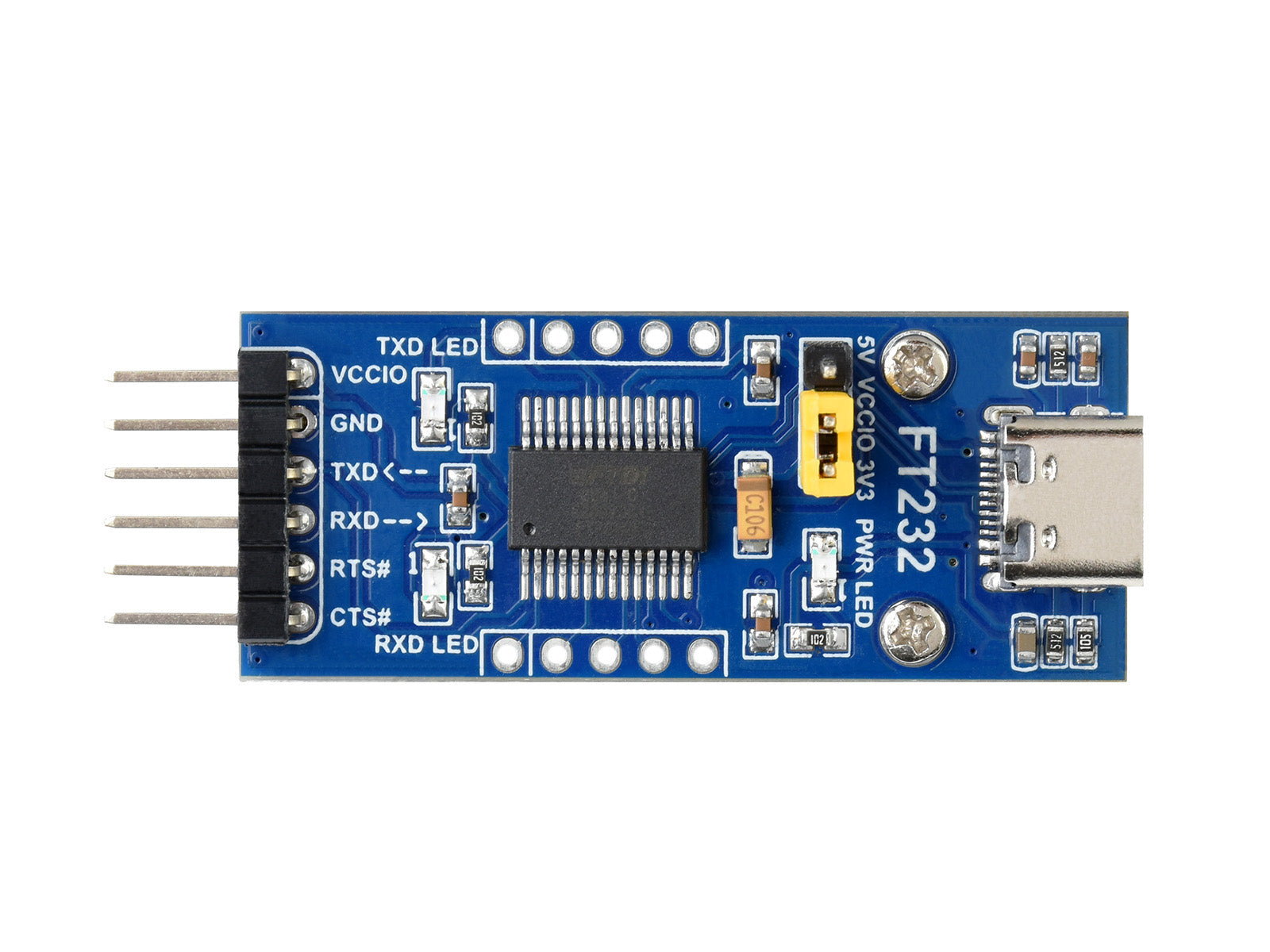

Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#

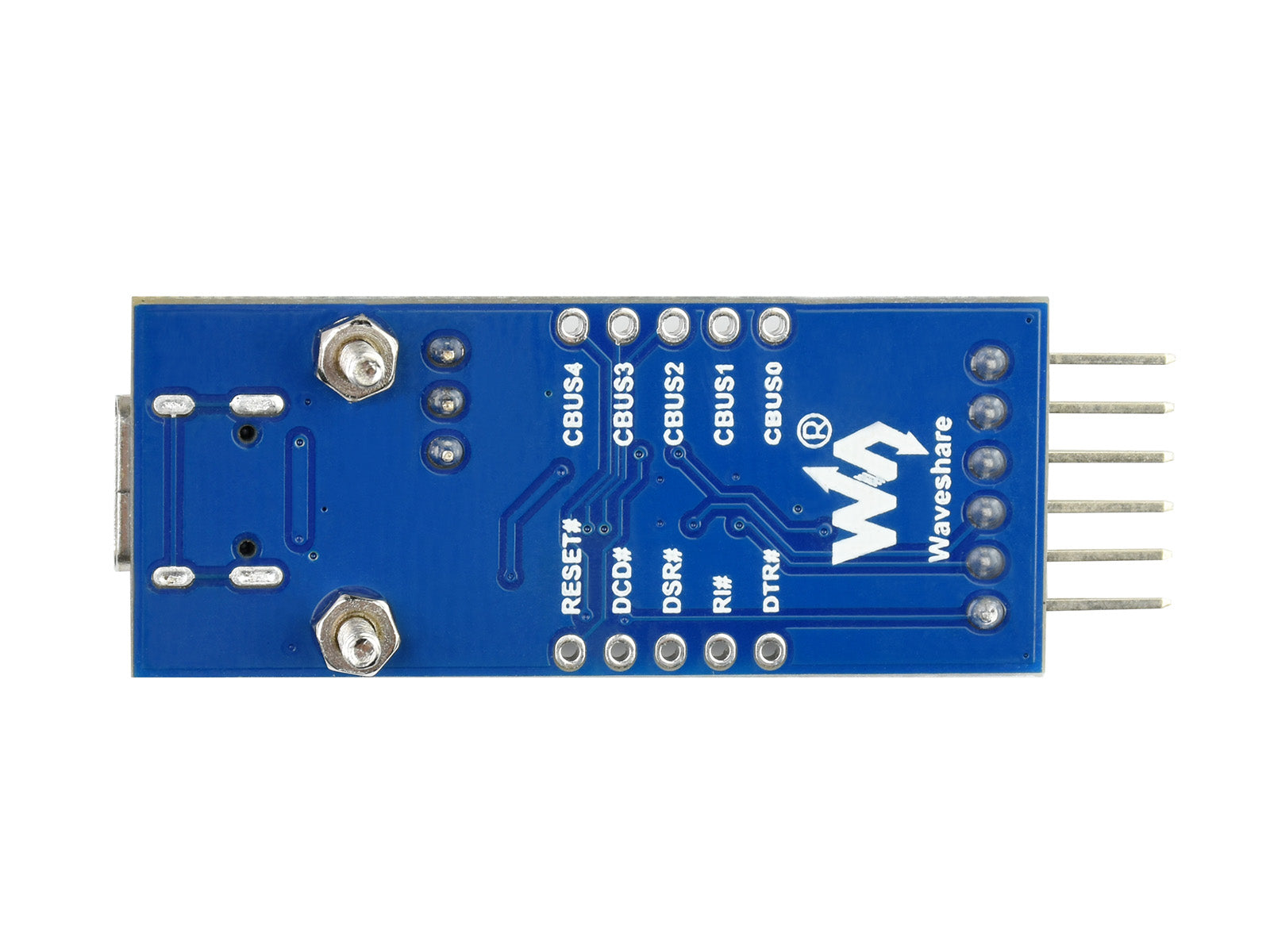

Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)

FT232 solution

Hardware connection

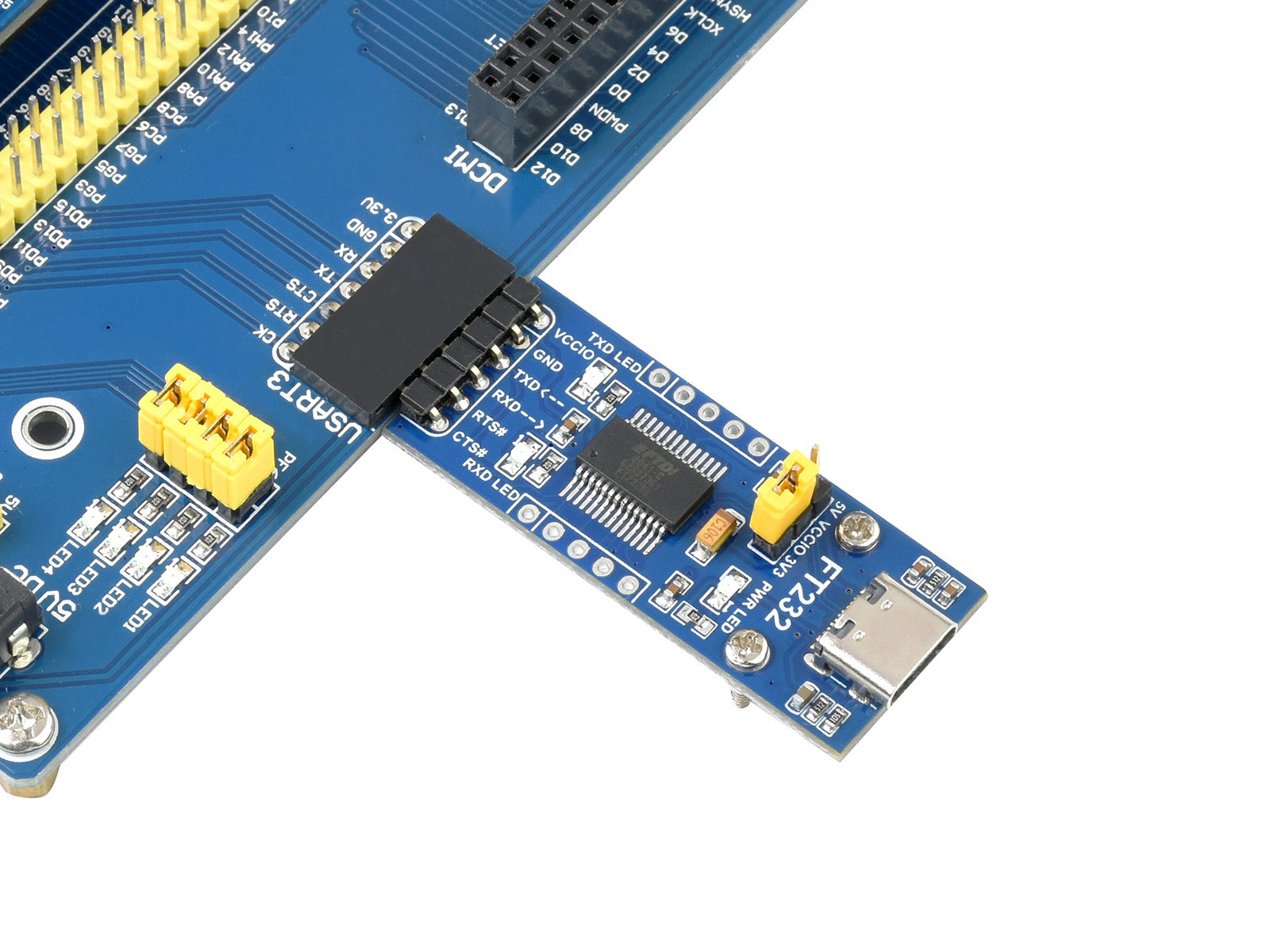

In the case of working with MCU

VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
GND ↔ GND
TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.

Outline Dimensions
