SKU:WSAL34180

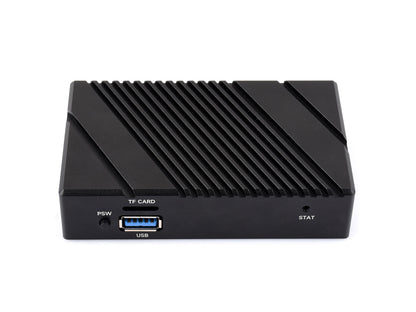

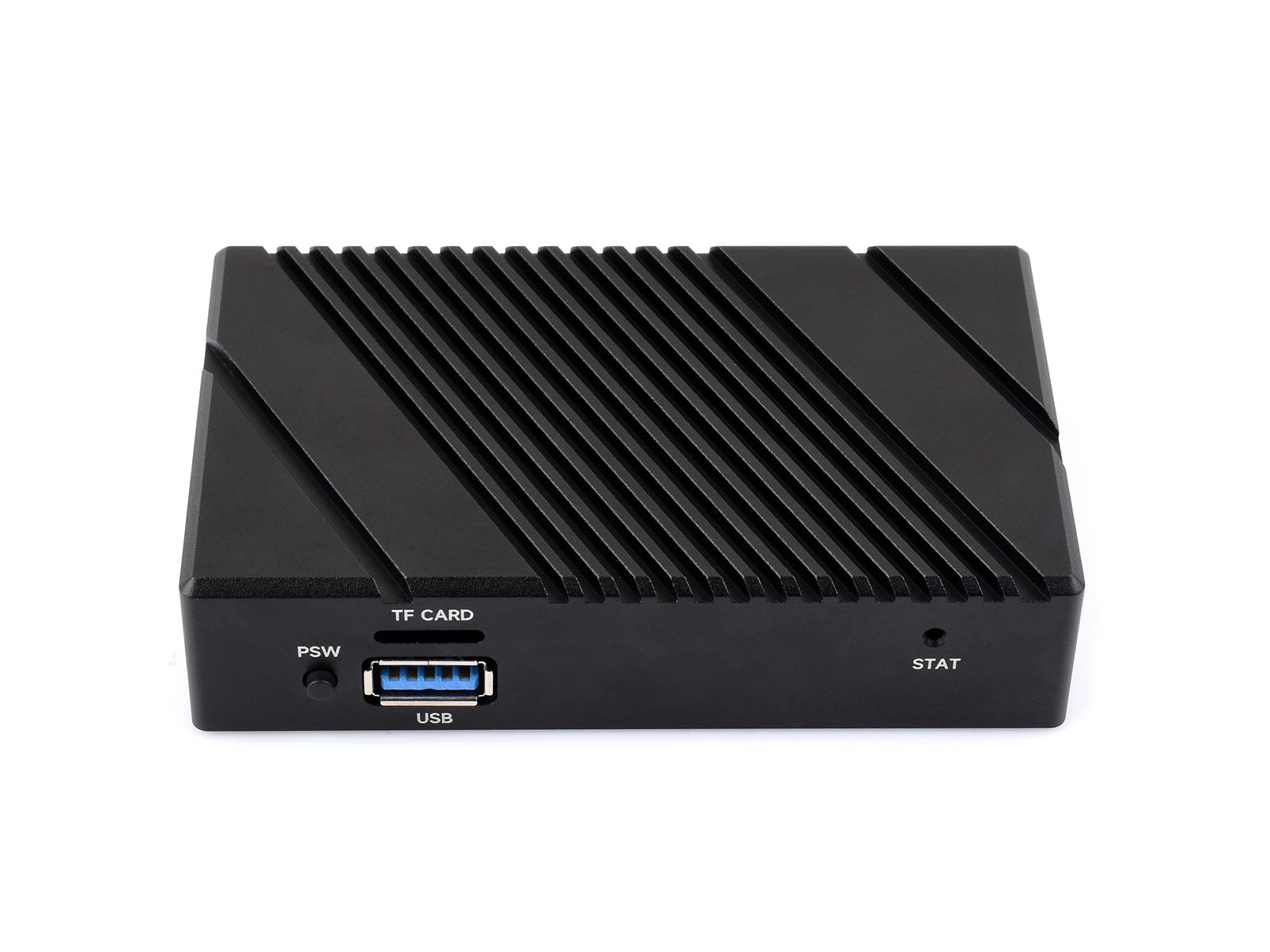

Gigabit / 2.5G Dual Ethernet Mini-Computer (B) Based On Raspberry Pi CM5 (NOT included), Dual RJ45 Ethernet Ports, Supports 4K Display Output And Dual MIPI Interfaces, Onboard 40Pin GPIO Header

Dual Ethernet Mini-Computer for CM5

Designed for Raspberry Pi Compute Module 5

* the Compute Module 5 is NOT included.

Specifications

CM5 socket	Suitable for all variants of Compute Module 5
Networking	1000M Ethernet RJ45 port 2500M Ethernet RJ45 port
Connector	Raspberry Pi 40PIN GPIO Header
USB	USB 3.2 Gen1 × 1 USB 2.0 × 1 Type-C（USB2.0）× 1
MIPI	4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)
Video	HDMI port × 1, supports 4K display output
M.2	M.2 M KEY (PCIe Gen2/3 x 1)
Storage	TF card socket for Compute Module 5 Lite (without eMMC) variants
Fan Header	5V, 4PIN JST-SH PWM fan connector
Power Input	DC 5V 5A
Dimensions	101 × 62 × 23.4 (mm)

Check the Compute Module 5variants

What's the differences

CM5 Base Board	Interface count and specifications
	PoE	GigabitETH	40PINGPIO	PCIe	USB①	MIPI	HDMI	RTC	FanHeader②	PowerInput	Features
NANO A			√		3.0×1	×2		SH1.0	√	5V	CM5 sized
NANO B		×1	√	16PIN PCIe	3.0×1	×2	√	SH1.0	√	5V	CM5 sized
mini Base A		×1	√	16PIN PCIe	3.0×22.0×2	×2	×2	ML/CR1220	√	5V	mini size
mini Base B		×1	√	M.2 M KEY	3.0×22.0×2	×2	×2	ML/CR1220	√	5V	mini size, onboard EEPROM and encryption chip
Mini Dual Gigabit		×2	√		3.0×1			SH1.0	√	5V	dual ETH
Dual ETH A		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×12.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH, onboard EEPROM and Encryption chip
Dual ETH B		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×12.0×1	×2	×1	SH1.0	√	5V	dual ETH ports
Dual ETH 4G/5G		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH and 4G/5G support
PoE Base	√	×1	√	M.2 M KEY	3.0×22.0×2	×2	×2	ML/CR1220	√	5V	USB×4
Raspberry Pi official	③	×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	5V	Official IO base board
IPCBOX-CM5		1G ×1 2.5G ×1		M.2 M KEY	3.0×12.0×3		×1	SH1.0	√	7V~36V	dual ETH, 4G/5G support,RS485/RS232,Encryption chip,EEPROM,CAN,digital inputs,digital outputs,audio,an buzzer
CM5 Dual ETH Multi-function		1G ×1 2.5G ×1		M.2 M KEY	3.0×12.0×2	×2	×1	SH1.0	√	7V~36V	dual ETH, 4G/5G support,RS485,Encryption chip,digital input,relay,and buzzer
Note	① USB 3.0 is equivalent to USB 3.2 Gen1.② Unless otherwise specified, the Fan header usually is JST-SH type connector.③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 5

standard CM5 socket and Raspberry Pi 40PIN GPIO header, suitable for Compute Module 5 Lite / eMMC series module

* for reference only, please refer to the package content for detailed part list

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list.

Applicable M.2 drive sizes

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

Passive Heat Dissipation Design

Aluminum alloy case enables passive cooling, fanless operation

More rich interfaces

Features multiple interfaces including ETH / MIPI / HDMI / TF Card Slot / USB / M.2 M KEY, for easy to use

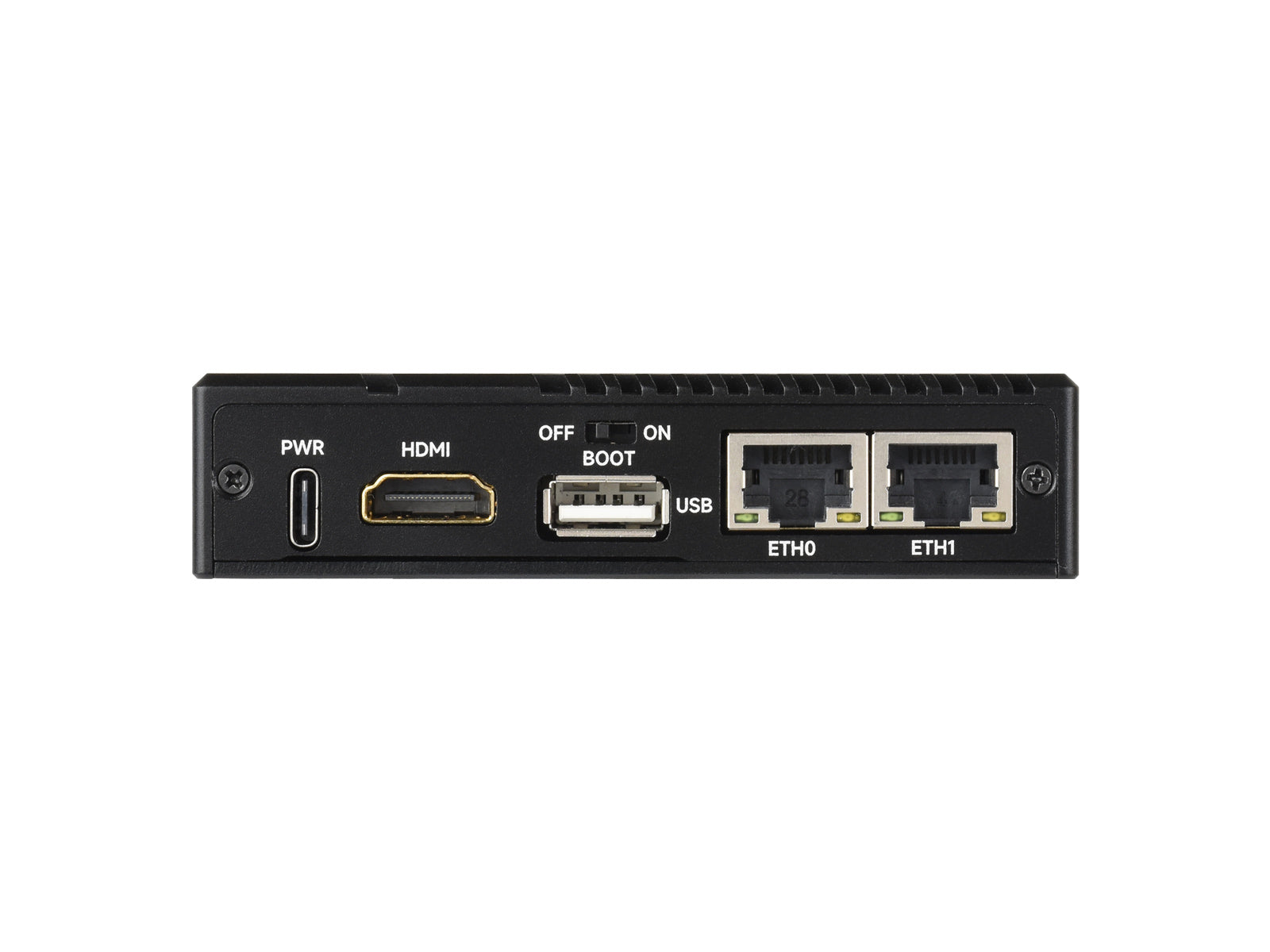

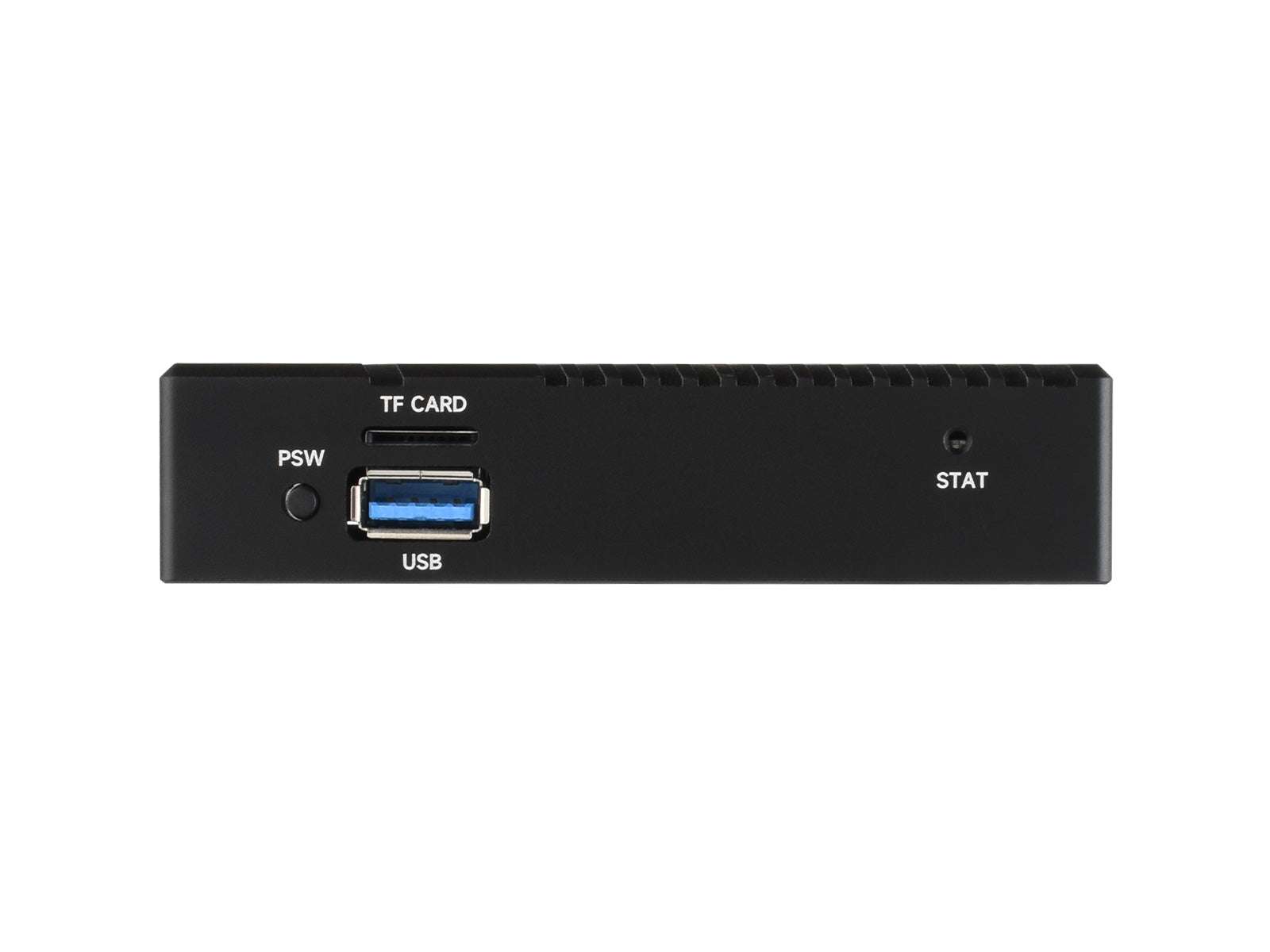

Precise cut-out with clear label

each cut-out is completely aligned with the connector

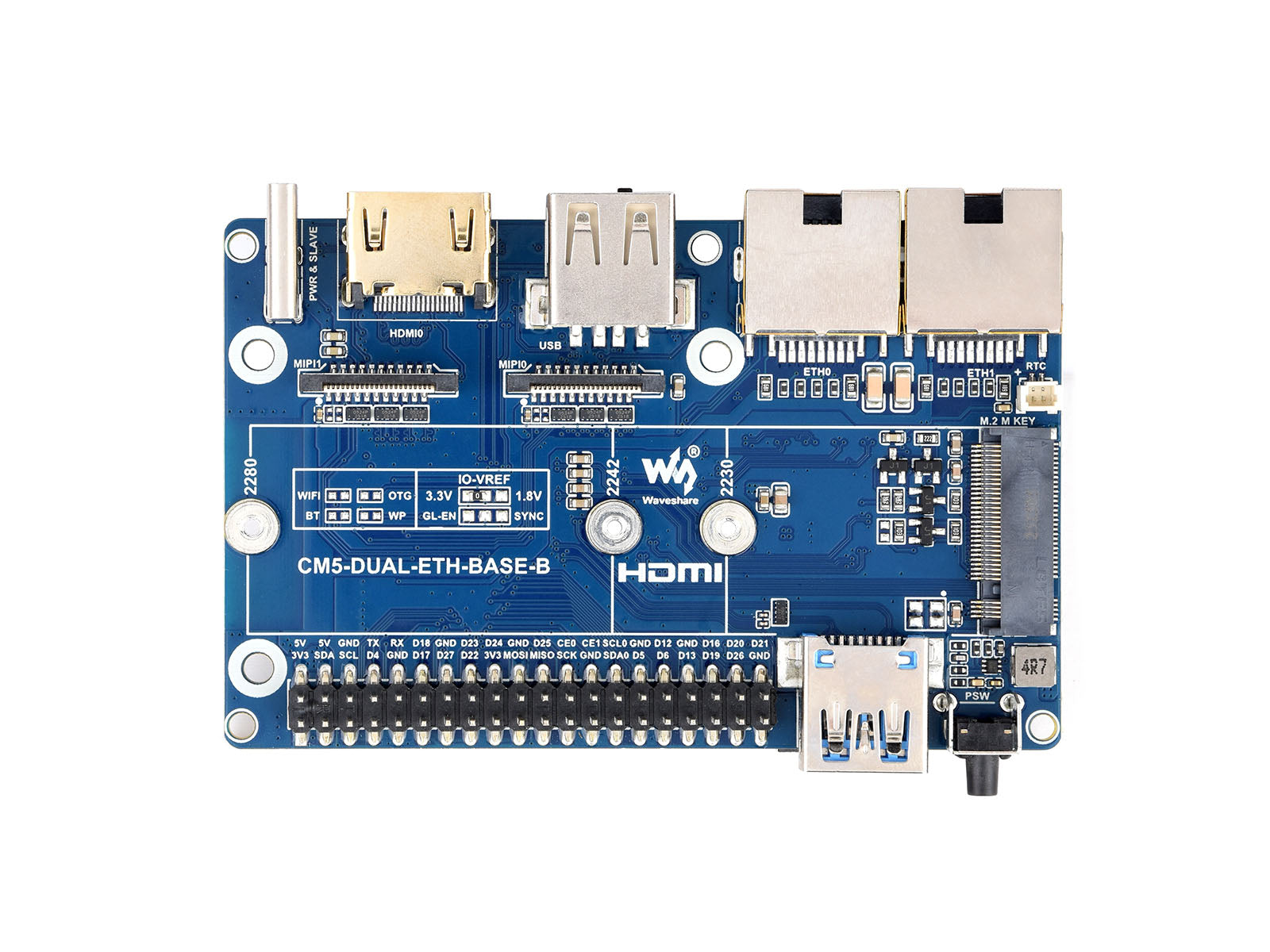

What's On Board

1. 2500M Ethernet RJ45 portsupporting 10M / 100M / 1000M / 2500M network connections
2. 1000M Ethernet RJ45 portsupporting 10M / 100M / 1000M network connections
3. USB 2.0 port
4. HDMI portSupports 4K output
5. Type-C power portDC 5V power input, or used for eMMC burning
6. 40PIN GPIO headerSuitable for connecting to various HAT / HAT+ modules
7. USB 3.2 Gen1 portsupports up to 5 Gbps reading / writing speed
8. PSW power buttonLong press to force power off, short press to soft power off or on

9. M.2 M KEYSupports 2230 / 2242 / 2280 NVMe Solid State Drives or AI modules
10. RTC SH1.0 batt headerfor connecting an external RTC batt to maintain real-time clock operation
11. MIPI Interfacesfor connecting to DSI displays or CSI cameras
12. BOOT buttonused to enter burning mode
13. TF card slotfor connecting a TF card with pre-burnt image (Lite variant ONLY)
14. CM5 socketSuitable for all variants of Compute Module 5
15. STAT LEDDual-color status LED

Assembly Instructions

Application Example

Suitable for Raspberry Pi applications in remote communications or other industrial situations

* for reference only, the displayandcamera module are not included, please purchase separately if needed

Outline dimensions

About Compute Module 5

Newly upgraded, more powerful

• Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
• More options for RAM (2GB / 4GB / 8GB / 16GB)
• More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
• Faster eMMC Flash storage, up to 200 Mbps data rate
• Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, most compatible with Compute Module 4
• Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules

Resources & Services

---

WIKI:https://docs.waveshare.com/CM5-DUAL-ETH-BOX-B

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

1. Mental case (top and bottom)
2. CM5-DUAL-ETH-BASE-B x1
3. Silicone thermal tape x1
4. Screwdriver x1
5. Pink thermal tape 5PCS x1
6. Screws pack x1
