SKU:WSAL20477

Kurzbeschreibung: GPIO Expander For Raspberry Pi Pico, 1x Raspberry Pi Standard 40PIN, 1x Pico 2×20PIN

GPIO expander for Raspberry Pi Pico, 1x Raspberry Pi standard 40PIN, 1x Pico 2×20PIN

HAT-compatible GPIO expander for Pico

1x Raspberry Pi standard 40PIN header for HATs, 1x Pico 2×20PIN header

Features at a glance

• Standard Raspberry Pi Pico female header for direct attaching Raspberry Pi Pico (if male header soldered), or just through jumper wires
• 1x Raspberry Pi standard 40PIN header and 1x Pico 2×20PIN header, allows connecting both Raspberry Pi HATs and Pico expansion boards
• USB power input connector, ensures sufficient power supply for multiple expansion modules
• Breakout RESET button, convenient for debugging

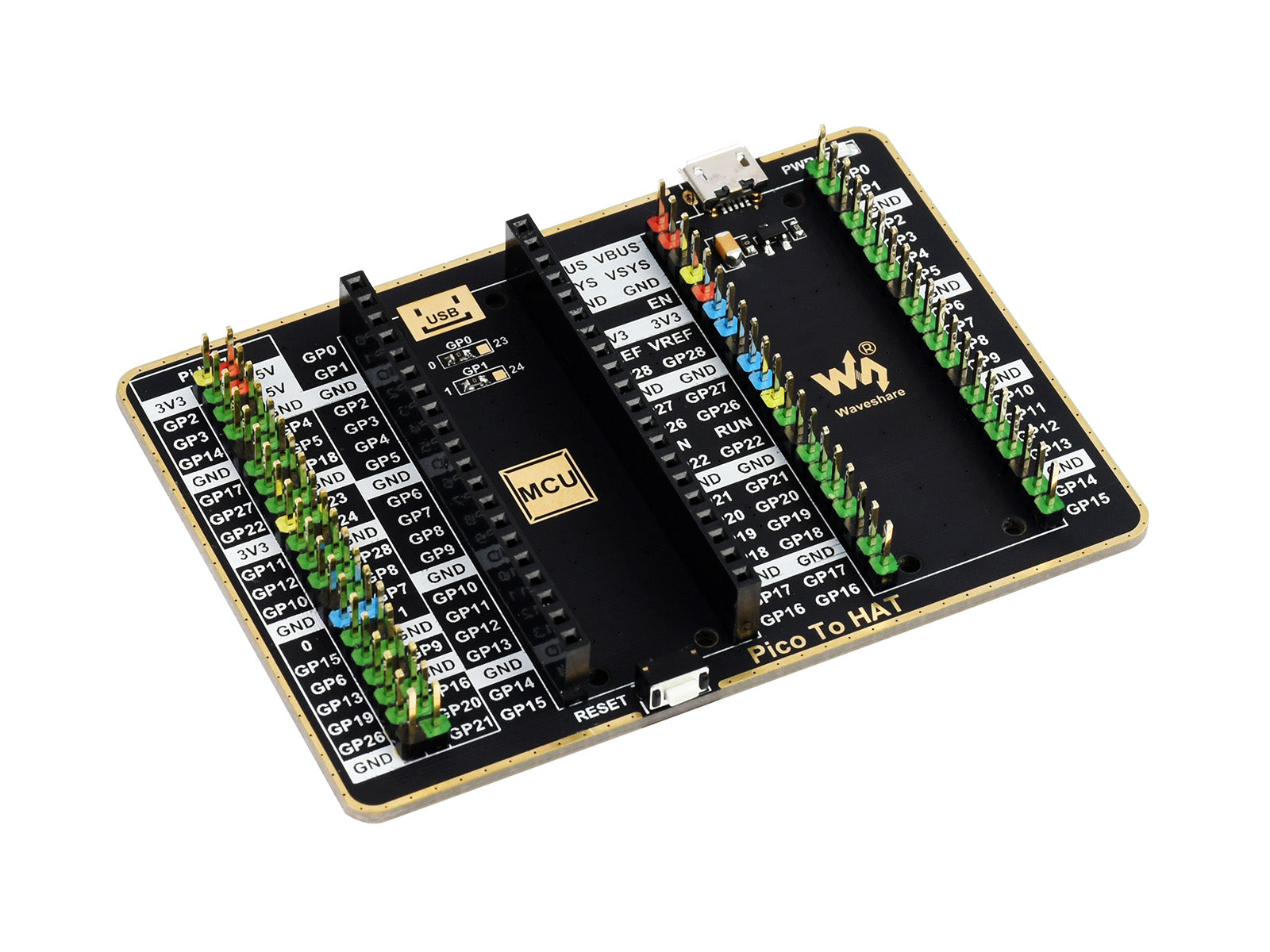

• Clear pinout labels on the front side, easy to use
• Immersion gold process, beautiful & practical, stunning aesthetic looking

Raspberry Pi Pico header compatibility

center female pin header for direct attaching the Raspberry Pi Pico

Expand More Interfaces

Expansion examples

allows connecting sorts of Raspberry Pi expansion modules, more possibilities

Please make sure there are no pin conflicts between the modules you want to use together before connecting.Raspberry Pi Pico and expansion modules are NOT included.

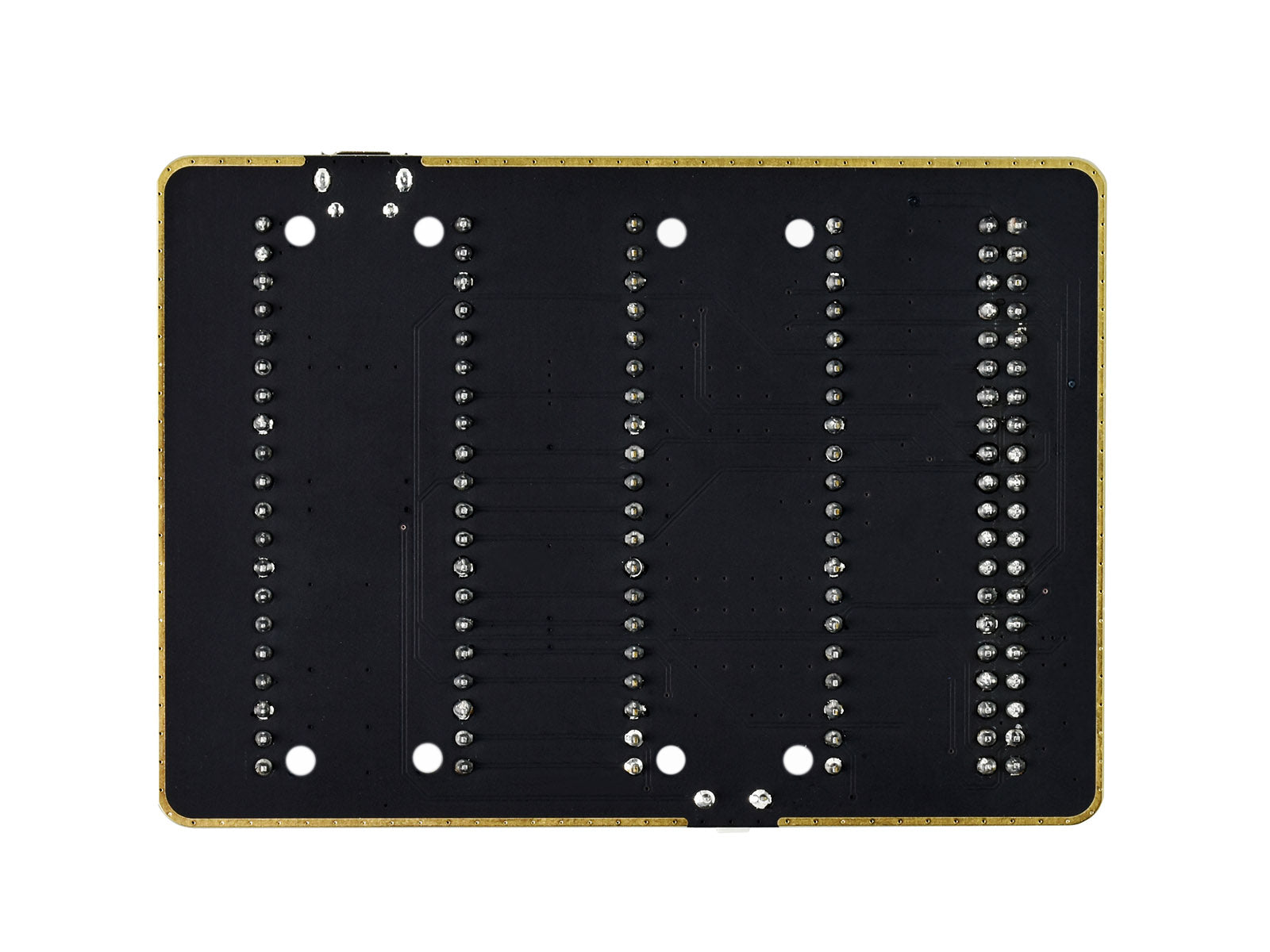

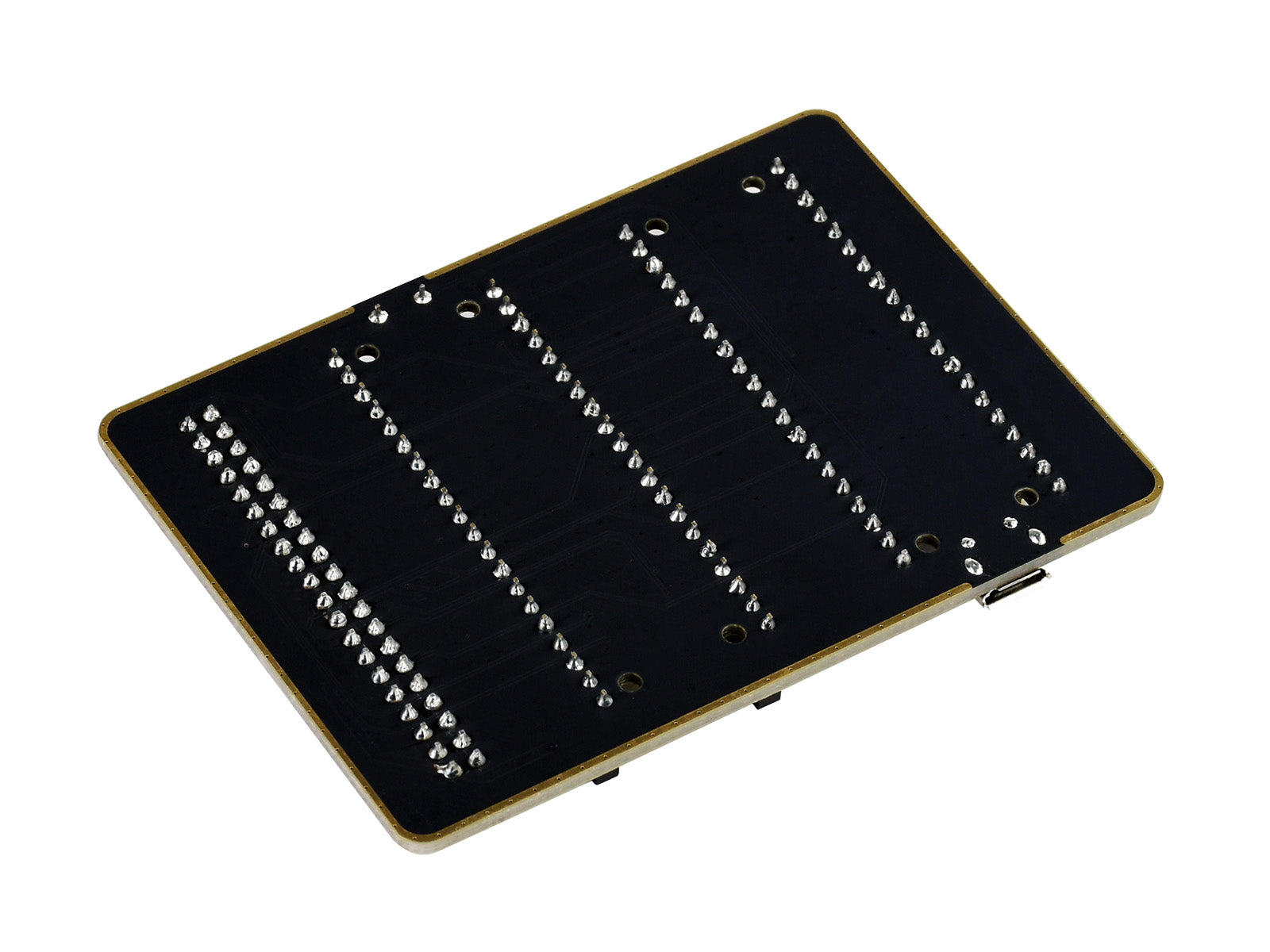

Immersion gold process

black base panel, white pinout labels, golden rounded outline, stunning aesthetic

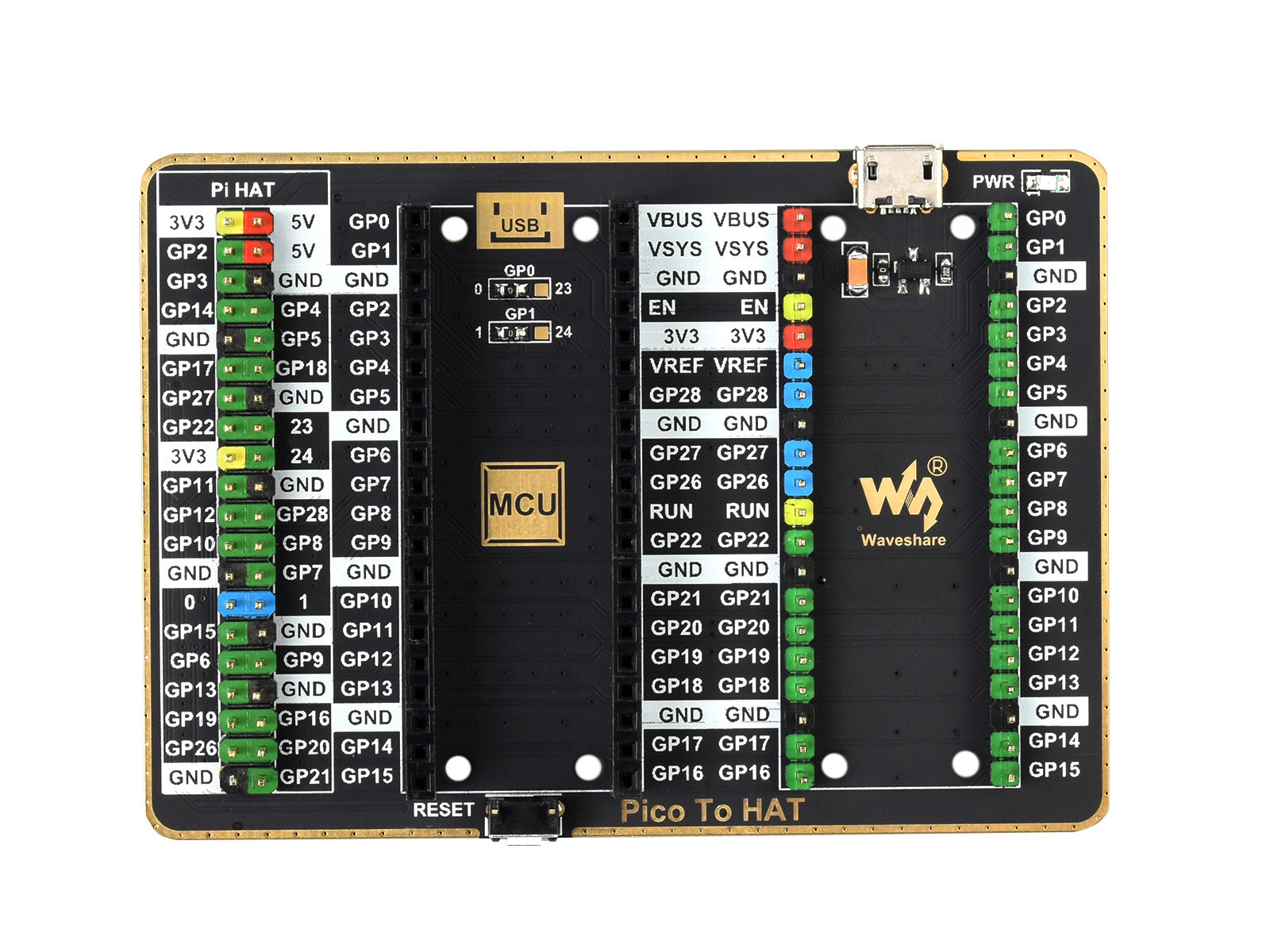

What's On Board

1. Raspberry Pi 40PIN GPIO header for connecting with Raspberry Pi HATs
2. Raspberry Pi Pico header for connecting with Raspberry Pi Pico
3. Pin selection Switch the GP0 and GP1 connect to GPIO0 and GPIO1 or GPIO23 and GPIO24 of the Raspberry Pi 40PIN header via resistors
4. Pico reset button
5. Raspberry Pi Pico header for connecting with Pico HATs

6. External power input circuit Power supply via VBUS by default, supports 1.5A Remove the 0R resistor, supply power to VSYS via the MOS tube, cut off when VBUS has voltage, can support 2.5A
7. Micro USB port for external power supply
8. Power indicator

Outline dimensions

Lieferumfang

1. Pico-To-HAT x1
