SKU:WSAL19137

Kurzbeschreibung: HDMI To CSI Adapter For Raspberry Pi Series, 1080p@30fps Support

HDMI to CSI Adapter for Raspberry Pi series, 1080p@30fps support

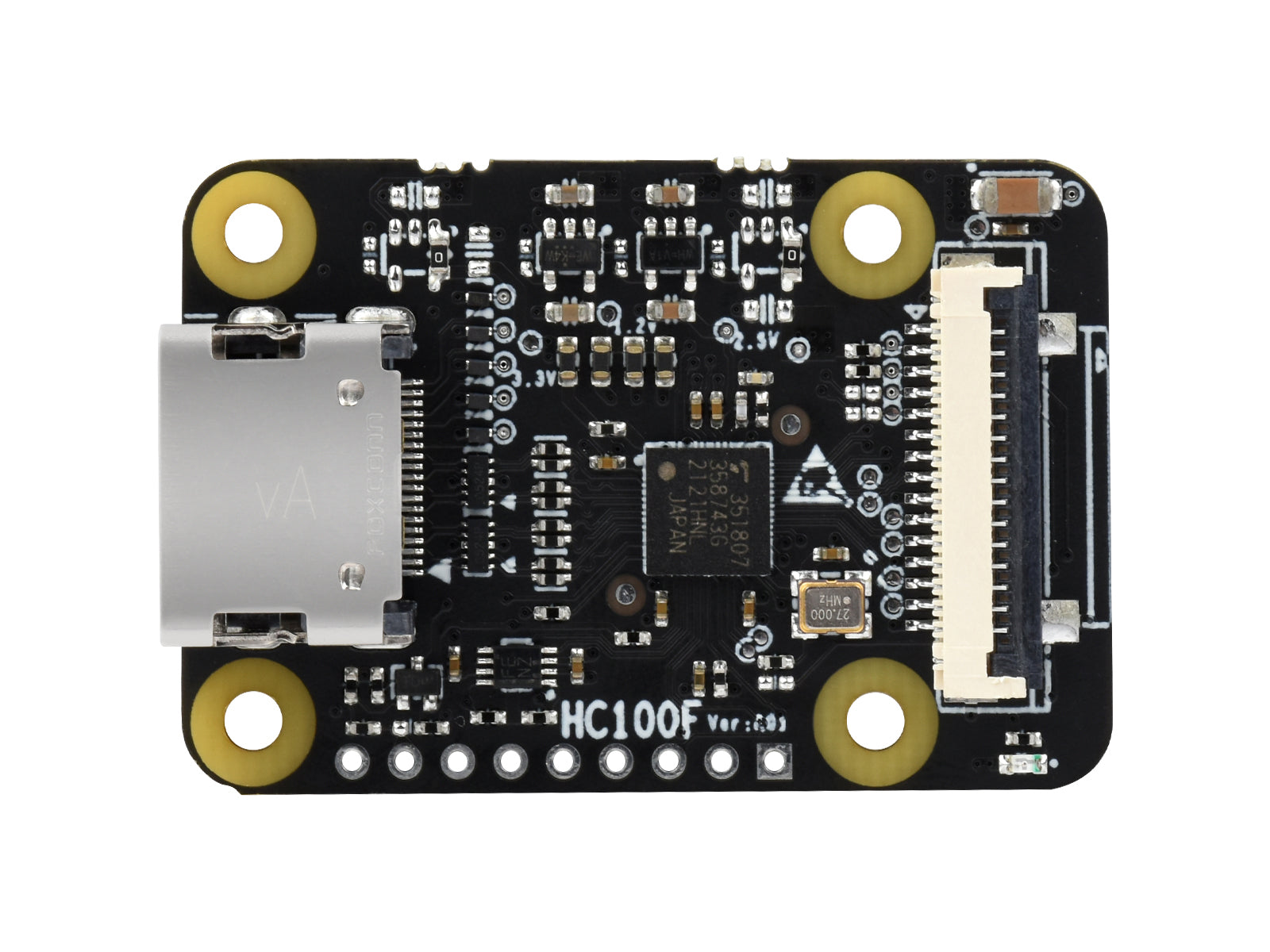

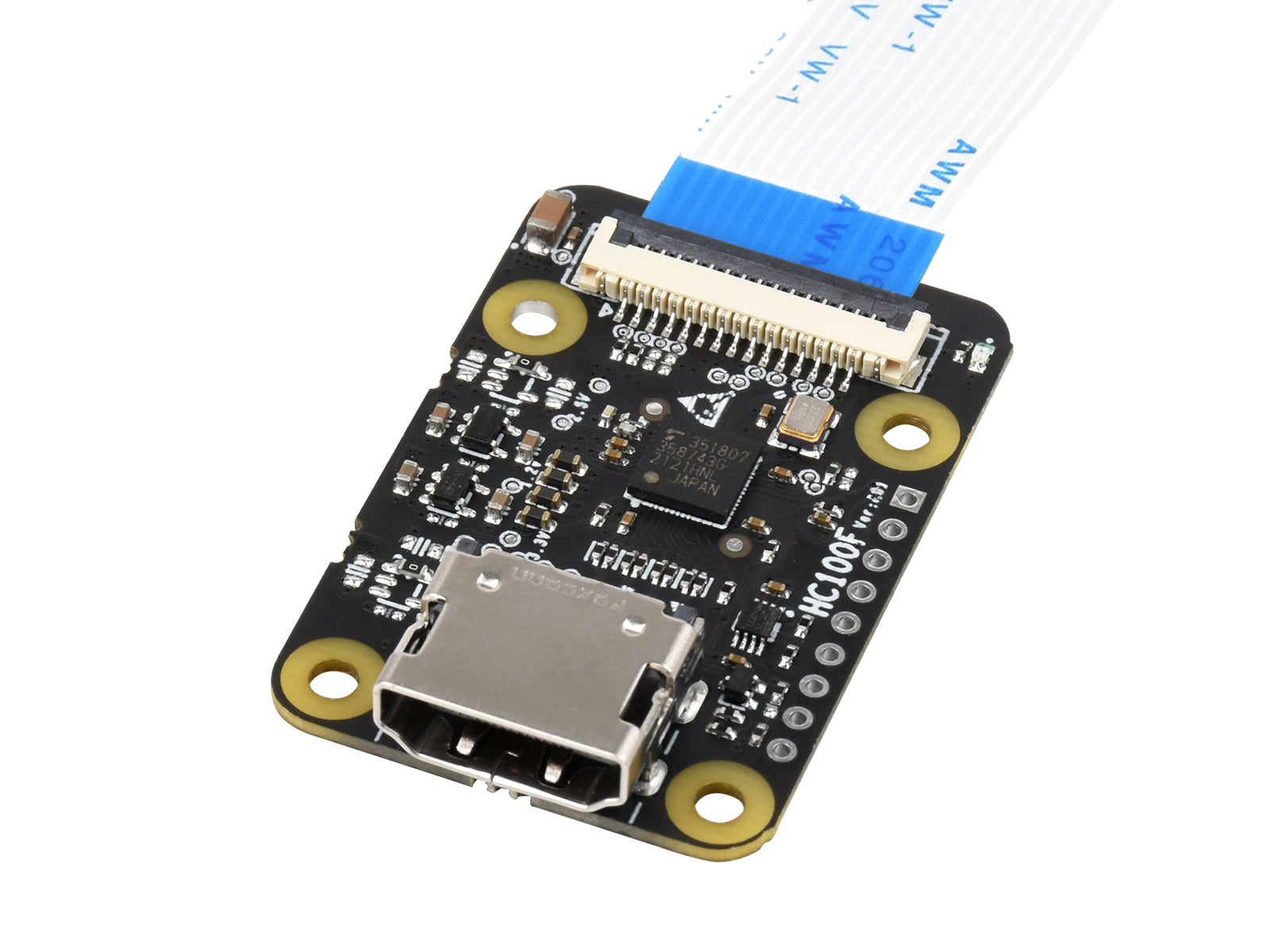

HDMI to CSI Camera Adapter

Compatible with Raspberry Pi Series Boards

This is an HDMI to CSI camera port adapter designed for Raspberry Pi with up to 1080p@30fps support from HDMI input, backward compatible. It allows you to use HDMI cameras just as the standard Raspberry Pi CSI cameras, all versions of Raspberry Pi series boards are supported.

Specifications

Chip	TC358743XBG
Input signal	Video	HDMI1.4, RGB888, up to 1080p@30fps support
	Audio	HDMI
Output signal	Video	2-lanes MIPI CSI-2
	Audio	I2S audio output, LPCM audio stream format
operating system	Raspberry Pi OS 32bit
Operating voltage	3.3V
Operating temperature	-30 ~ 70°C

how to use

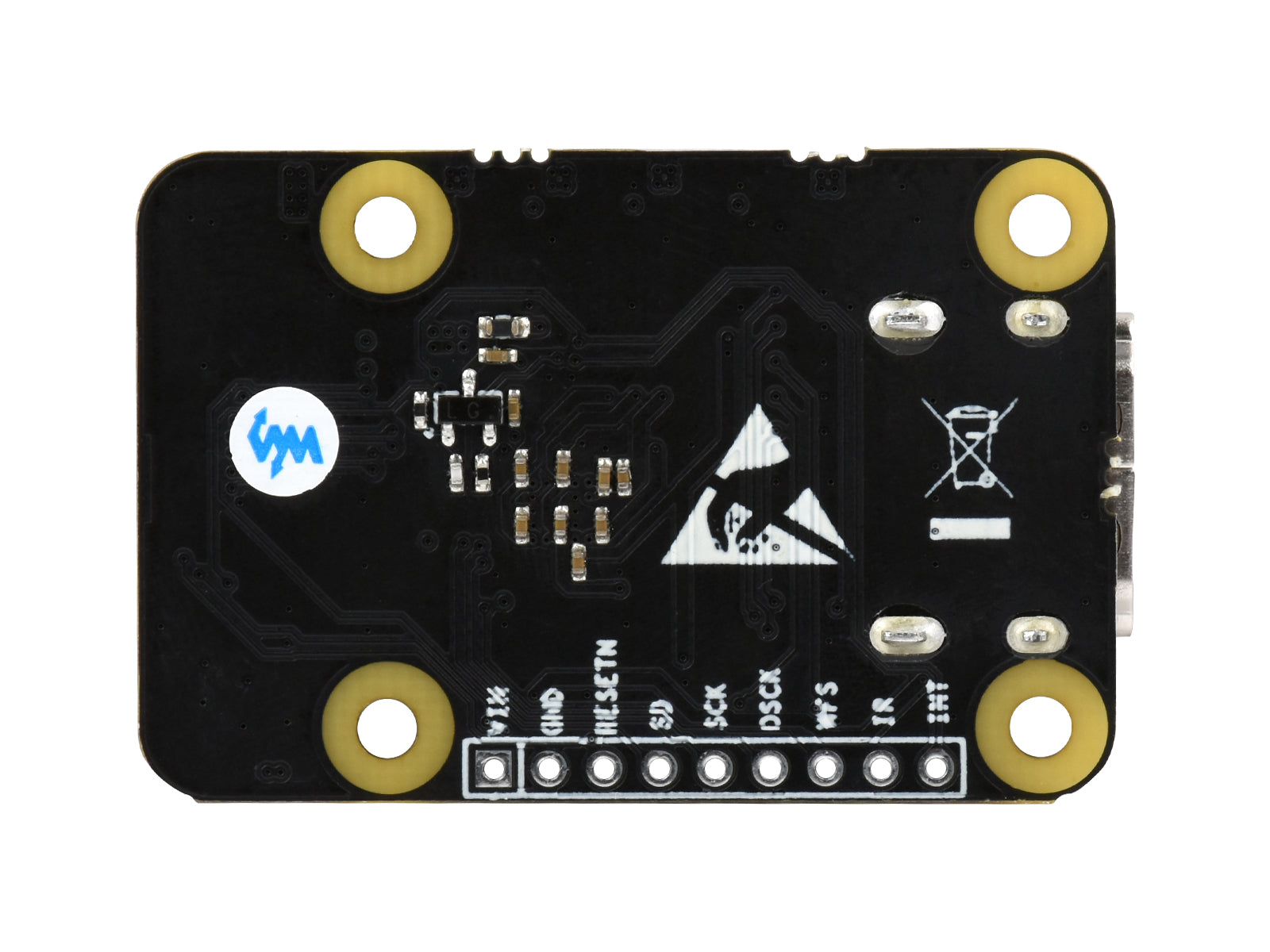

* Note: it is required to connect the reserved solder pad to the I2S pin of Raspberry Pi for audio output

application example

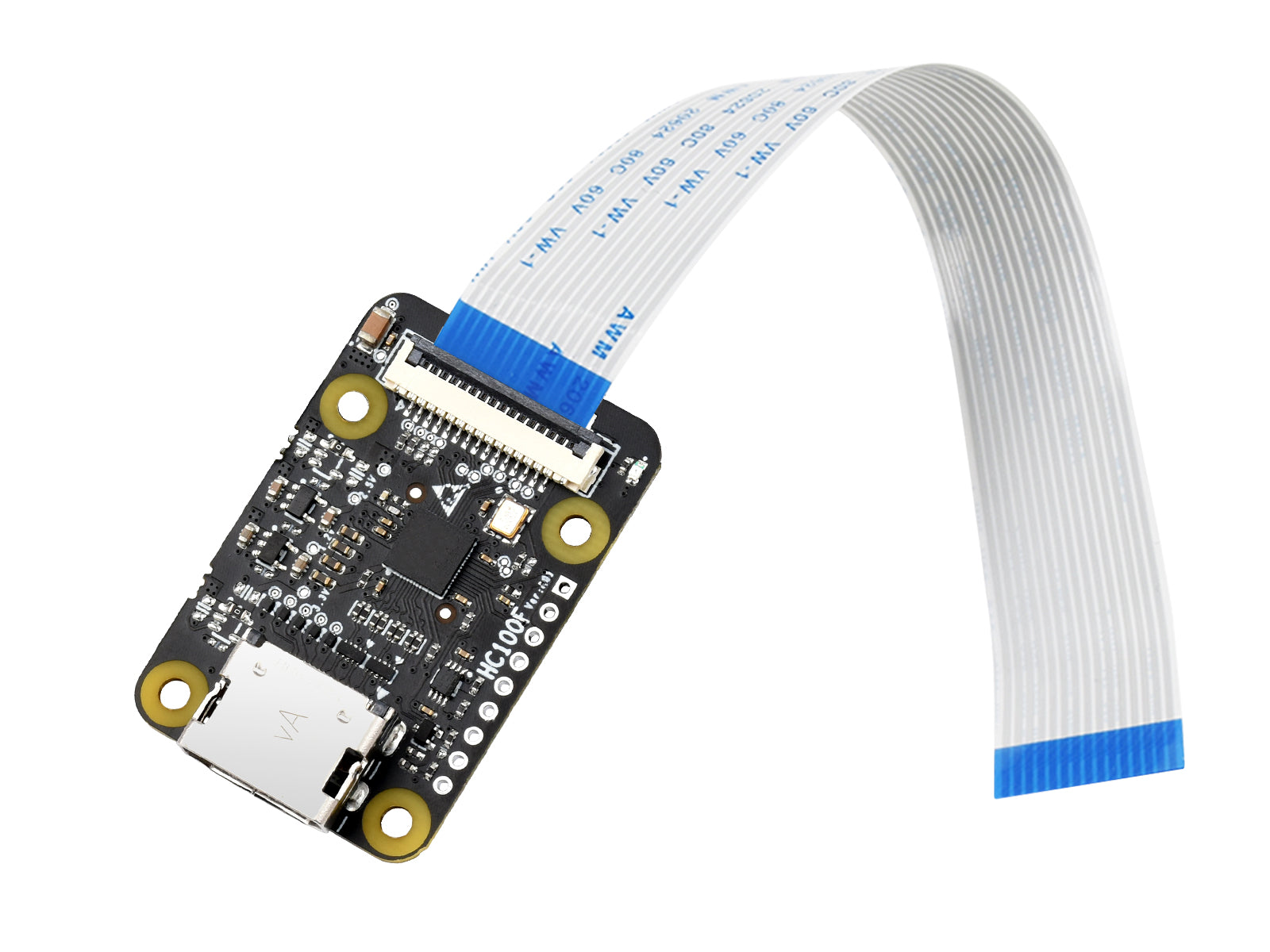

connecting with Raspberry Pi

*Specific FFC is required for the Raspberry Pi Zero.

Outline dimensions

Resources & Services

Wiki:HDMI_to_CSI_Adapter

Lieferumfang

1. HDMI to CSI Adapter x1
