SKU:WSAL18510

Kurzbeschreibung: High Quality Camera For Raspberry Pi Compute Module / Jetson Nano, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- And CS-Mount Lenses

High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses

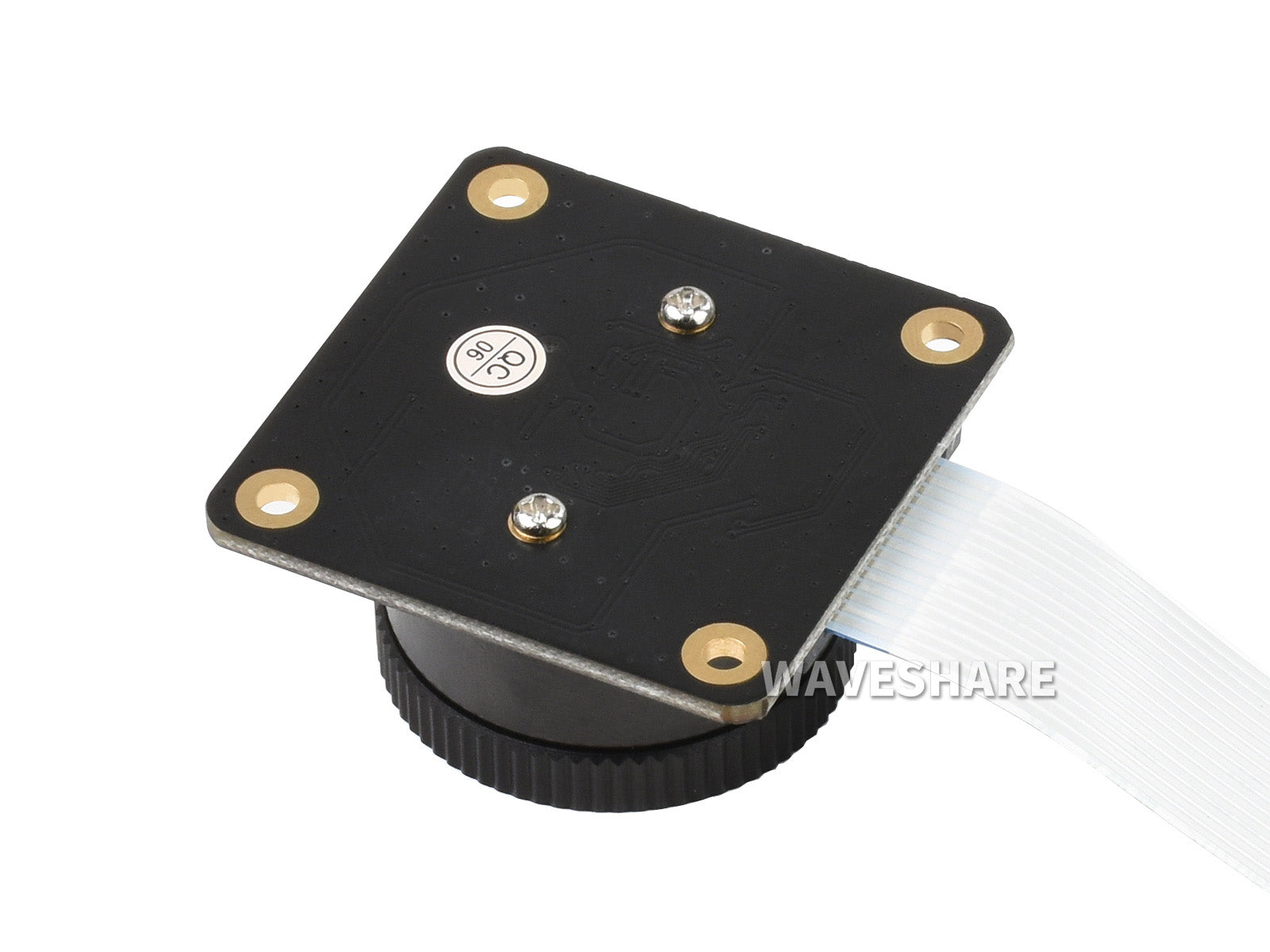

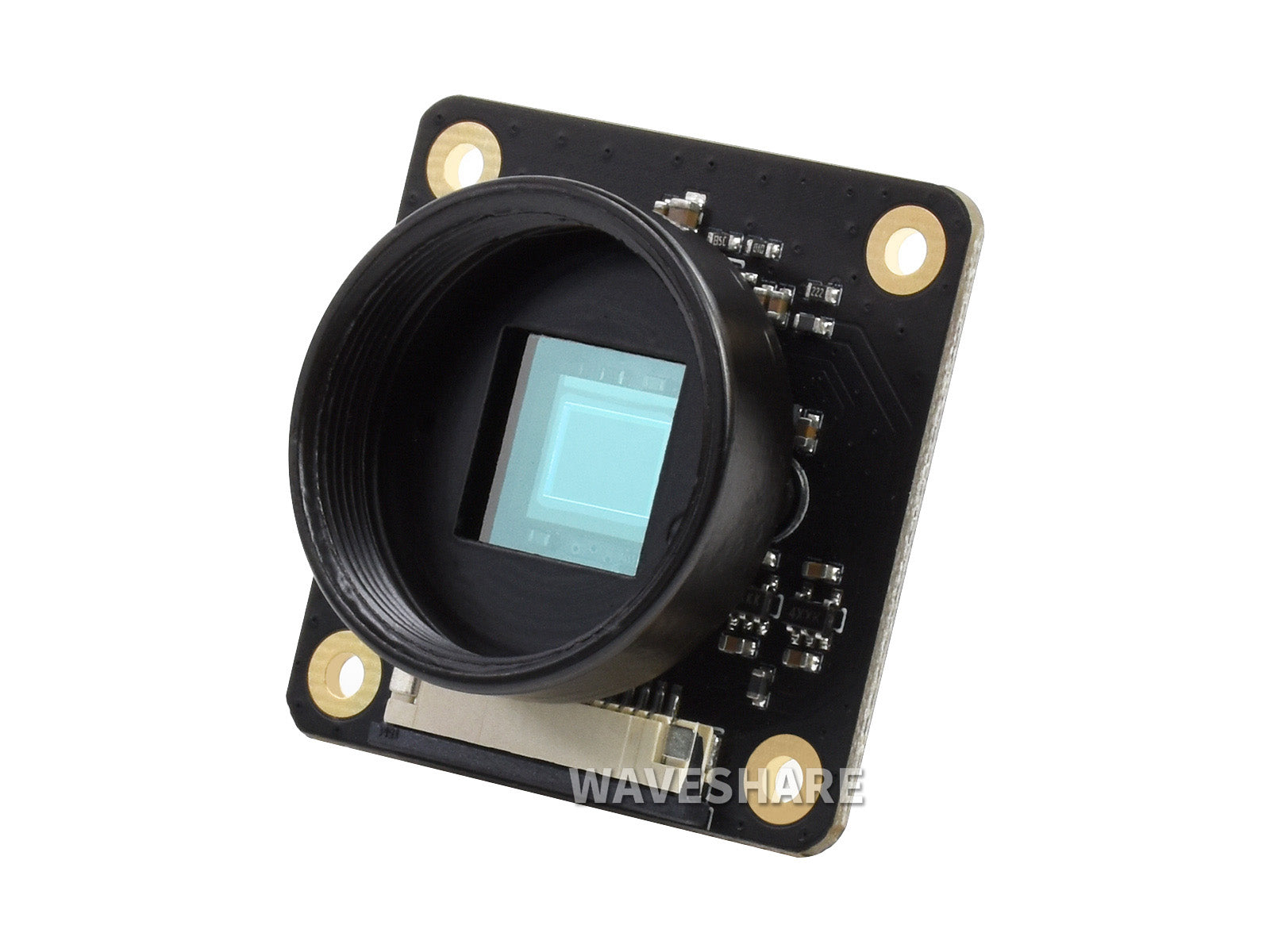

High Quality 12.3MP Camera

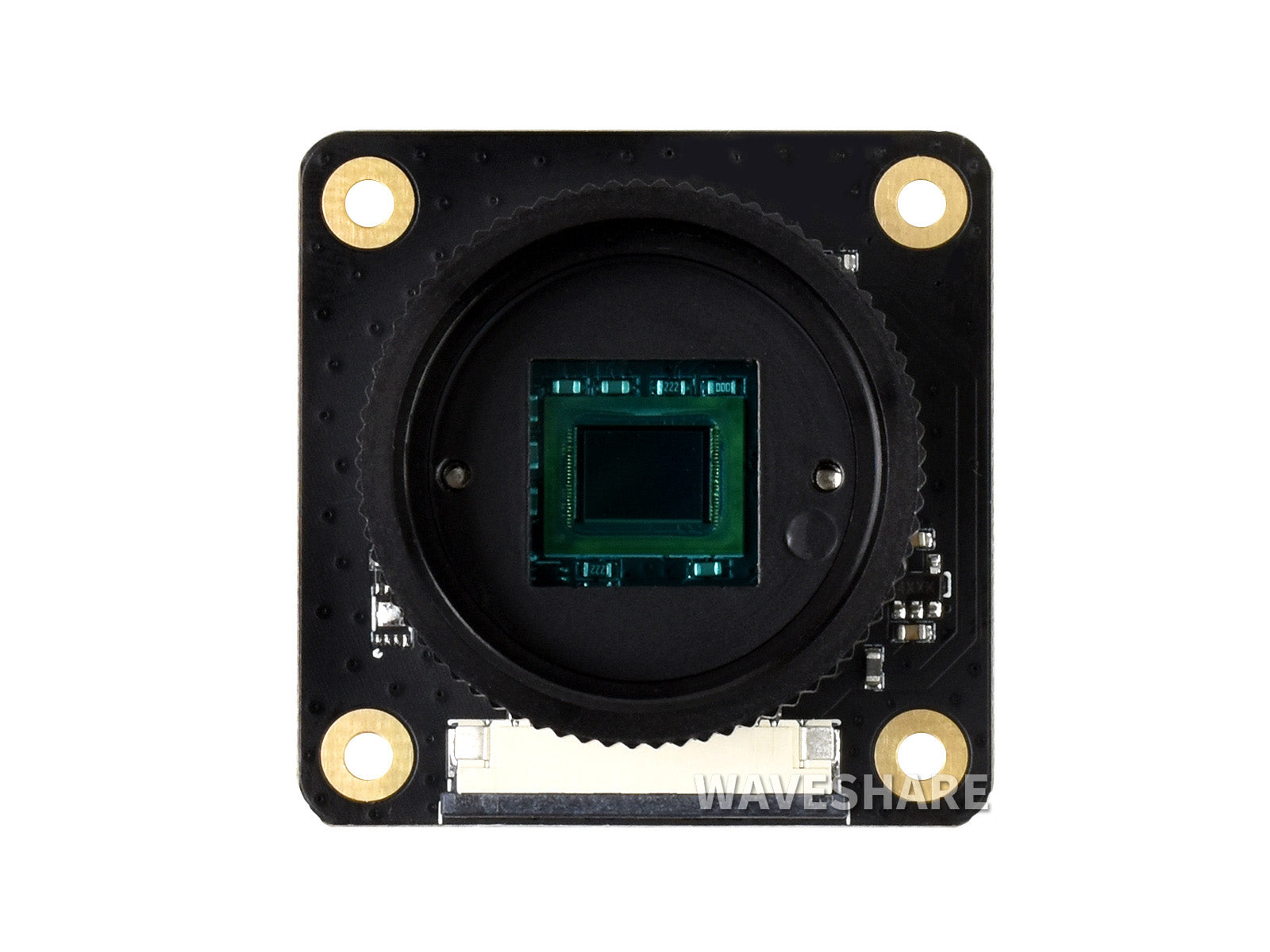

High Resolution High Sensitivity IMX477 Sensor

Supports Raspberry Pi / Jetson Series / RDK Series Boards

TheIMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.

TheIMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

Specifications

Sensor	IMX477R
	12.3MP, 4056 (H) × 3040 (V)
	7.9mm CMOS diagonal size
	1.55µm (H) × 1.55µm (V) pixel size
Output	RAW12 / 10 / 8, COMP8
Back focus	Adjustable
Lens Support	C-mount / CS-mount (C-CS adapter included)
IR cut filter	Integrated

Lens Selection

Product	6mm Wide Angle Lens	16mm Telephoto Lens	25mm Telephoto Lens	35mm Telephoto Lens	8-50mm Zoom Lens	100X Microscope Lens for Pi
Image format	1/2"	1"	2/3"	1"	1/2.3"	1/2"
Focal length	6mm	16mm	25mm	35mm	8-50mm	-
Aperture	F1.2	F1.4-16	F1.4-16	F1.7-16	F1.4	-
OPTICAL MAGNIFICATION	-					0.12X~1.8X
ZOOM RATIO	-					15:01
Mount	CS-mount	C-mount				C/CS-mount
Angle of view	63°	1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4°	2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°	1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°	45°-5.35°	-
Back focus	7.53mm	17.53mm				-
Optical length	-	67.53mm	-
Distortion	-	1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）	0.05%	0.35%	-	< -0.1%
M.O.D.	0.20m	0.20m	0.25m	0.30m	0.20m	2.4mm
Dimensions	Φ30.00 × 34.00mm	Φ39.00 × 50.00mm	Φ34.00 × 34.00mm	Φ35.00 × 34.00mm	Φ40.00×68.30mm	Φ39.00×112.00mm
Operation	Manual aperture adjustment					Fixed aperture
Weight	53g	133.7g	82g	78g	148g	202g

Higher resolution, better imaging effect

Compared to 8MP of normal Raspberry Camera, this high quality camera offers up to 12.3MP, along with nearly 50% greater area per pixel, delivering better imaging effect

with mounted lens

C-mount 16mm Telephoto Lens(C-CS adapter required)

CS-mount 6mm Wide Angle Lens(C-CS adapter should be removed)

* for reference only, please refer to the Package Content for detailed part list

Multiple Motherboards Support

Compatible With Raspberry Pi Series, Jetson Series (Specific driver is required), RDK Series Boards, and CM3/3+/4/5 Series, Zero Series

Connecting with Raspberry Pi 4B

Connecting with Raspberry Pi 5

Connecting with CM5 IO Board

Connecting with Zero 2 W

Connecting with Jetson Nano Kit

Connecting with Jetson Orin Kit

Connecting with RDK X5

* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 5 IO Board,Zero 2 W, Jetson Nano Kit, Jetson Orin Kit, RDK X5, and 16mm Telephoto Lens are NOT included.

Resources & Services

Wiki:IMX477_12.3MP_Camera

Selection Guide

Part Number	Pixels	Sensor	CMOS Size	IR-CUT Filter	Lens Support	FoV (°)	Aper-ture (F)	Focal Length (mm)	Dimen-sions (mm)	For use with
Raspberry Pi HQ Camera	12.3MP	IMX477	7.9mm	integrated	C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX477 12.3MP Camera						-	-	-	38*38	Raspberry Pi, CM3/3+/4, Jetson series boards
Raspberry Pi HQ Camera M12					M12	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX477 IR-CUT Camera (A)						90	2.0	3.95	38*38	Raspberry Pi, CM3/3+/4/5, Jetson series boards
IMX477-160 12.3MP Camera						160	2.2	2.75	25*24	Raspberry Pi, CM3/3+/4/5, Jetson series boards
Raspberry Pi Global Shutter Camera	1.6MP	IMX296	6.3mm		C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX296 Global Camera (A)	1.6MP	IMX296	6.3mm		C/CS	-	-	-	38*38	Raspberry Pi, CM3/3+/4/5
IMX296-130 BW Camera	1.6MP	IMX296	6.3mm		M12	130	1.6	3.0	38*38	Raspberry Pi, CM3/3+/4/5

Lieferumfang

* the included FFC is 16cm, if you need a longer cable, please purchase separately.

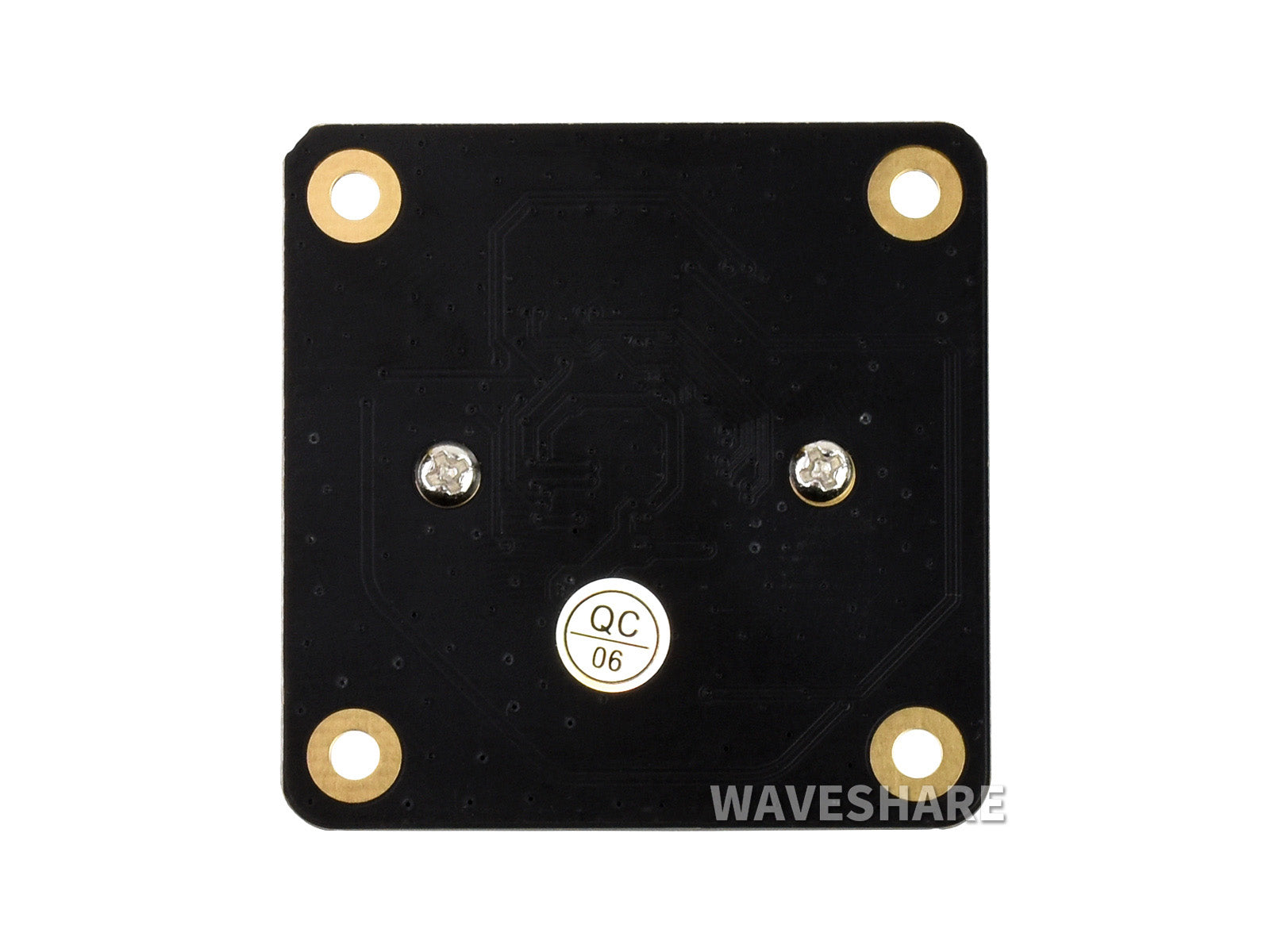

1. IMX477 12.3MP Camera main unit x1
2. 15PIN FFC (opposite sides contact) x1
3. C-CS adapter and dust cap x1
4. RPi Zero V1.3 Camera Cable ~15cm x1

1

2

3

4
