SKU:WSAL21658
IMX378-190 Fisheye Lens Camera for Raspberry Pi, 12.3MP, Wider Field Of View
Regular price
21.668 Ft
Sale price
21.668 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Kurzbeschreibung: IMX378-190 Fisheye Lens Camera For Raspberry Pi, 12.3MP, Wider Field Of View
IMX378-190 Fisheye Lens Camera for Raspberry Pi, 12.3MP, Wider Field Of View

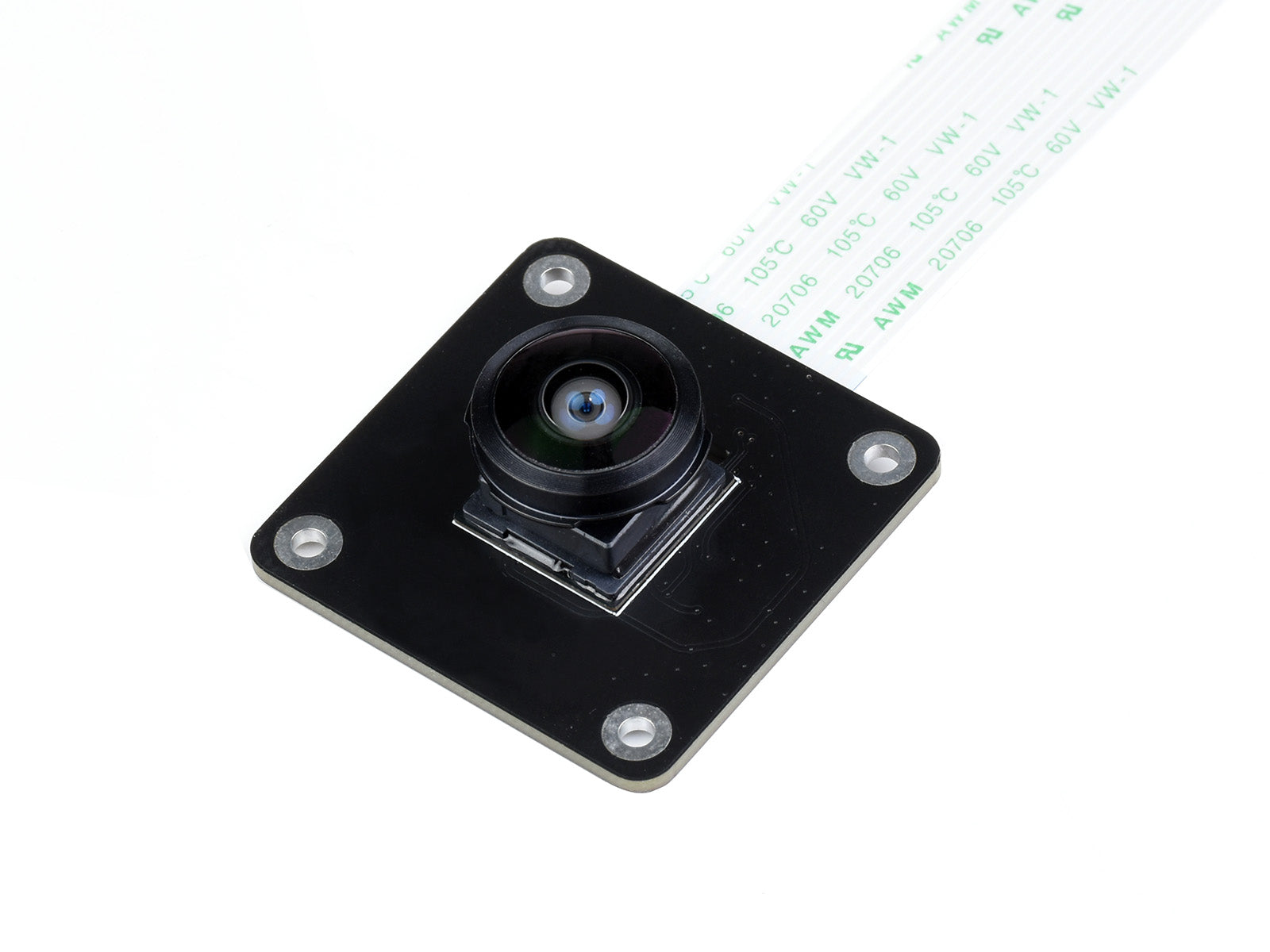

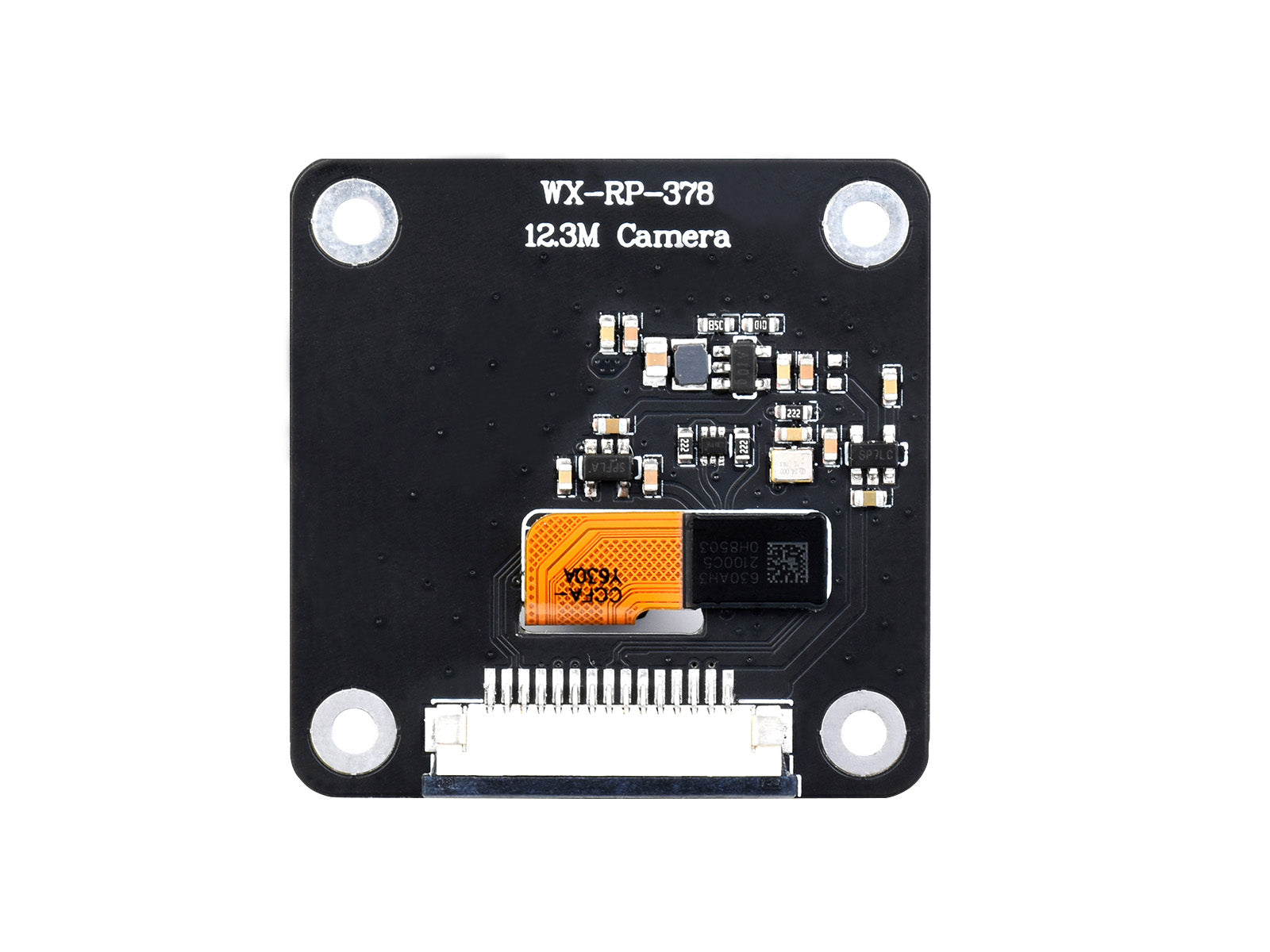

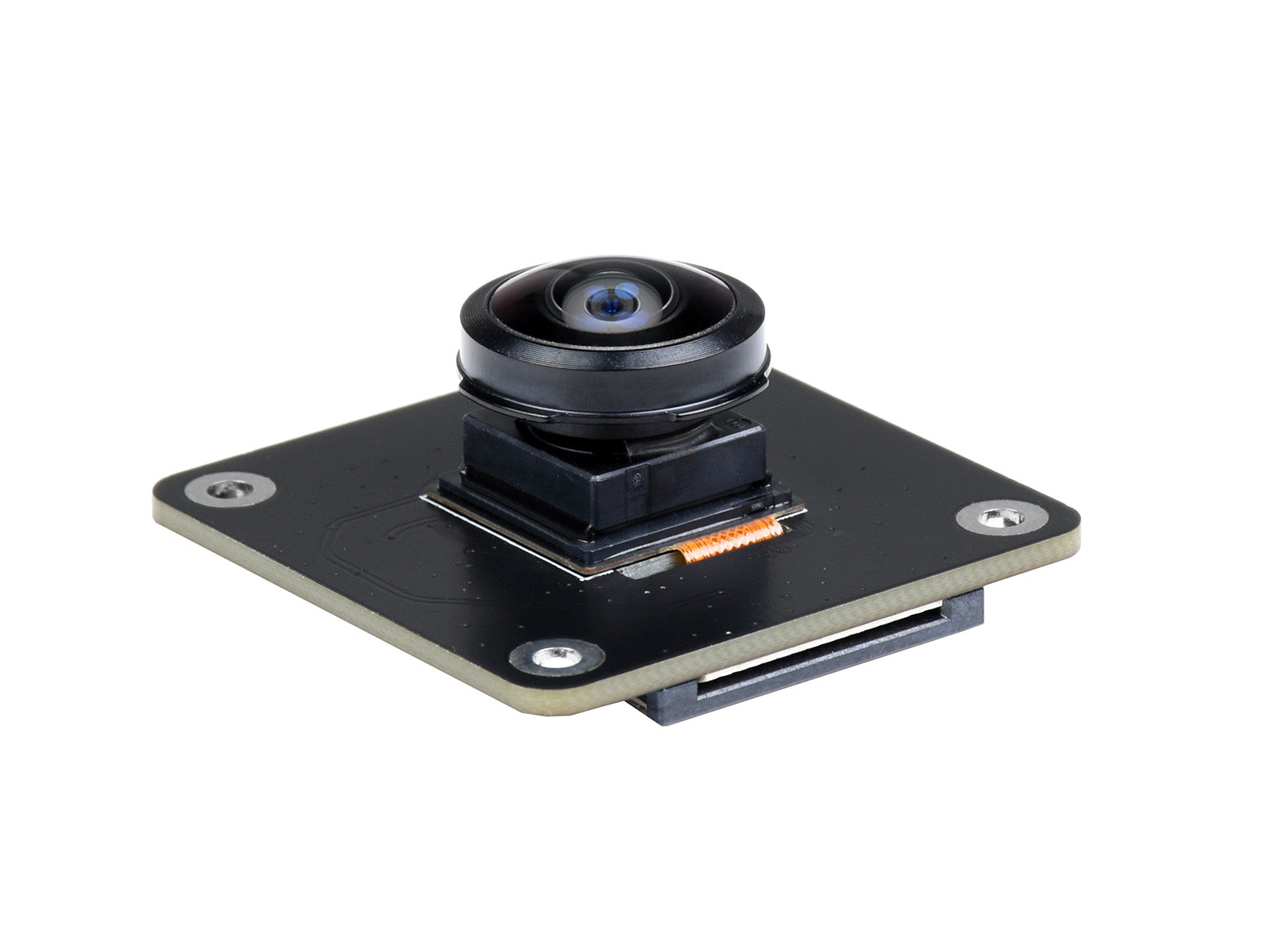

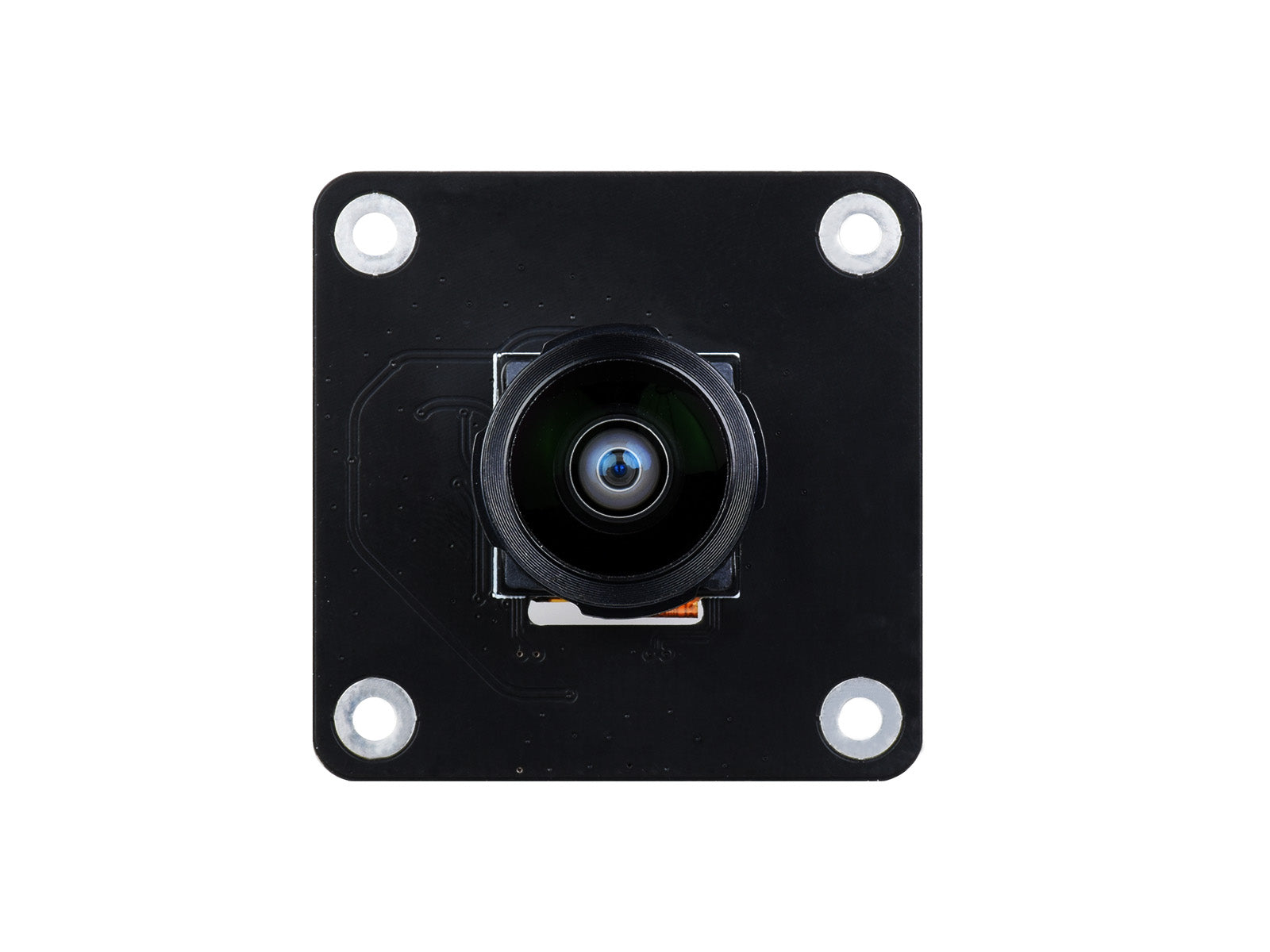

IMX378-190 Fisheye Lens Camera
12.3MP, Fisheye, 190°FOV
Compatible with Raspberry Pi series boards
Device Support
Raspberry Pi series
Supports Raspberry Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2 W, and CM 3 / 3+ / 4 / 5 (extra adapter board required)
Specifications
| Sensor | IMX378 | CMOS size | 1/2.3 inch |
|---|---|---|---|
| CAMERA type | color | Pixels | 12.3MP (4056 × 3040) |
| SHUTTER | Rolling Shutter | Aperture | F2.4 |
| Distortion | < 58% | Field of view | 190° |
| Focal length | 6.5mm | FOCUSING | fixed focus distance |
High definition, wide angle
12.3MP HD, more clear imaging190° wide angle fisheye lens, cover all in sight
Working with Raspberry Pi
Compatible with Raspberry Pi series, CM3/3+/4/5 series, and Zero series
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with CM5 IO Board
Connecting with Zero 2 W
* for reference only, Raspberry Pi 4B,Raspberry Pi 5,Compute Module 5 IO Board, and Zero 2 W are NOT included.
Outline dimensions
Lieferumfang
* the included FFC is 16cm, if you need a longer cable, please purchase separately.
- IMX378-190 12.3MP Camera x1
- 15-pin FFC (opposite sides contact) x1
- RPi Zero V1.3 Camera Cable ~15cm x1
1
2
3
