SKU:WSAL21967

Kurzbeschreibung: Industrial 4G DTU, RS485 TO LTE CAT4, DIN Rail-Mount Support

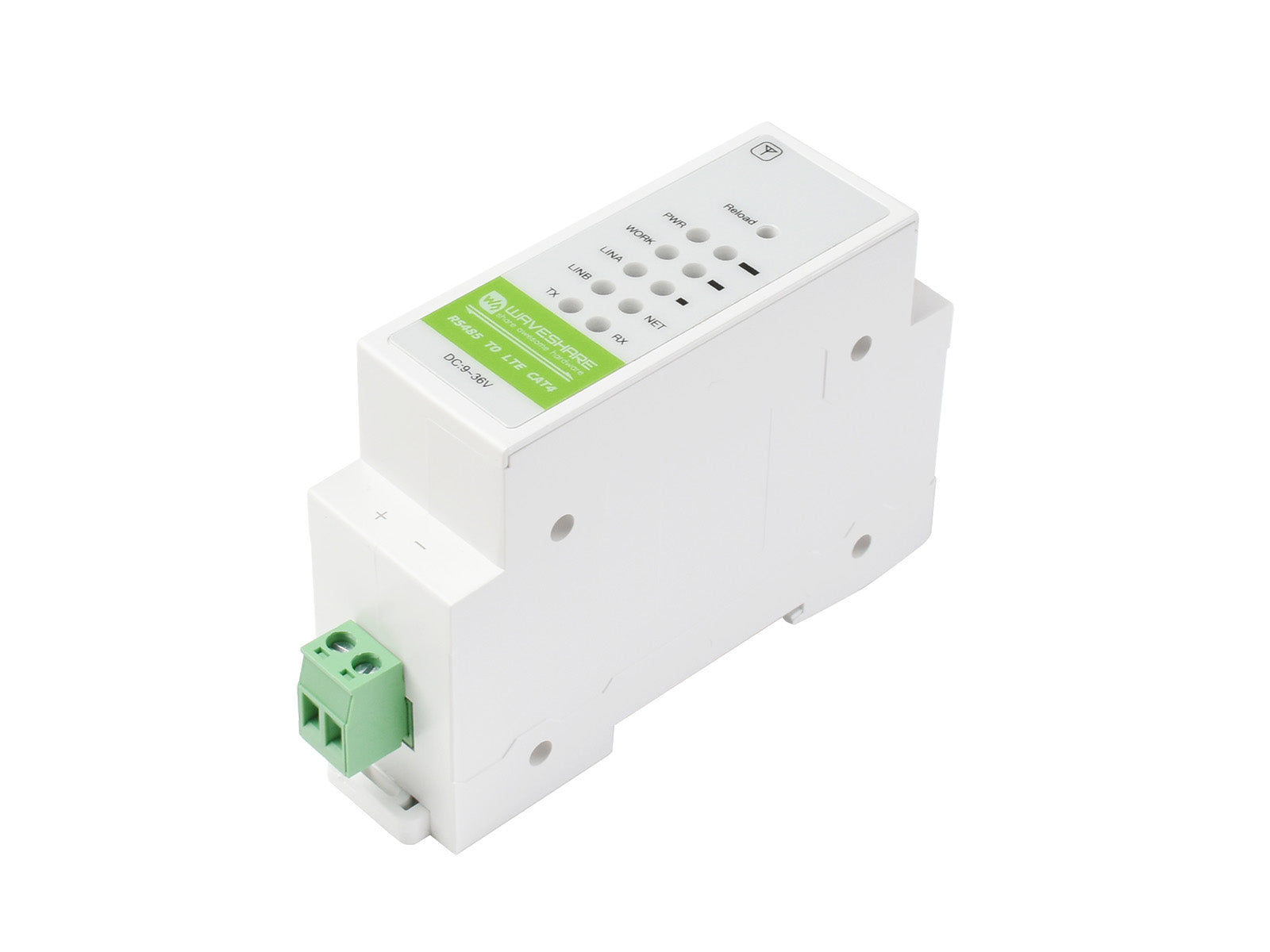

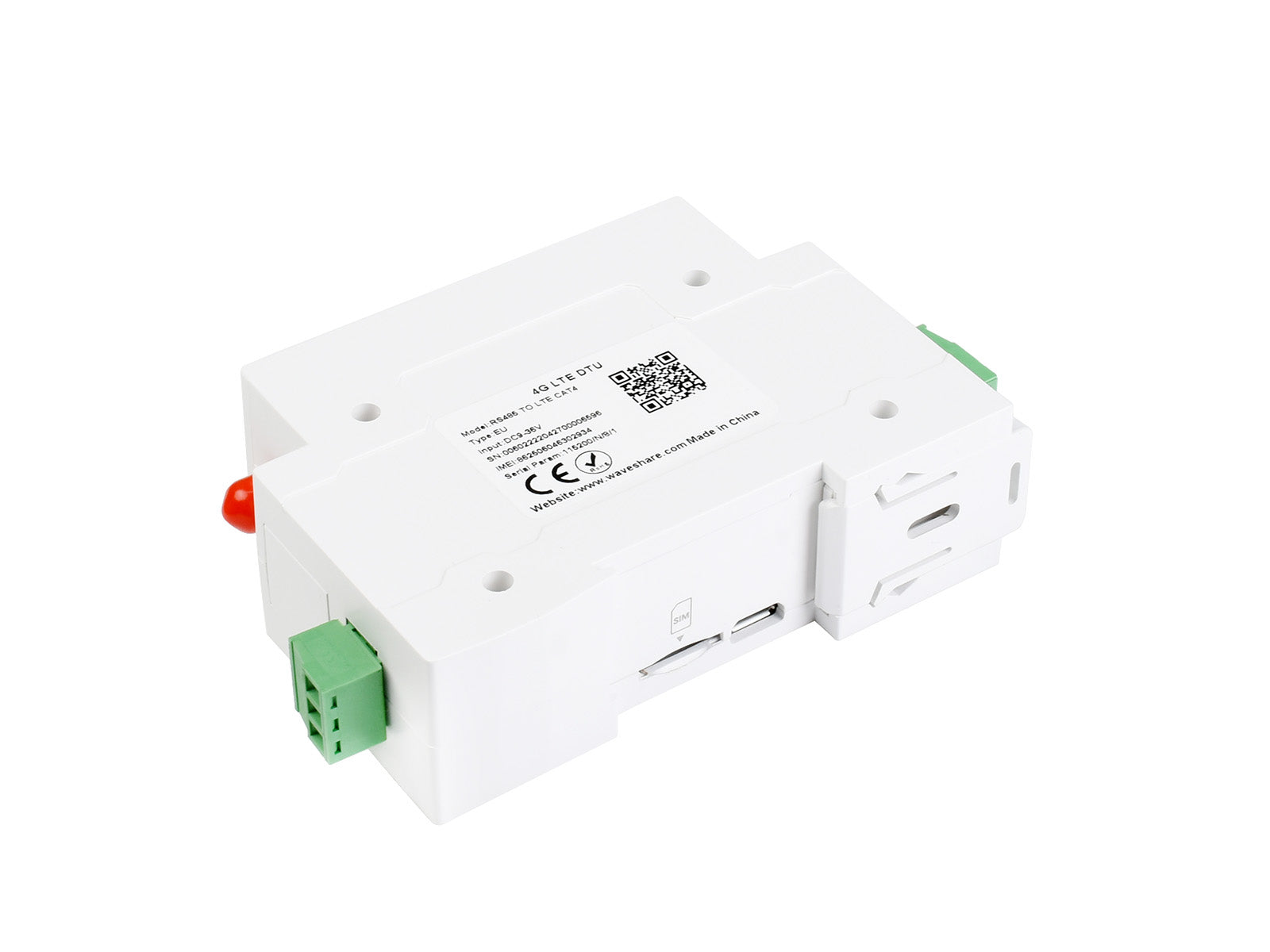

Industrial 4G DTU, RS485 TO LTE CAT4, DIN rail-mount support

RS485 TO LTE CAT4

Industrial Rail-Mount 4G DTU

Features at a glance

The RS485 TO LTE CAT4 (EU) is a DIN Rail mounted RS485 cellular modem with European bands, which can realize the data transmission between RS485 and 4G Network. Reliable Serial to 4G Cellular Communication. With RS485 interfaces, full network coverage, wide temperature and wide voltage, multi center transmission. Provides wireless data communications between field serial devices and the central control system to enable remote control of industrial field sites. It is ideal for M2M and IoT applications including distribution automation, smart metering, water & wastewater, heating, street light monitoring and etc.

Specifications

Models		RS485 TO LTE CAT4 (EU)
Applicable regions		EMEA, Korea, Thailand, India, Southeast Asia
LTE Category		LTE Cat.4
Frequency Bands	LTE FDD	B1/B3/B7/B8/B20/B28A
	LTE TDD	B38/B40/B41
	WCDMA	B1/B8
	GSM	B3/B8
Transmission Speed	LTE-FDD	150Mbps(DL)/50Mbps(UL)
	LTE-TDD	130Mbps(DL)/30Mbps(UL)
	DC-HSDPA	42Mbps (DL)
	HSUPA	5.76Mbps (UL)
	WCDMA	384Kbps(DL)/384Kbps(UL)
	GSM(EDGE)	296Kbps (DL)/236.8Kbps (UL)
	GSM (GPRS)	107Kbps (DL)/85.6Kbps (UL)
Serial Parameters	Interface form	RS485(Terminal)*1
	Data Bits	8
	Stop Bits	1,2
	Parity Bits	NONE,ODD,EVEN
	Baud Rate	2400~230400
Physical Interfaces	SIM/USIM card	1.8V/3V

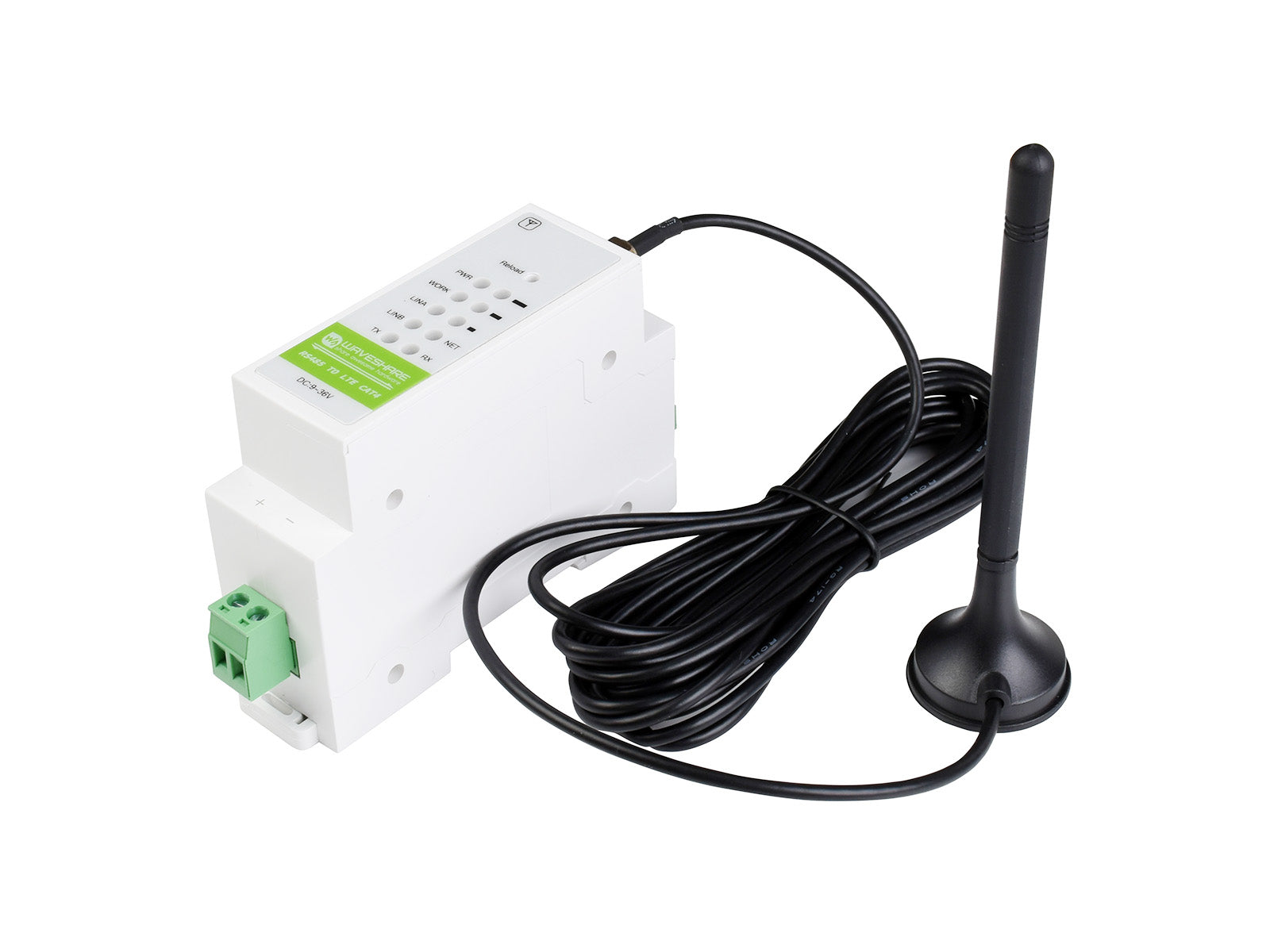

	Antenna	SMA Female
	USB	USB 2.0
	Indicators	POWER,WORK,NET,LINK,RSSI
	Reload	Button
Hardware Characteristics	Input Voltage	9V~36V
	Connector	Terminal
	Housing material	ABS Plastic
	Dimensions(mm)	L × W × H: 109.66 × 28 × 64.71 mm
	Operating temperature	-30℃~+75℃
	Storage Temperature	-40℃~+85℃
	Operating humidity	5%~95%
	Storage humidity	5%~95%

Primary function

RS485 Port, realizing data transmission between RS485 and 4G Network

Rail-mount serial server

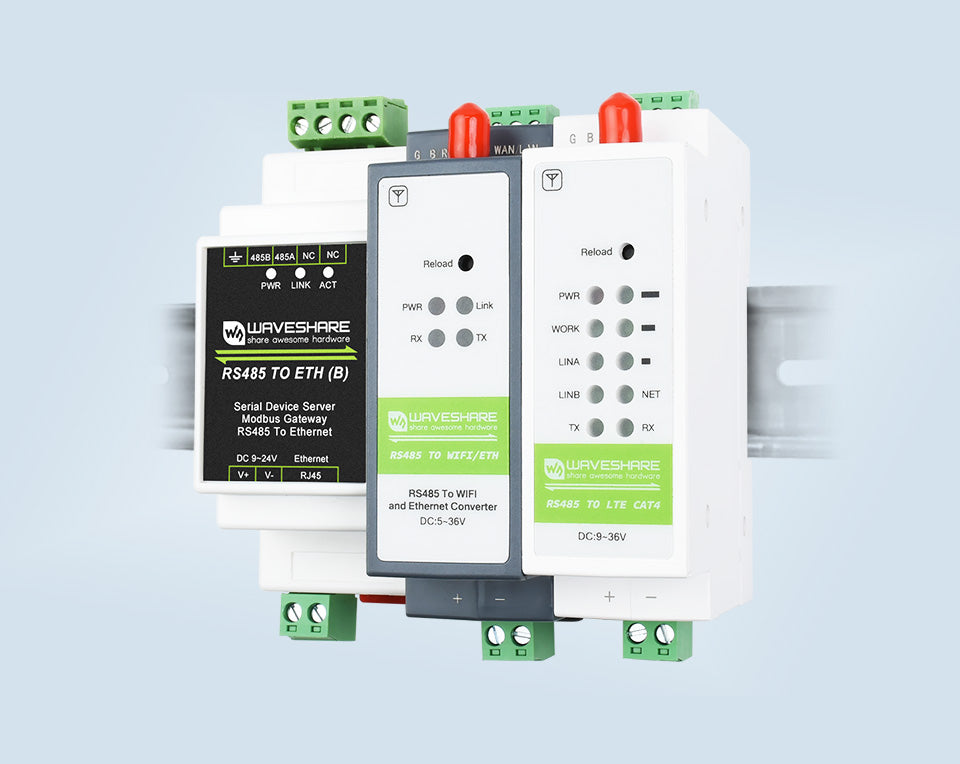

DIN rail-mount support, tiny size, easy installation, cost effective

Function block diagram

Multi working modes

Feature functions

Multi Configuration WaysSupport configuration via host computer, webpage, and serial port

Socket DistributionOn transparent transmission mode, the serial device can send data to specified Socket connection, and network data of each Socket connection can be sent to serial device via serial port

Hardware ProtectionLevel 4 ESD protection, Level 3 surge protection, Level3 EFT protection

User-defined Hartbeat/Registration PacketRegistration packet can be used to register the device on server, make it easy for the server to identify the device

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/RS485_TO_LTE_CAT4_(EU)

Lieferumfang

Note: power supply is not included, recommended: 12V Industrial DIN Rail Power Supply

1. RS485 TO LTE CAT4 (EU) x1
