SKU:WSAL20987
Industrial Gigabit PoE Splitter, Metal Case protection, 5V 2.5A Type-C Out
Regular price
7.220 Ft
Sale price
7.220 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Kurzbeschreibung: Industrial Gigabit PoE Splitter, Metal Case Protection, 5V 2.5A Type-C Power Output
Industrial Gigabit PoE Splitter, metal case protection, 5V 2.5A Type-C power output

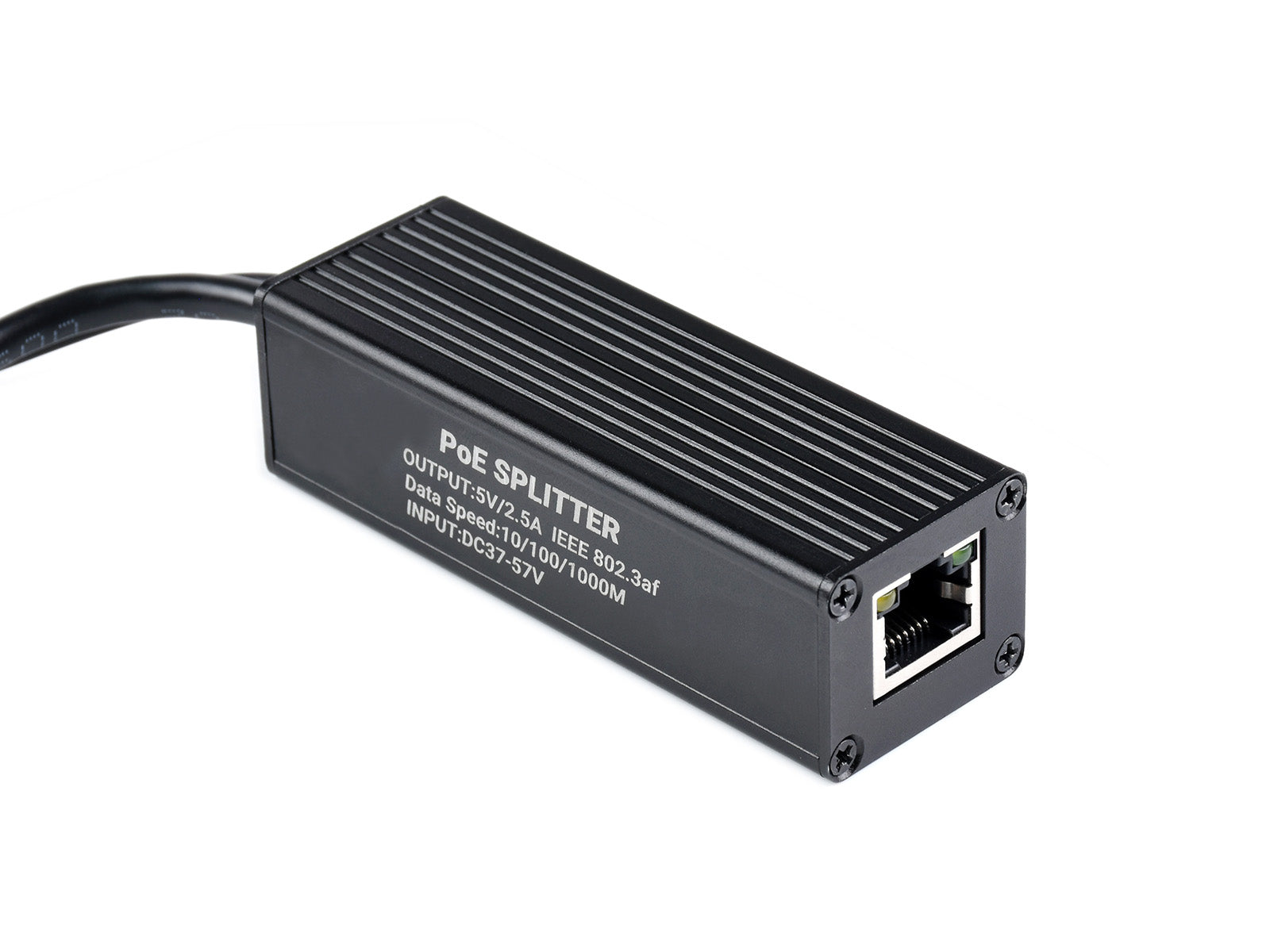

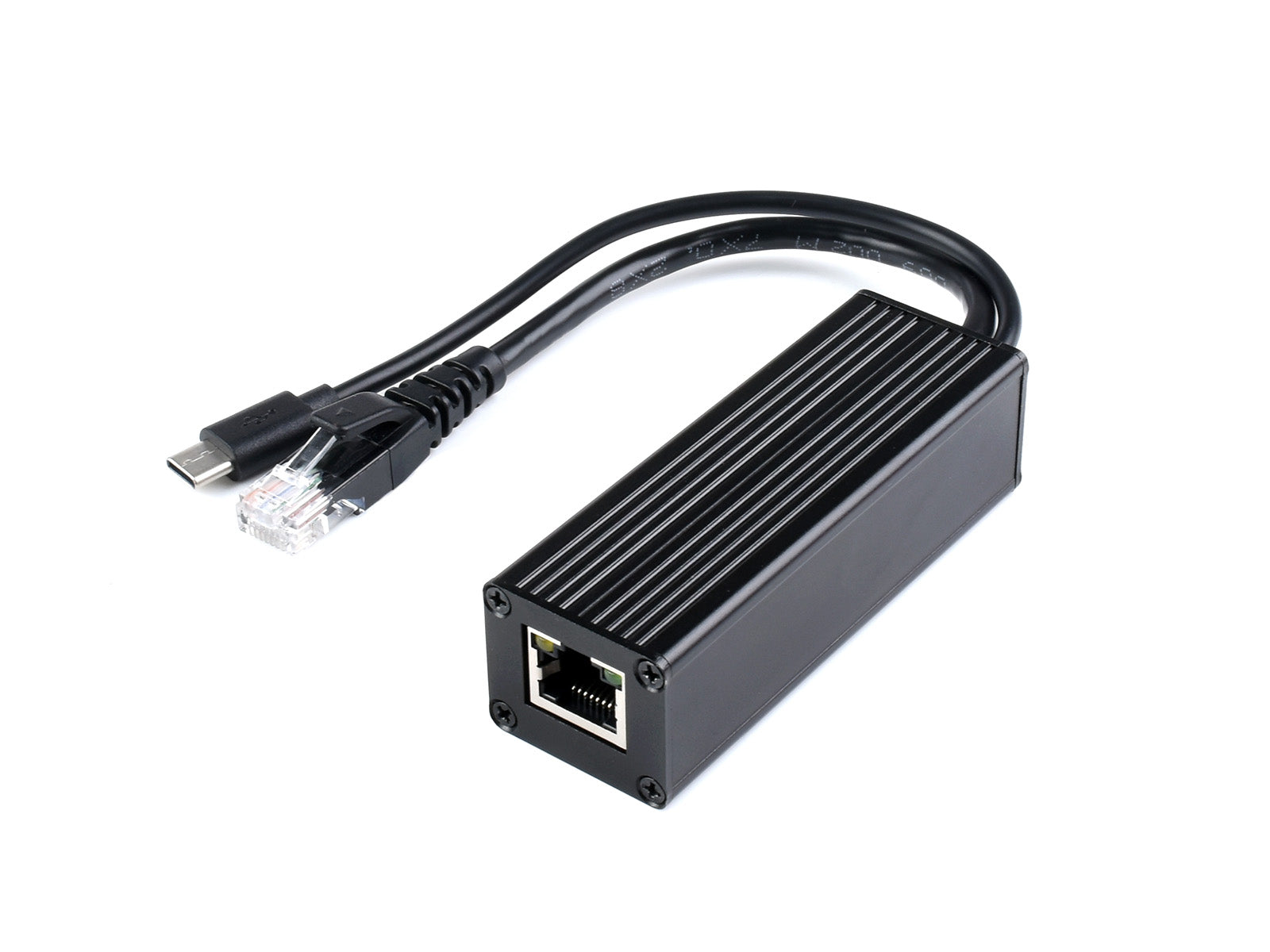

Industrial Gigabit PoE Splitter

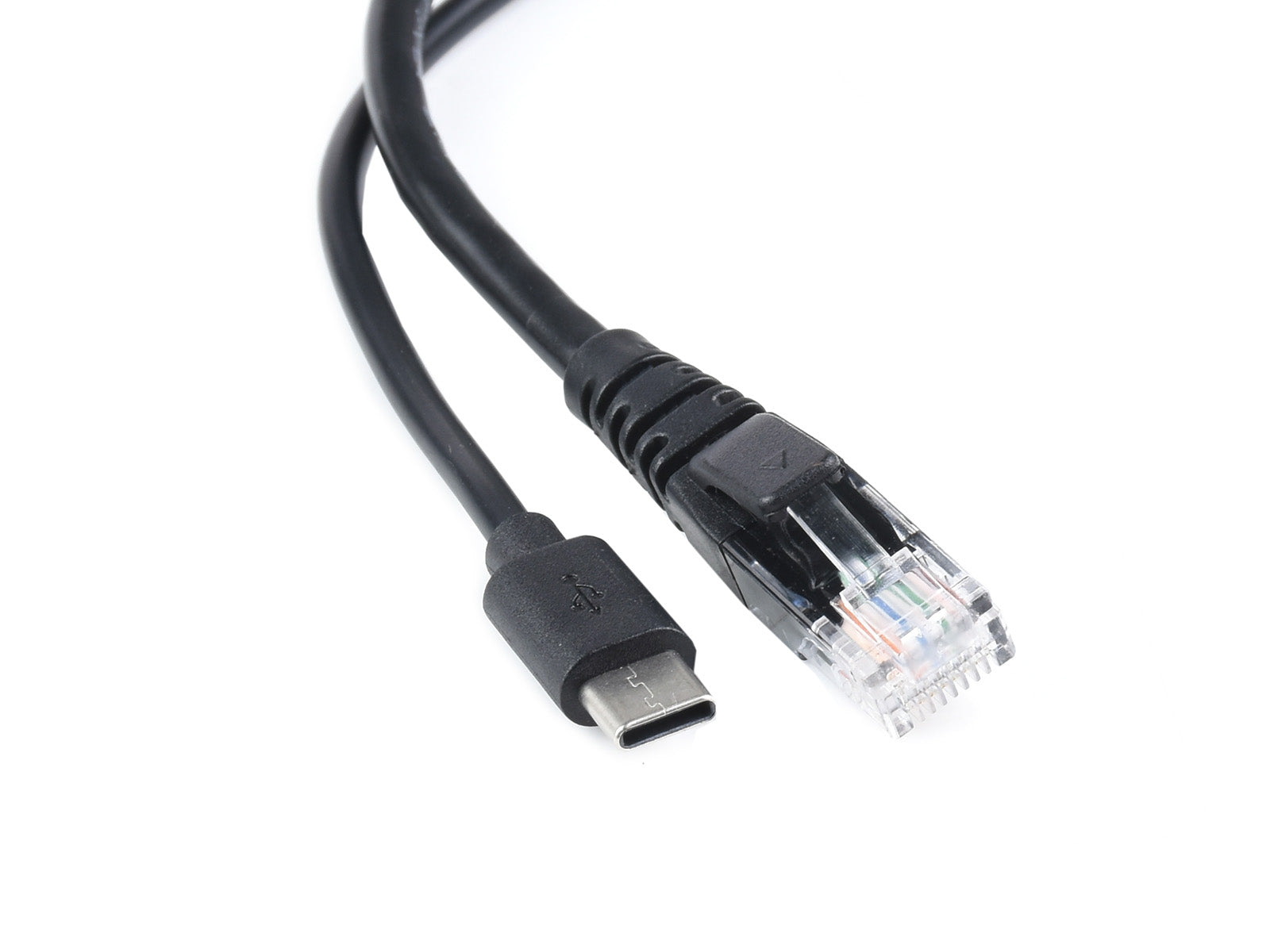

5V 2.5A Type-C power output
IEEE 802.3af/at-compliant Gigabit Ethernet
Features at a glance
- Incorporates SD4950 chip, high-efficiency, high-safety, stable-performance
- 10/100/1000Mbps auto-negotiation Ethernet port
- 802.3af/at-compliant PoE (Power over Ethernet) standard
- Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
- 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
- Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
| Power supply | supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering |
|---|---|
| PoE input voltage | 37V ~ 57V |
| Type-C output | 5V 2.5A (MAX) |
| Cable | Cat-5 UTP |
| Standard | IEEE 802.3 af/at PoE Ethernet |
| Data rate | 10/100/1000Mbps |
| LED indicator | PoE power input indicator |
| Dimensions | 86 × 30 × 25mm (l × w × h) |
| Operating temperature | -40℃ ~ 85℃ |
Switching Mode Power Supply (SMPS)
Isolated circuit protection, effectively protecting the powered device
Industrial grade protection case
aluminum alloy case, sturdy and rugged, higher protection level, better heat dissipation
Interface introduction
Application examples

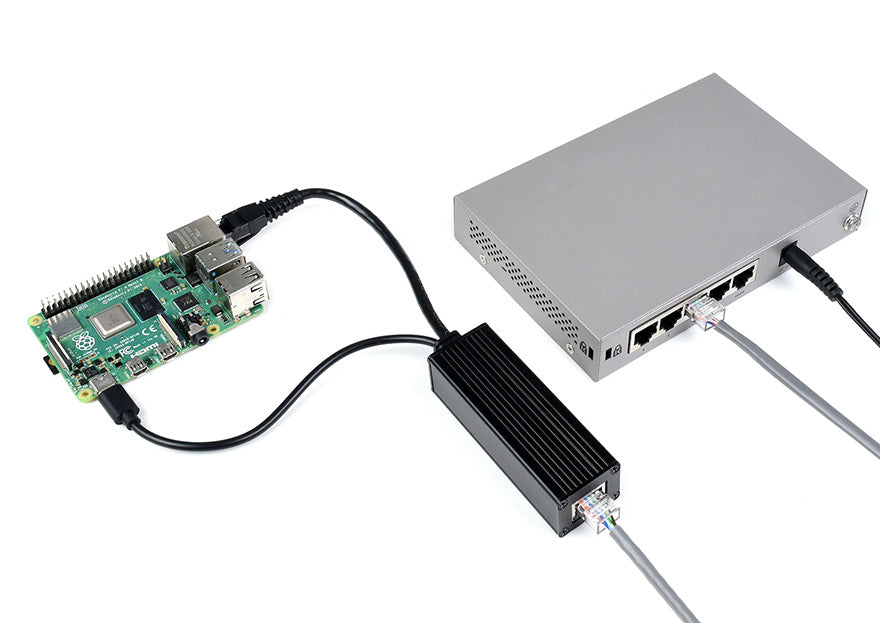

Powering the Raspberry Pi or other 5V-powered network devices by PoE switch
for reference ONLY, Raspberry Pi and switch are NOT included.
Outline dimensions
Lieferumfang
- POE-SPLITTER-TYPE-C x1
