SKU:WSAL21137

Kurzbeschreibung: Industrial Grade SIM7600G-H 4G DTU, USB UART/RS232/RS485 Multi Interfaces Communication, LTE Global Band Support

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

industrial grade SIM7600G-H 4G DTU, USB UART/RS232/RS485 multi interfaces communication, LTE global band support

SIM7600G-H 4G DTU

supports USB, UART/RS232/RS485 communication4G/3G/2G dial-up & GNSS positioning, global band support

Supports communication between USB / serial port (UART/RS232/RS485) and 4G network, supports GNSS positioning, compatible with OS like Windows/Linux.An ideal choice for fields like Raspberry Pi project, industrial control, industrial data collection, and other IoT applications that require 4G network connection.

Features at a glance

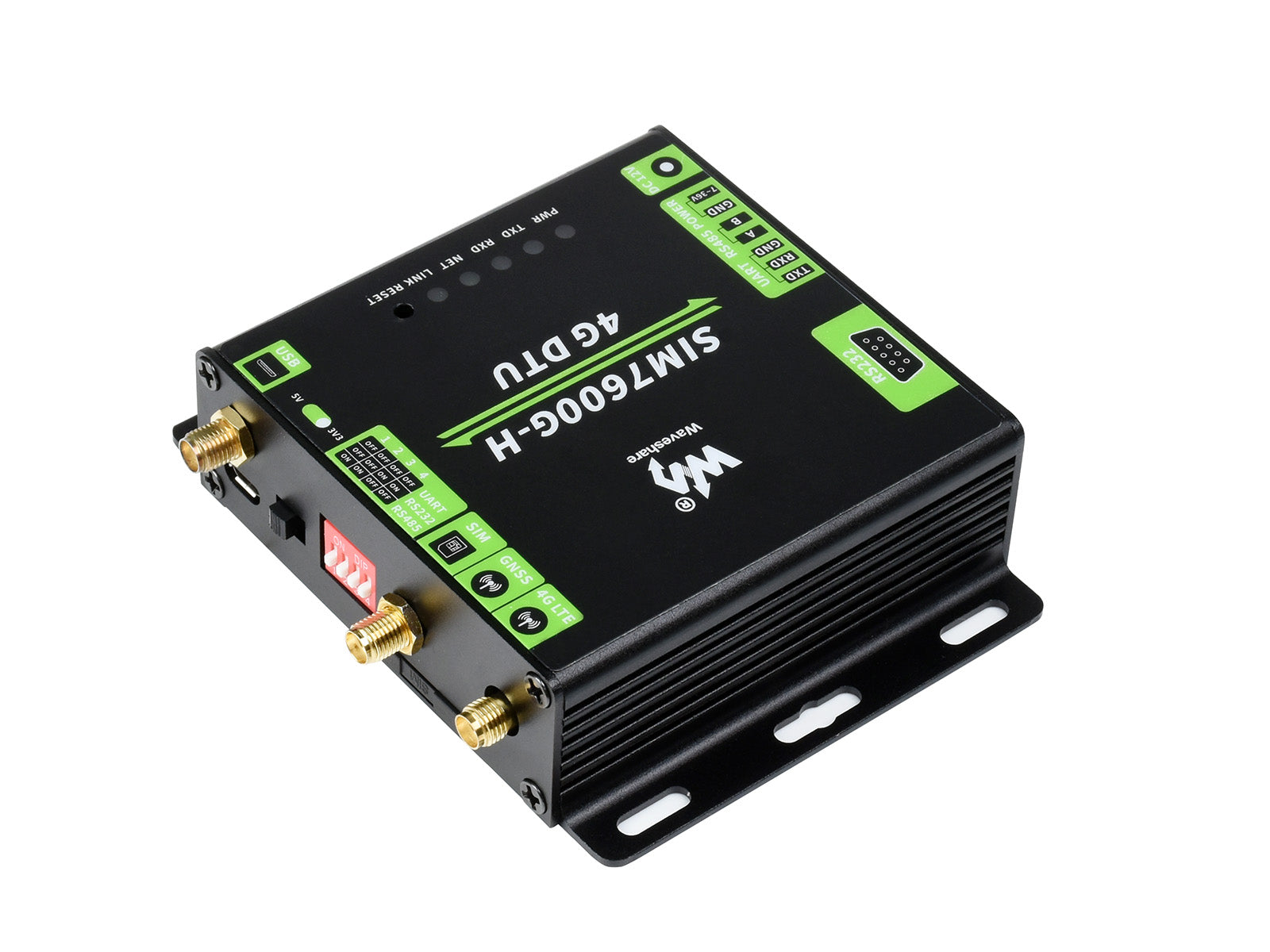

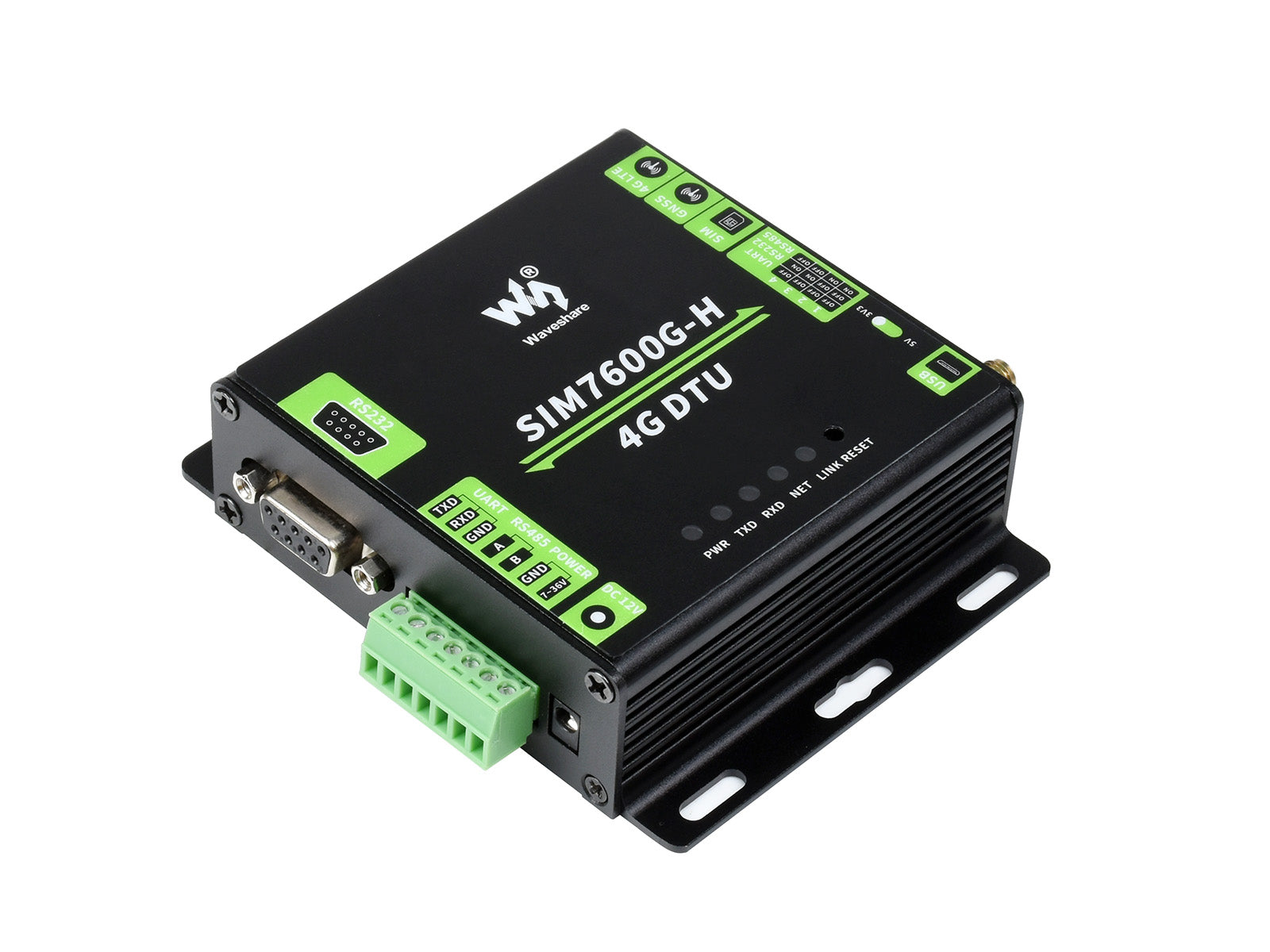

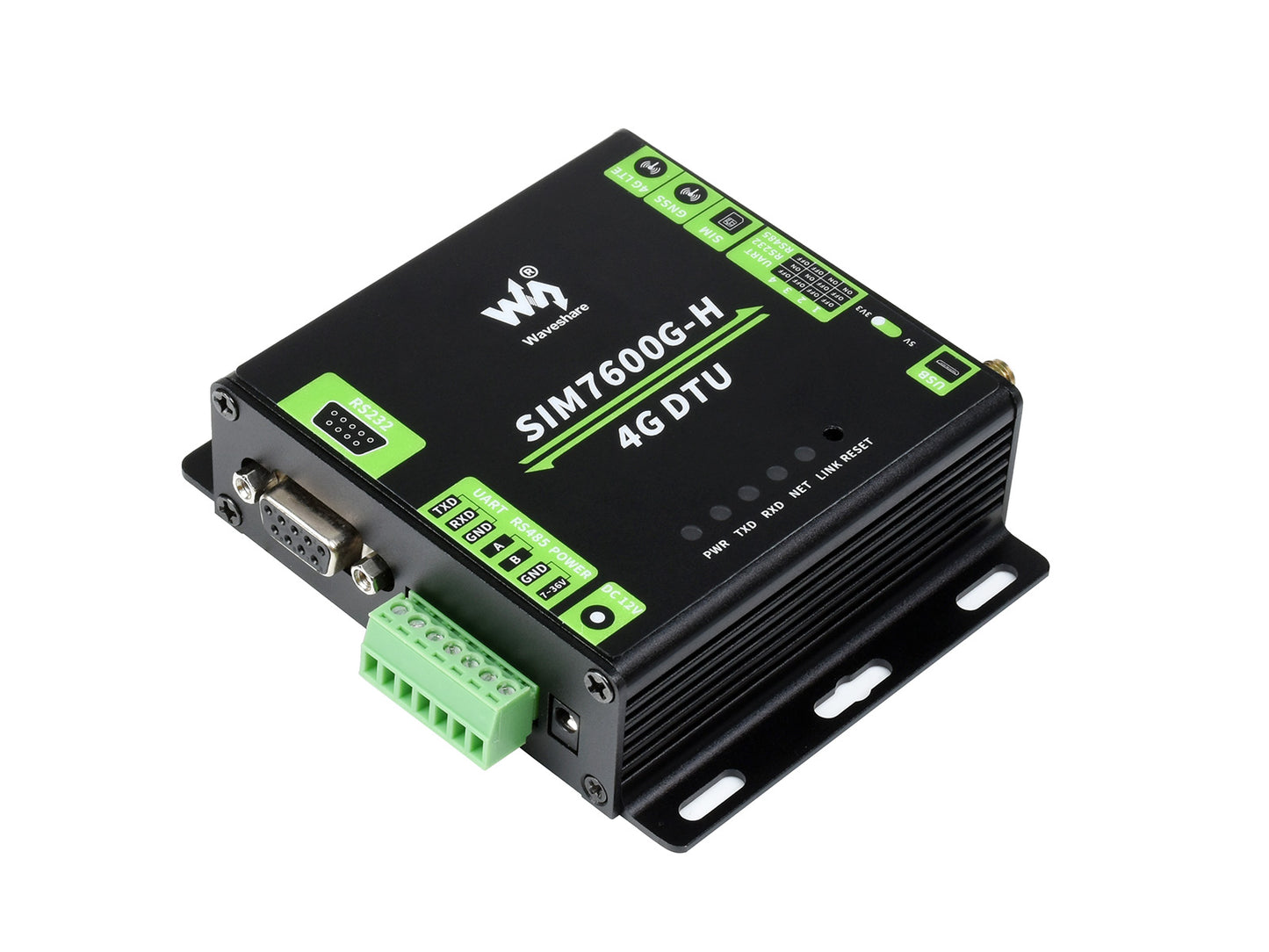

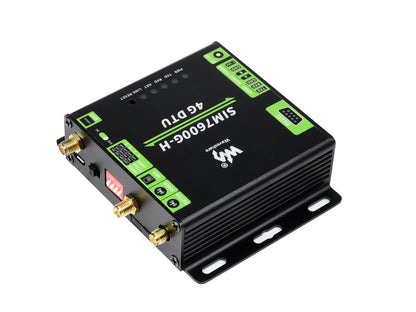

• 4G DTU development kit designed for industrial applications, allows direct integration or secondary development
• Based on SIM7600G-H communication module, supports global coverage of 4G/3G/2G network
• Supports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning
• USB to 4G communication, UART/RS232/RS485 to 4G communication
• 7 ~ 36 V wide range power supply, ideal for industrial applications
• Onboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception
• Multi protection circuits, such as ESD protection, anti-surge, stable and safe communication performance
• Baudrate: 300bps ~ 4Mbps (115200bps by default)
• AT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set)
• Aluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged & elegant

Specifications

Frequency band
4G	LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 LTE-TDD: B34, B38, B39, B40, B41
3G	UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
2G	GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS	GPS, Beidou, GLONASS, GALILEO, QZSS
Applicable regions	Global support
Data rate
4G (LTE Cat-4)	150Mbps(DL) / 50Mbps(UL)
3G (HSPA+)	42Mbps(DL) / 5.76Mbps(UL)
2G (EDGE)	236.8Kbps(DL) / 236.8Kbps(UL)
2G (GPRS)	85.6Kbps(DL) / 85.6Kbps(UL)
Software features
Communication protocol	TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS (controlled via AT commands, with module Open Linux SDK for secondary development)
OS support	Windows/Linux etc.
Hardware description

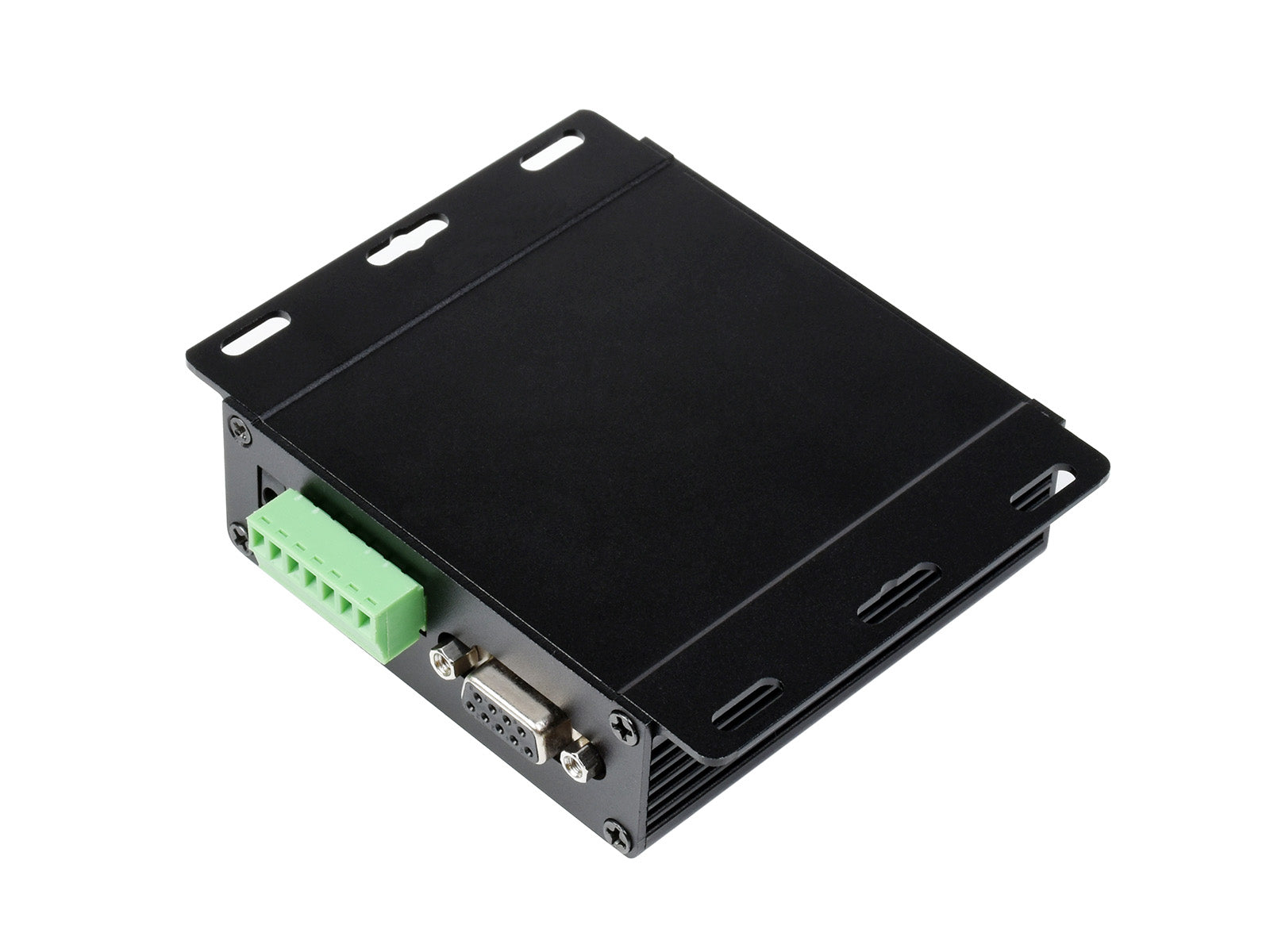

Serial port	RS232: connector: DB9 female protection: TVS protection, anti-surge, ESD protection
	RS485: connector: screw terminals (A, B) protection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)
	TTL(UART): operating voltage: 3.3V or 5V connector: screw terminals (TXD, RXD, GND)
Serial port baudrate	supports 300bps ~ 921600bps, 115200bps by default
USB port	operating voltage: 5V connector: Micro USB protection: ESD protection diode usage: parameter configuration, dial-up, firmware upgrade
Power input	connector: 7~36V screw terminals or DC 12V jack protection: Schottky diode protection, reverse-proof
Hardware protection	embedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case
Operating voltage	7 ~ 36V DC
Operating current	idle: 10~30mA @12V
	transmit: 80~450mA @12V (depending on the network condition)
Indicator	PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (user-defined)
Button	reset button
SIM card	standard SIM card (1.8V / 3V)
Antenna connector	MAIN LTE, AUX LTE, GNSS
Operating temperature	-40℃ ~ 80℃

Global band 4G/3G/2G support

Windows/Linux support

connect to the host via USB, install driver, the high speed 4G connection will be ready to use

GNSS positioning

supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station

Cloud Communication

supports USB/UART communication interfacessupports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols

Secondary development support

the module comes with SIMCom AT firmware by default, while Open Linux SDK is also available for developing your own software function

Multiple antennas

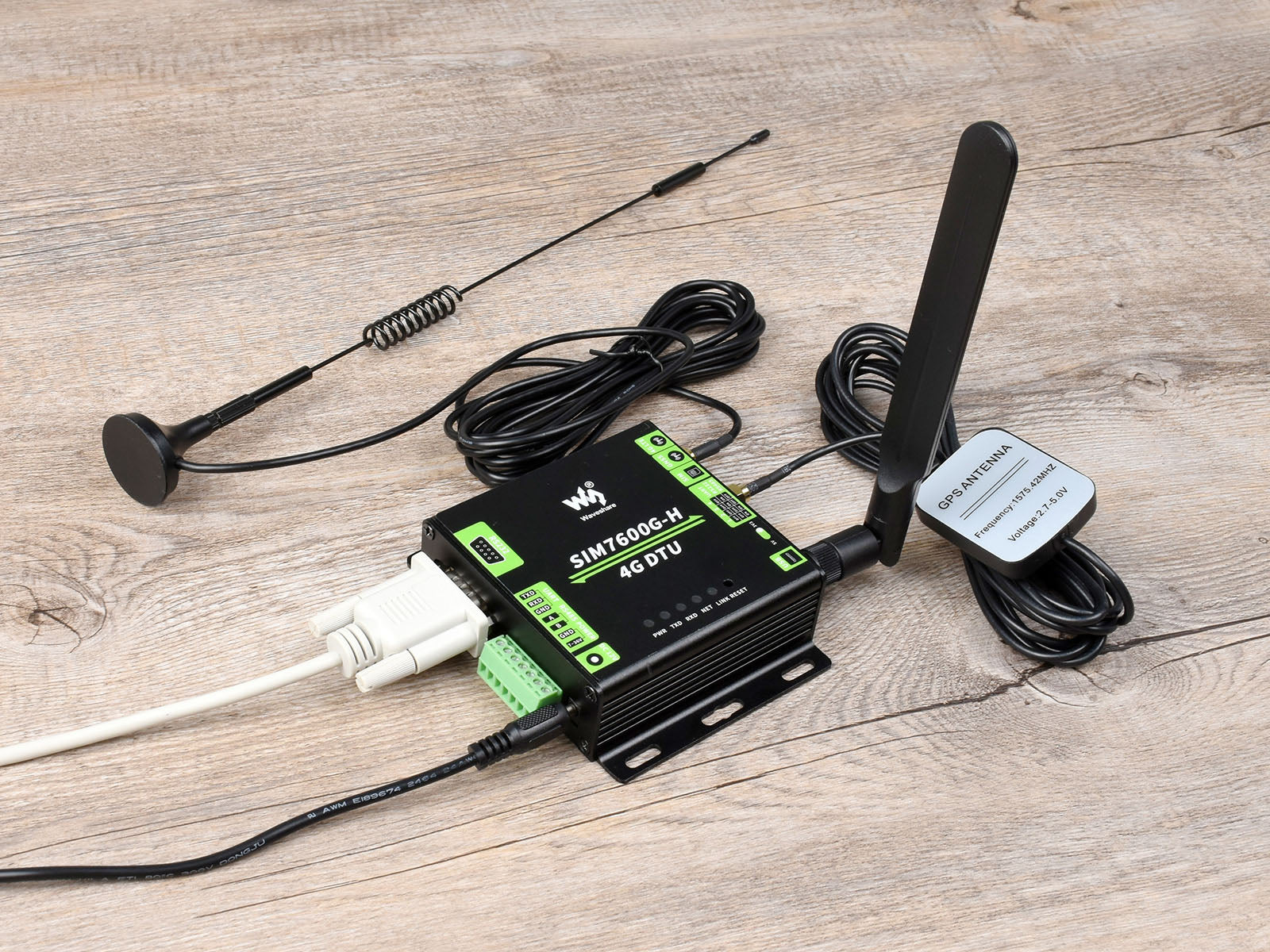

high gain LTE MAIN antenna: magnetic base, waterproof, supports outdoor usage through extension cablehigh gain LTE AUX antenna: for signal enchantment, speeding up the data rateGPS antenna: 28±2dB gain, IP65~IP67 waterproof

Resources introduction

Indicators and button

monitoring the connection and signal status in real time

1. PWR: lights up red when power-on
2. TXD: blinking blue when transmitting data
3. RXD: blinking blue when receiving data
4. NET: blinking green when network connection is established
5. LINK: a user-defined LED
6. RESET: reset button

Outline Dimensions

Resources & Services

Wiki:SIM7600G-H_4G_DTU

Lieferumfang

1. SIM7600G-H 4G DTU main unit x1
2. High gain LTE MAIN antenna (~ 3m) x1
3. High gain LTE AUX antenna x1
4. GPS antenna x1
5. Serial cable male to female (~ 1.5m) x1
6. USB-A to micro-B cable (~ 1.2m) x1
7. OPTIONS 12V 1.0A power adapter x1

also recommended: 12V industrial rail-mount power supply
