SKU:WSAL17286

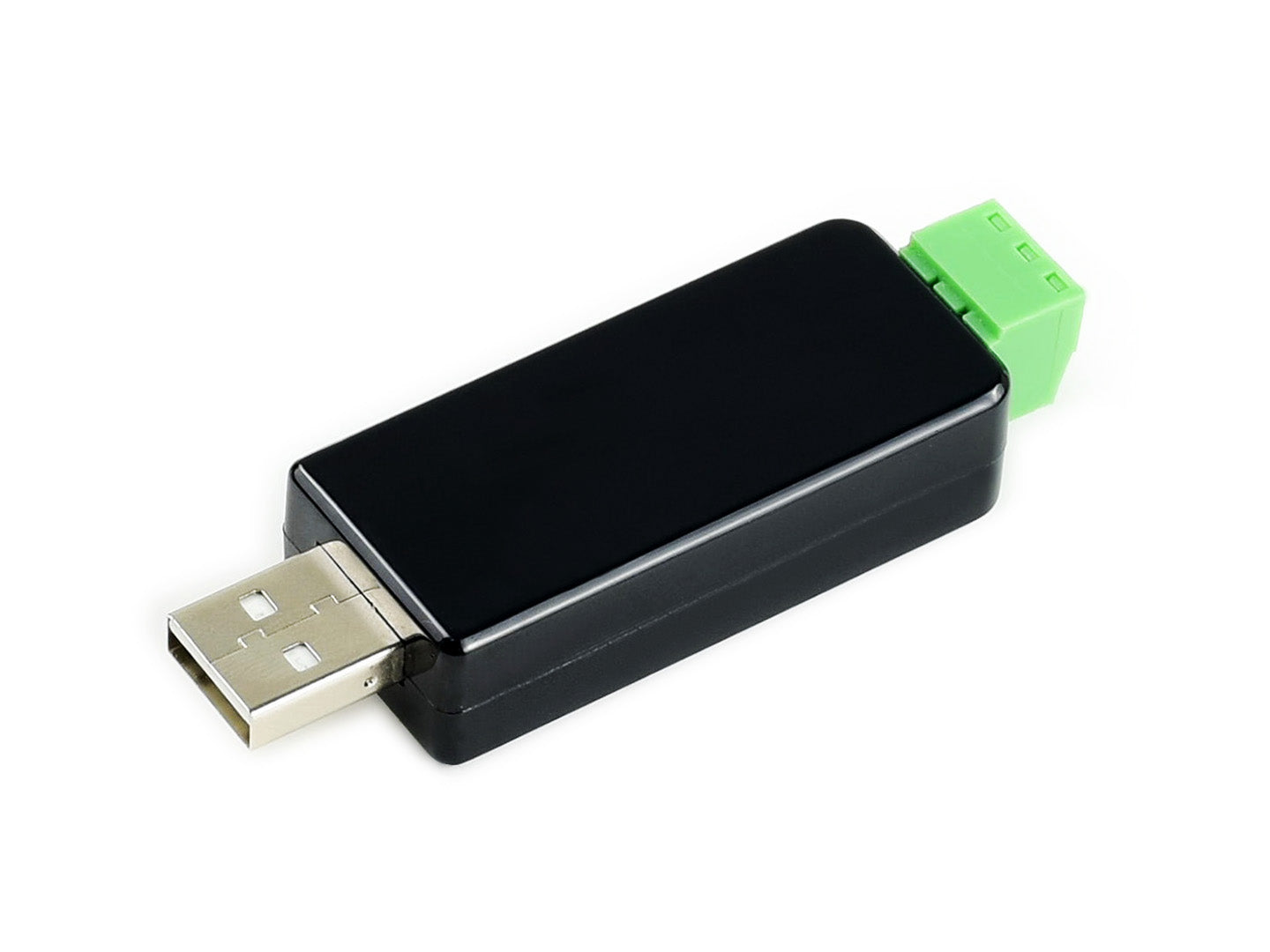

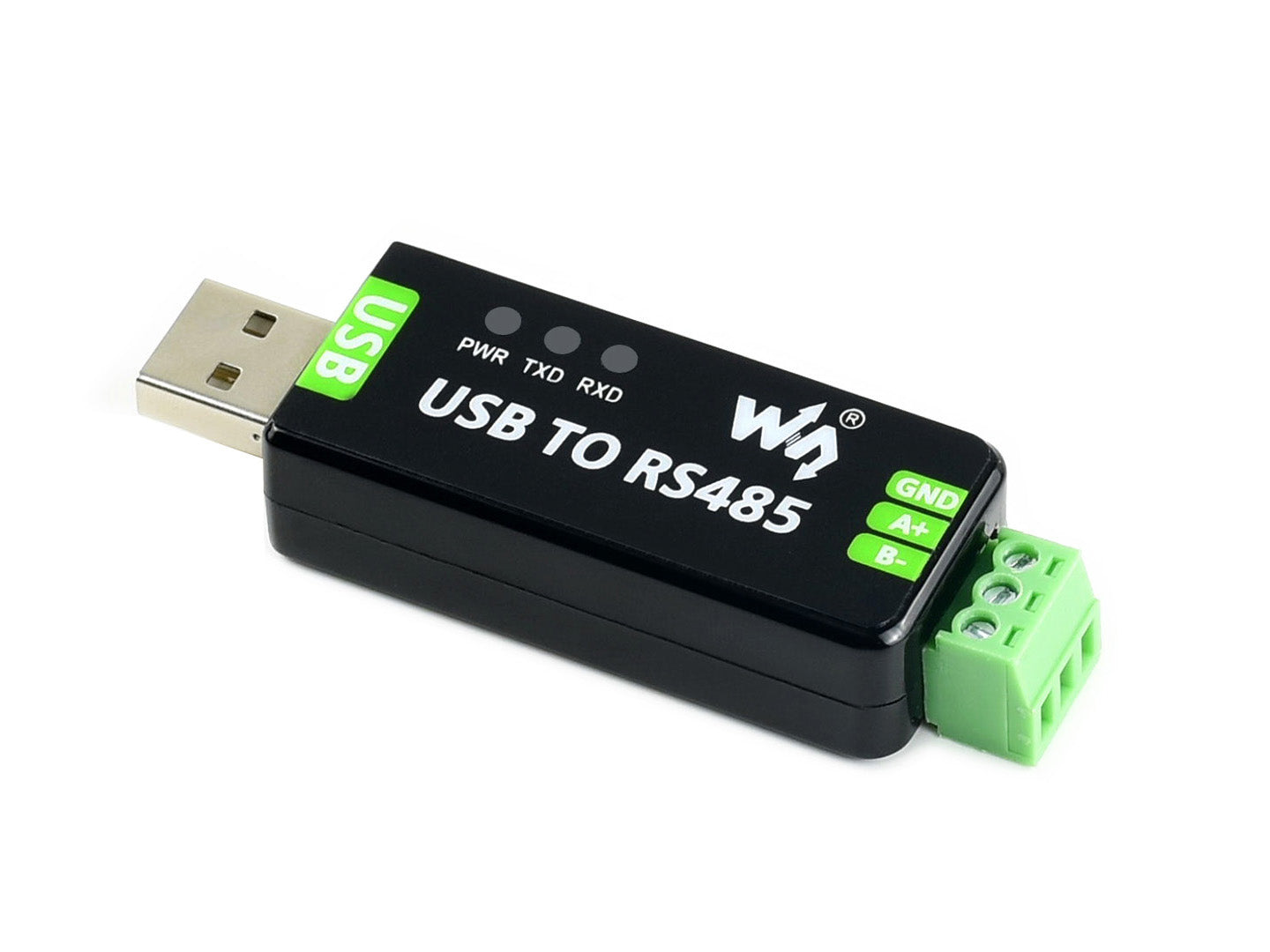

Industrial USB to RS485 Bidirectional Converter
Couldn't load pickup availability
Kurzbeschreibung: Industrial USB To RS485 Bidirectional Converter, Onboard Original FT232RL And SP485EEN
Industrial USB to RS485 bidirectional converter with original FT232RNL and SP485EEN chip. Due to its stable communication, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
- Support USB to RS485 bidirectional conversion
- Onboard Original FT232RNL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

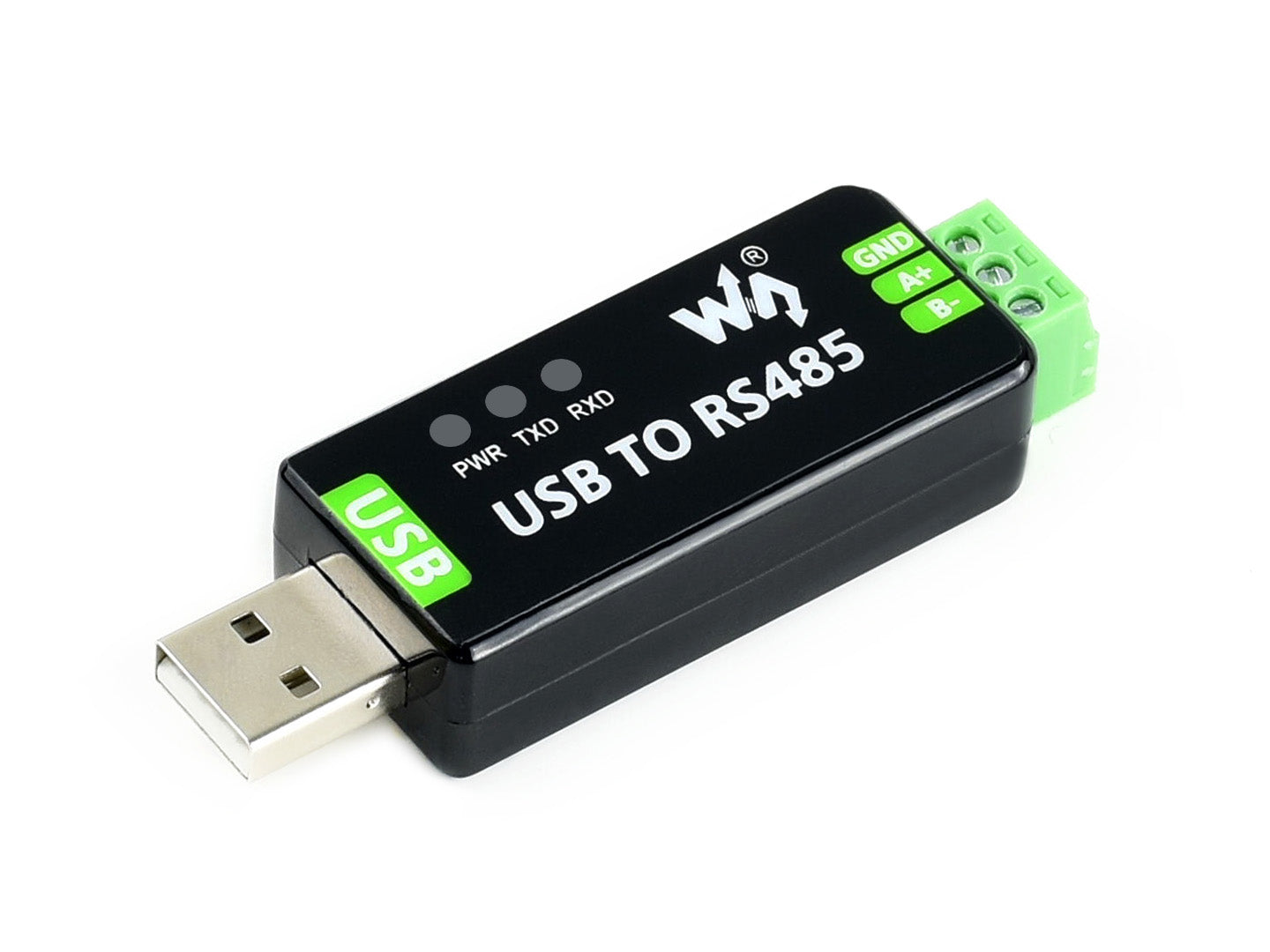

- 3 LEDs for indicating the power and transceiver status
| PRODUCT TYPE | Industrial Grade USB to RS485 converter | |
|---|---|---|
| Host port | USB | |
| Device port | RS485 | |
| Baudrate | 300bps ~ 921600bps | |
| USB | Operating voltage | 5V |
| Connector | USB-A | |
| Protection | 200mA self-recovery fuse, ESD protection | |
| Transmission distance | About 5m | |

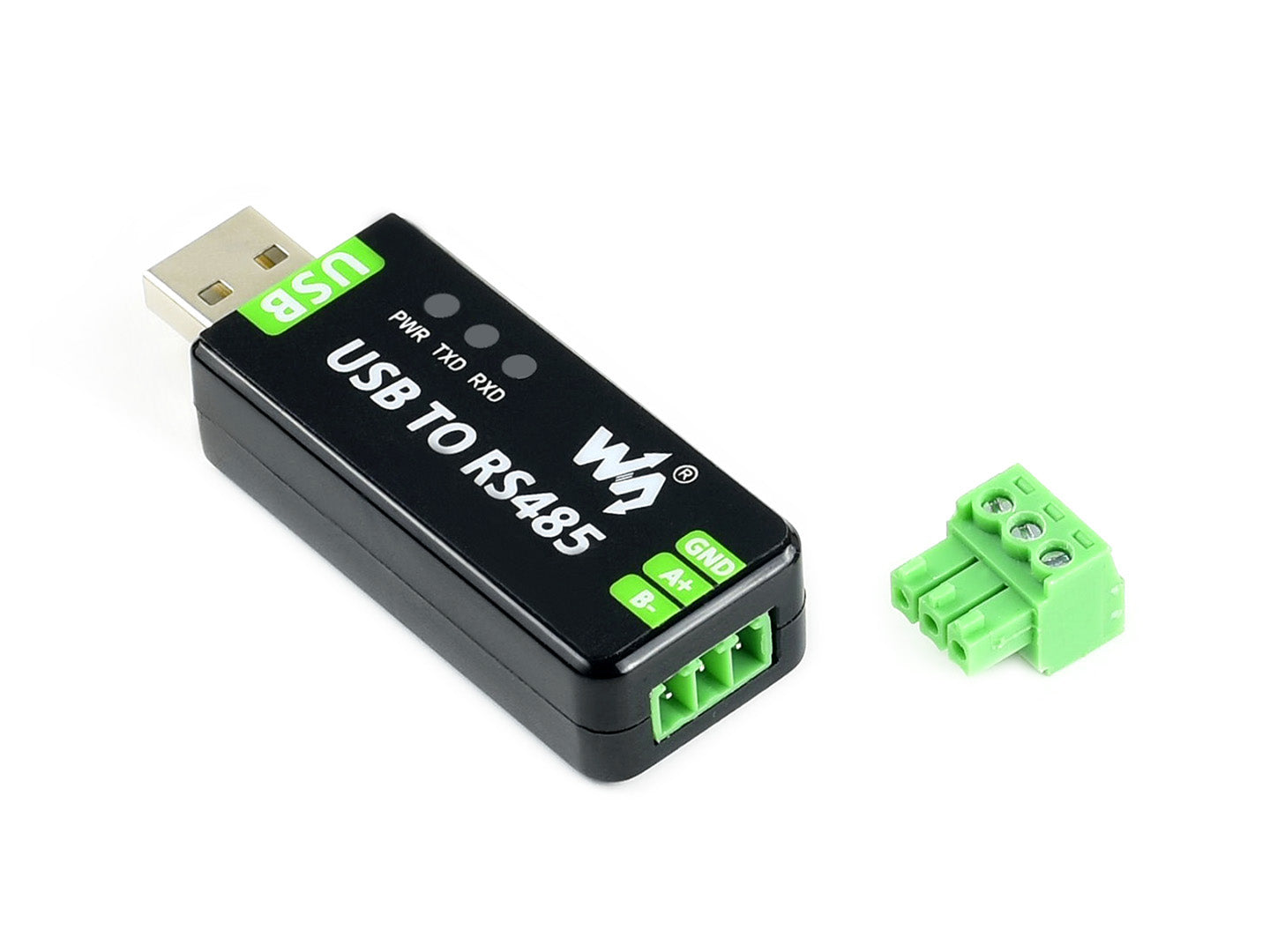

| RS485 | Connector | Screw terminal |
| Pins | A+, B-, GND | |
| Direction control | Hardware automatic control | |
| Protection | 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor) | |
| Transmission distance | About 1.2km(low rate) | |
| Transmission mode | Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| LED indicators | PWR | Red power indicator, light up when there is USB connection and voltage is detected |
| TXD | Red TX indicator, light up when the USB port sends data | |
| RXD | Red RX indicator, light up when the device ports send data back | |
| Operating environment | Temperature | -15℃ ~ 70℃ |
| Humidity | 5%RH ~ 95%RH | |
| Operating system | Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 | |
Onboard original FT232RNL and SP485EEN chips, providing better stability and compatibility, built-in lightningproof tube, resettable fuse, ESD and TVS protection circuits, etc.
The USB signal can be converted into a balanced differential RS485 signal and the transmission rate is stable. The reliable speed is 300-921600bps, the transmission distance is about 1.2km for RS485, and about 5 meters for USB.
Supports Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP, etc.
Onboard 3 LEDs for indicating the power and transceiver status
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Lieferumfang
- USB TO RS485 x1
- USB-A male to female cable ~1.2m x1
- Screwdriver x1
