SKU:WSAL10670

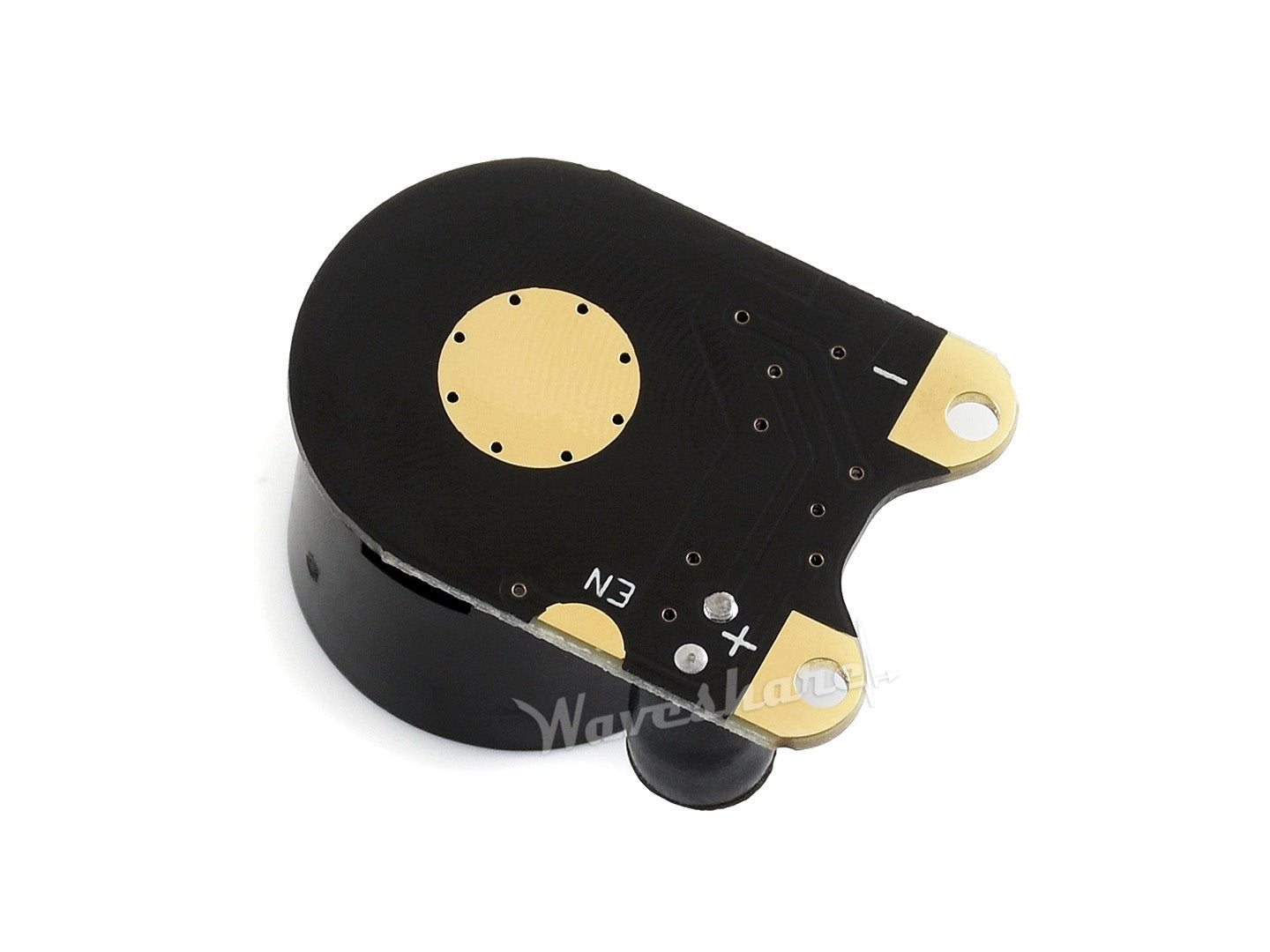

Infrared LED Board (B), Wide Field of View
Regular price
2.027 Ft
Sale price
2.027 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

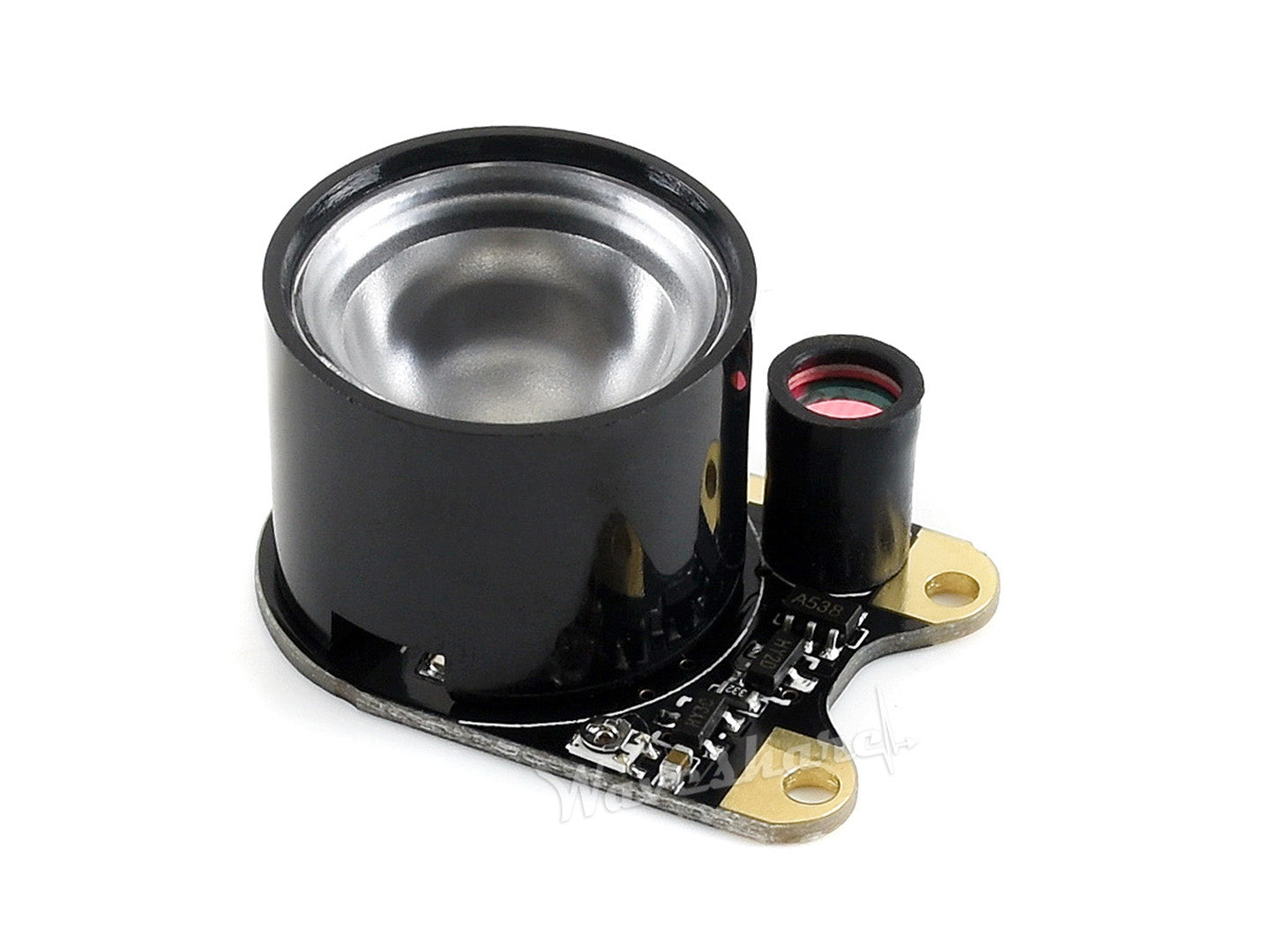

Light-sensing Infrared LED Board, Wide Field of View
Features
- 3W high-power 850 infrared LED

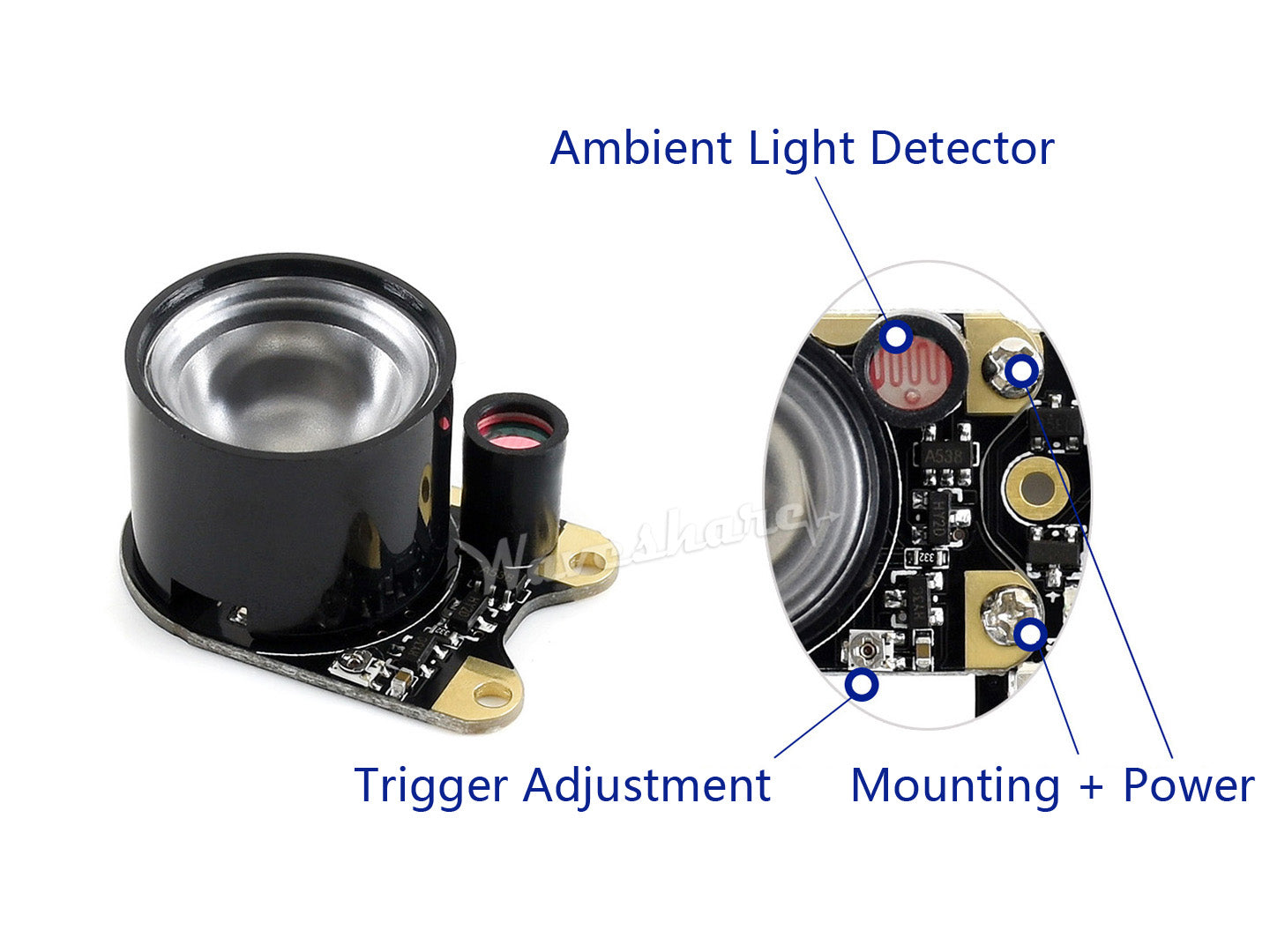

- Onboard photoresistor, the ambient light detector
- Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED

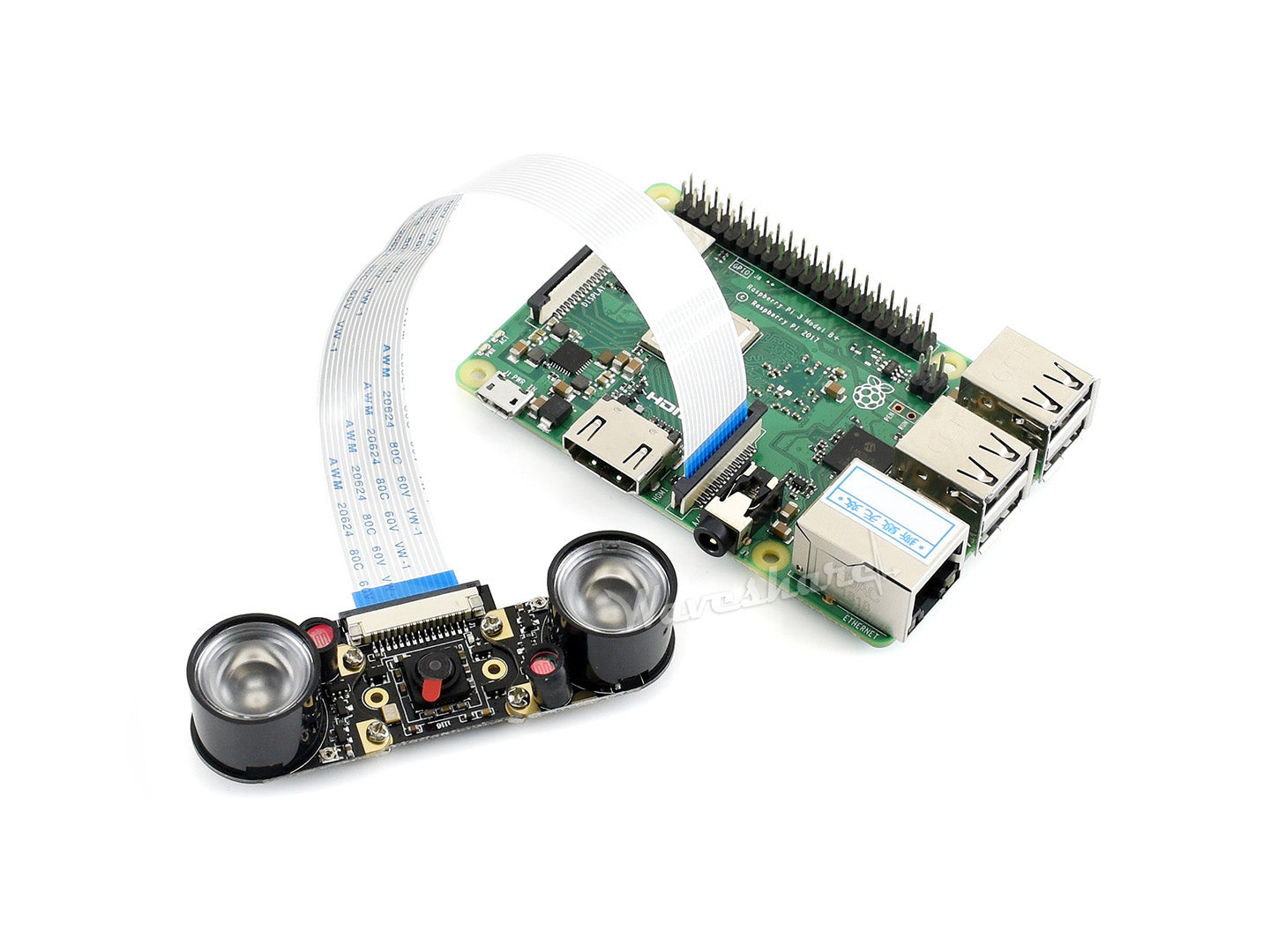

- Suit for Raspberry Pi cameras which feature infrared night vision function:
- 100 degree field of view, two pieces of LED is required to get wider field of view, up to 160 degree
- Supported cameras: RPi Camera (E),RPi Camera (F),RPi Camera (H)
How to Use
- Connect the Infrared LED Board to the camera PCB by screws
- The screw holes are used for both attachment and power supply
- Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically
- When ambient light is lower than threshold value, the infrared LED is on, vice versa
Note :
- Limited by the Raspberry Pi power supply, the 3W high-power infrared LED might cause the Pi to increase heating, heat sinks are suggested.
- Ideal imaging distance is within 3m. When the distance goes up to 6m, the night vision camera can just capture blurry outlines.
Lieferumfang
Note: Only 1 LED is included, it's recommended to buy 2 pieces when using with Raspberry Pi cameras, for both the left and right sides
- Infrared LED Board (B) x1
- Screws x2
