SKU:WSAL4438
LCD12864-ST (3.3V Blue Backlight)
Regular price
5.775 Ft
Sale price
5.775 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
128*64 DOTS, Graphic LCD module, White Character, Blue Backlight, 3.3V For Logic Circuit
Features
| Display construction | 128*64 DOTS |
|---|---|
| Display mode | TN/STN |
| Display type | Positive Transflective |
| Backlight | LED |
| Viewing direction | 6 o'clock |
| Operating temperature | Indoor |
| Driving voltage | Single power |
| Driving method | 1/33 duty,1/6 bias |
| Type | COB (Chip On Board) |
| Number of data line | 8-bit parallel |
| Connector | Pin / ZEBRA |
Key Parameters
| Driver IC | ST7920 / ST7921 |
|---|---|
| Interface | Parallel / SPI |
| Backlight | Blue |
| Character Color | White |
| Character Set | ASCII |
| Dimension | 93 * 70 * 13.5 |

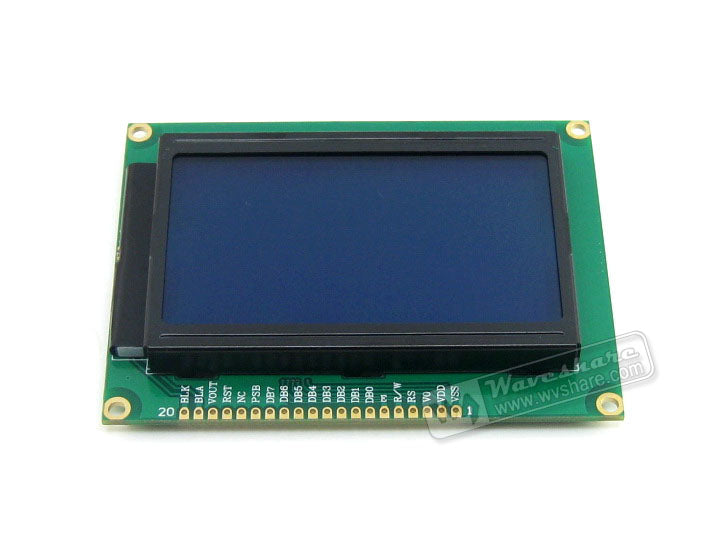

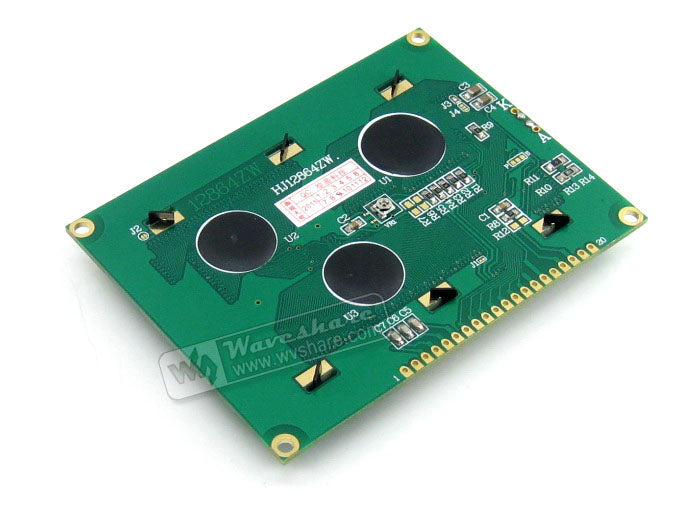

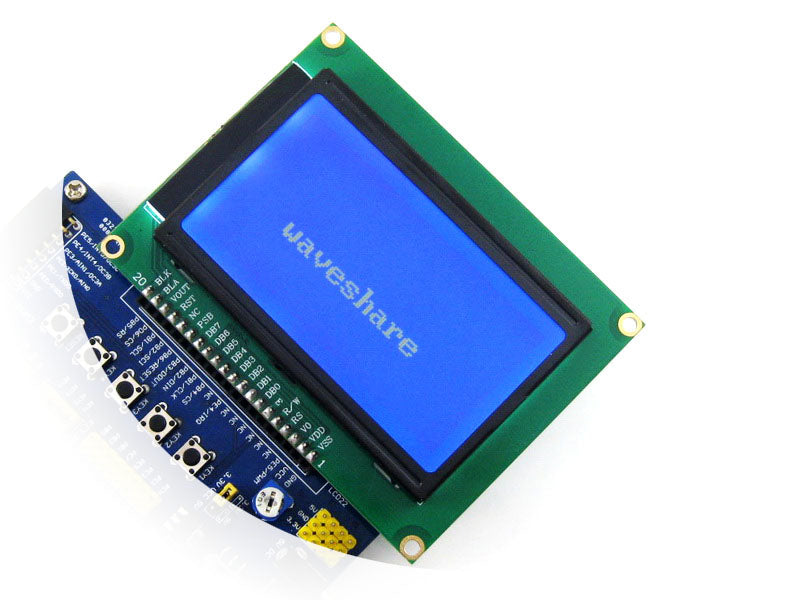

Photos
Interface
| PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
|---|---|---|---|
| 1 | VSS | Ground | 0V (GND) |
| 2 | VDD | Power Supply For Logic Circuit | +3.3V |
| 3 | V0 | LCD Contrast Adjustment | |
| 4 | RS or CS | Parallel Mode:Instruction/Data Register SelectionSerial Mode:Chip Select | Parallel Mode:RS = 0 : Instruction RegisterRS = 1 : Data RegisterSerial Mode:Active-high |
| 5 | R/W or SID | Parallel Mode:Read/Write SelectionSerial Mode:Data | Parallel Mode:R/W = 0 : Register WriteR/W = 1 : Register Read |
| 6 | E or SCK | Parallel Mode:Enable SignalSerial Mode:Clock | Parallel Mode:Active-high |
| 7 | DB0 | Parallel Mode:Data BusSerial Mode:NC | Parallel Mode:DB0-DB7 |
| 8 | DB1 | ||
| 9 | DB2 | ||
| 10 | DB3 | ||
| 11 | DB4 | ||
| 12 | DB5 | ||
| 13 | DB6 | ||
| 14 | DB7 | ||
| 15 | PSB | Serial/Parallel Selection | PSB=0 : Serial ModePSB=1 : 8/4Bit Parallel Bus Mode |
| 16 | NC | ||
| 17 | RST | Reset Signal | Active-lowRSTB=0,Display Off, Display From Line 0 |
| 18 | Vout | Dual Voltage Output | Available when VDD＝+3.3V |
| 19 | A | Supply Voltage For LED+ | +3.3V |
| 20 | K | Supply Voltage For LED- | 0V |
External Dimension
Datasheet Download
ST7920.pdfST7921.pdfLieferumfang
- LCD12864-ST (3.3V Blue Backlight) x 1
