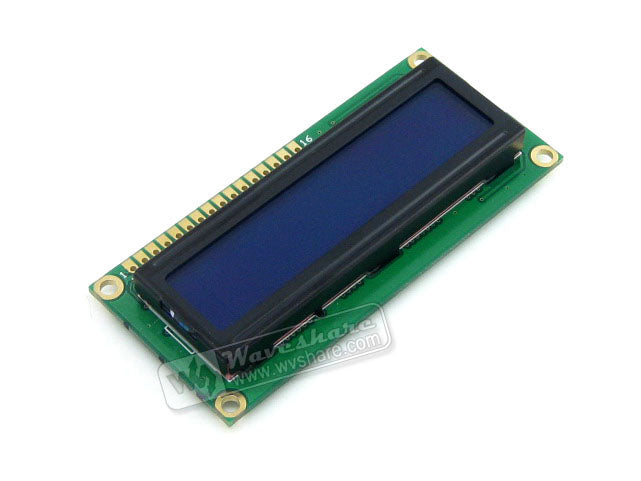

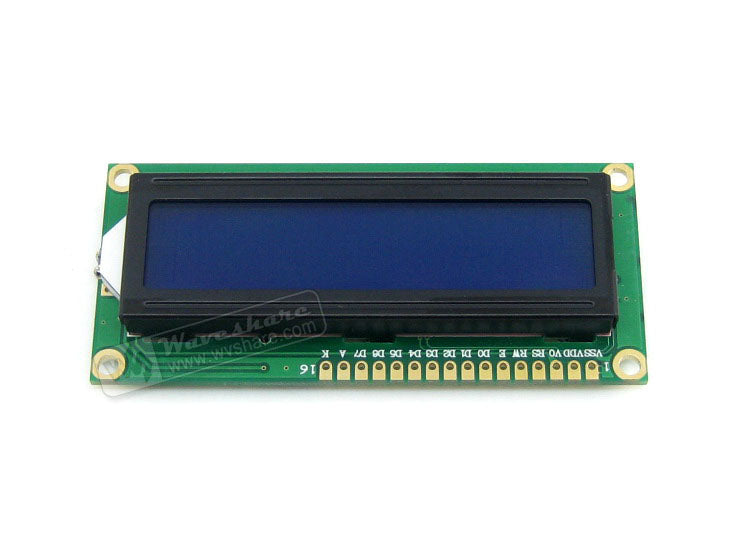

LCD1602 (3.3V Blue Backlight)
Regular price
1.666 Ft
Sale price
1.666 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
16 Characters * 2 Lines, Character LCD module, White Character, Blue Backlight, 3.3V For Logic Circuit
Features
| Display construction | 16 Characters * 2 Lines |
|---|---|
| Display mode | TN/STN |
| Display type | Positive Transflective |
| Backlight | LED |
| Viewing direction | 6 o'clock |
| Operating temperature | Indoor |
| Driving voltage | Single power |
| Driving method | 1/16 duty,1/5 bias |
| Type | COB (Chip On Board) |
| Number of data line | 8-bit parallel |
| Connector | Pin / ZEBRA |
Key Parameters
| Driver IC | SPLC780D (compatible with HD44780) |
|---|---|
| Interface | Parallel |
| Backlight | Blue |
| Character Color | White |
| Character Set | ASCII |
| Dimension | 80 * 36 * 11 |
Interface
| PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
|---|---|---|---|
| 1 | VSS | Ground | 0V (GND) |
| 2 | VCC | Power Supply For Logic Circuit | +3.3V |
| 3 | V0 | LCD Contrast Adjustment | Recommends 10K Potentiometerbetween V0 and GND |
| 4 | RS | Instruction/Data Register Selection | RS = 0 : Instruction RegisterRS = 1 : Data Register |
| 5 | R/W | Read/Write Selection | R/W = 0 : Register WriteR/W = 1 : Register Read |
| 6 | E | Enable Signal | Active when High-level turns to Low-level |
| 7 | D0 | Data Input/Output Lines | 8 BIT: D0-D7 |
| 8 | D1 | ||
| 9 | D2 | ||
| 10 | D3 | ||
| 11 | D4 | ||
| 12 | D5 | ||
| 13 | D6 | ||
| 14 | D7 | ||
| 15 | A | Supply Voltage For LED+ | +3.3V |
| 16 | K | Supply Voltage For LED- | 0V (GND) |
External Dimension
Datasheet Download
SPLC780D.pdfLieferumfang
- LCD1602 (3.3V Blue Backlight) x1
