SKU:WSAL18709

Low-Profile CPU Cooling Fan for Raspberry Pi 4B/3B+/3B, with Aluminum Alloy Bracket, optional GPIO adapter

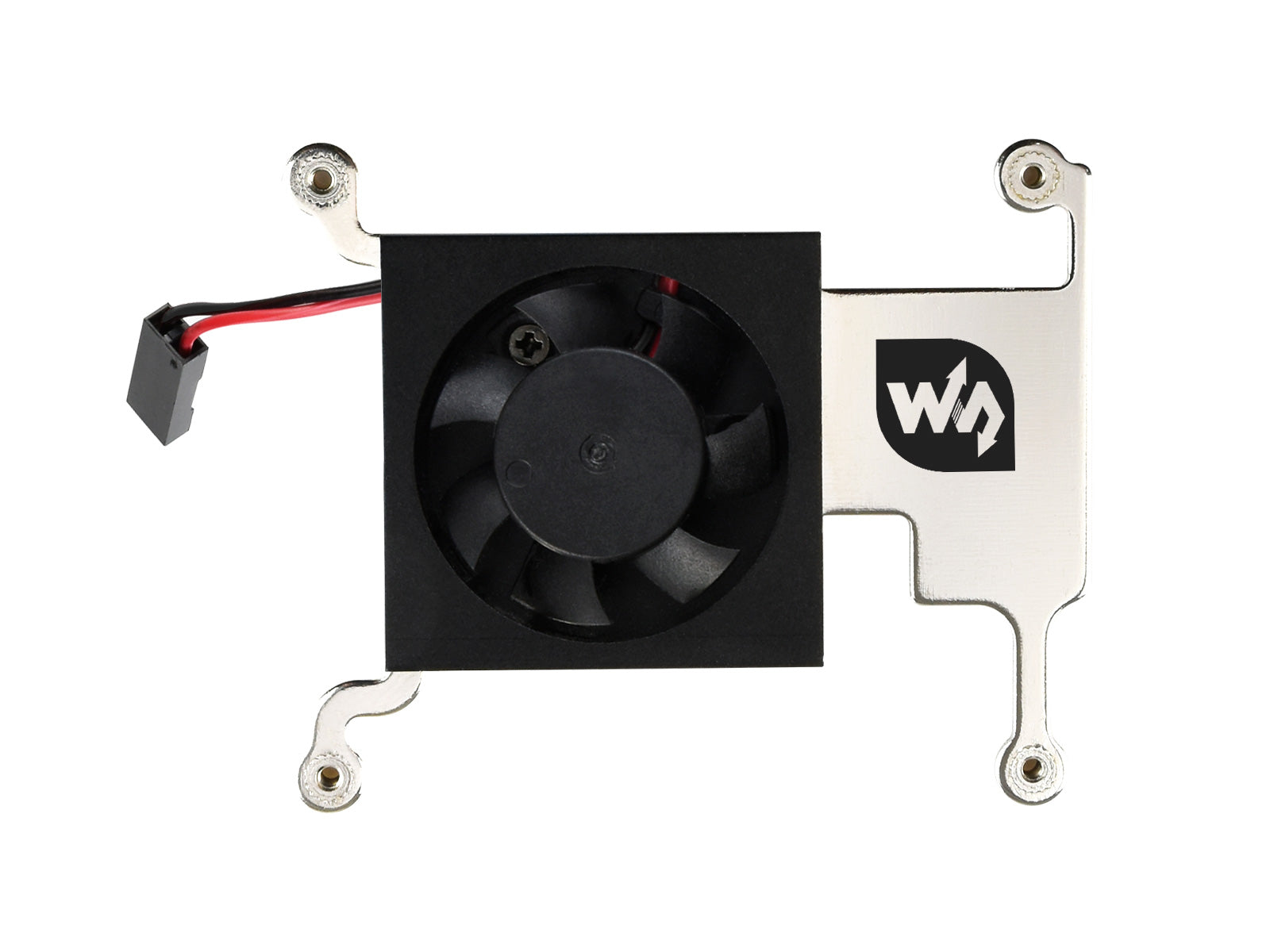

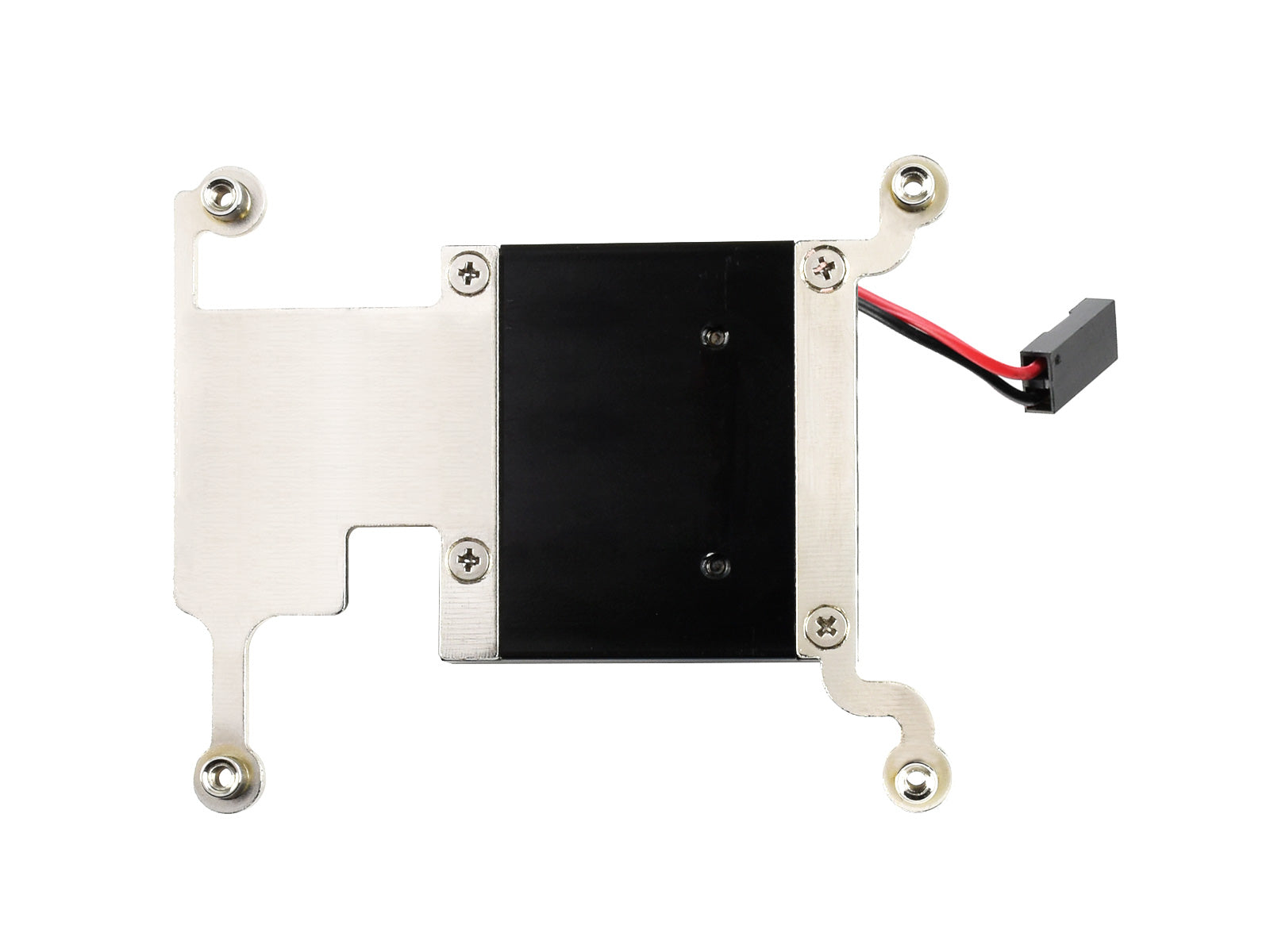

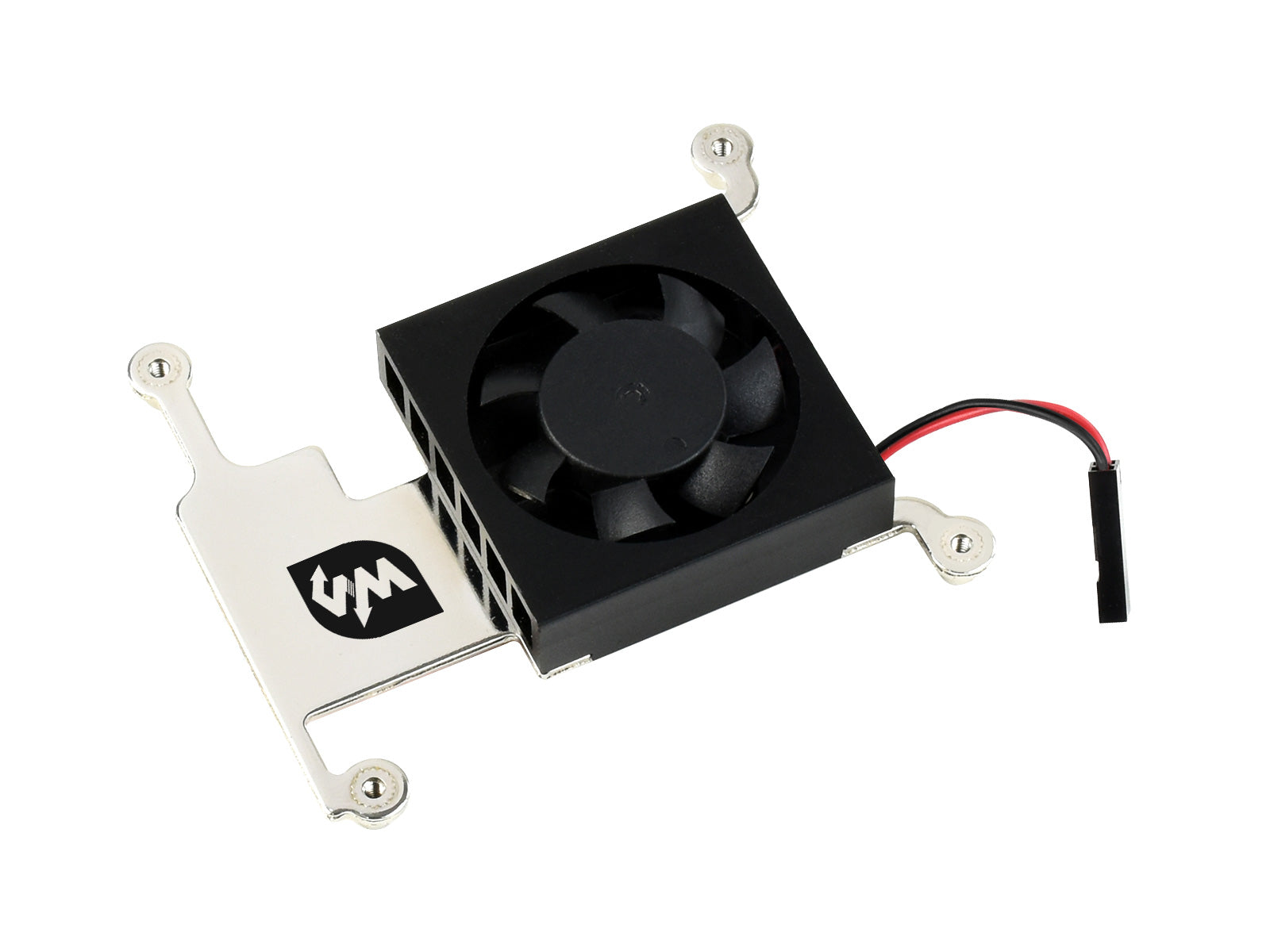

CPU Cooling Fan for Raspberry Pi

Low noise, better cooling

Specifications

Supported Pi	Raspberry Pi 4B/3B+/3B
Power supply	DC 5V input (can be powered from Raspberry Pi)
structure	Low-profile, aluminum alloy heat-sinking bracket, optional GPIO adapter
rated power	1W (5V, 0.2±0.02A)
Cable length	45±10mm
Fan	3007 fan, 8000±10%RPM

Setup example

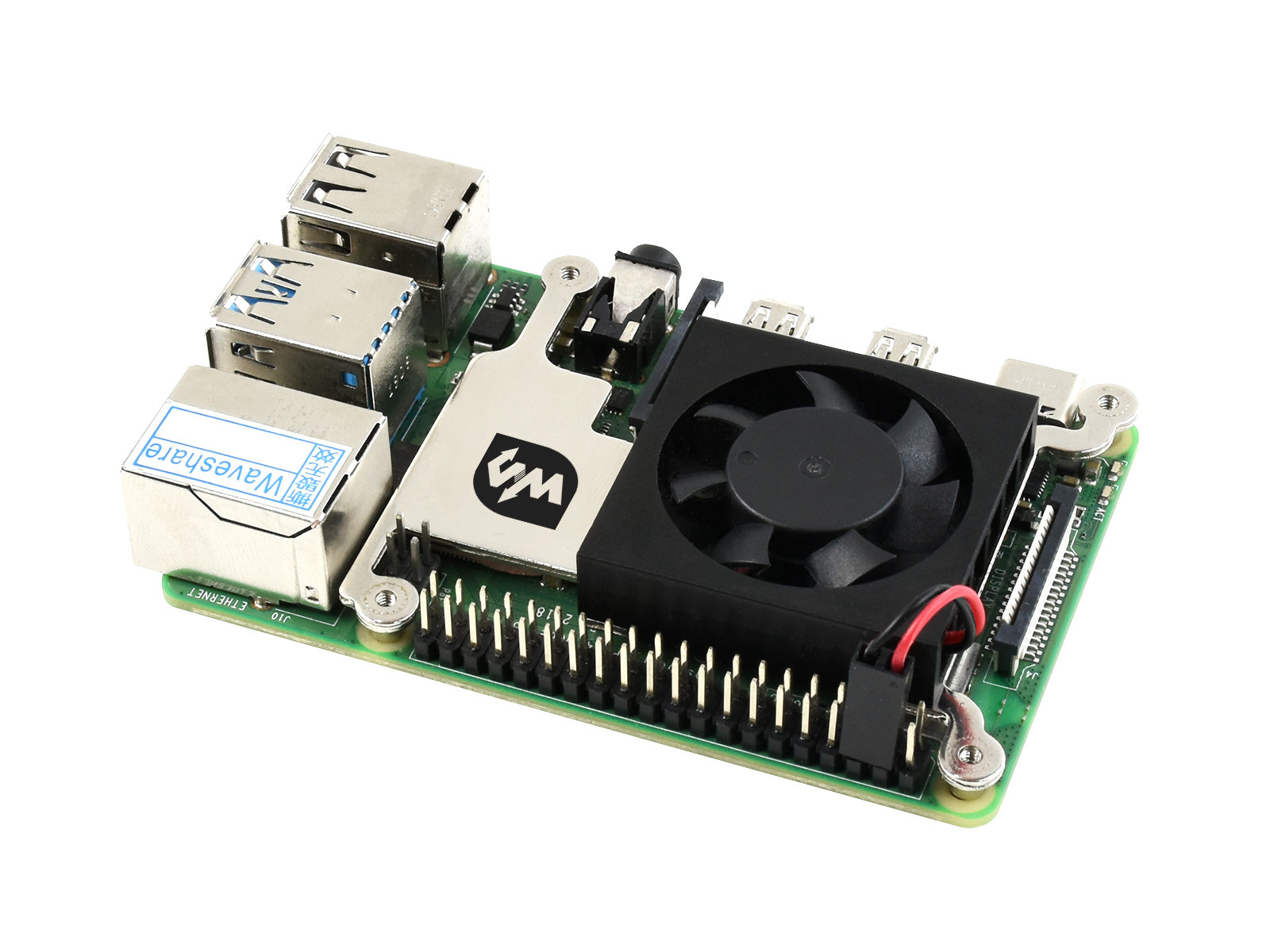

cooling the Raspberry Pi 4B (left) and Raspberry Pi 3B+/3B with GPIO adapter (right)

attaching other Raspberry Pi HATs via the GPIO adapter

The GPIO adapter is optional.Raspberry Pi and other HATs are NOT included.

Raspberry Pi 4B Cooling Solution Comparing

Outline Dimensions

Resources & Services

Wiki:PI-FAN-3007

Lieferumfang

1. PI-FAN-3007-B x1
2. OPTIONS GPIO FAN Adapter x1
3. Silicone thermal tape x4
4. Screw x4
5. Screwdriver x1
