Luckfox Lume High-Performance Linux Development Board, Based On The Allwinner T153 Multi-core Heterogeneous Industrial Processor, Dual Gigabit Ethernet Ports, Built-in 128MB DDR3 Memory And 256MB Flash Storage

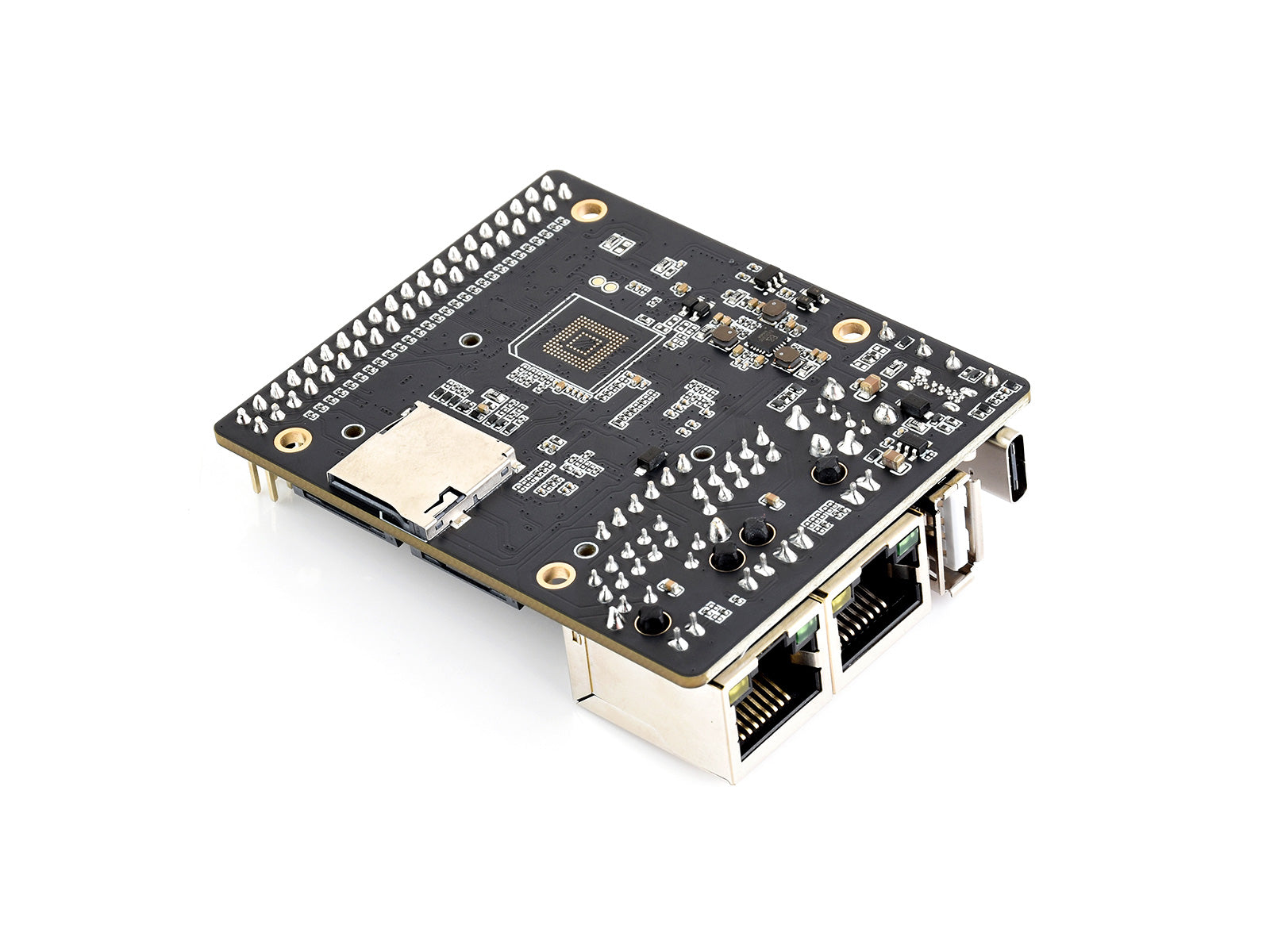

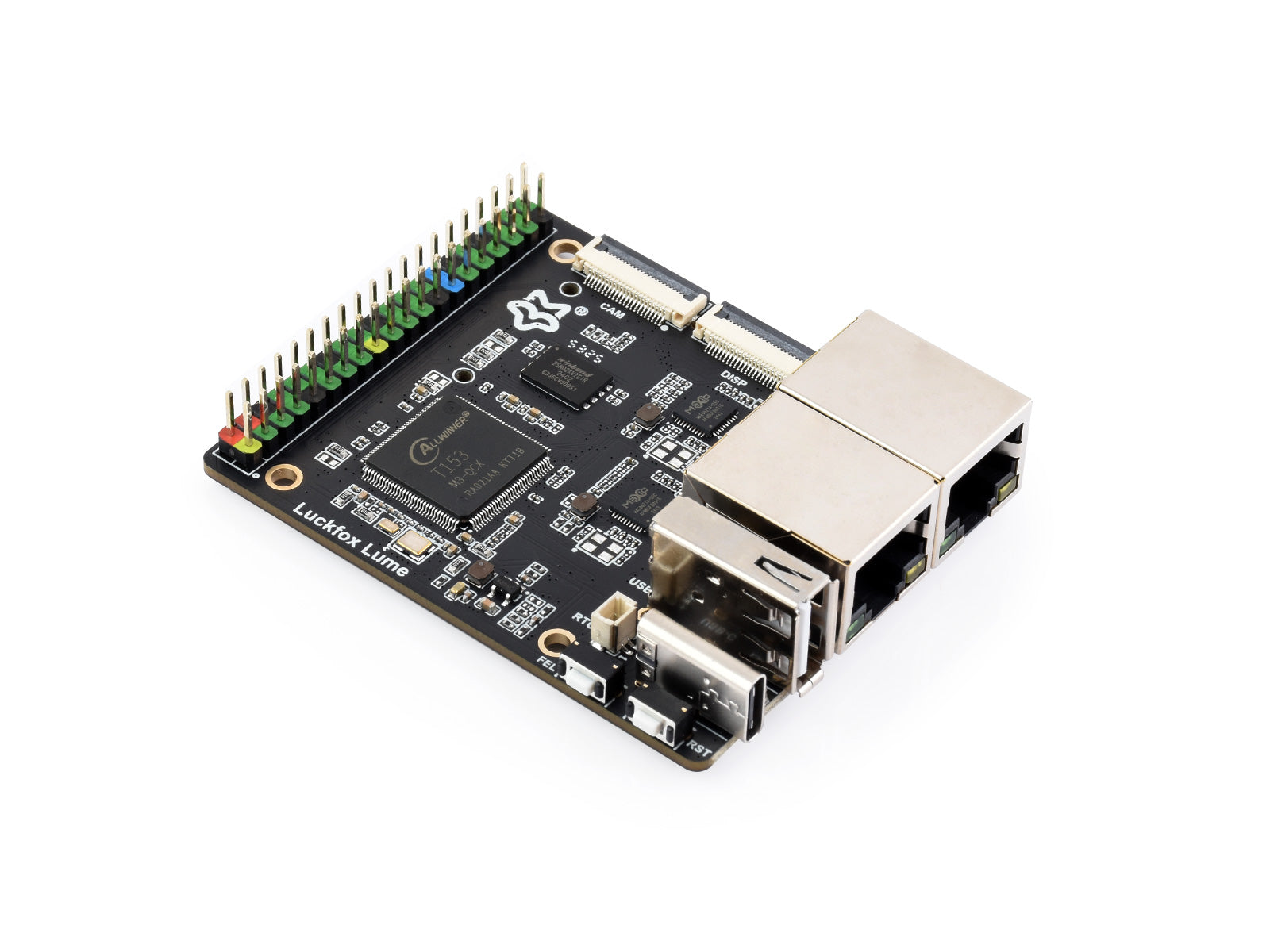

Luckfox Lume

Based on the Allwinner T153 multi-core heterogeneous industrial processor

Version Options

Luckfox Lume Standard version

Luckfox Lume PoE Kit Comes with a PoE module

Specifications

Processor	Quad-core Arm Cortex-A7 + Single-core RISC-V E907
Memory	128MB DDR3
Storage	SPI NAND FLASH (256MB)
Display Interface	MIPI DSI 4-lane
Camera Interface	MIPI CSI 2-lane
USB	USB2.0 Type-C port × 1,USB2.0 Type-A port × 1
GPIO	40PIN GPIO header
Ethernet	1000M Ethernet port × 2
External Storage	onboard TF card slot
Power Input	5V DC
Others	2PIN SH1.0 RTC batt header

High-Performance Industrial Processor

Features a quad-core Arm Cortex-A7 and a single-core RISC-V E907

MIPI DSI 4-lane interface

powerful performance, easy to drive large screens

* Supports up to 1920 × 1080 at 60Hz resolution. For reference only, the 10.1-DSI-TOUCH-A is NOT included.

Dual Gigabit Ethernet Ports

Supports dual-port policy-based routing, enabling physical isolation between internal and external network traffic, ensuring critical data security and improving management efficiency

* Note: the PoE module is required for ETH0 PoE power supply function.

Onboard TF card slot

allows storage expansion via TF card

Suitable for more application examples

Pin definition

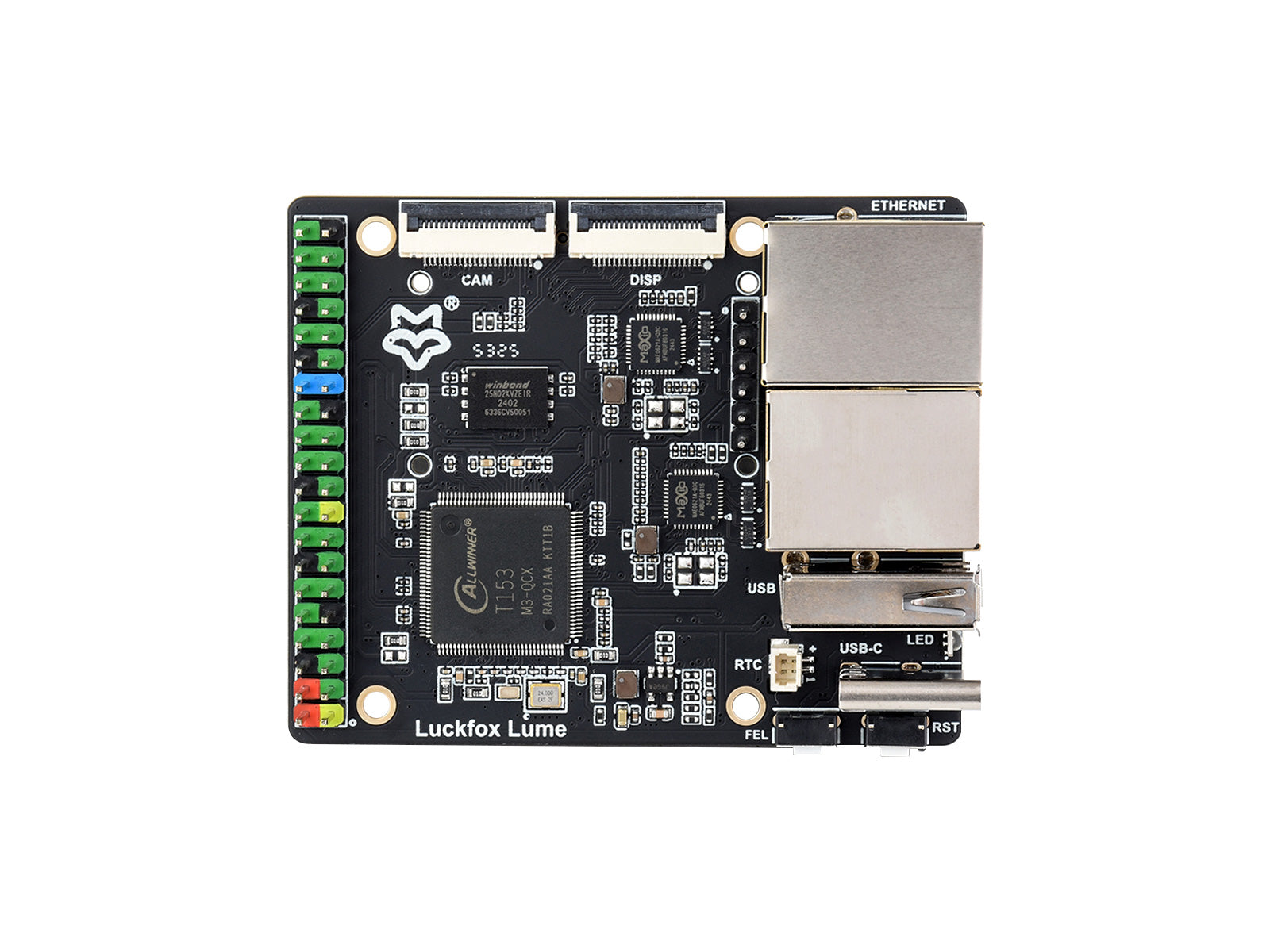

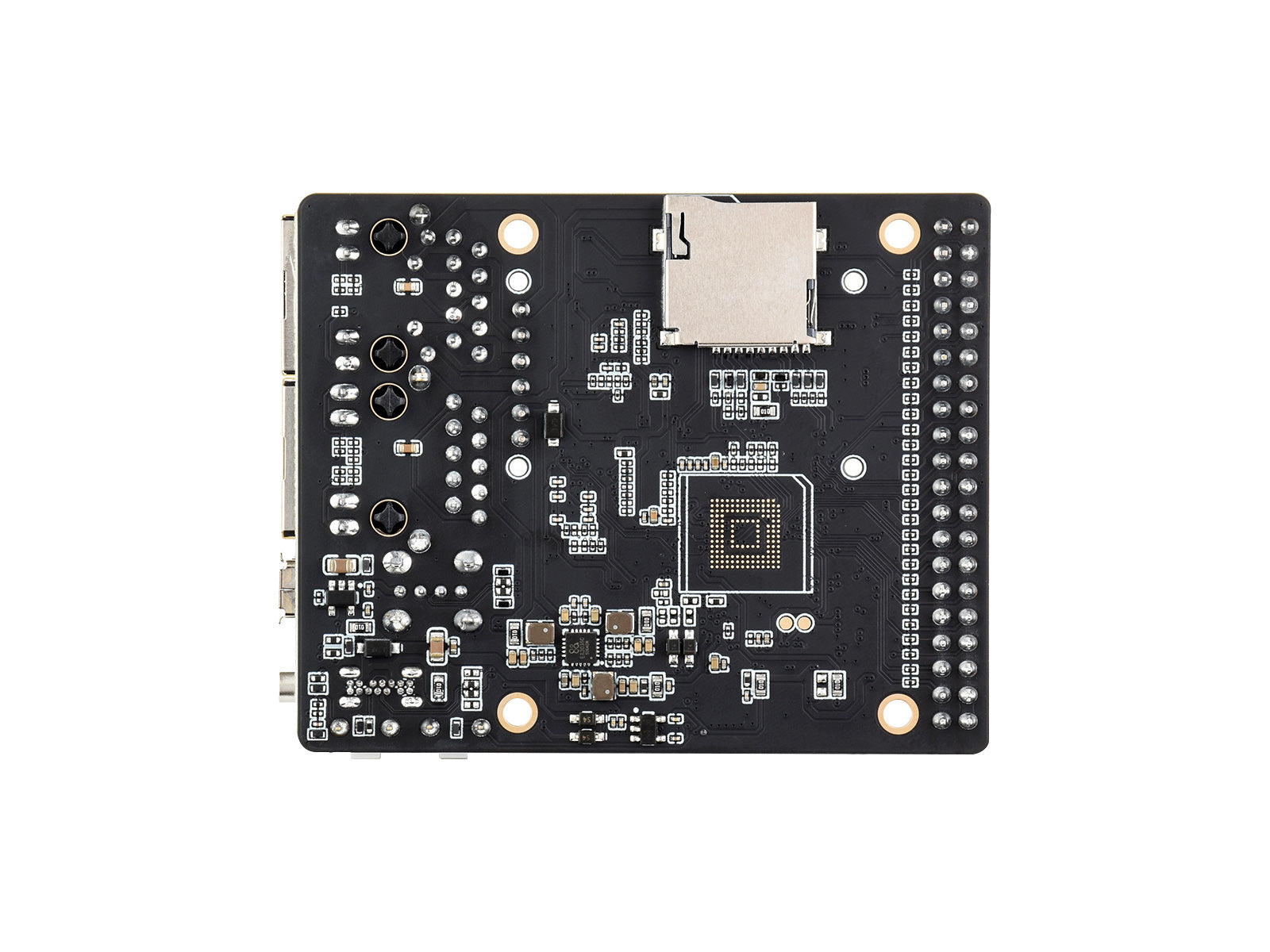

What's On Board

1. T153M3-QCX
2. SPI NAND FLASH (256MB)
3. CSI camera interface
4. DSI display interface
5. RJ45 1000M Ethernet port with indicatorwith PoE support
6. RJ45 1000M Ethernet port with indicator
7. PoE module header
8. USB2.0 HOST Type-A port
9. Dual-color status LED The red light indicates power supply status, and the green light indicates system operation status in the default image.

10. Type-C port for power supply and program burning
11. RESET button
12. FEL button Press it when powering on or resetting to enter download mode
13. RTC Batt header
14. 40PIN GPIO header
15. TF card slot

outline dimensions

Certificate of Authorization

Resources & Services

Wiki:https://wiki.luckfox.com/Luckfox-Lume

Lieferumfang

Luckfox Lume

1. Luckfox Lume x1
2. USB Type-A to Type-C cable ~1m x1

1

2

Luckfox Lume PoE Kit

1. Luckfox Lume x1
2. PoE module x1
3. Screws pack x1
4. USB Type-A to Type-C cable ~1m x1

1

2

3

4
