Luckfox Lyra Pi Linux Micro Development Board, Based On Luckfox Core3506 Core Board, Integrates Triple-core ARM Cortex-A7 and ARM Cortex-M0 Processors

19.862 Ft
19.862 Ft 0 Ft
Sale Sold out
Tax included. Shipping calculated at checkout.
Luckfox Lyra Pi Linux Micro Development Board, Based On Luckfox Core3506 Core Board, Integrates Triple-core ARM Cortex-A7 and ARM Cortex-M0 Processors
Luckfox Lyra Pi

TheLuckfox Lyra Pi is a cost-effective Linux micro development board, based on the Luckfox Core3506 chip to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, RMII, SDIO, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allowing for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging.

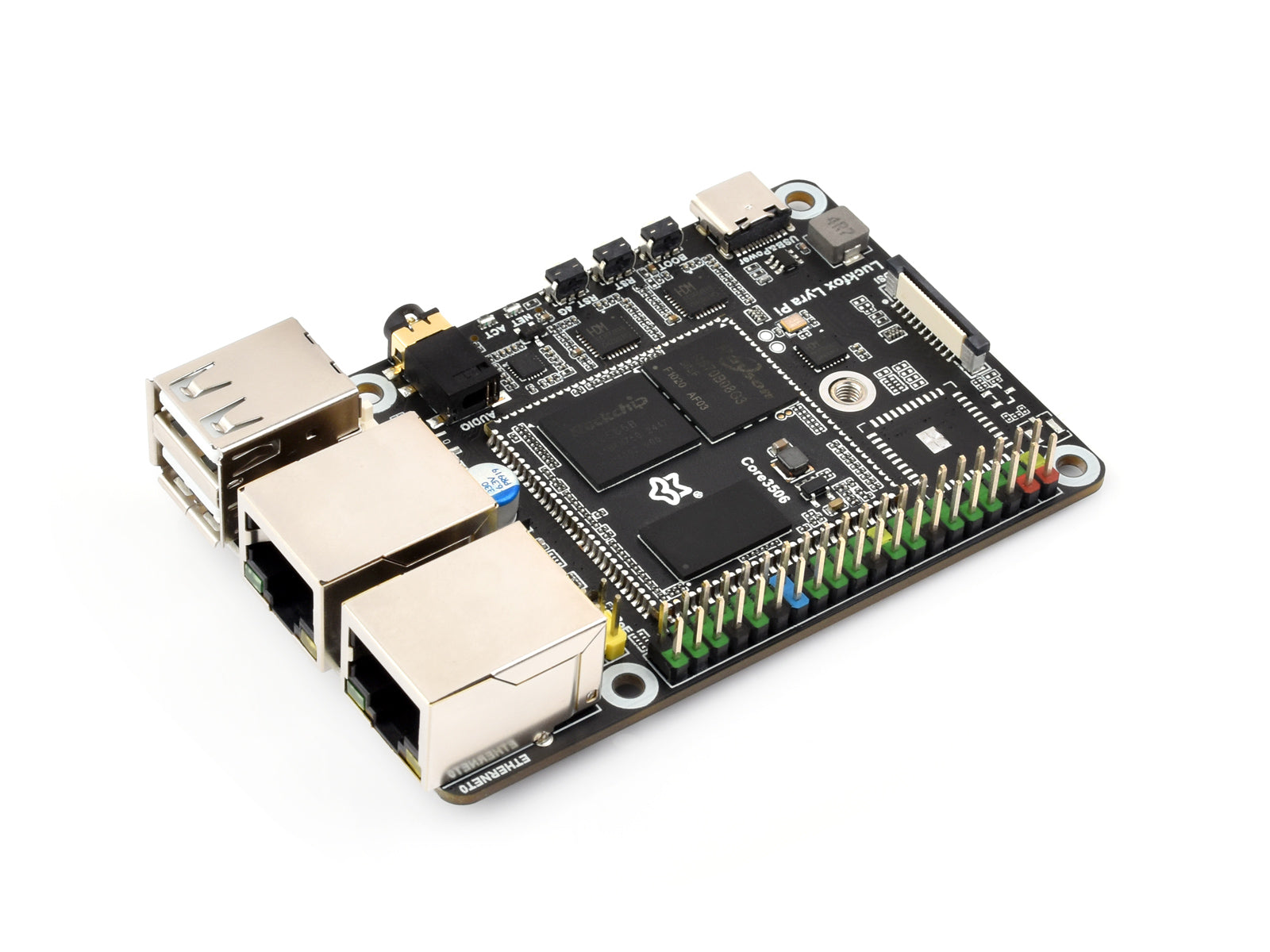

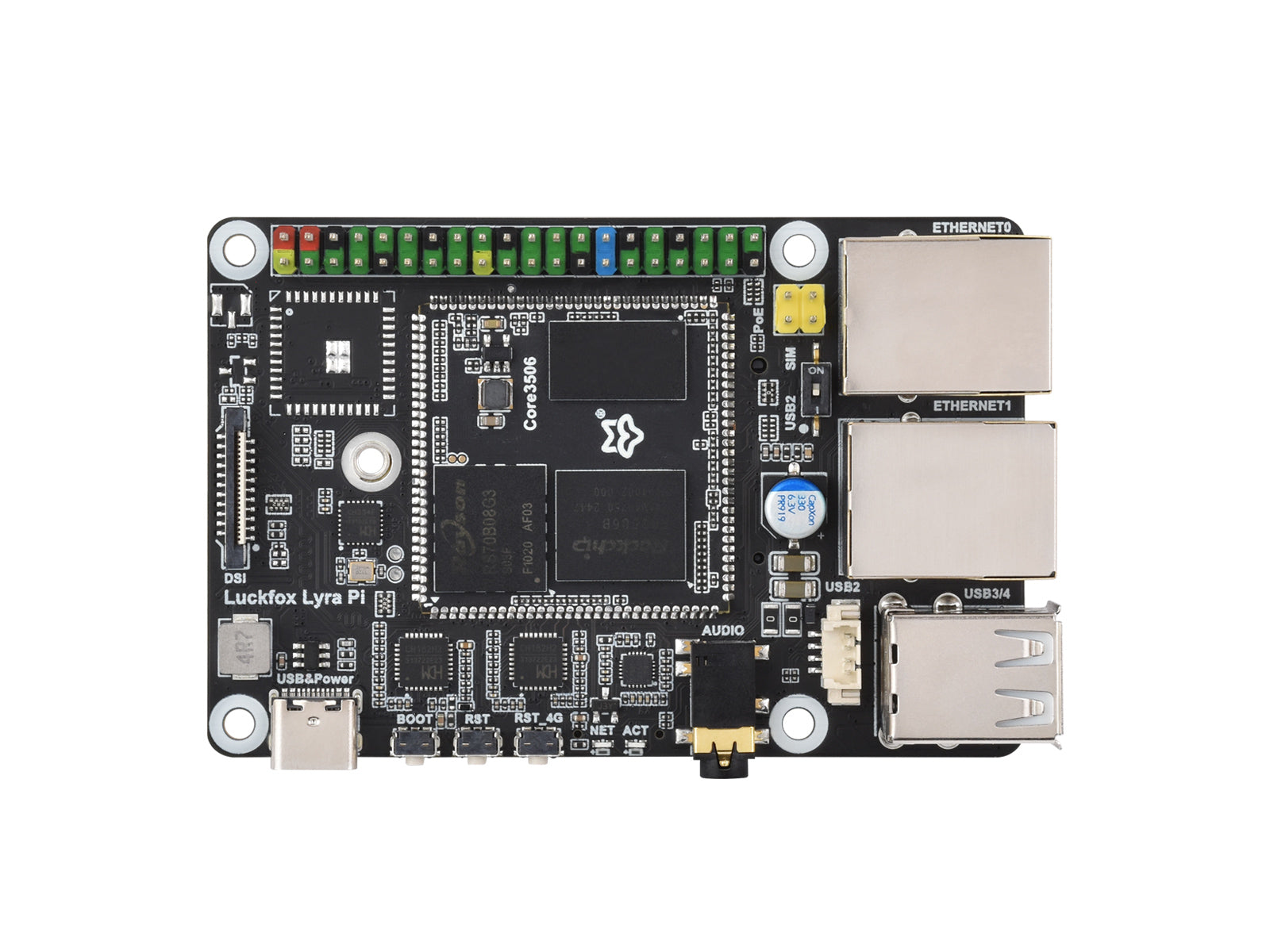

Luckfox Lyra Pi series, front viewLuckfox Lyra Pi series, features
Development Board Versions
Luckfox Lyra Pi series, version options
Version Comparison
Model PI A PI B PI A W PI B W
Processor Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory 512MB DDR3L
USB Original USB OTG2.0 × 1,Extended USB HOST2.0 × 3 via HUB
Display MIPI DSI 2-lane
GPIO 23 × Rockchip Matrix IO pins + 5 × GPIO pins
Default Storage 8GB eMMC TF card (NOT included) 8GB eMMC TF card (NOT included)
Wireless - Onboard 2.4GHz WiFi 6 / Bluetooth 5.2 / BLE
SIM7600G-H-M.2

TheSIM7600G-H-M.2 is a LTE Cat 4 module which supports wireless communication modes of LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, and EDGE, etc. It adopts M.2 form factor and can be integrated into the Luckfox Lyra Pi series

SIM7600G-H-M.2 4G module, front and back view
Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

Luckfox Lyra Pi series, onboard Wi-Fi 6 and Bluetooth module
Reserved PoE Module Header

More Flexible for Power Supply

Luckfox Lyra Pi series, onboard reserved PoE module header

* the PoE module is NOT included.

USB HUB Expansion

Expands to 2 × USB-A HOST ports and an MX1.25 USB header via USB HUB

Luckfox Lyra Pi series, onboard 2 × USB-A HOST ports
Onboard M.2 slot for 4G Module

The USB signal of the MX1.25 USB port can be switched to 4G module M.2 slot via DIP switch, only compatible with the SIM7600G-H-M.2 4G module

Luckfox Lyra Pi series, onboard USB / M.2 slot DIP switchLuckfox Lyra Pi series, onboard USB / M.2 slot DIP switch

* for reference only, please refer to the part list for detailed package content.

Audio Interface

Onboard 3.5mm headphone/microphone audio jack, meets a variety of audio application scenarios

Luckfox Lyra Pi series, onboard multiple audio interfaces
MIPI DSI 2-lane interface

Compact size, powerful performance, easy to drive large screens

Luckfox Lyra Pi series, onboard MIPI DSI 2-lane interface

Supports up to 1280 × 1280 @ 60Hz resolution. The resolution of the screen in the picture is 800 × 1280. * for reference only, please refer to the part list for detailed package content.

Rockchip Matrix IO design

The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration

Luckfox Lyra Pi series, adopts Rockchip Matrix IO design
Suitable for more application examples
Luckfox Lyra Pi series, suitable for more application examples
Pin definition
Luckfox Lyra Pi series, pin definition

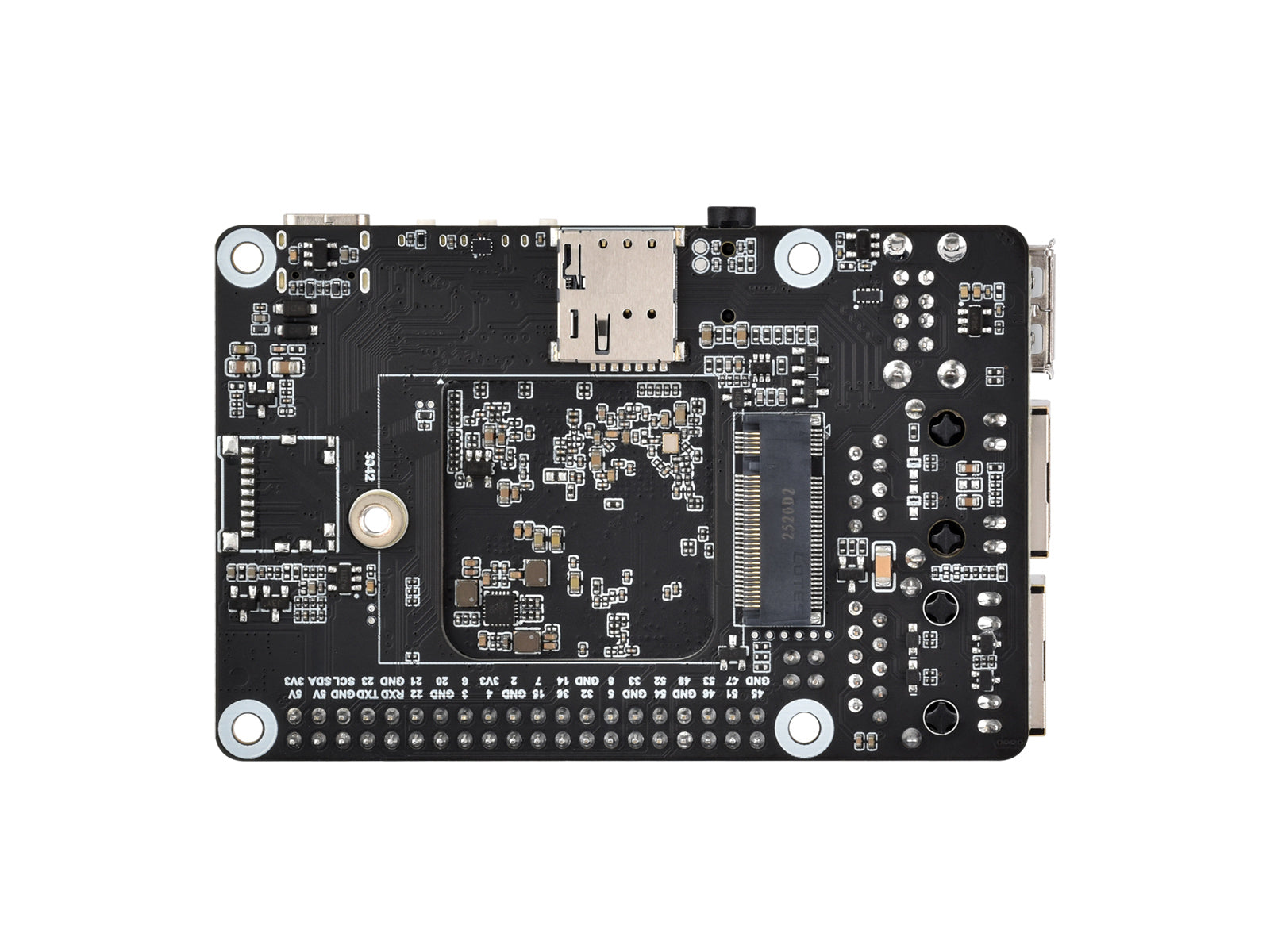

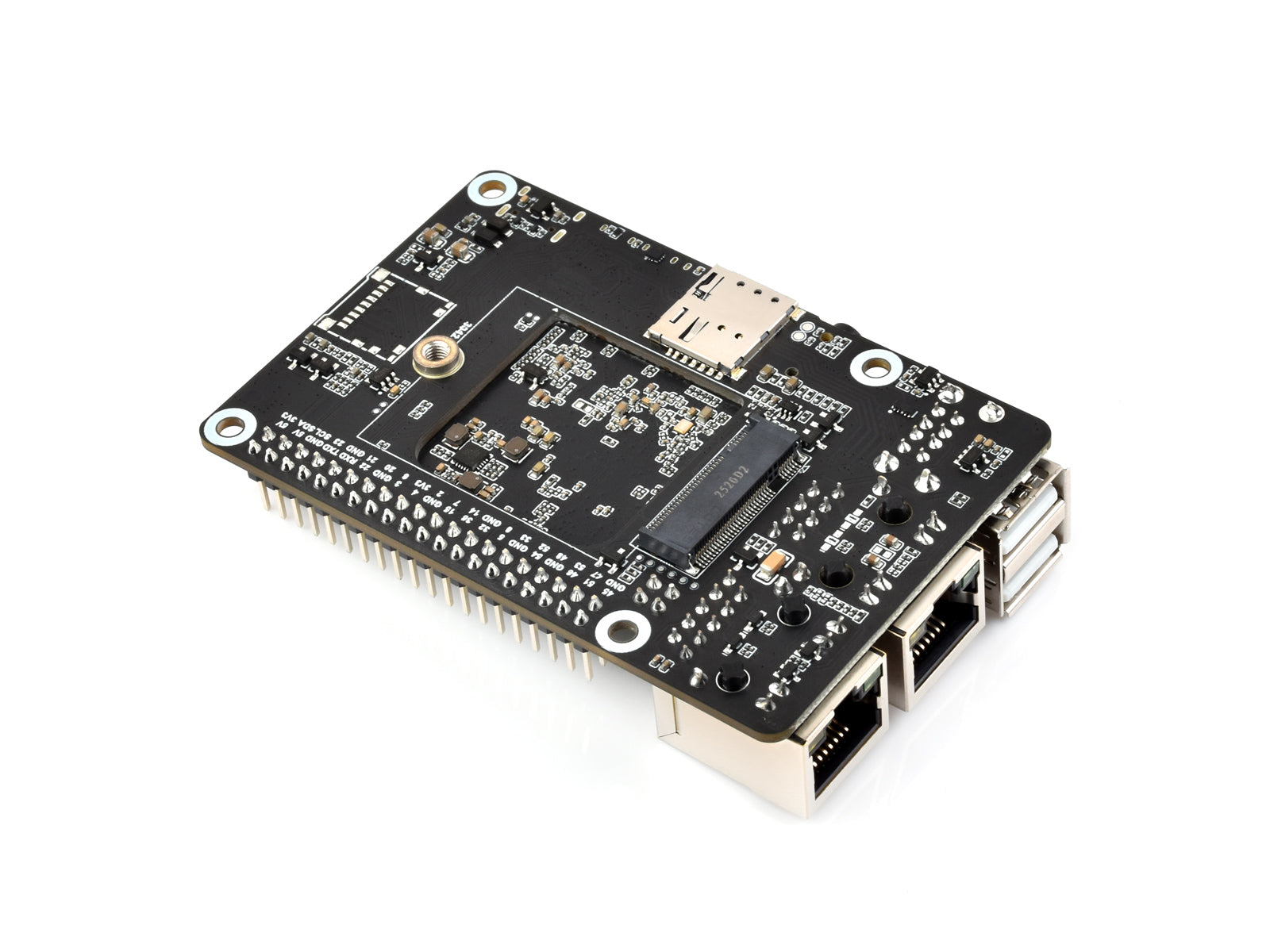

What's On Board
Luckfox Lyra Pi series, onboard components
  1. Core3506 RK3506B core module, optional for eMMC
  2. USB Type-C OTG0 port for power supply and program burning
  3. BOOT button Press it when powering on or resetting to enter download mode
  4. RESET button for rebooting the Core3506 system
  5. 4G-RESET button for rebooting the 4G module
  6. 4G NET LED for indicating the operating status of the 4G module
  7. USER-LED for indicating system operating status in the default image
  8. 3.5mm headphone/microphone jack Supports single-channel audio capture or output
  9. MX1.25 4P header Supports conversion to USB-A HOST interface or for LCD screen power supply
  1. USB-A HOST ports Expands 2x USB-A ports via USB-HUB chip
  2. RJ45 100M Ethernet port
  3. RJ45 100M Ethernet port (with PoE support) Supports power supply via PoE switch with network cable
  4. PoE module header
  5. 40PIN GPIO header Compatible with some Raspberry Pi HATs
  6. WIFI/Bluetooth module (optional) 2.4G WiFi 6 / BT5.2 / BLE Bluetooth module
  7. Antenna connector
  8. DSI interface MIPI DSI 2-lane
  9. 4G module M.2 slot Supports SIM7600G-H-M.2 4G module
  10. TF card slot for Lyra Pi B versions only
  11. SIM card slot
outline dimensions
Luckfox Lyra Pi series, outline dimensions
Luckfox Lyra Product Selection
PRODUCT Main chip Memory DSI USB Default Storage FEATURES
Luckfox Lyra RK3506G2 128MB DDR3L 2-lane (1.5Gbps/lane) 2 × USB OTG TF card (Not included) Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, reserved RMII interface, etc.
Luckfox Lyra B SPI NAND FLASH (256MB)
Luckfox Lyra Plus Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, etc.
Luckfox Lyra Ultra RK3506B 512MB DDR3L eMMC (8GB) Multi-core heterogeneous CPU, onboard DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc.
Luckfox Lyra Ultra W USB OTG2.0 × 1, Extended USB HOST2.0 × 2 via HUB Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc.
Luckfox Lyra Zero W SPI NAND FLASH(256MB) Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), onboard antenna
Core35060800 USB OTG × 2 - Multi-core heterogeneous CPU, onboard DDR3L, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC and 10M/100M RMII, etc
Core35060808 eMMC (8GB)
Luckfox Lyra Pi A USB OTG2.0 × 1, Extended USB HOST2.0 × 3 via HUB Multi-core heterogeneous CPU, Onboard 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, etc.
Luckfox Lyra Pi A W Multi-core heterogeneous CPU, Onboard WiFi module, 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, etc.
Luckfox Lyra Pi B TF card (NOT included) Multi-core heterogeneous CPU, Onboard 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, TF card slot, etc.
Luckfox Lyra Pi B W Multi-core heterogeneous CPU, Onboard WiFi module, 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, TF card slot, etc.
Certificate of Authorization
Luckfox Lyra Pi series, certificate
Resources & Services
Wiki:https://wiki.luckfox.com/Luckfox-Lyra-Pi

Lieferumfang

Luckfox Lyra Pi A

  1. Luckfox Lyra Pi A x1
  2. 4G Module mounting screw x1
1Luckfox Lyra Pi A
2

Luckfox Lyra Pi B

  1. Luckfox Lyra Pi B x1
  2. 4G Module mounting screw x1
1Luckfox Lyra Pi B
2

Luckfox Lyra Pi A W

  1. Luckfox Lyra Pi A W x1
  2. IPX 2.4G 2DB antenna x1
  3. 4G Module mounting screw x1
1Luckfox Lyra Pi A W
2
3

Luckfox Lyra Pi B W

  1. Luckfox Lyra Pi B W x1
  2. IPX 2.4G 2DB antenna x1
  3. 4G Module mounting screw x1
1Luckfox Lyra Pi B W
2
3

Luckfox Lyra Pi A 4G Kit

  1. Luckfox Lyra Pi A x1
  2. SIM7600G-H-M.2 x1
  3. 4G antenna x1
  4. IPEX4 to SMA cable x1
  5. Screwdriver x1
  6. 4G Module mounting screw x1
1Luckfox Lyra Pi A
2
3
4
5
6

Luckfox Lyra Pi B 4G Kit

  1. Luckfox Lyra Pi B x1
  2. SIM7600G-H-M.2 x1
  3. 4G antenna x1
  4. IPEX4 to SMA cable x1
  5. Screwdriver x1
  6. 4G Module mounting screw x1
1Luckfox Lyra Pi B
2
3
4
5
6

Luckfox Lyra Pi A W 4G Kit

  1. Luckfox Lyra Pi A W x1
  2. SIM7600G-H-M.2 x1
  3. 4G antenna x1
  4. IPX 2.4G 2DB antenna x1
  5. IPEX4 to SMA cable x1
  6. Screwdriver x1
  7. 4G Module mounting screw x1
1Luckfox Lyra Pi A W
2
3
4
5
6
7

Luckfox Lyra Pi B W 4G Kit

  1. Luckfox Lyra Pi B W x1
  2. SIM7600G-H-M.2 x1
  3. 4G antenna x1
  4. IPX 2.4G 2DB antenna x1
  5. IPEX4 to SMA cable x1
  6. Screwdriver x1
  7. 4G Module mounting screw x1
1Luckfox Lyra Pi B W
2
3
4
5
6
7
