SKU:WSAL33756

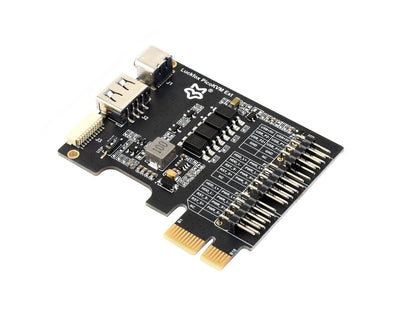

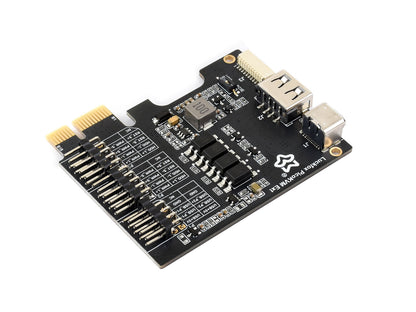

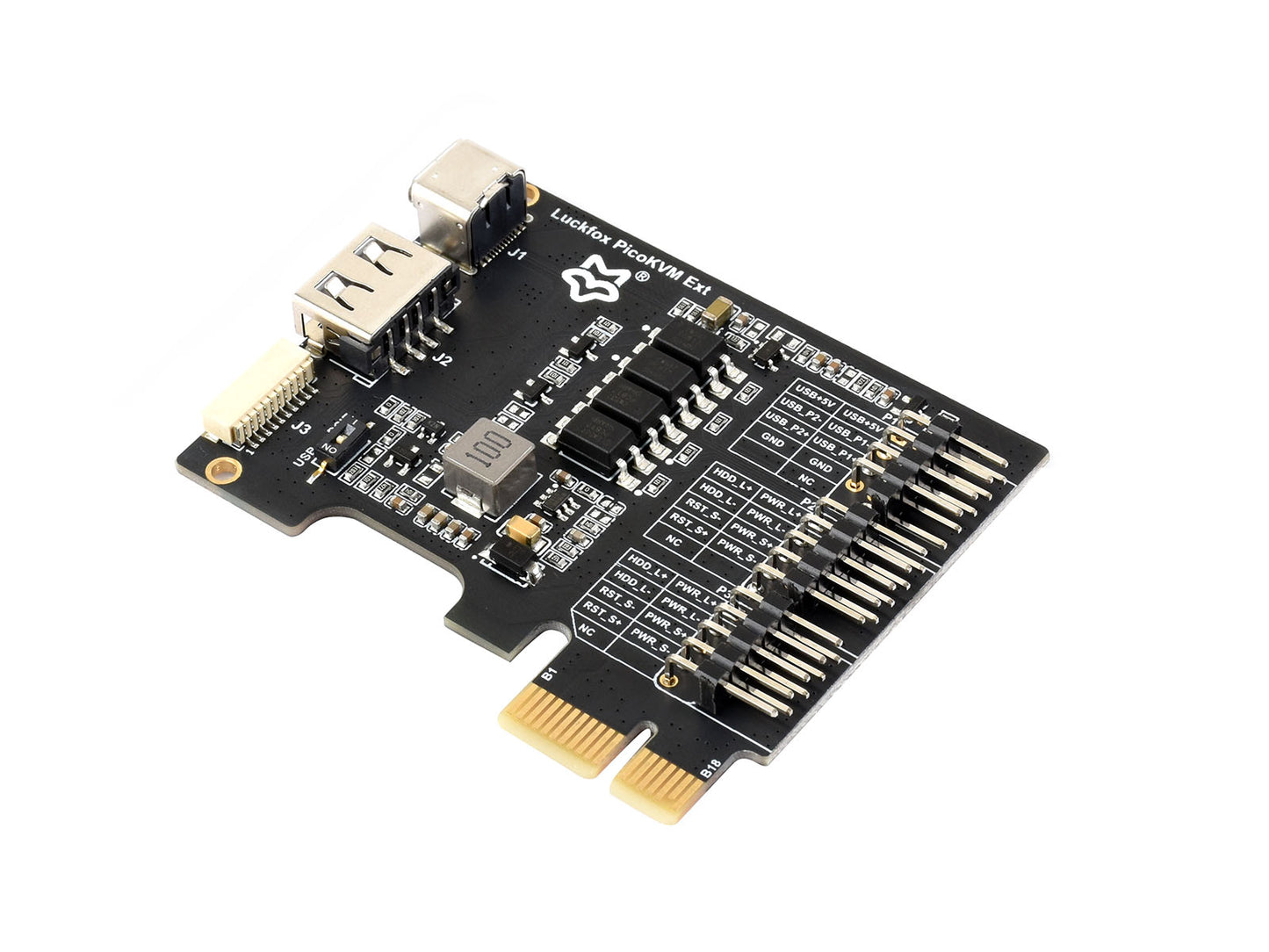

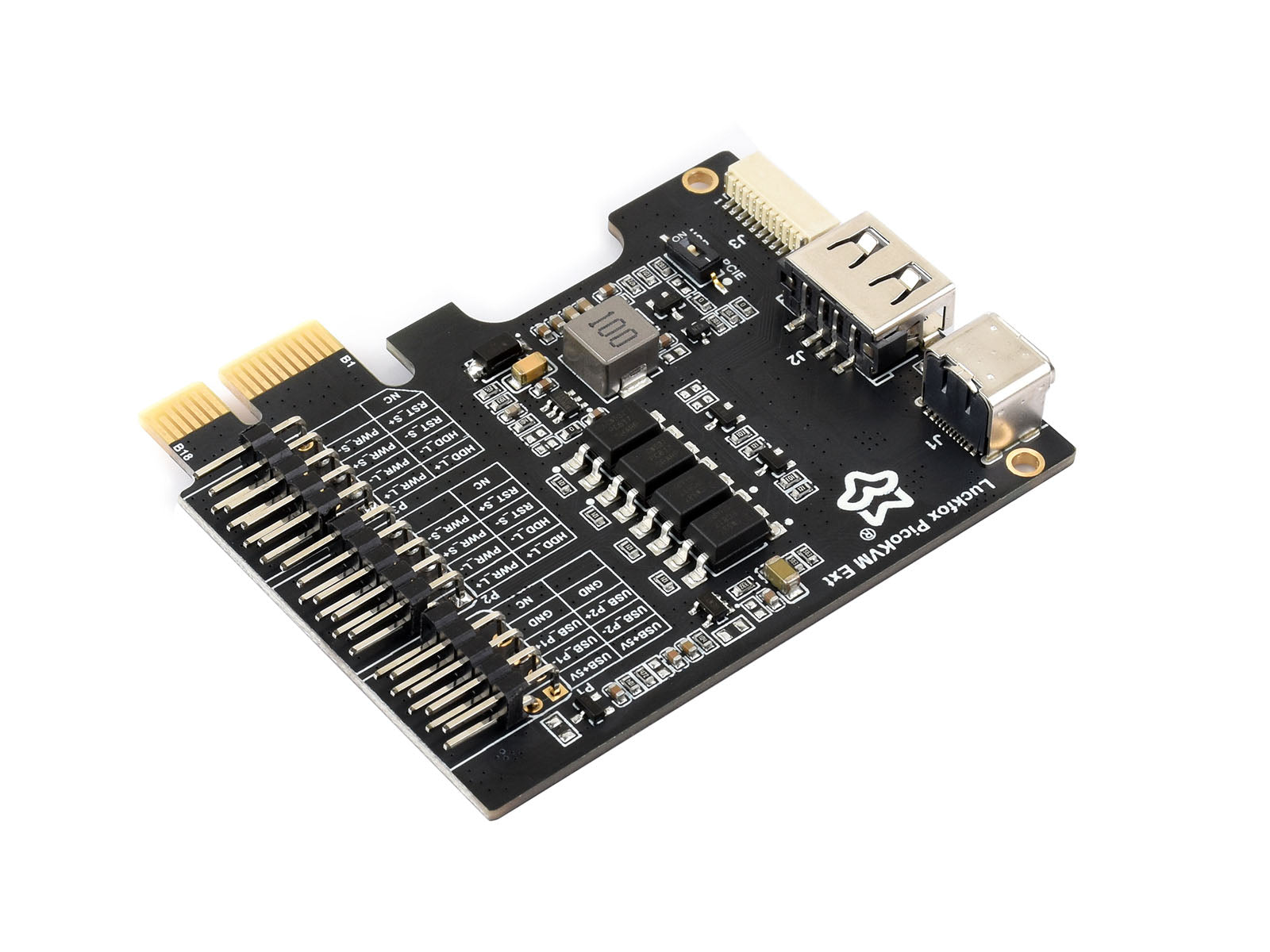

Luckfox PicoKVM Ext Expansion Board, Compatible With PCIe ×1 / ×4 / ×8 / ×16 Slots, Adapting Motherboard USB Ports, Works With Luckfox PicoKVM For Remote Power Management
Couldn't load pickup availability
Supports motherboards with PCIe ×1 / ×4 / ×8 / ×16 slot
* Note: the PCIe interface is for 12V power supply only.
Allows simultaneous connection to the motherboard front panel header and the chassis front panel, enabling shared power control
Two Power Supply Modes selectable via onboard Switch
Adapting USB-A & USB-C ports via motherboard USB header, for connecting Luckfox PicoKVM or other USB devices
Works with Luckfox PicoKVM, remotely control the computer to power on/off, restart, or force shutdown, and retrieve power status

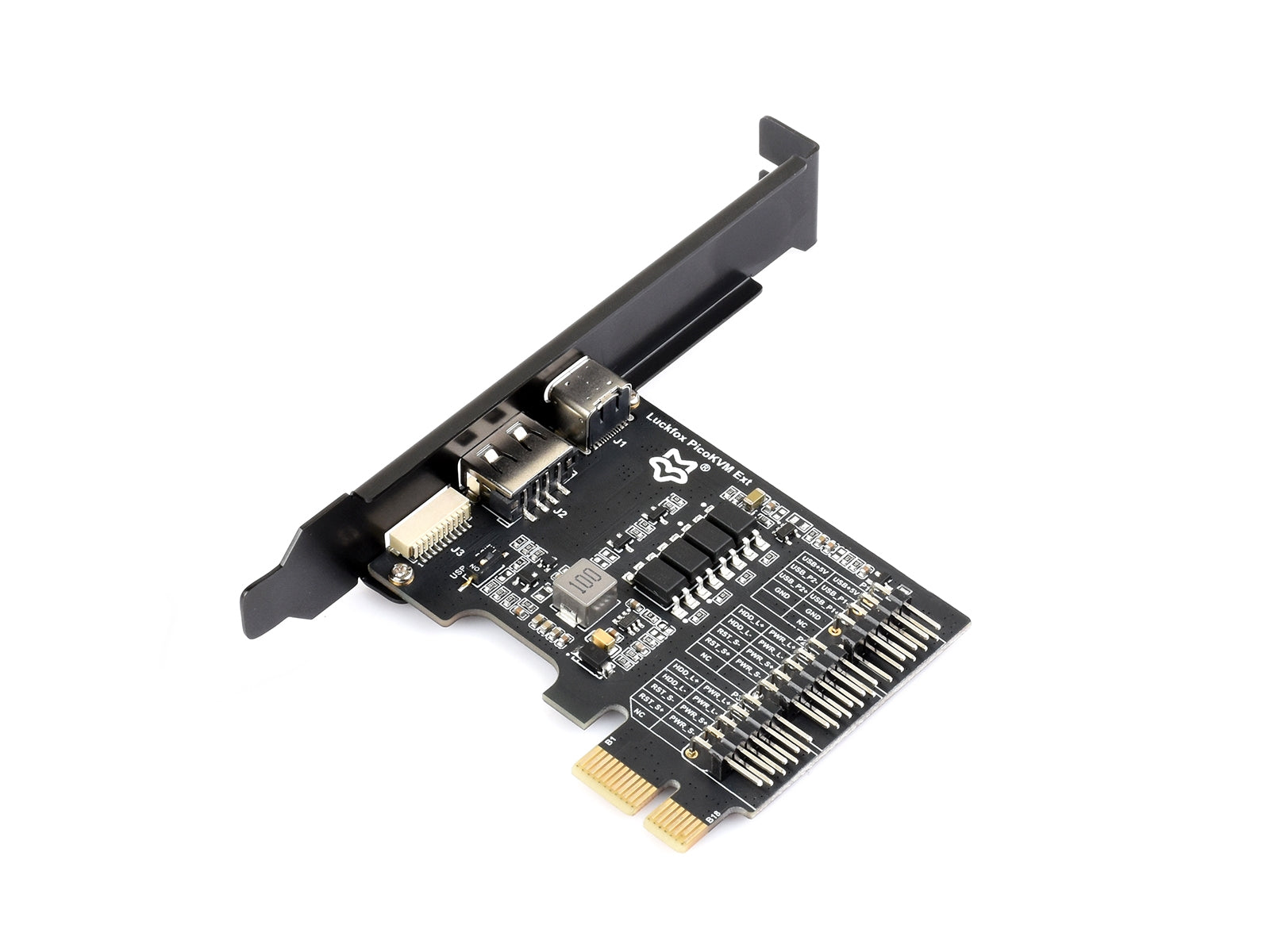

Includes a full-height metal bracket. Compact design compatible with various chassis types, no external space required
* the Luckfox PicoKVM is NOT included, please refer to the package content for the detailed part list.

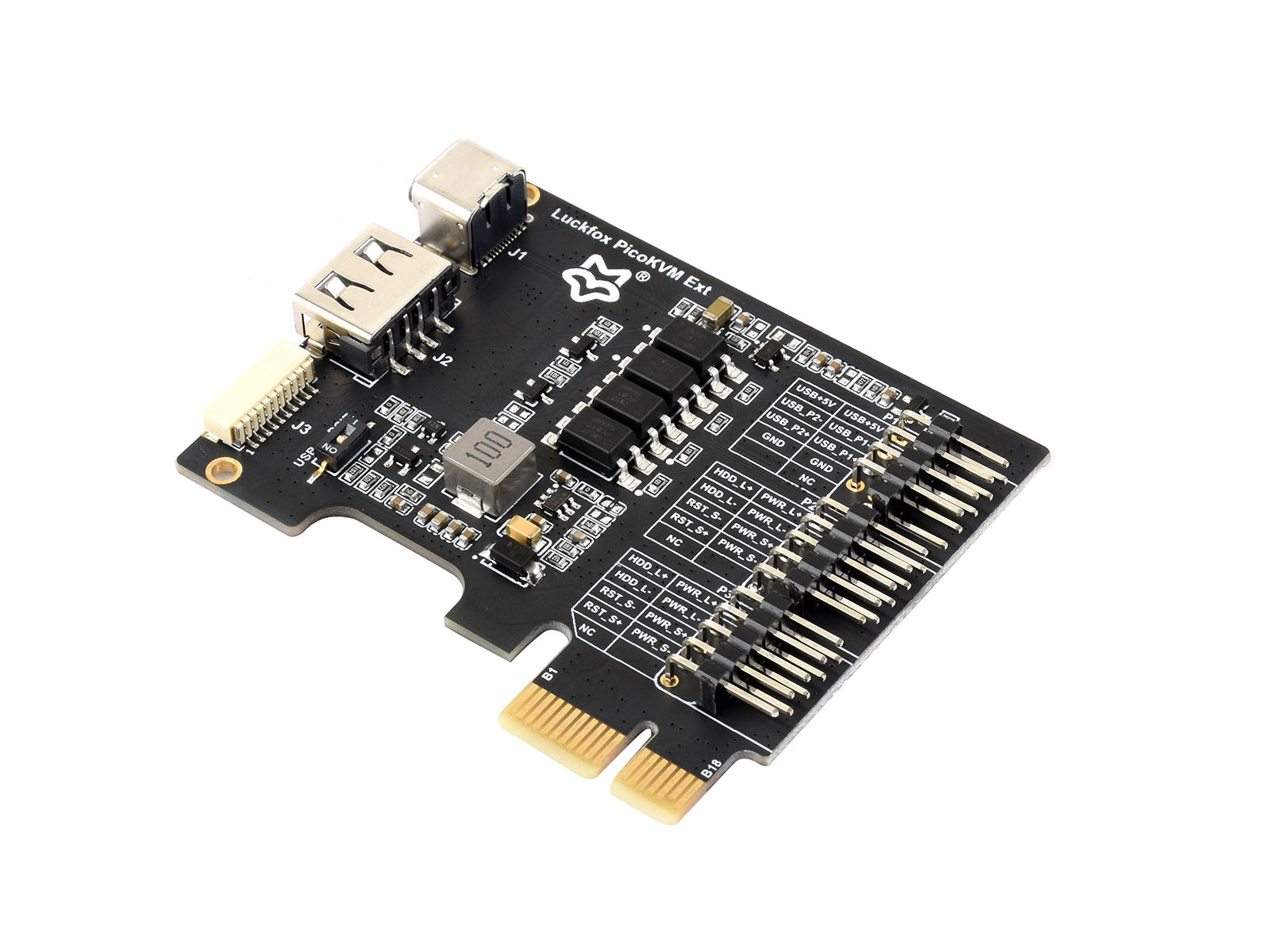

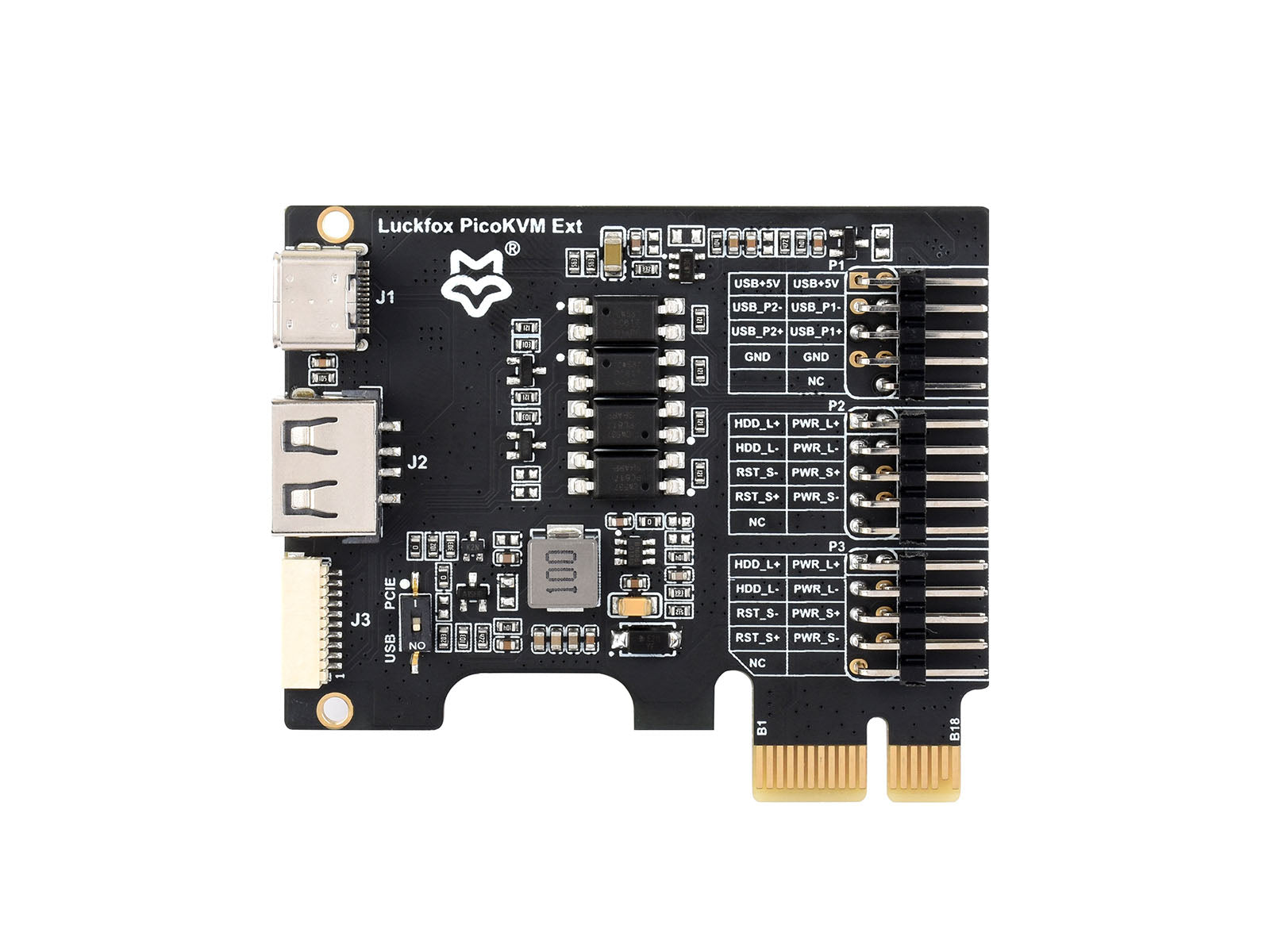

- USB-C portAdapting from motherboard USB header USB_P1
- USB-A portAdapting from motherboard USB header USB_P2
- IO control connector
- Power supply selection switchUSB or PCIe power supply switchable
- PCIe interfacefor 12V power supply only
- Motherboard front panel headersconnects to motherboard front panel and chassis front panel
- Motherboard USB header
Lieferumfang
- Luckfox PicoKVM Ext (with full-height metal bracket) x1
- Motherboard USB extension 9PIN cable x1
- Motherboard panel extension 9PIN cable x1
- SH1.0 10PIN cable ~1m x1
