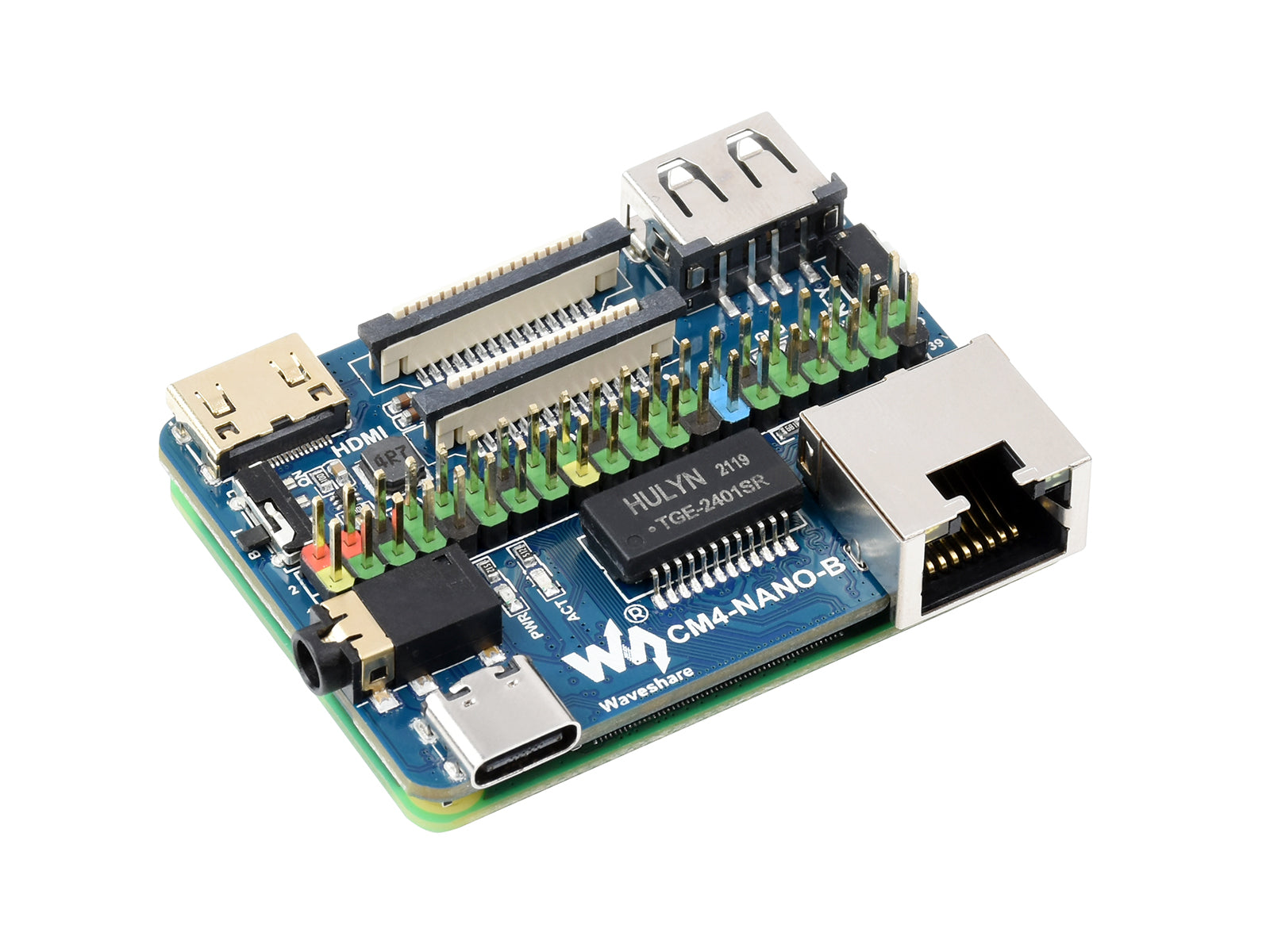

Kurzbeschreibung: Nano Base Board (B) For Raspberry Pi Compute Module 4, Same Size As The CM4

Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size As The CM4

Nano Base Board (B) for CM4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Base Board for Compute Module 4 Lite/eMMC

Compact, Yet Complete

Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack...all in the compact body just as the size of CM4

Note: the CM4 is NOT included. Please buy it separately if necessary.

Specifications

CM4 socket	suitable for all variants of Compute Module 4
Networking	Gigabit Ethernet RJ45 connector
Connector	Raspberry Pi 40PIN GPIO header × 1
USB	USB 2.0 Type A connector × 1
Display	MIPI DSI port × 1 (15pin 1.0mm FPC connector)
Camera	MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)
Video	Mini HDMI port × 1, supports 4K 30fps output
Audio	3.5mm jack
Storage	Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
Power input	5V
Dimensions	56 × 41mm

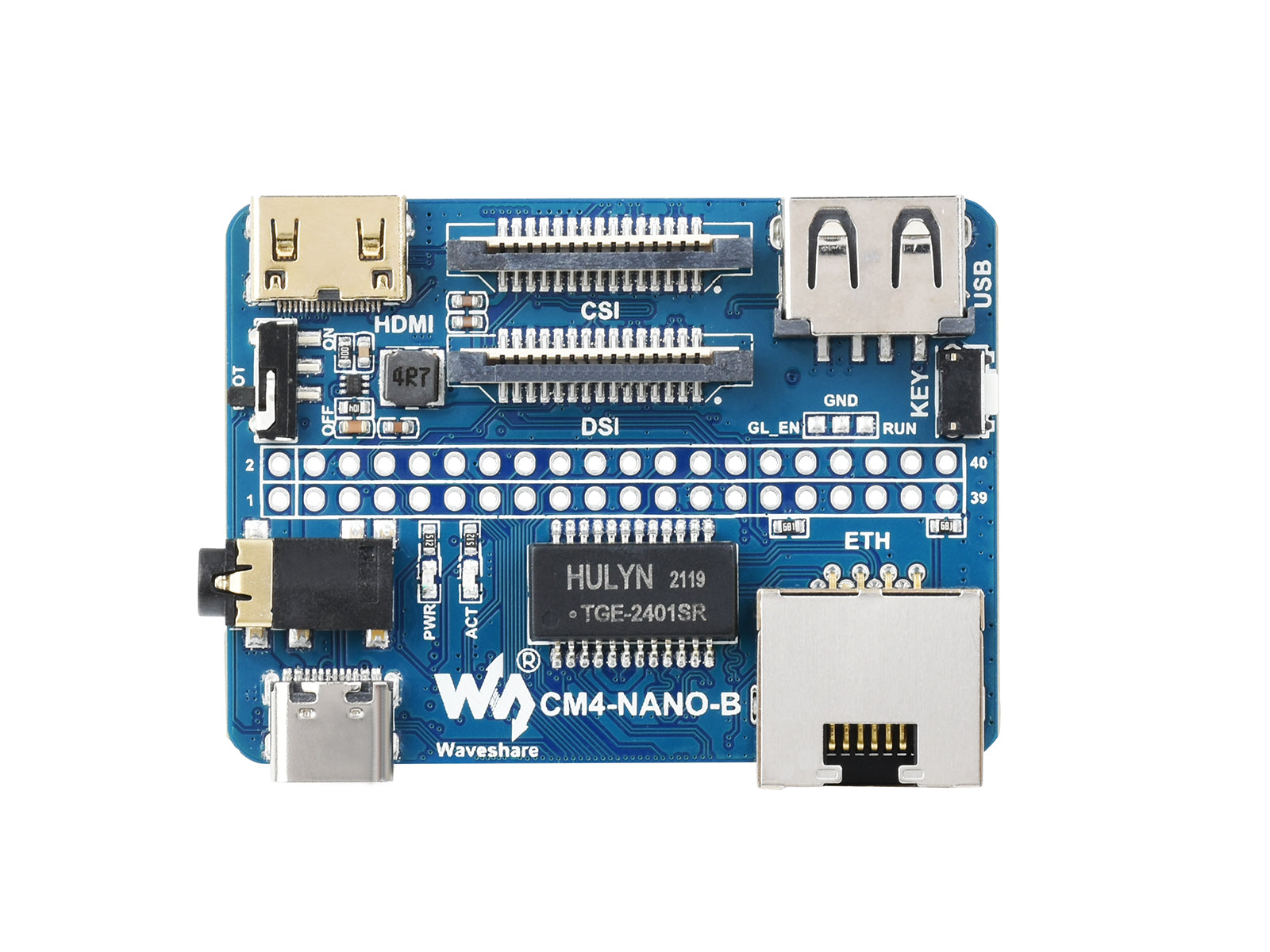

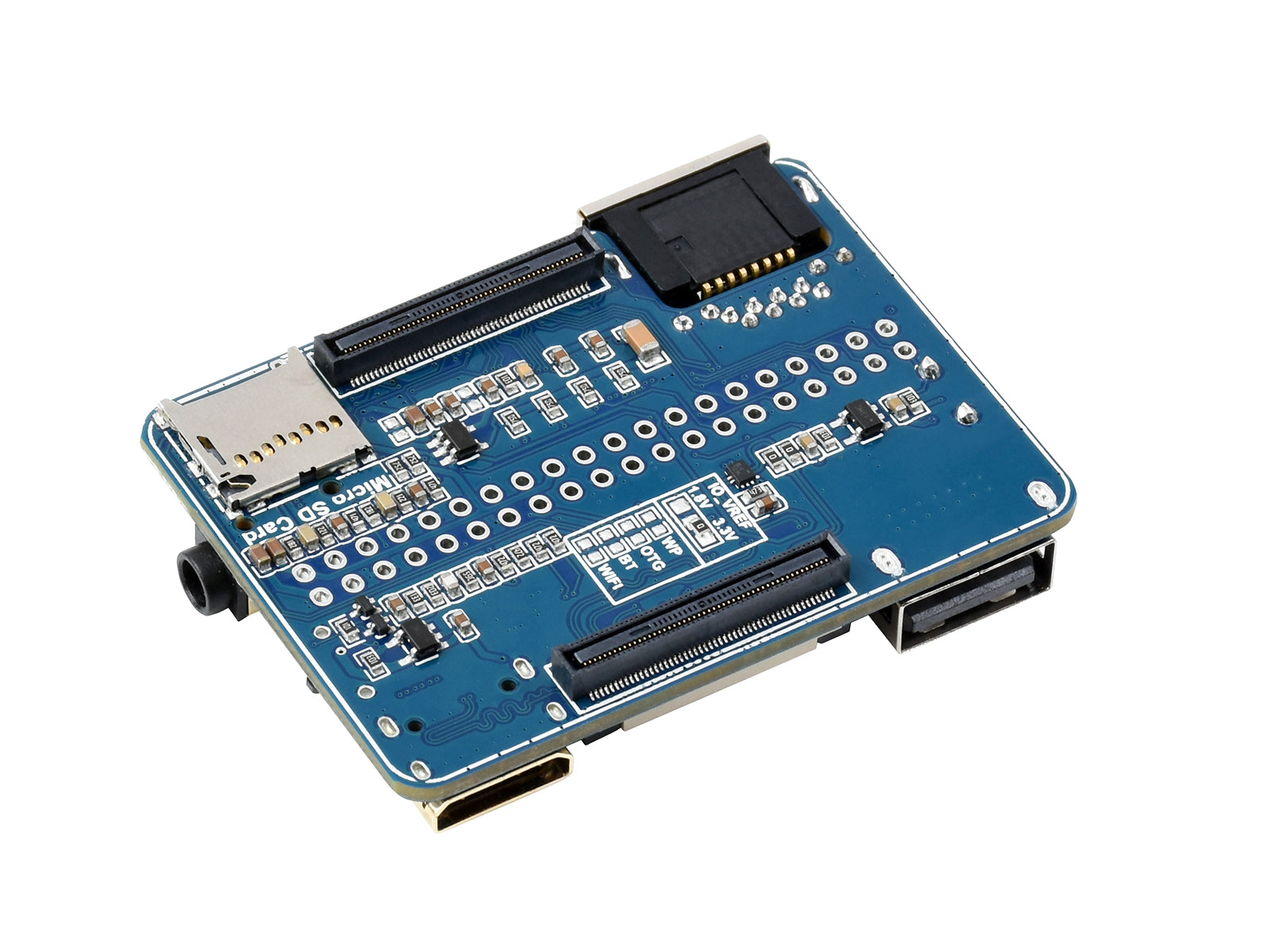

What's On Board

1. CM4 socket suitable for all variants of Compute Module 4

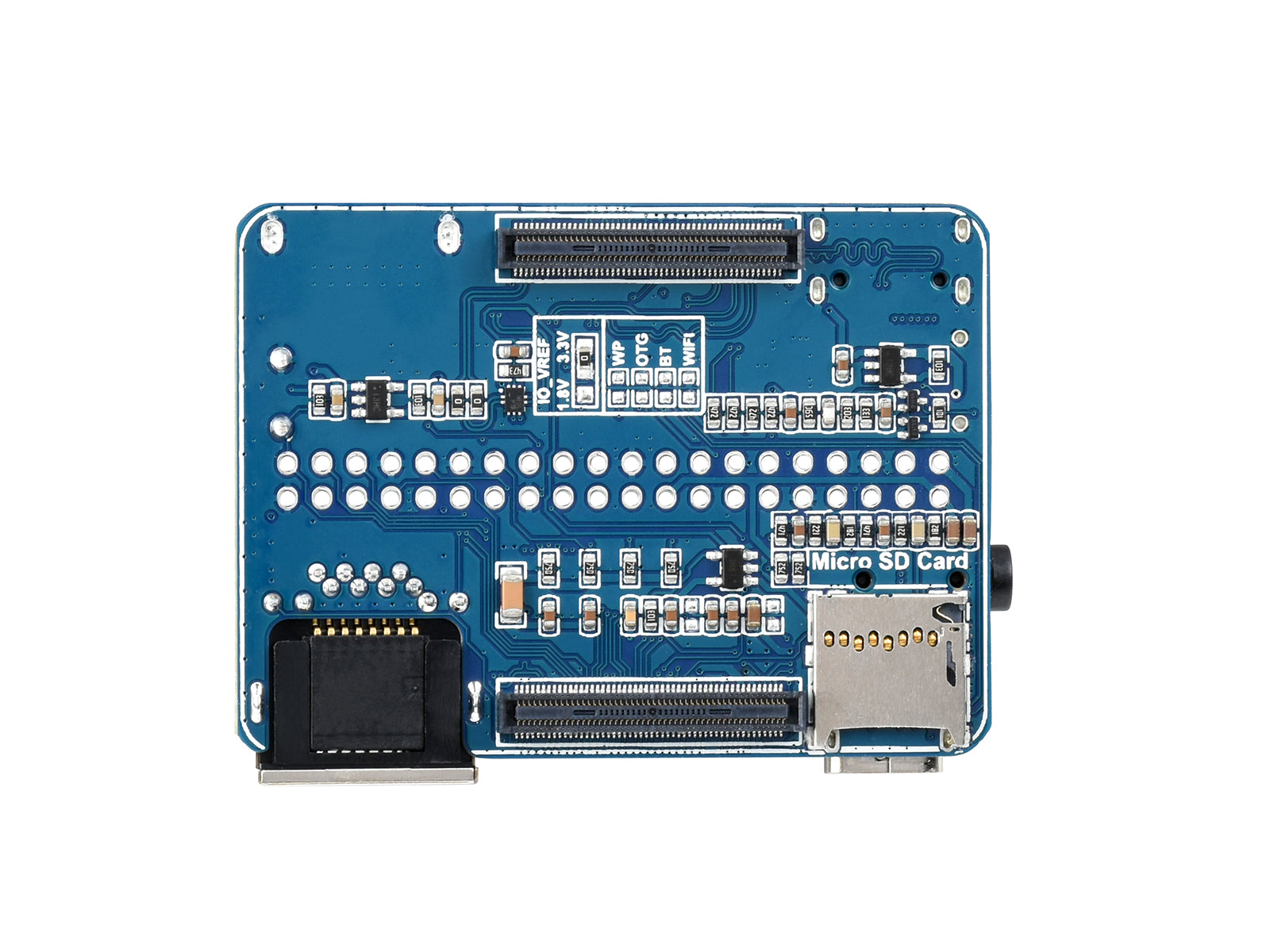

2. Micro SD card slotfor connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
3. 40PIN GPIO headerfor connecting sorts of HATs
4. Gigabit Ethernet RJ45 connector
5. Power supply / Programming5V power supply, or used for eMMC burning
6. 3.5mm audio jack
7. User button
8. USB2.0 connectorfor connecting sorts of USB devices

9. CSI connector MIPI CSI camera interface
10. DSI connector MIPI DSI display interface
11. MP1658
12. Mini HDMI connector supports 4K 30fps output
13. BOOT switch ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

Outline dimensions

Resources & Services

---

WIKI:CM4-NANO-B

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

What's the differences

CM4 Base Board	Interface count and specifications
	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G supportRS232RS485ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Lieferumfang

1. CM4-NANO-B x1
2. 2*20PIN color-coded straight pinheader x1
