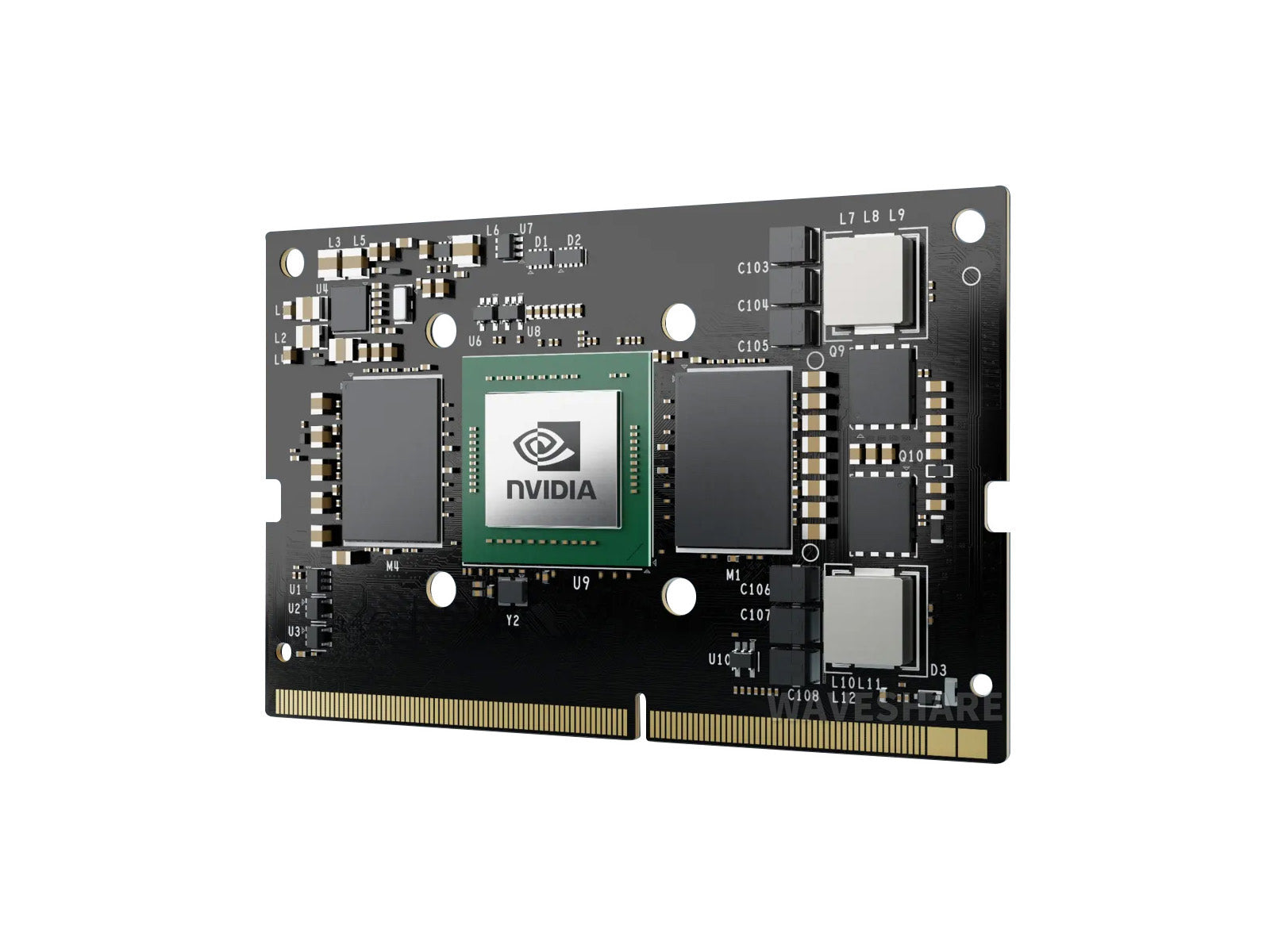

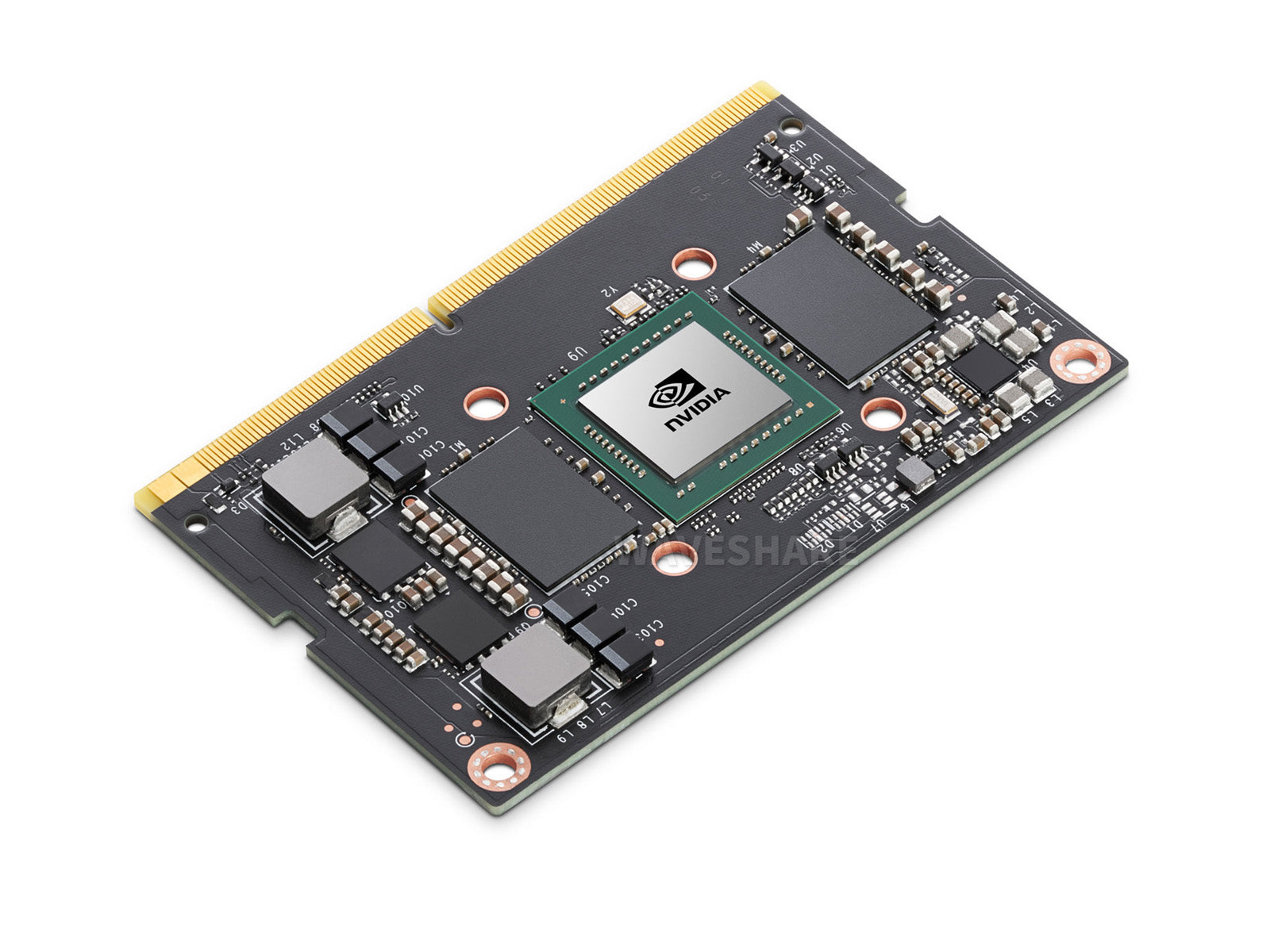

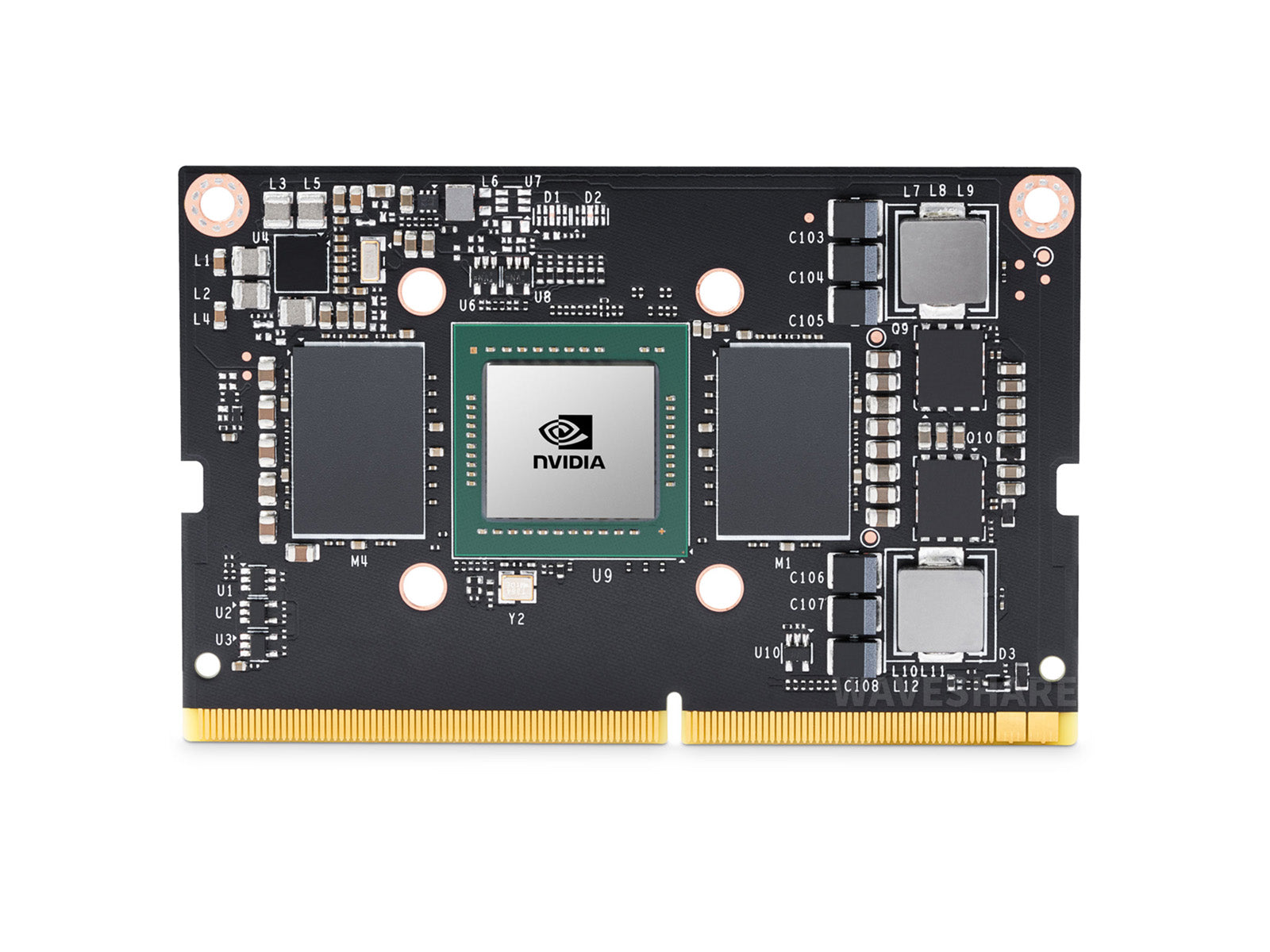

NVIDIA Jetson TX2 NX Module, High Performance AI at the Edge
Couldn't load pickup availability
Kurzbeschreibung: NVIDIA Jetson TX2 NX Module, Delivers The Next Step In AI Performance For Entry-Level Embedded And Edge Products
delivers the next step in AI performance for entry-level embedded and edge products
Now you can get exceptionally high compute, accuracy, and power efficiency in a module smaller than a credit card. Available in 69.6 mm x 45 mm dimensions, Jetson TX2 NX modules enable deep learning applications in small form-factor products.
Experience more than double the performance or twice the energy efficiency of Jetson TX1. It’s all made possible by the NVIDIA Pascal GPU architecture with 256 NVIDIA CUDA cores and 4 GB memory for fast compute and inference.
Run large, deep neural networks for higher accuracy on edge devices in as little as 7.5 watts. Jetson TX2 series modules are ideal for real-time processing in applications where bandwidth and latency can be an issue, including factory robots and enterprise collaboration devices.
| AI performance | 1.33 TFLOPS |
|---|---|
| GPU | NVIDIA Pascal architecture with 256 NVIDIA CUDA cores |
| CPU | Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm Cortex-A57 MPCore processor complex |
| Memory | 4 GB 128-bit LPDDR4 51.2 GB/s |
| Storage | 16 GB eMMC 5.1 |
| Power | 7.5 W | 15 W |
| PCIe | 1 x1 + 1 x2 PCIe Gen2, total 30 GT/s |
| CSI Camera | Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 (3x4 or 5x2) D-PHY 1.2 (up to 30 Gbps) |
| Video encode | 1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) 1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264) |
| Video decode | 2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1x 2 DSI (1.5Gbps/lane) |
| Networking | 10/100/1000 BASE-T Ethernet |
| Mechanical | 69.6 mm x 45 mm 260-pin SO-DIMM edge connector |
| Model | Module | Developer Kit |
|---|---|---|
| Jetson NanoNVIDIA Maxwell architecture128 NVIDIA CUDA cores |
 69.6×45mm 260-pin edge connector |
 100×80×29mm 4GB2GB
|
| Jetson TX2NVIDIA Pascal architecture256 NVIDIA CUDA cores |
 87×50mm 400-pin connector with Thermal Transfer Plate |
 170×170×15.6mm |
| Jetson TX2 NX NVIDIA Pascal architecture256 NVIDIA CUDA cores |
 69.6×45mm 260-pin edge connector |
Compatible with the baseboard of Jetson Xavier NX Developer Kit for quickly developing and debugging. |
| Jetson Xavier NXNVIDIA Volta architecture384 NVIDIA CUDA cores48 Tensor cores |
 69.5×45mm 260-pin edge connector |
 103×90.5×31mm |
| Jetson AGX XavierNVIDIA Volta architecture512 NVIDIA CUDA cores64 Tensor cores |
 100×87mm 699-pin connector Integrated Thermal Transfer Plate |
 105×105×65mm |
| Jetson Orin NXNVIDIA Ampere architecture1024 NVIDIA CUDA cores32 Tensor cores |
 69.6×45mm 260-pin SO-DIMM connector |
- |
| Model | Module | Developer Kit |
|---|---|---|
|
Jetson AGX Orin 2048-core N-VIDIA Ampere architecture GPU with 64 Tensor Cores |
 110×110×71.65mmOfficial Kit: 64GB
|
|
|
Jetson Orin Nano 512/1024-core N-VIDIA Ampere architecture GPU with 16/32 Tensor Cores |
 Memory: 4GB / 8GB69.6×45mm260-pin SO-DIMM connector |
 100×79×21mmOfficial Kit |
|
100×79×21mmOfficial Super Kit | ||
 103×90.5×34mmWaveshare Kit: 4GB / 8GB
| ||
 103×90.5×34mmWaveshare Dual ETH Kit: 4GB / 8GB
| ||
|
Jetson Orin NX 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
Memory: 8GB / 16GB69.6×45mm260-pin SO-DIMM connector |
 103×90.5×34mmWaveshare Kit: 8GB / 16GB
|
|
103×90.5×34mmWaveshare Dual ETH Kit: 8GB / 16GB
| ||
Note: some models haven't been released yet, please contact the Waveshare service team if you need them. | ||
As an NVIDIA official authorized partner, Waveshare is capable of providing genuine products and reliable tech support
Lieferumfang
- Jetson TX2 NX x1
