SKU:WSAL13926

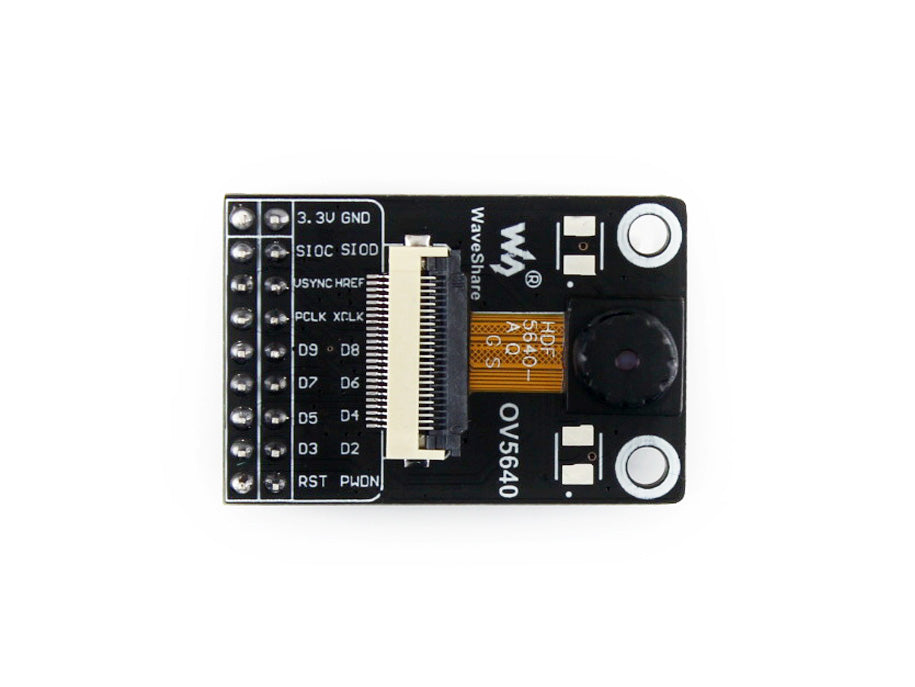

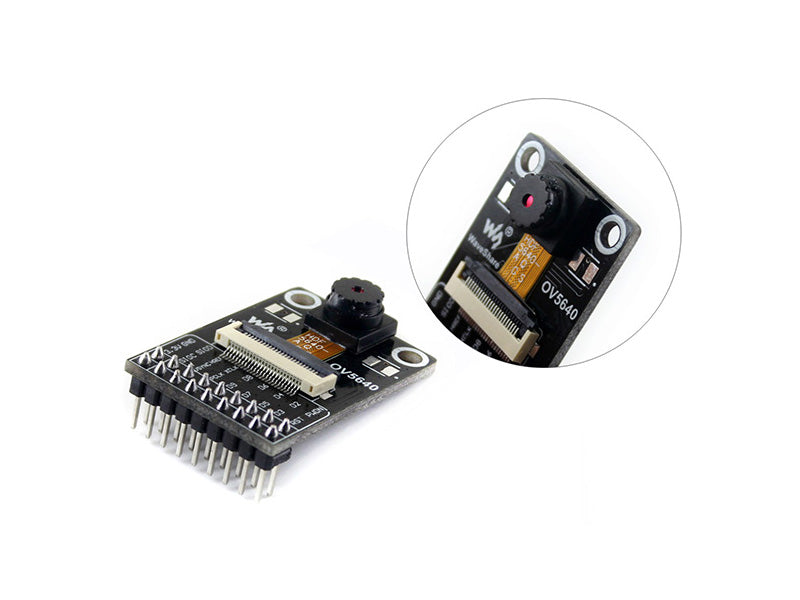

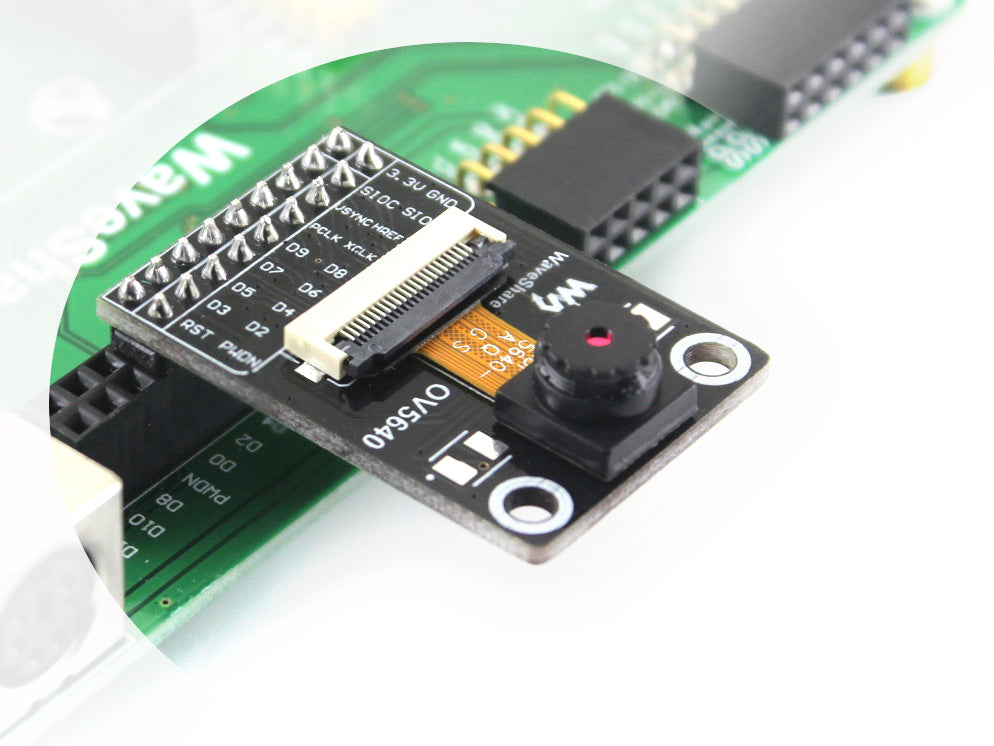

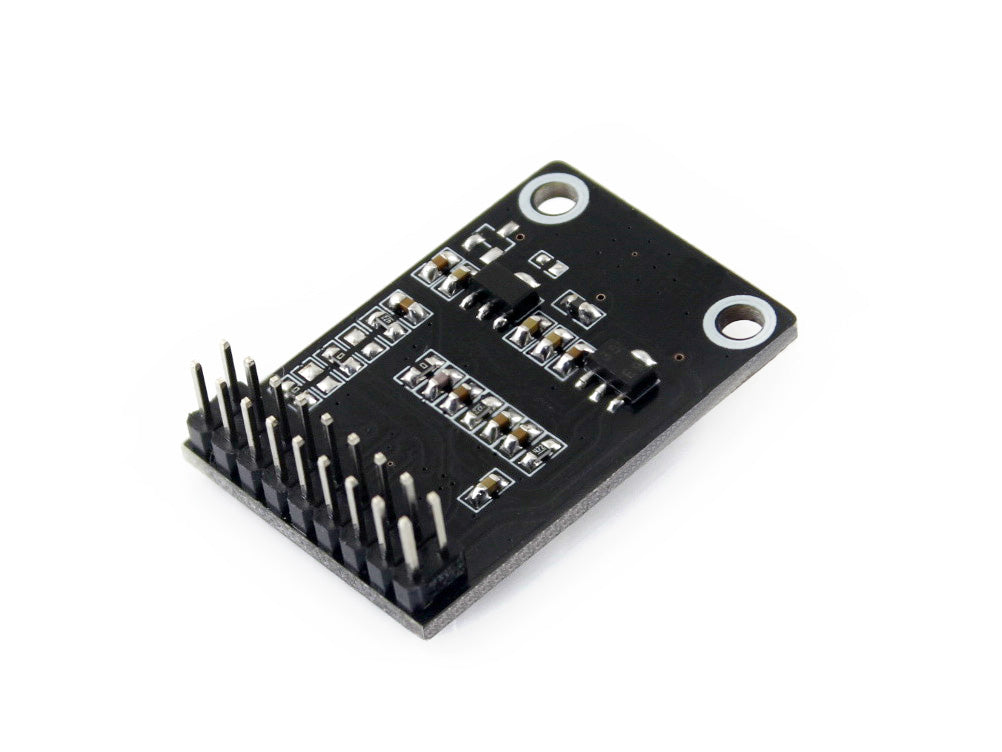

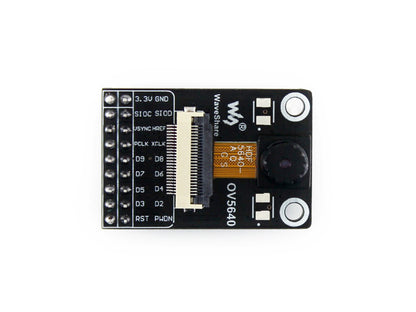

Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944)

Features

• Pixels: 5 megapixel
• Resolution: 2592x1944
• Sensor: OV5640
  • 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
  • Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
  • Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
  • Supports image scaling, panning, windowing, etc.
• Lens:
  • CCD size: 1/4inch
  • Aperture (F): 2.8
  • Focal Length: 2.8mm
  • Diagonal: 63 degree
• Output Formats:
  • YUV(422/420)/YCbCr422
  • RGB565/555/444
  • CCIR656
  • RAW RGB
  • Compressed Data
• Operating Voltage: 3.3V
• Control Interface: SCCB (I2C compatible)
• Data Interface: DVP 8-bit
• Dimension: 35.70mm × 23.90mm

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/OV5640_Camera_Board_(A)

Selection Guide

Part Number	Pixels	Sensor	Best Resolution	Dimension (mm)	Feature
OV5640 Camera Board (A)	5M	OV5640	QSXGA  2592x1944	35.7x23.9	Cost effective
OV5640 Camera Board (B)	5M	OV5640	QSXGA  2592x1944	35.7x23.9	Fisheye lens, 170 degree diagonal
OV5640 Camera Board (C)	5M	OV5640	QSXGA  2592x1944	35.7x23.9	Auto focusing, onboard flash
OV2640 Camera Board	2M	OV2640	UXGA 1622x1200	35.7x23.9	Lower price
OV9655 Camera Board	1.3M	OV9655	SXGA 1280x1024	35.7x23.9	Lower price
OV7670 Camera Board (B)	0.3M	OV7670	VGA 640x480	35.2x34.3	Cheap

Lieferumfang

1. OV5640 Camera Board (A) x1
