SKU:WSAL18899

Kurzbeschreibung: PCIe TO USB 3.2 Gen1 Adapter, Designed For Raspberry Pi Compute Module 4 IO Board, 4x High Speed USB Ports

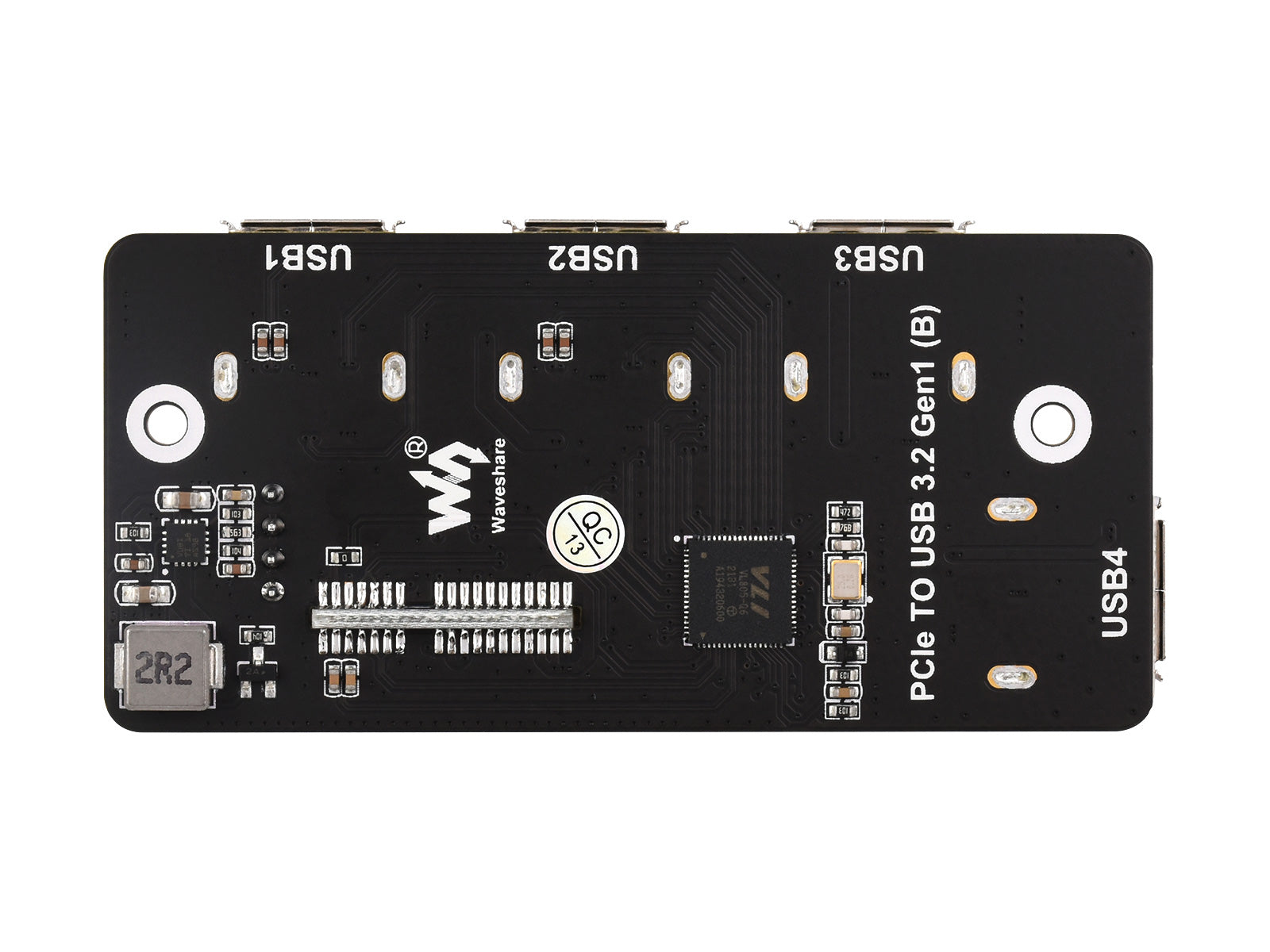

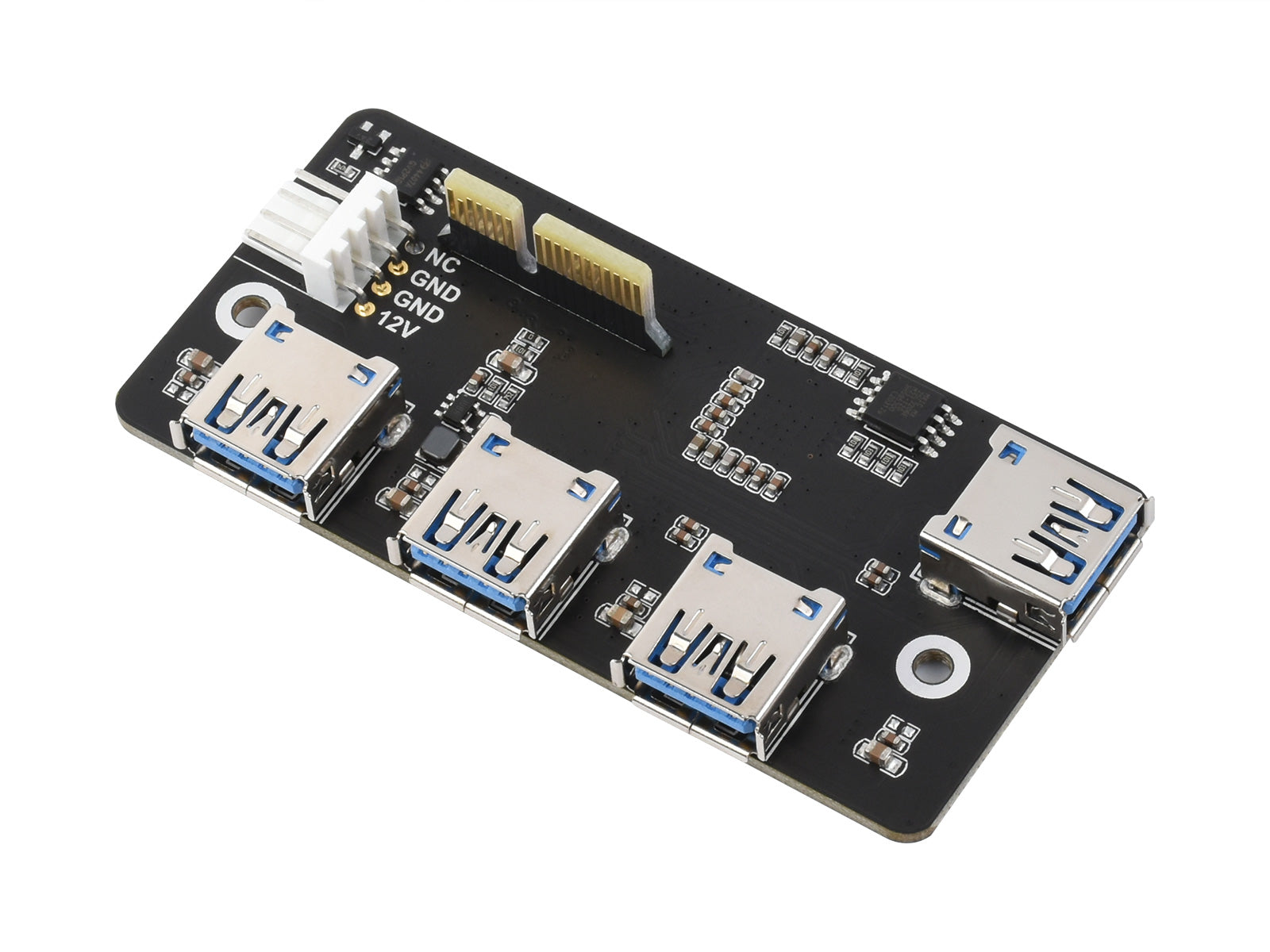

PCIe TO USB 3.2 Gen1 adapter, designed for Raspberry Pi Compute Module 4 IO Board, 4x high speed USB ports

PCI-EtoUSB 3.2 Gen1adapter

Supports PCIe power supply, 4x high speed USB ports

Designed for Raspberry Pi Compute Module 4 IO Board

Features at a glance

• 4x USB 3.2 Gen1 ports, USB 3.0 / 2.0 / 1.1 compatible
• Flexible power supply options: powered from either PCIe 12V, OR from 12V DC header
• Onboard VL805 chip, driver free, plug and play
• Designed for Raspberry Pi Compute Module 4 IO Board/Compute Module 4 PoE 4G Board
• When used with PC mother board, you'd better connect it through a PCIe extension cable

more USB capability for CM4

extending the PCIe interface to 4x high speed USB 3.2 Gen1 portsno more sluggish USB 2.0, no more USB port shortage

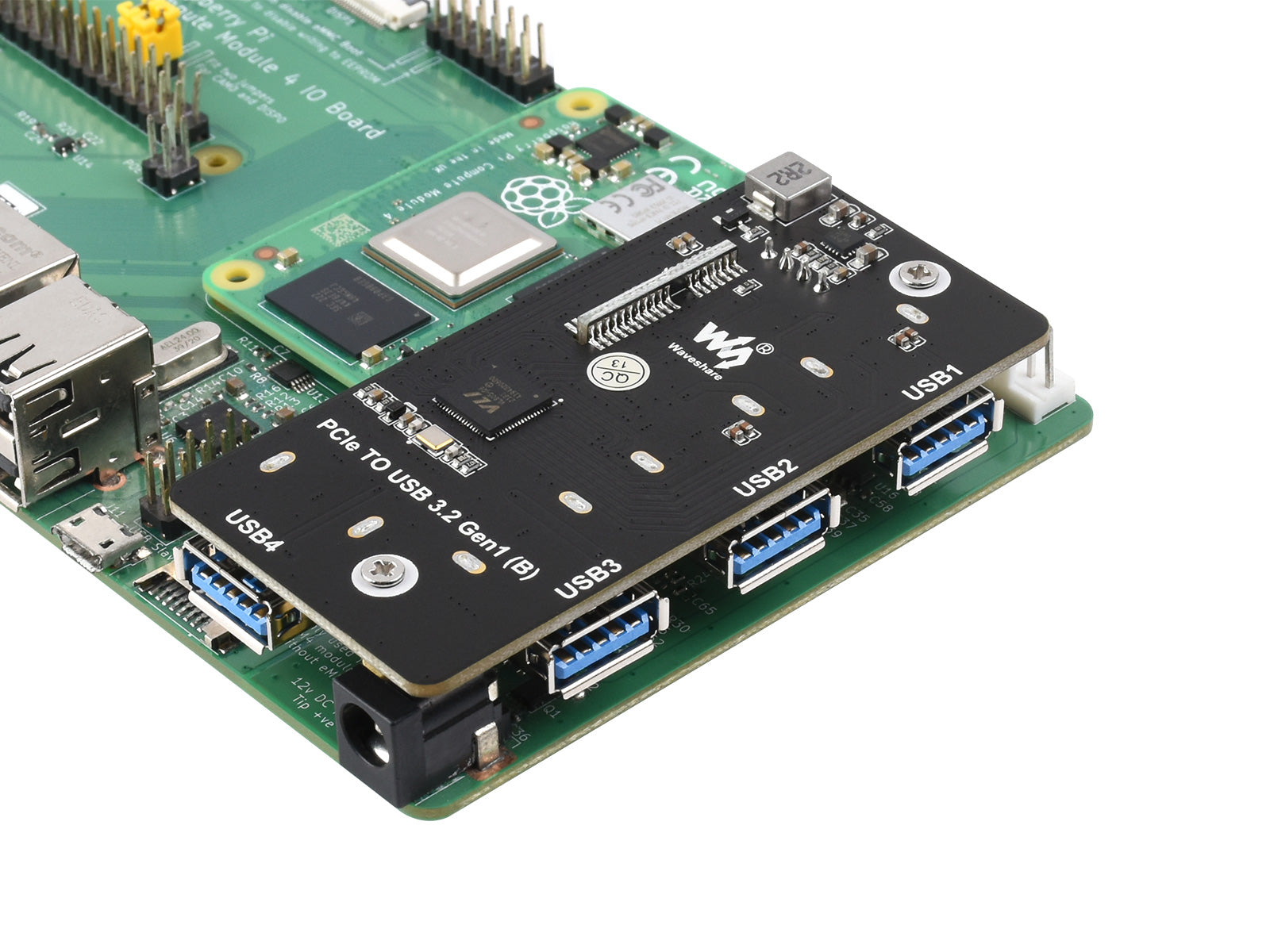

Working With Official CM4 IO Board

Working With CM4 IoT Industrial Control Base

for reference only, the CM4 and CM4 base boards are NOT included.

USB SSD speed test

USB 3.2 SSD test (left), USB 2.0 SSD test (right)

* When used with PC mother board, you'd better connect it through a PCIe extension cable.

Supports sorts of USB devices

Onboard VL805, driver free, plug and playSupports USB devices like USB flash drive, mouse, keyboard, headphone, mobile SSD...

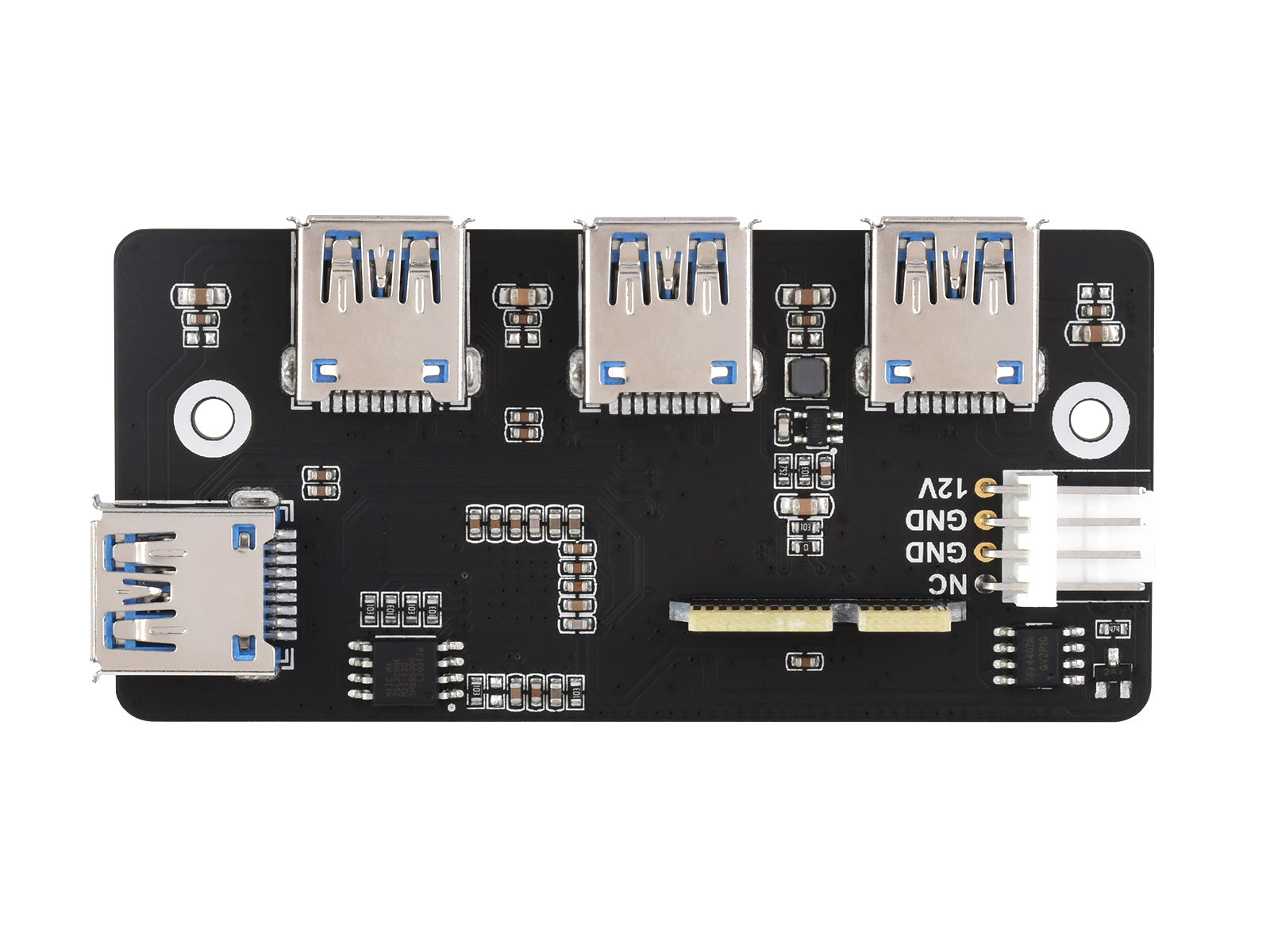

Flexible power supply options

powered from either PCIe 12V, OR from 12V DC header

Outline dimensions

Resources & Services

Wiki:PCIe_TO_USB_3.2_Gen1_(B)

Lieferumfang

1. PCIe TO USB 3.2 Gen1 (B) x1
2. Screws pack x1

1

2
